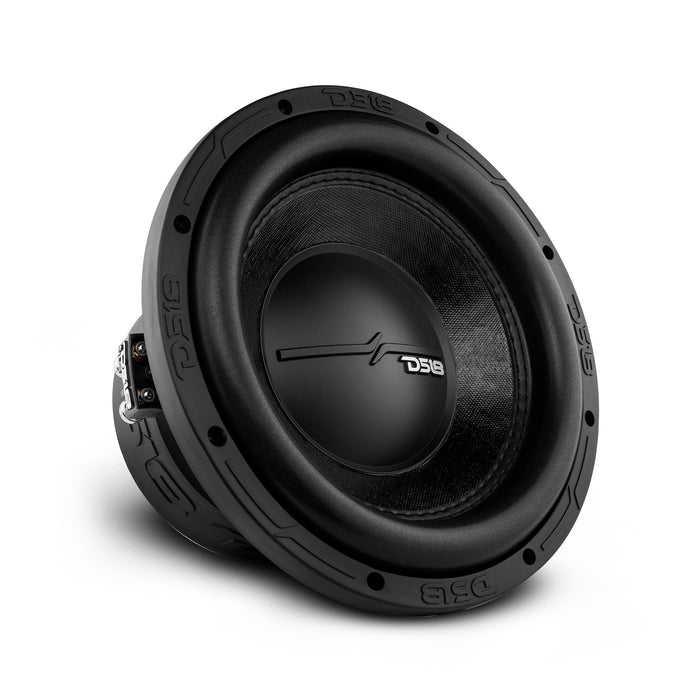

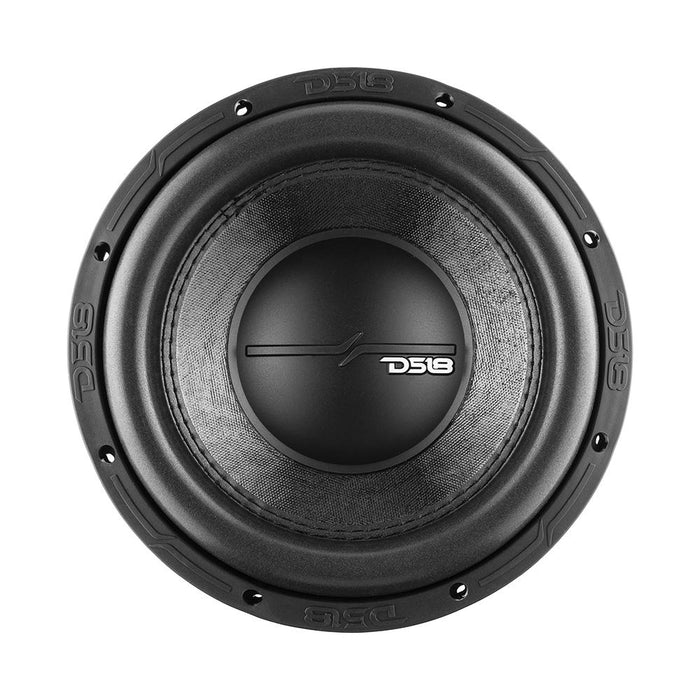

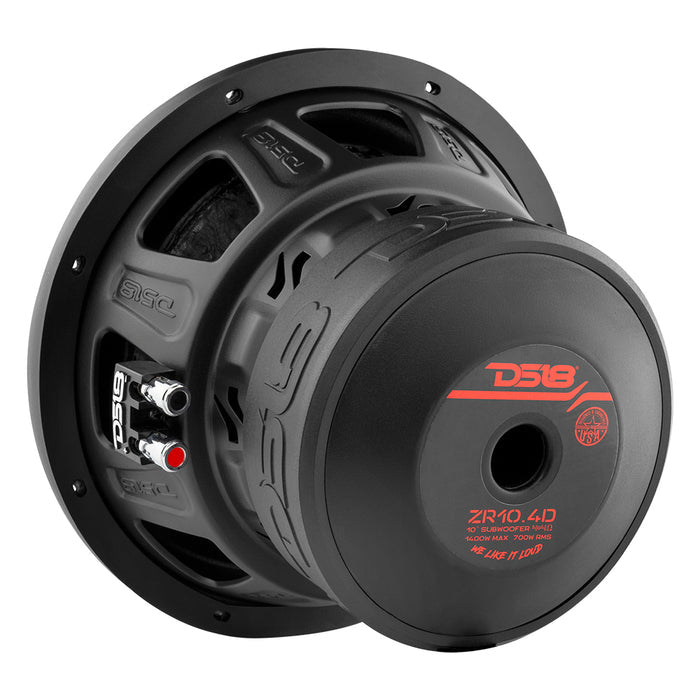

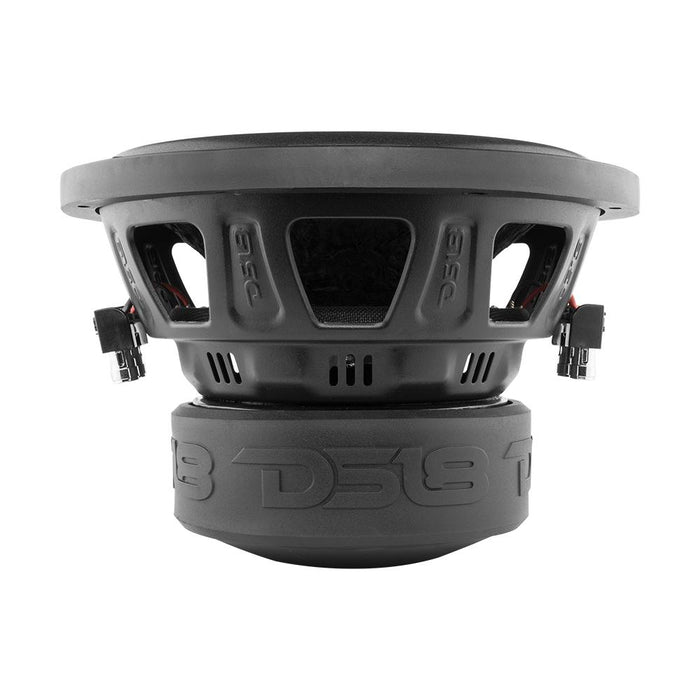

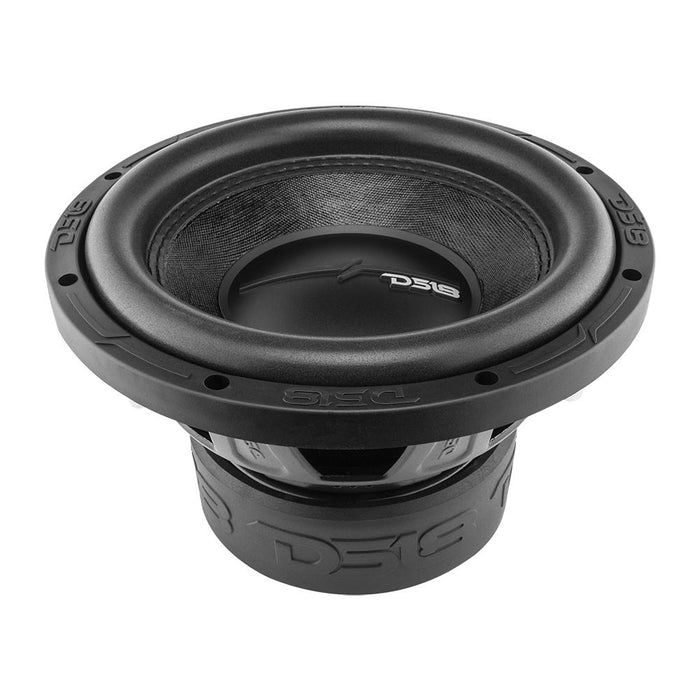

DS18 ZR 10" Subwoofer 700 Watts Rms 1400W Peak DVC 4-Ohm

Hit harder with the DS18 ZR 10" Subwoofer 700, a 10-inch dual 4-ohm subwoofer handling 700W RMS (1,400W peak).

At a glance

• Power: 700W RMS (1,400W peak)
• Size: 10"
• Impedance: Dual 4 ohm

Details

Feel the power of the DS18 ZR10.4D. This 10” subwoofer delivers 1400W MAX and 700W RMS with a 2.5” aluminum voice coil for clean, deep bass. Its dual 4-ohm coils offer flexible amp setups and efficient power use.
With a rugged basket, matte black finish, and bold DS18 styling, it’s built to perform and impress.

Features:

• 10" Subwoofer
• MAX Power: 1400 Watts
• RMS Power: 700 Watts
• Impedance: 4-Ohm 2.5" DVC
• Ferrite Magnet
• 81dB

Specifications:

SKU
ZR10.4D
Nominal Diameter
10" / 254mm
Nominal Impedance
4 + 4 Ohm
RMS Power Handling
700W
Maximum Power Handling
1400W
Sensitivity (1w/1m)
81 dB
Frequency Response
27-200Hz
Recommended Lo Pass Crossover
100Hz

UPC: 810005188685

Motor:

Voice Coil Diameter
2.5" / 61.6mm
Voice Coil Former Material
Aluminum
Winding Material
Copper
Cone Material
Non-Pressed Paper
Dust Cap Material
PPI
Surround Material
Foam
Basket Material
Steel
Basket Color/Finish
Black Matte
Magnet Material
Ferrite
Magnet Weight
100 Oz
Displacement Volume
0.05 ft3

Thiele & Small Parameters:

Equivalent Volume Vas
8.18 L
Free Air Resonance Fs
37 Hz
Mechanical Factor Qms
4.86
Electrical Factor Qes
0.93
Total Factor Qts
0.78
Moving Mass Mms
216.3g
Compliance Cms
52.8? m/N
Bl Factor BI
10.7
Voice Coil Inductance Le
823.5m mH
Diaphragm Area Sd
333.29 Cm2
DC Resistance Re
3.4 + 3.4 Ohm
Efficiency Bandwidth Product EBP
39.78

Measurements:

Overall Diameter
10.31" / 262mm
Overall Depth
6.92" / 176mm
Front Mount Baffle Cutout
9" / 229mm
Mounting Depth
6" / 152.3mm
Motor Diameter
6.1" / 155mm
Gross Single Unit Weight (lb)
17.5
Dimensions W x L x H (Inches)
11.5 x 11.5 x 8.25
Quantity of Units in Master Carton
2
Gross Master Carton Weight (lb)
36
M/C Dimensions W x L x H (Inches)
12.25 x 12.25 x 17.75
