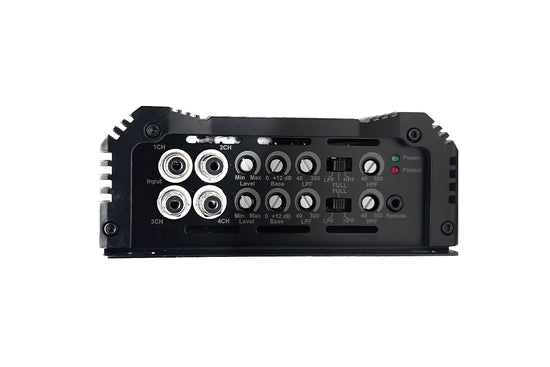

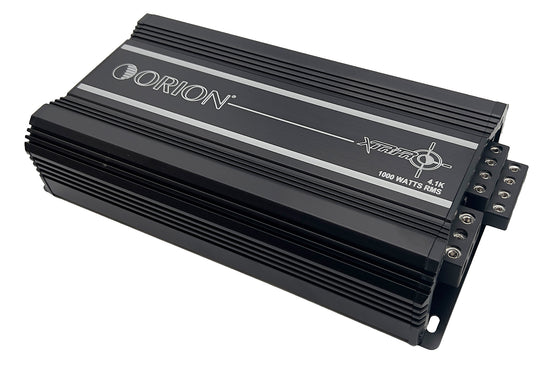

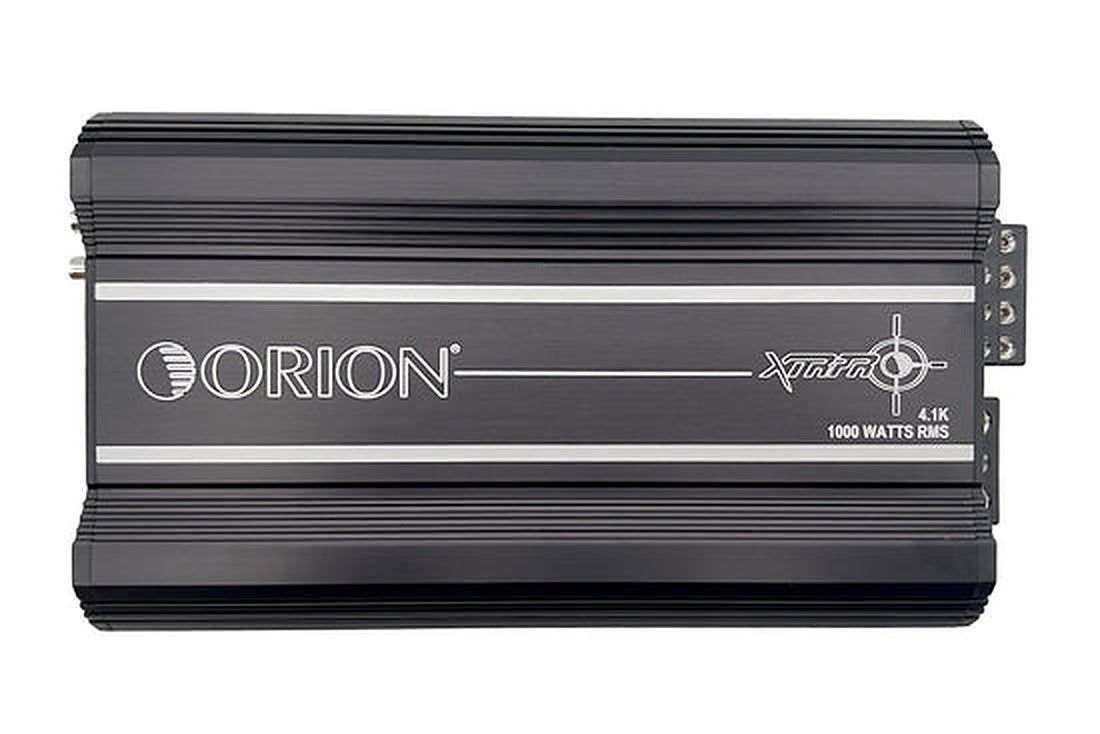

Orion XTRPRO4.1K 1000W RMS IntelliTech 4-Channel Full-Range Amplifier

The Orion XTRPRO4.1K is a 4-channel Class D amp built to drive your speakers or subs with 1,000W RMS.

At a glance

• Power: 1,000W RMS
• Channels: 4
• Class D

Details

The Orion XTRPRO4.1K is a compact, high-performance 4-channel full-range amplifier delivering up to 310W per channel at 1 ohm. Designed for flexibility, it powers mids, highs, or full-range systems with clarity and control.

Featuring Orion’s IntelliTech platform, it ensures optimized signal flow, precise frequency response, and efficient thermal management. Whether you're tuning a 3-way front stage or powering custom setups, it adapts with clean, powerful output.

Built on Class D topology, it offers high efficiency and low heat, ideal for tight installs. With remote gain, variable filters, and bass boost, you stay in full control of your sound.

Perfect for daily drivers or show builds, the XTRPRO4.1K delivers the clarity, control, and confidence to elevate your audio system.

Features:

• Compact Power, Big Output: Delivers up to 310W per channel at 1 ohm—ideal for mids, highs, and midbass in space-limited builds.
• Versatile Full-Range Performance: Orion’s IntelliTech architecture powers everything from tweeters to subs with clarity and thermal stability.
• Precision Tuning: Adjustable high/low-pass filters and 12dB bass boost let you fine-tune your system for optimal sound.
• Built for Demanding Installs: Compact, thermally protected, and reliable under pressure—perfect for stealth or extreme setups.

Specifications:

IntelliTech Full-Range Class D Design

1-Ohm Stable on All Channels

High-Pass Filter: 40Hz – 500Hz

Low-Pass Filter: 40Hz – 300Hz

Bass Boost: 0 – 12dB

Gain Control: 200mV – 6V

Signal-to-Noise Ratio: >94dB

Damping Factor: >100

Remote Gain Controller Included

Thermal and Short Circuit Protection

Heavy-Duty Power & Speaker Terminals

11.02” x 5.90” x 2.16” (280mm x 150mm x 55mm)

Power Ratings:

RMS Power @ 4 Ohms: 150W x 4CH
RMS Power @ 2 Ohms: 220W x 4CH
RMS Power @ 1 Ohm: 310W x 4CH

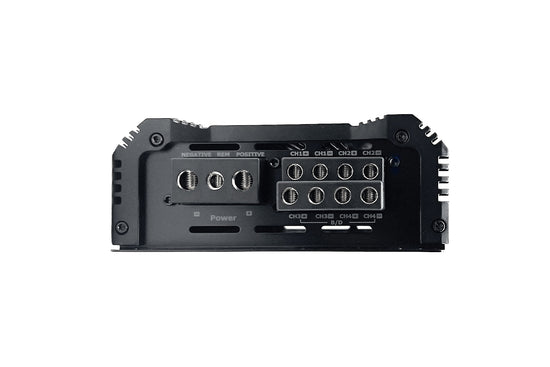

Power Terminal Management:

Positive Terminals: 3 x 4 AWG.
Negative Terminals: 3 x 4 AWG.
Remote Turn-ON Signal: 10 AWG.
Speaker Output Terminals: 4 AWG.
