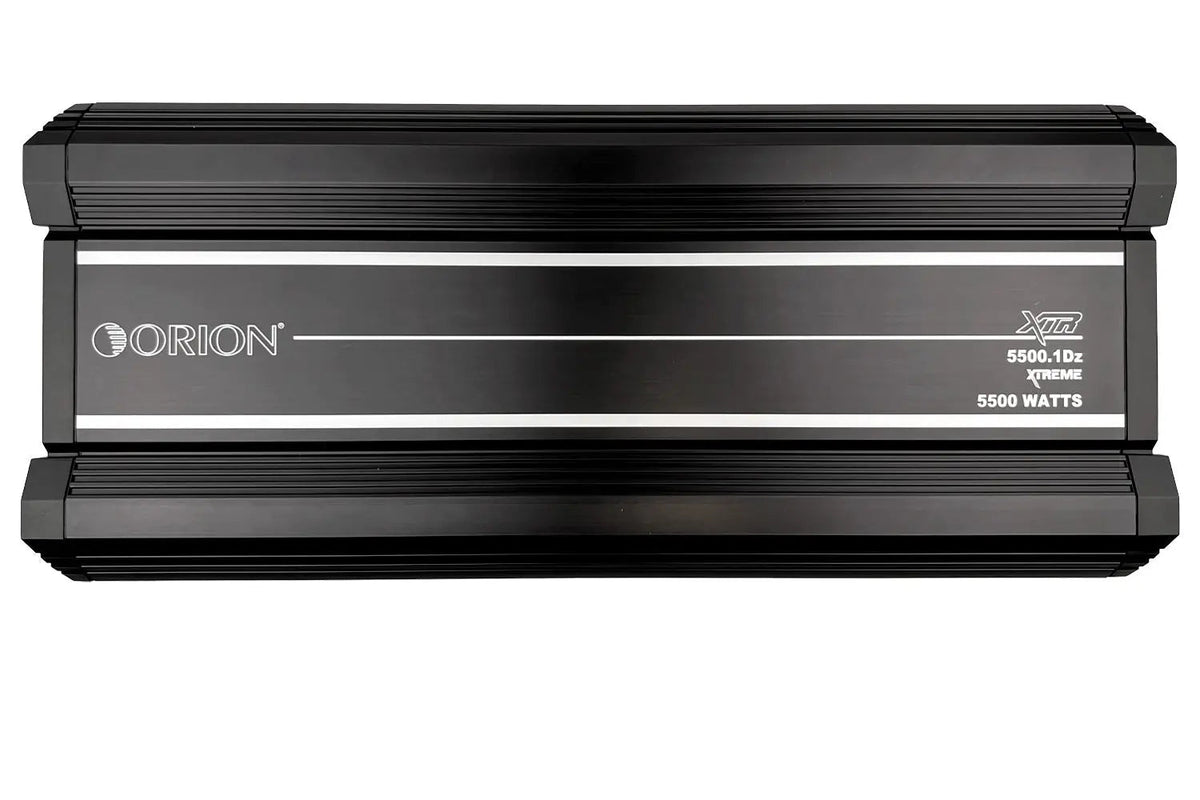

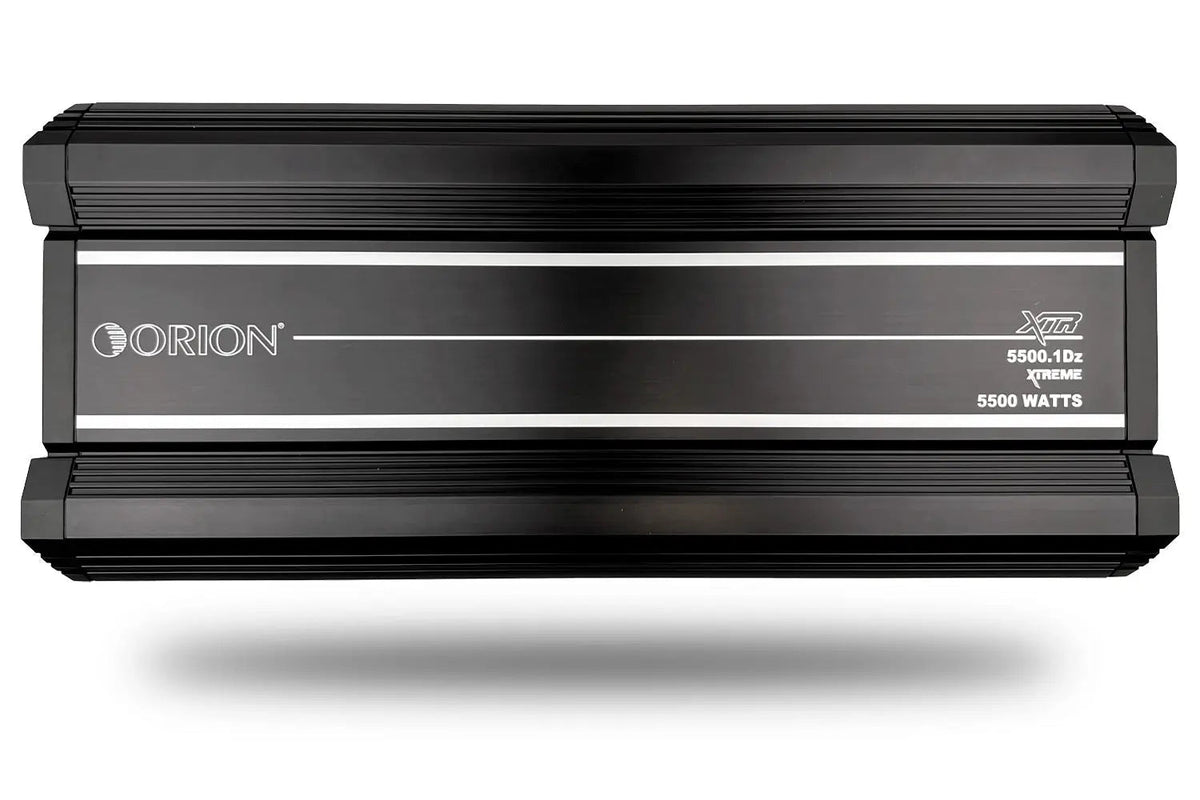

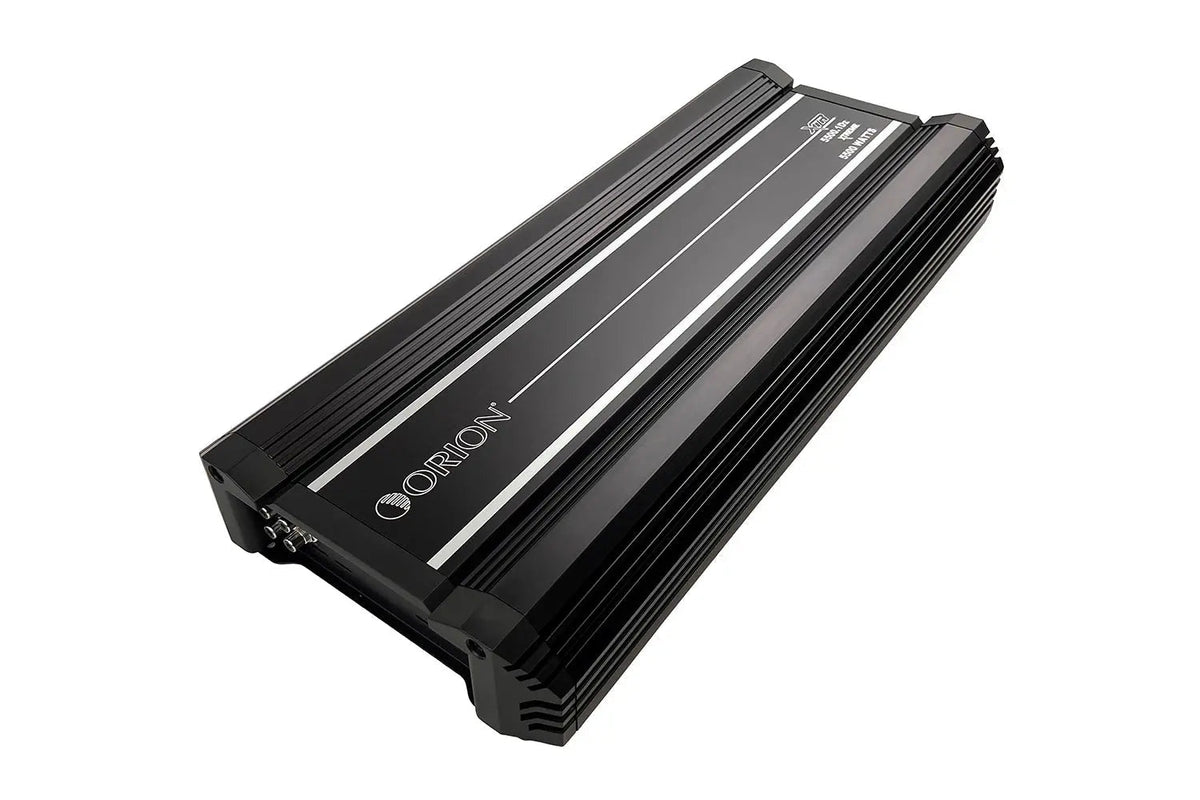

Orion XTR5500.1DZ 5500W RMS Monoblock Class D Car Amplifier – 1-Ohm Stable, Bass Boost, Low-Pass Crossover

Looking for more volume without distortion? The Orion XTR5500.1DZ mono amplifier puts out 5,500W RMS.

At a glance

• Power: 5,500W RMS
• Channels: Mono
• Class D

Details

Unlock extreme bass power with the ORION XTR5500.1Dz, a high-output Class-D monoblock amplifier engineered for serious car audio performance. Built to deliver massive 5500W RMS power, it drives subwoofers with precision, control, and deep, clean low-end impact.

Designed for competition-level output and daily-driver reliability, this amplifier combines advanced efficiency with rugged construction for consistent performance under heavy load.

Features:

• Massive 5500W RMS Output – extreme power for deep, hard-hitting bass performance
• High-Efficiency Class D Design – maximum output with reduced heat and power loss
• 2-Ohm Stable Performance – supports demanding high-power subwoofer systems
• Adjustable Bass Boost & Crossover Control – precise tuning for customized low-frequency sound
• Advanced 4-Way Protection Circuitry – thermal, short, DC offset, and voltage protection for reliability

Specifications:

RMS Power: 2000W @ 4Ω (0.5% THD+N)

RMS Power: 3600W @ 2Ω (0.5% THD+N)

RMS Power: 5500W @ 1Ω (0.5% THD+N, max rated output)

Linked Amplifier Output: 11,200W RMS @ 2Ω (with identical amplifier)

Positive Power Terminals: 2 × 0 AWG

Negative Power Terminals: 2 × 0 AWG

Remote Turn-On Wire: 10 AWG

Speaker Output Terminals: 4 AWG

Frequency Response: 20Hz - 250Hz

Low Pass Crossover: 30Hz - 300Hz

Supply Voltage: 9 - 16V

Amplifier Efficiency: >88%

Damping Factor: 200dB

Signal to Noise Ratio: >90dB

T.H.D. & Noise: 0.5%

Phase Shift: 0 - 180

Bass Boost: 0-18dB Variable

Subsonic Filter: Off / 25Hz

Variable Input Level Control: 0.2V - 6.0V

Fuses: 550A recommended (not included)

Dimensions (L x W x H): 21.26" x 9.25" x 2.75" (540x235x70mm)

UPC: 818550016989
