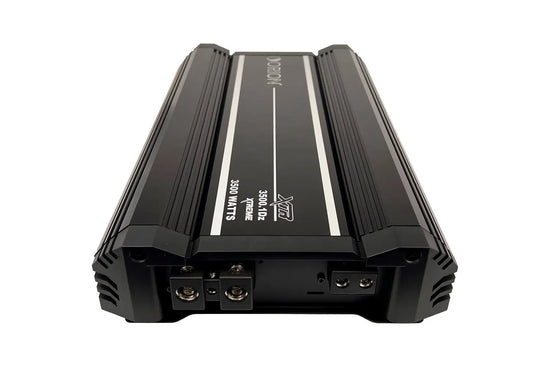

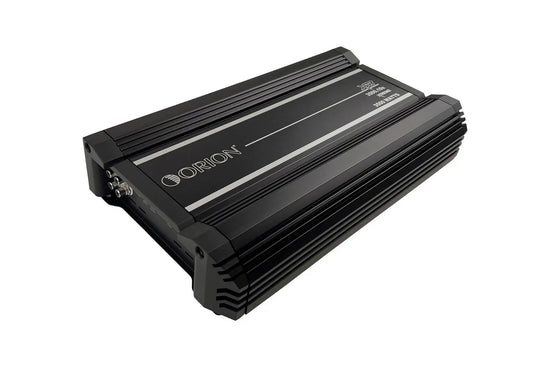

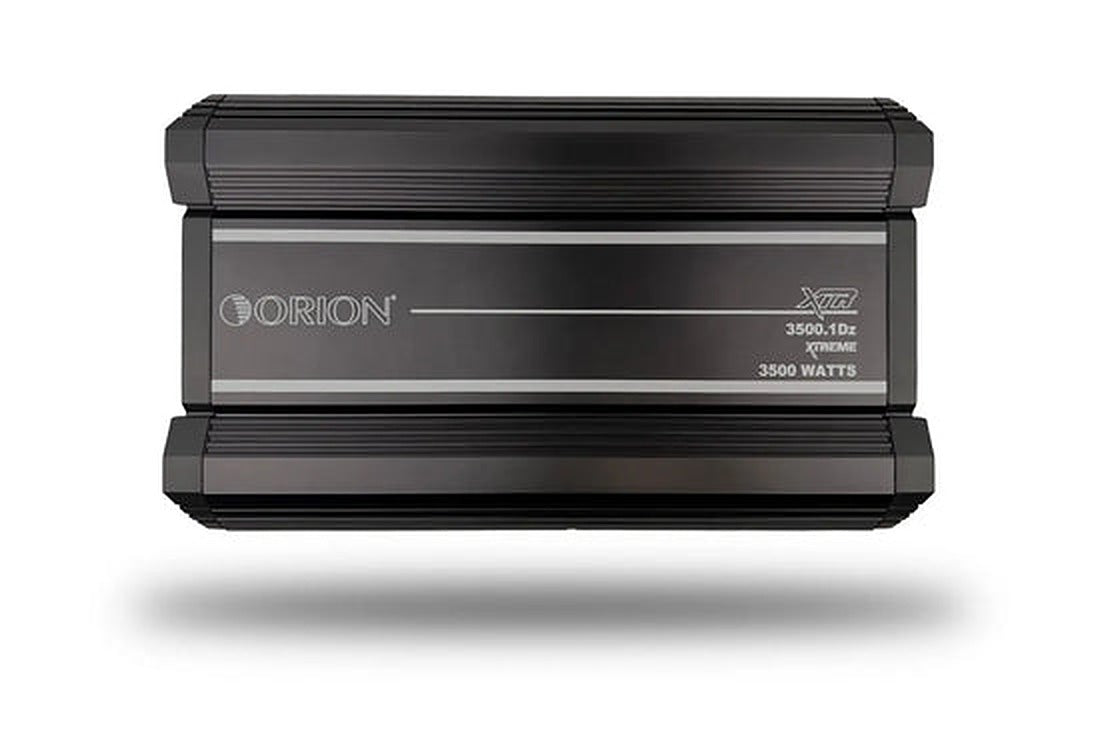

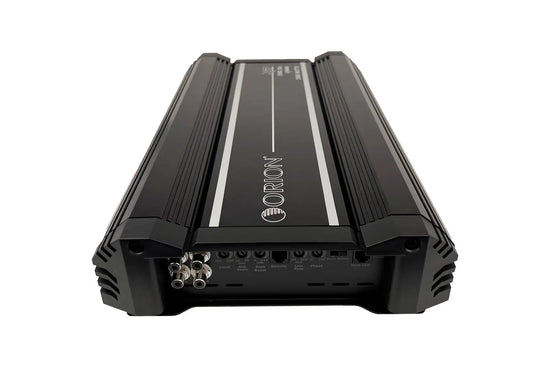

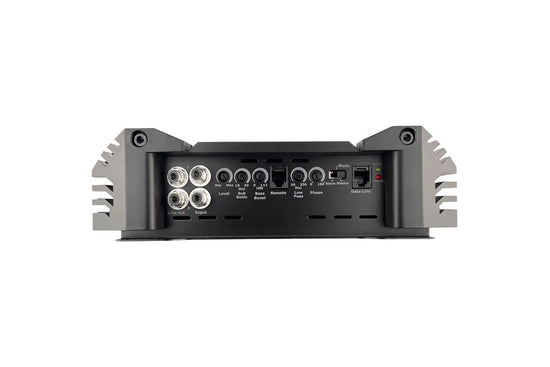

Orion XTR3500.1Dz 3500W RMS Monoblock Class D Car Amplifier – 1-Ohm Stable, Bass Boost, Low-Pass Crossover

Power your system with the Orion XTR3500.1Dz. This mono Class D car amplifier delivers 3,500W RMS.

At a glance

• Power: 3,500W RMS
• Channels: Mono
• Class D

Details

Unleash extreme bass power with the ORION XTR3500.1Dz, a high-performance Class-D monoblock amplifier engineered for powerful, clean, and precise low-frequency output. Designed for serious car audio systems, it delivers 3500W RMS of controlled power for deep, hard-hitting bass and superior sound clarity.

Built with advanced engineering and high-efficiency Class-D technology, this amplifier ensures maximum output with minimal distortion, making it ideal for both daily drivers and custom audio builds.

Features:

• 3500W RMS High-Output Power – delivers deep, clean, and powerful bass performance
• High-Efficiency Class D Design – maximum power output with reduced heat and energy loss
• 2-Ohm Stable Operation – reliable performance for demanding subwoofer systems

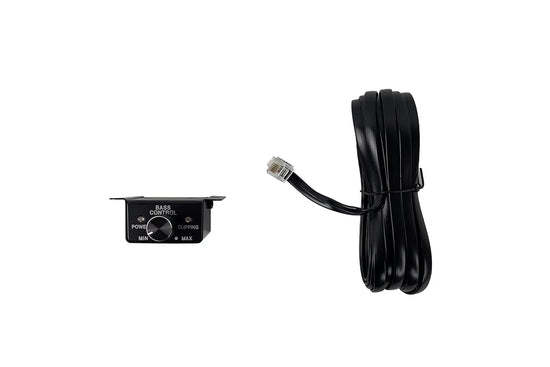

• Adjustable Bass Boost & Low-Pass Crossover – precise tuning for customized sound control
• Advanced 4-Way Protection Circuitry – safeguards against thermal, short, DC, and voltage issues

Specifications:

RMS Power: 1450W @ 4Ω (0.5% THD+N)

RMS Power: 2500W @ 2Ω (0.5% THD+N)

RMS Power: 3500W @ 1Ω (0.5% THD+N, max rated output)

Linked Amplifier Output: 7600W RMS @ 2Ω (with identical amplifier)

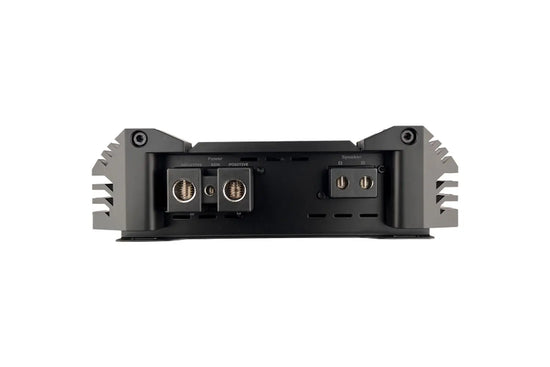

Positive Power Terminal: 1 × 0 AWG

Negative Power Terminal: 1 × 0 AWG

Remote Turn-On Wire: 10 AWG

Speaker Output Terminals: 4 AWG

Frequency Response: 20Hz – 250Hz

Low Pass Crossover: 30Hz – 300Hz

Supply Voltage: 9V – 16V

Amplifier Efficiency: >88%

Damping Factor: 200dB

Signal-to-Noise Ratio: >90dB

THD + Noise: 0.5%

Phase Shift: 0° – 180°

Bass Boost: 0 – 18dB (variable)

Subsonic Filter: Off / 25Hz

Variable Input Level Control: 0.2V – 6.0V

Fuse Requirement: 300A (recommended, not included)

Dimensions: 15.35" × 9.25" × 2.75" (390 × 235 × 70mm)

UPC: 818550016965
