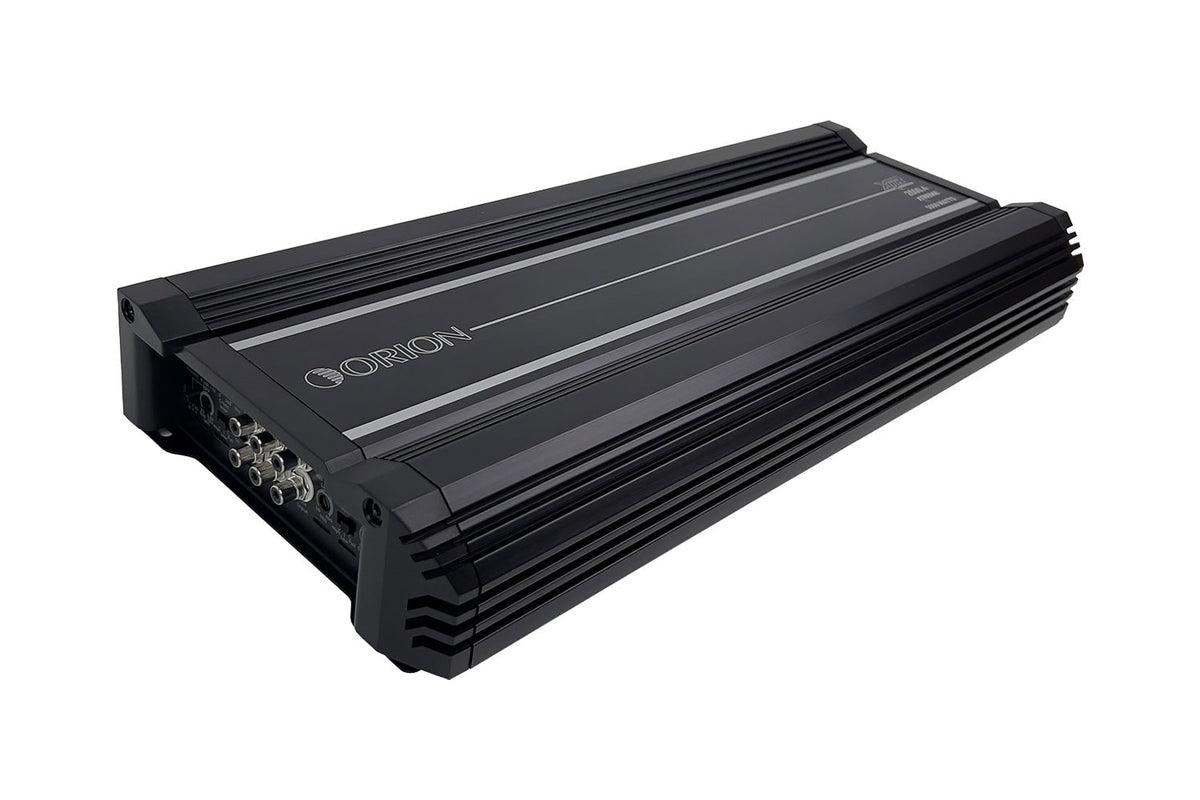

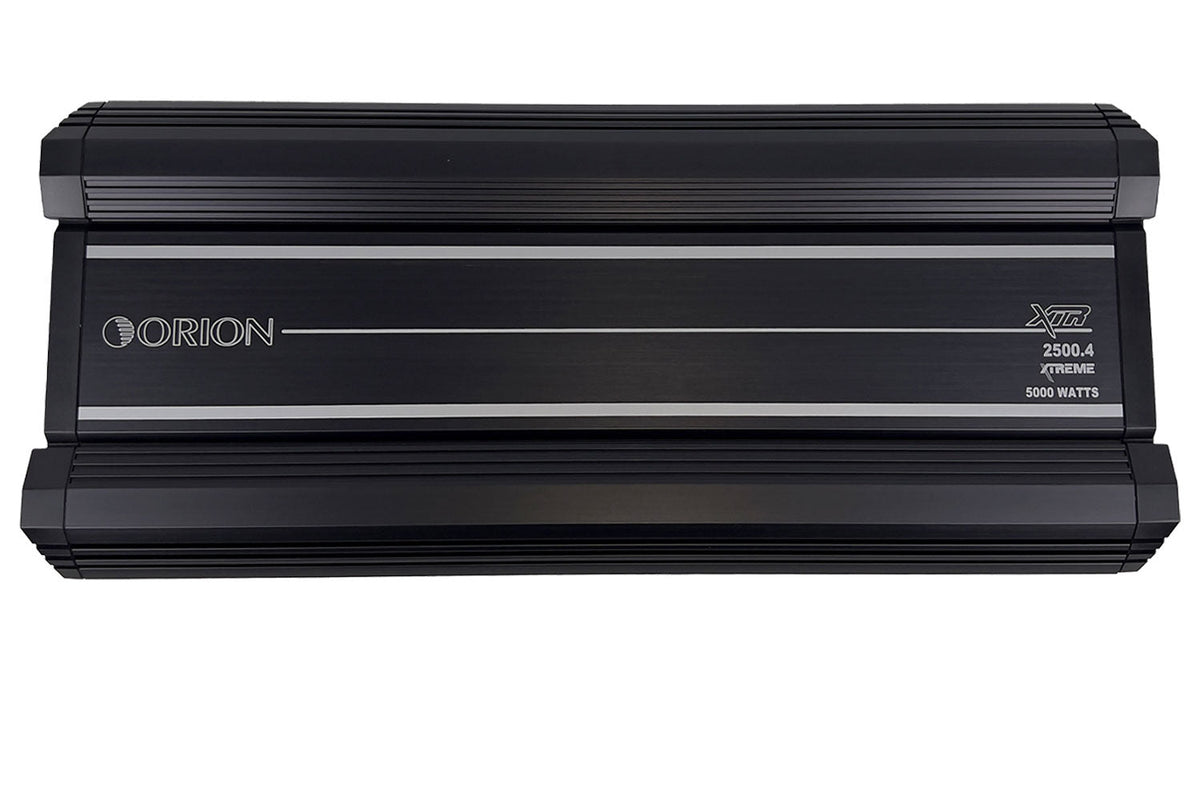

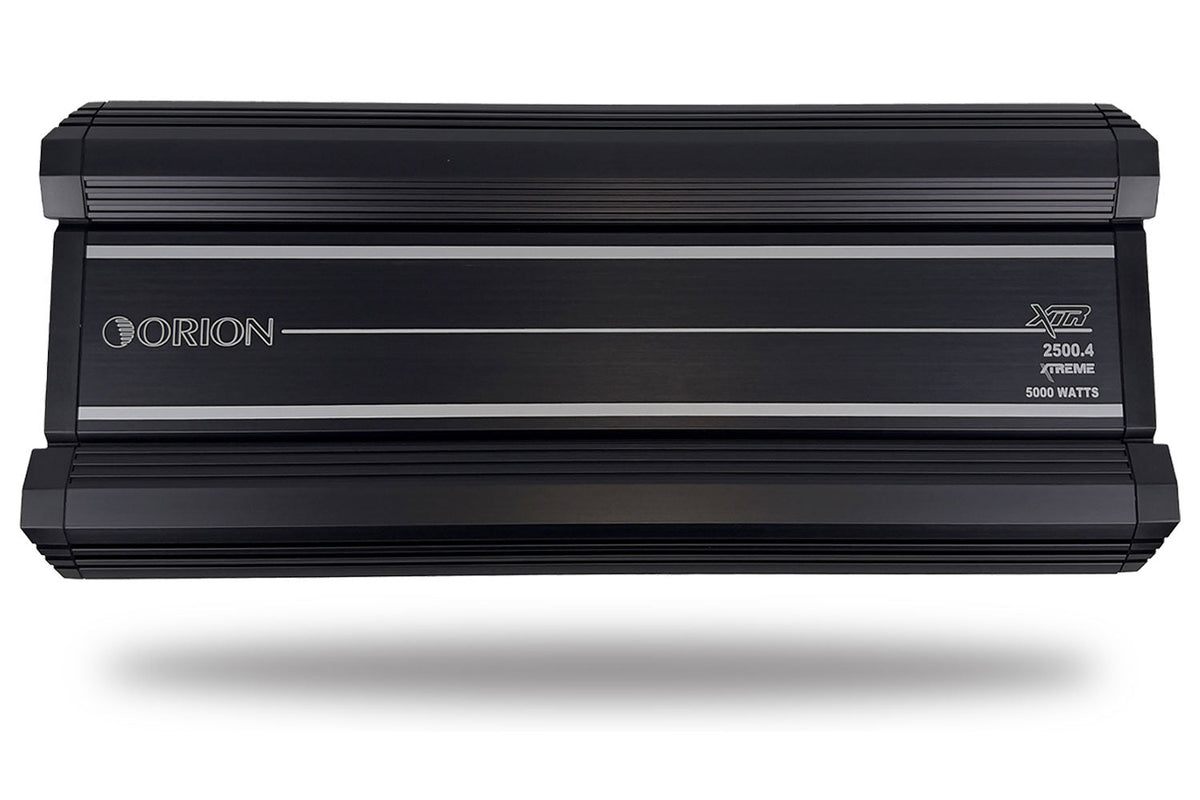

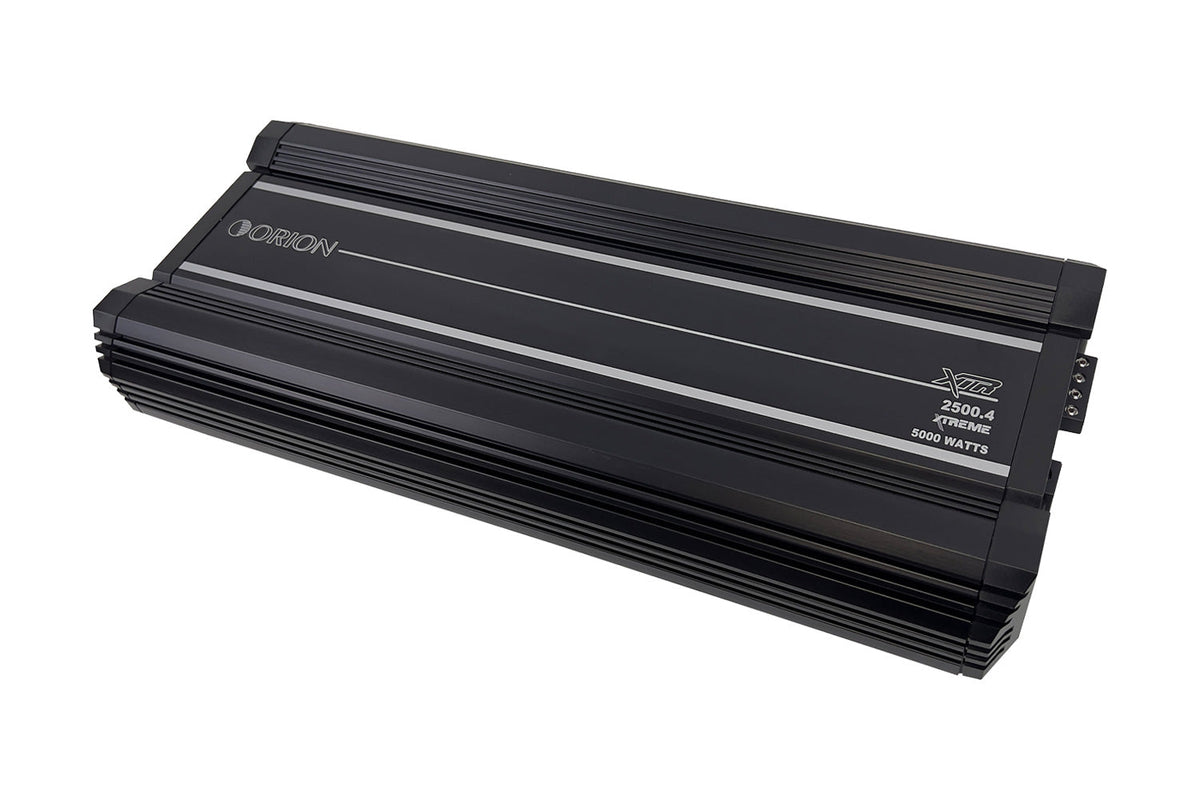

Orion XTR2500.4 XTR Series 2500W RMS 4-Channel Class-AB Amplifier

The Orion XTR2500.4 is a 4-channel Class AB amp built to drive your speakers or subs with 2,500W RMS.

At a glance

• Power: 2,500W RMS
• Channels: 4
• Class AB

Details

ORION XTR2500.4 XTR Series 2500W RMS 4-Channel Class-AB Amplifier

Experience the pinnacle of efficiency and precision with Class AB amplification for supreme and accurate sound reproduction.Immerse yourself in a world of supreme audio excellence with 2500 Watts RMS, delivering uncompromising and clear sound performance.The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring durability.The amplifier's sleek design offers versatile installation options without compromising performance or aesthetics.Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.

Features:

• All MOSFET Power Supply & Output Stage
• Heavy Gauge / High Current Custom Power and Speaker Terminals
• 12dB Octave Low-Pass Filter

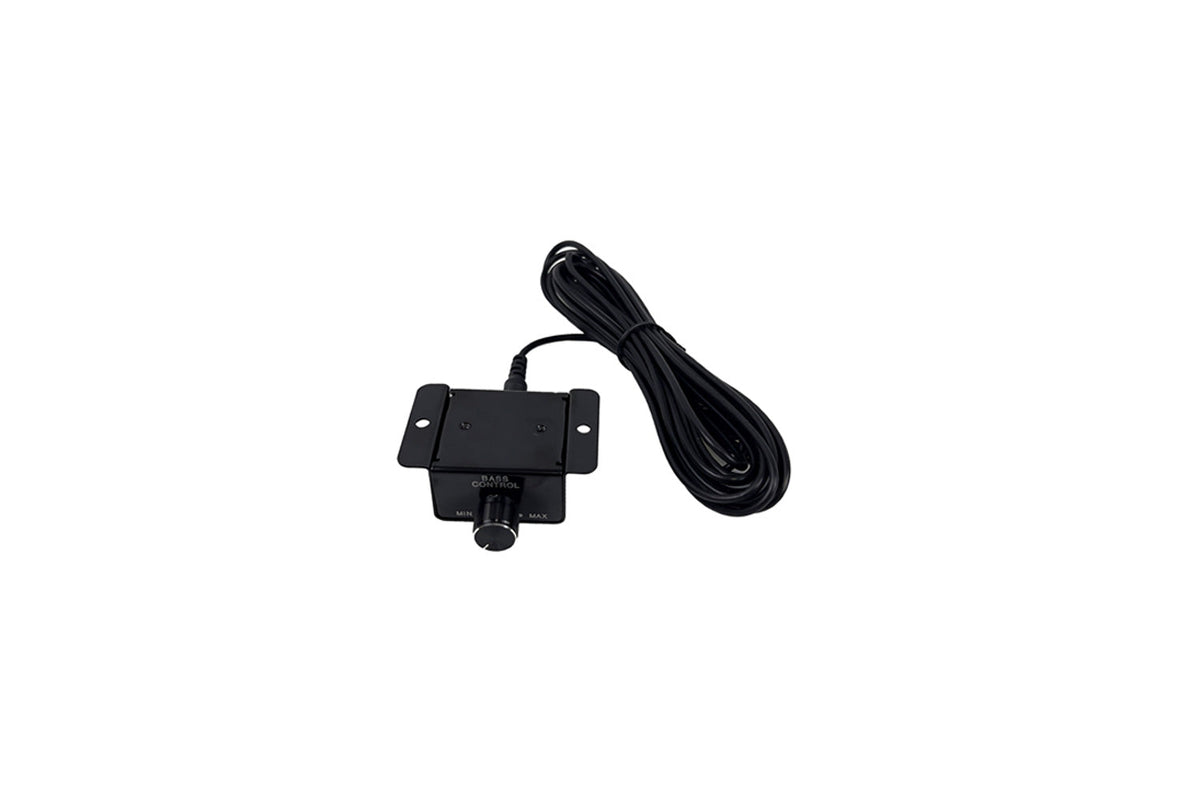

• Remote Gain Controller Included
• Electronic Crossover Network
• Bass Boost Circuit
• Power and Protection LED Indicators
• Soft Turn-on/Turn-off Turn-On Delay
• Fault and Protection Monitoring
• 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage

Power Ratings:
- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 4 x 400W
- RMS WATTS @ 2 Ohms @ 0.5% THD+N: 4 x 650W
- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 1250W

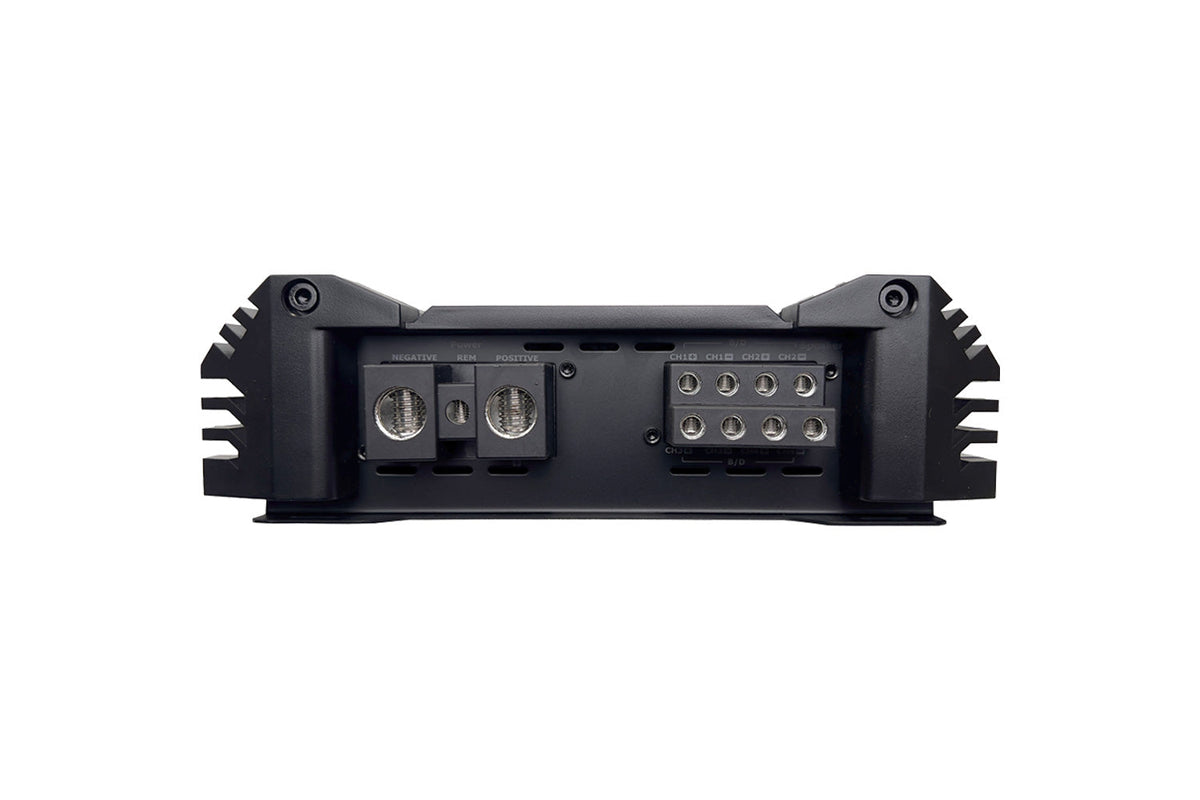

Power Terminal Management:
Positive Terminals: 1 x 0 AWG.
Negative Terminals: 1 x 4 AWG.
Remote Turn-ON Signal: 10 AWG.
Speaker Output Terminals: 10 AWG.

Specifications:
Frequency Response: 20Hz - 35kHz
Linear Bandwidth 20Hz to 65kHz +/- 3 dB

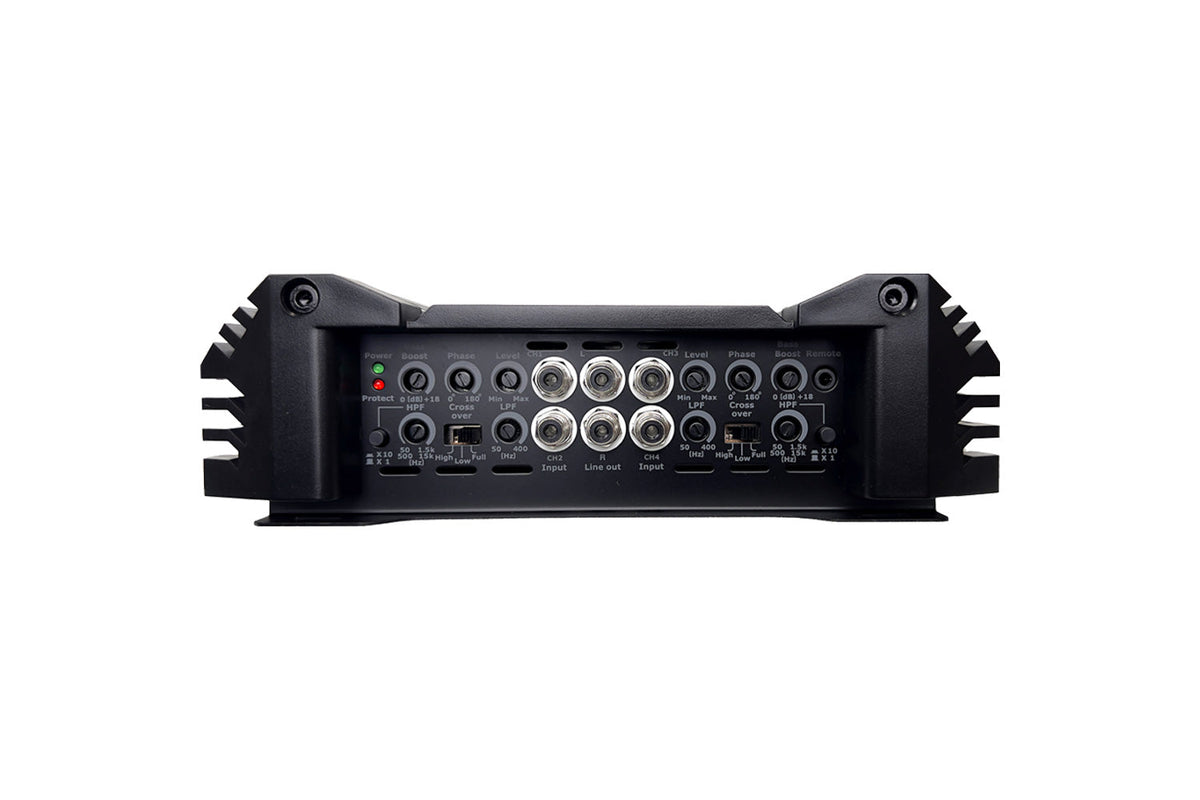

High Pass Crossover Continuously variable (50-1.5kHz/500-15kHz)
Low Pass Crossover Continuously variable (50-400Hz)
Supply Voltage: 9 - 16V
Amplifier Efficiency: >60%
Damping Factor: 100dB
Signal to Noise Ratio: >95dB
T.H.D. & Noise: 0.5%
Phase Shift: 0 - 180
Bass Boost: 0-18dB Variable
Variable Input Level Control: 0.2V - 6.0V
Fuses: 200A recommended
Dimensions (L x W x H): 21.26" x 9.25" x 2.75" (540x235x70mm)

UPC: 818550013407
