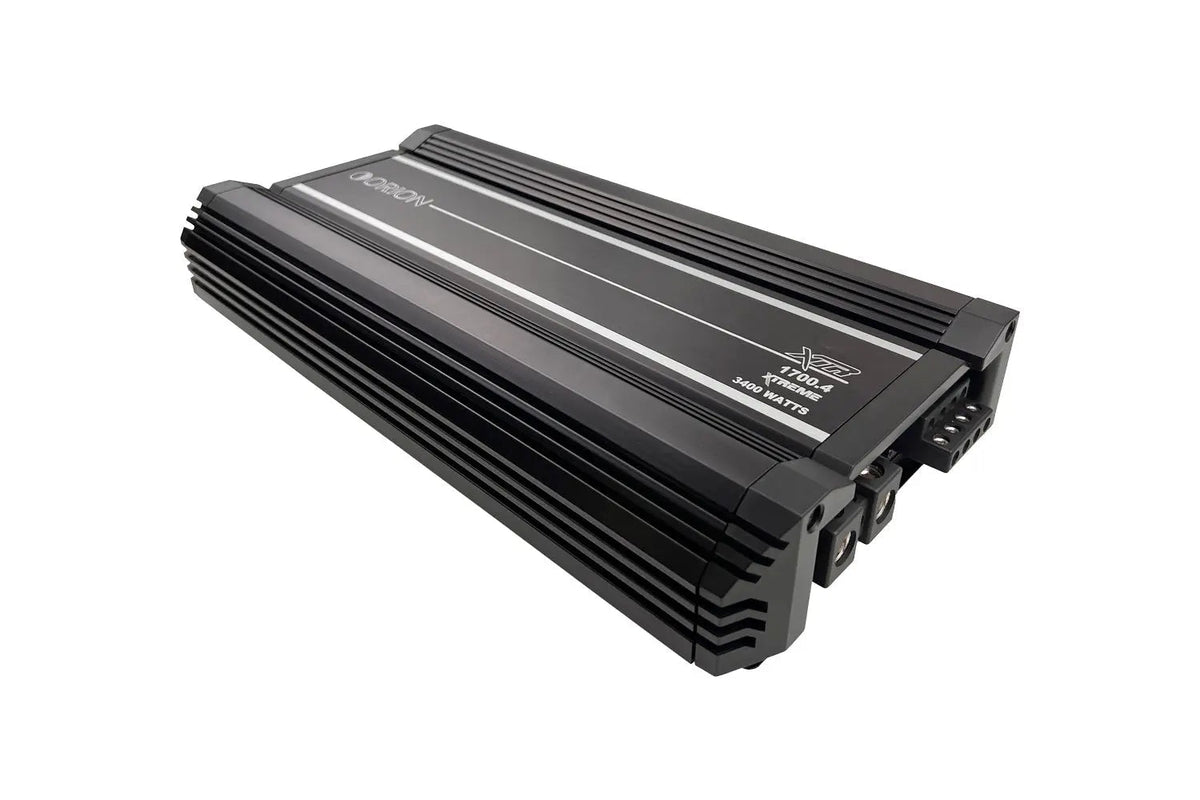

Orion XTR1700.4 1700W RMS 4-Channel Class AB Car Amplifier – High Power Full Range, Bass Boost, Adjustable Crossovers

The Orion XTR1700.4 is a 4-channel Class AB amp built to drive your speakers or subs with 1,700W RMS.

At a glance

• Power: 1,700W RMS
• Channels: 4
• Class AB

Details

Upgrade your car audio system with the ORION XTR1700.4, a high-power 4-channel Class-AB amplifier engineered for clean output, strong performance, and precise sound control. Designed for enthusiasts who want powerful full-range audio, it delivers 1700W RMS of dynamic, distortion-free sound.

Built with advanced engineering and premium components, this amplifier ensures accurate signal reproduction across all frequencies—delivering clear highs, detailed mids, and powerful output for door speakers or full-range systems.

Features:

• 1700W RMS High-Power Output – delivers clean, dynamic, and powerful full-range sound performance
• High-Fidelity Class-AB Amplification – precise, low-distortion audio for detailed highs, mids, and bass

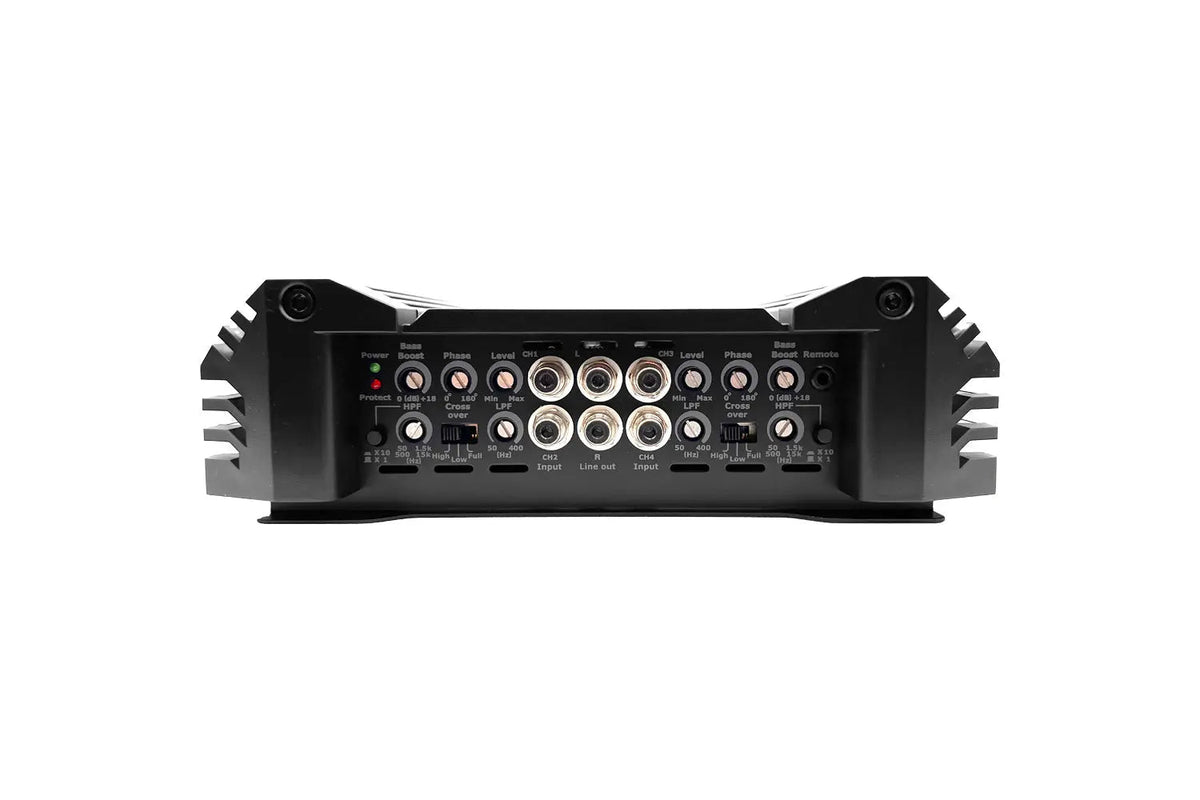

• Adjustable Crossovers & Bass Boost – fine-tune frequencies for optimized speaker performance and sound control
• 2-Ohm Stable Design – reliable operation for demanding aftermarket speaker systems
• Advanced 4-Way Protection Circuitry – safeguards against thermal overload, short circuit, DC offset, and voltage issues

Specifications:

RMS Power: 250W × 4 @ 4Ω (0.5% THD+N)

RMS Power: 425W × 4 @ 2Ω (0.5% THD+N)

RMS Power: 850W × 2 @ 4Ω (bridged mode, 0.5% THD+N)

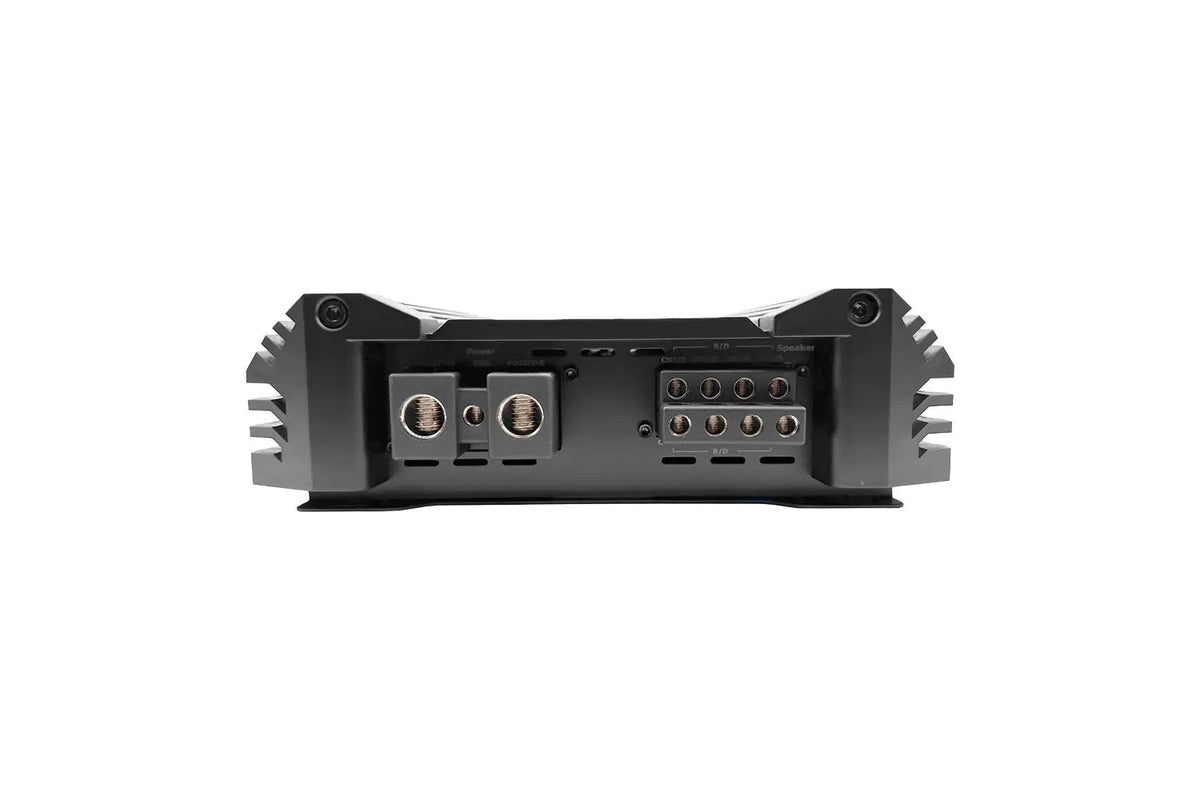

Positive Power Terminal: 1 × 0 AWG

Negative Power Terminal: 1 × 4 AWG

Remote Turn-On Wire: 10 AWG

Speaker Output Terminals: 10 AWG

Frequency Response: 20Hz – 35kHz

Linear Bandwidth: 20Hz – 65kHz (±3 dB)

High Pass Crossover: 50Hz – 1.5kHz / 500Hz – 15kHz (continuously variable)

Low Pass Crossover: 50Hz – 400Hz (continuously variable)

Supply Voltage: 9V – 16V

Amplifier Efficiency: >60%

Damping Factor: 100dB

Signal-to-Noise Ratio: >95dB

THD + Noise: 0.5%

Phase Shift: 0° – 180°

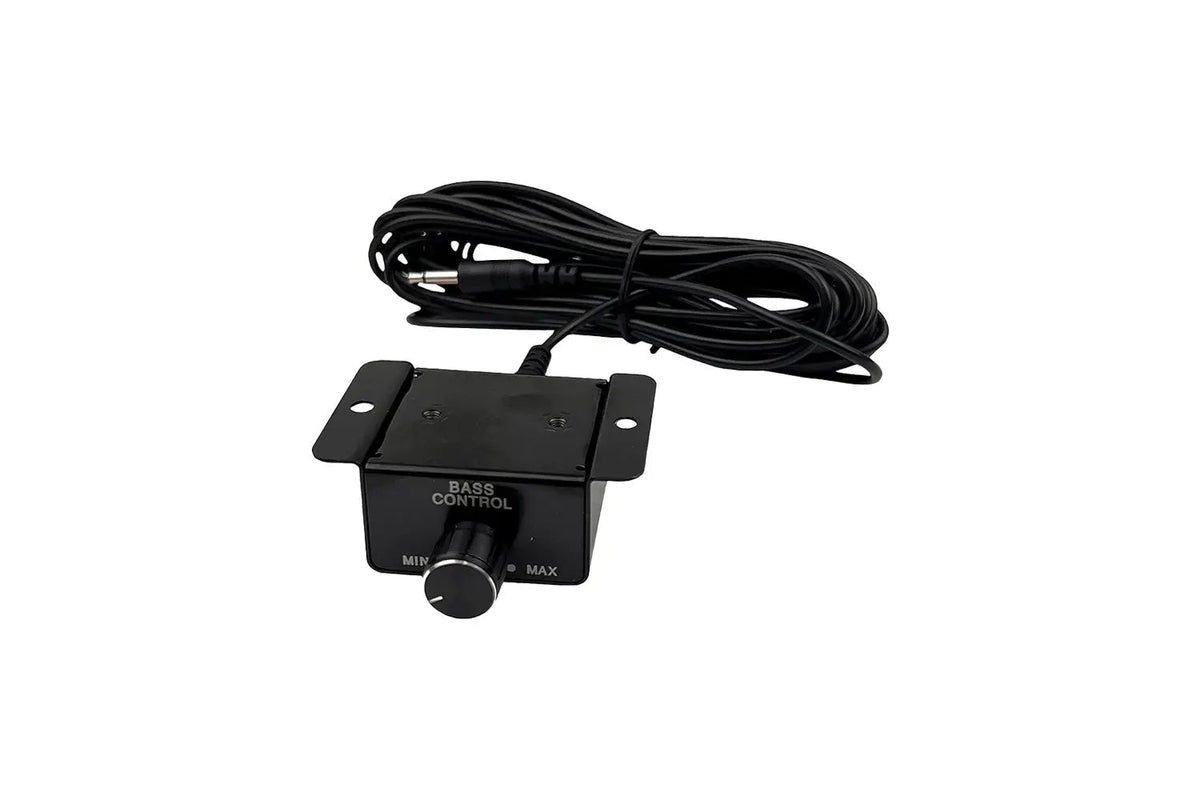

Bass Boost: 0 – 18dB (variable)

Input Level Control: 0.2V – 6.0V

Fuse Requirement: 150A (recommended)

Dimensions: 17.32" × 9.25" × 2.75" (440 × 235 × 70mm)

UPC: 818550010581
