Stinger Audio MT-600.4M 4-Channel Class D Marine Amplifier - 1000W RMS, 250W x 4 at 2 Ohms
Stinger Audio MT-600.4M 4-Channel Class D Marine Amplifier - 1000W RMS, 250W x 4 at 2 Ohms
Couldn't load pickup availability
Power your system with the Stinger Audio MT-600.4M. This 4-channel Class D car amplifier delivers clean, reliable power.
At a glance
- Channels: 4
- Class D
Details
The Stinger Audio MT-600.4M is a compact, water-resistant 4-channel Class D amplifier from the MT Series, made for marine and powersport audio systems. It delivers 250 watts RMS x 4 at 2 ohms, 150 watts RMS x 4 at 4 ohms, or 500 watts RMS x 2 bridged at 4 ohms (under 1% THD at 14.4V).
Inside, HEXFET power MOSFETs with low on-resistance and fast switching work with a 500V high current impulse capacitor that protects the MOSFETs from surge over-current. The power supply uses pulse width modulator ICs, and direct insert power and speaker terminals cut resistance for better power transfer.
A crossover multiplier (X1: 50 Hz - 500 Hz, X10: 500 Hz - 5 kHz) lets you run tweeters or midrange speakers without an external crossover, and bass boost covers 30-80 Hz at 0-12 dB. A remote level control and installation guide are included.
HIGHLIGHTS:
- 250W x 4 at 2 ohms, 150W x 4 at 4 ohms, 500W x 2 bridged at 4 ohms
- Water-resistant design for marine and powersport use
- Crossover multiplier: 50 Hz - 500 Hz (X1) or 500 Hz - 5 kHz (X10)
- Bass boost 0-12 dB at 30-80 Hz
- HEXFET MOSFETs and 500V impulse capacitor protection
- Remote level control included
GREAT FOR:
- Boat audio systems
- UTV, ATV and other powersport builds
- Running tweeters or midrange speakers without an external crossover
SPECIFICATIONS:
| SERIES | MT |
| CHANNELS | 4 / 2 (bridged) |
| CLASS | Class D |
| RMS @ 2 OHM | 250W x 4 |
| RMS @ 4 OHM | 150W x 4 |
| BRIDGED @ 4 OHM | 500W x 2 |
| S/N RATIO | 90 dB (CEA) |
| INPUT SENSITIVITY | 0.5V - 11V |
| FREQUENCY RESPONSE | 10 Hz - 20 kHz |
| BASS BOOST | 0 - 12 dB @ 30 - 80 Hz |
| CROSSOVER MULTIPLIER | X1: 50 Hz - 500 Hz / X10: 500 Hz - 5 kHz |
| EFFICIENCY | 80% (average) |
| OPERATING VOLTAGE | 9V - 16V |
| POWER TERMINAL | 4 Gauge |
| SPEAKER TERMINAL | 8 Gauge |
| RECOMMENDED FUSE | 120A |
| DIMENSIONS | 9.29 in L x 2.09 in W x 6.10 in H (236 x 53 x 155 mm) |

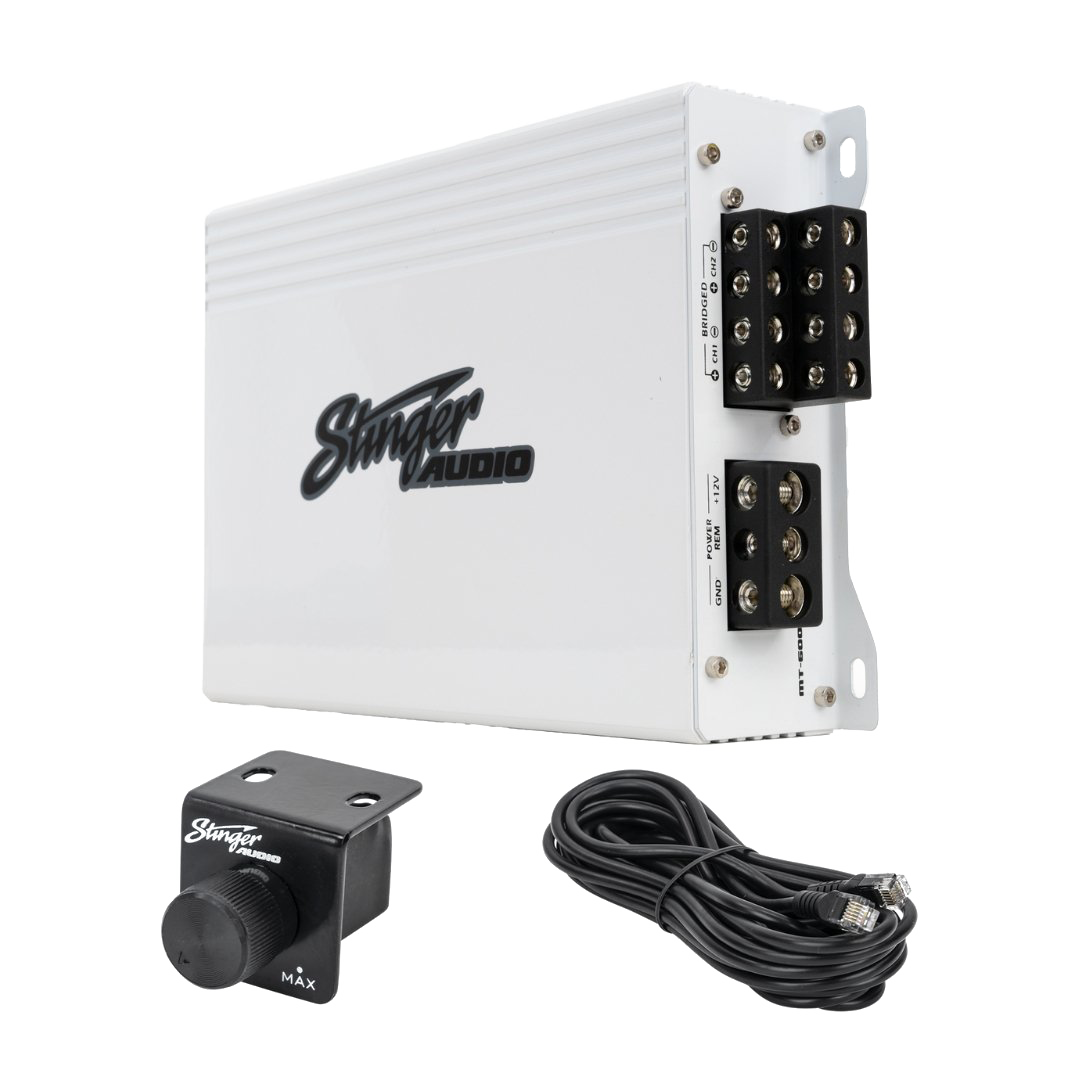

| IN THE BOX | Amplifier, remote level control, installation guide |
| SOLD AS | Each |
| BRAND | Stinger |
