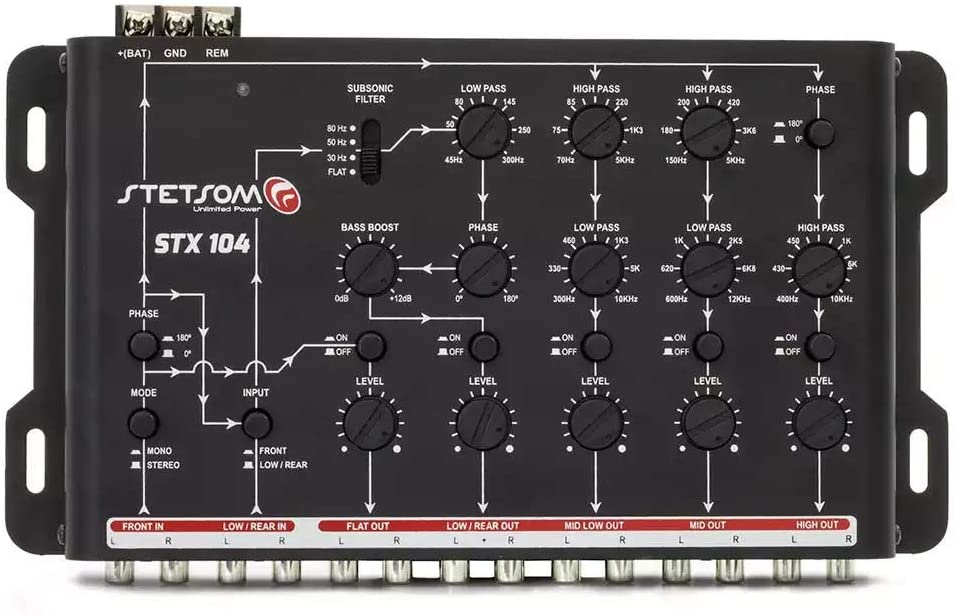

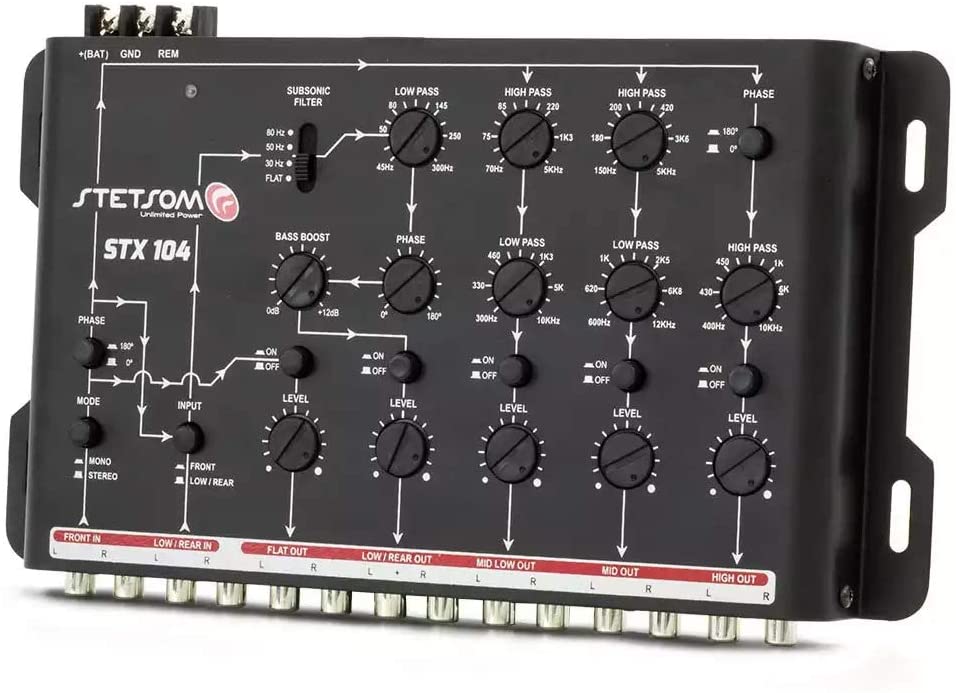

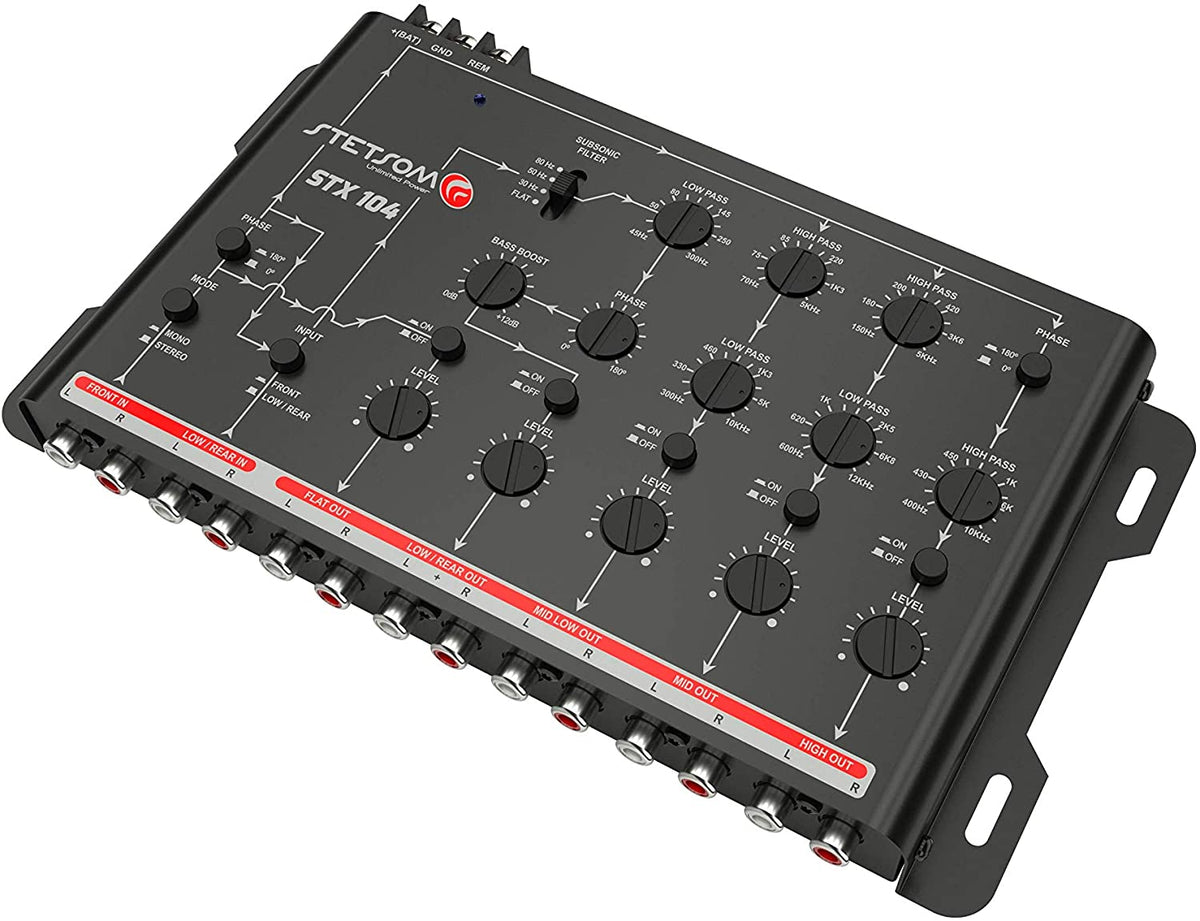

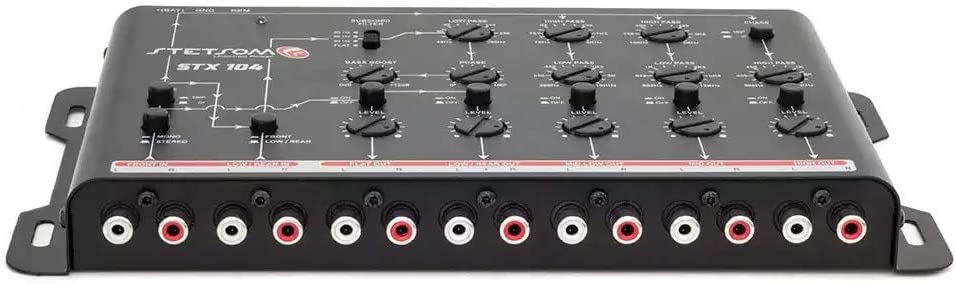

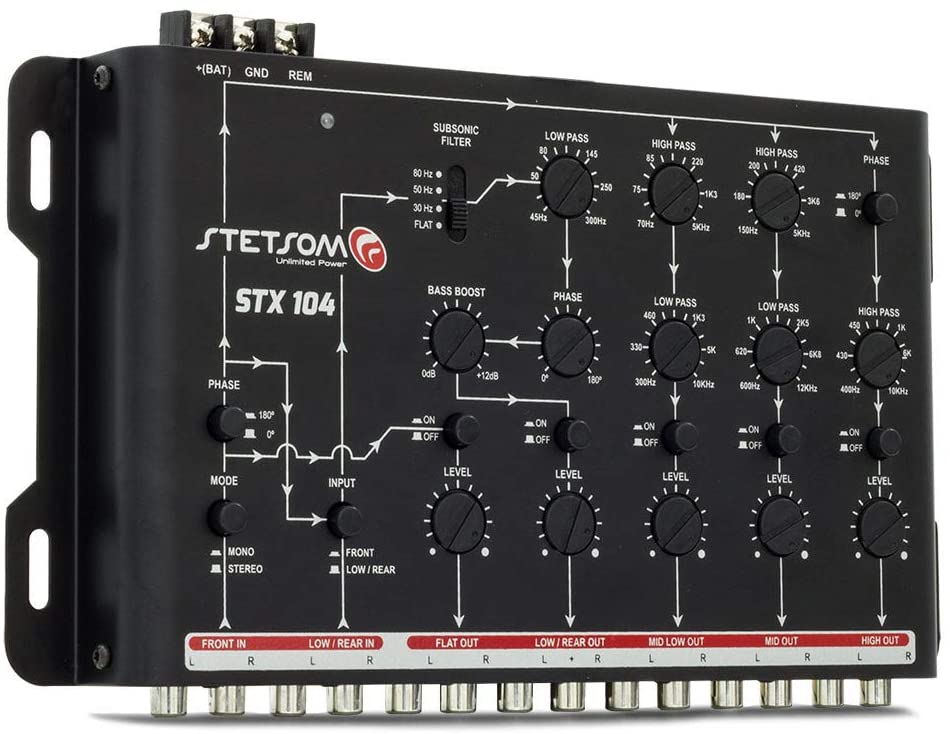

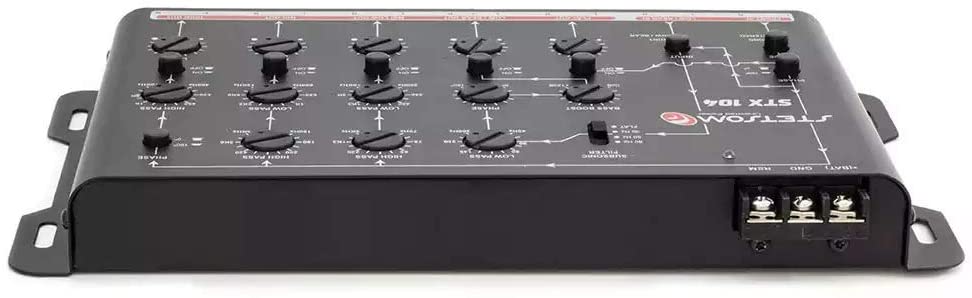

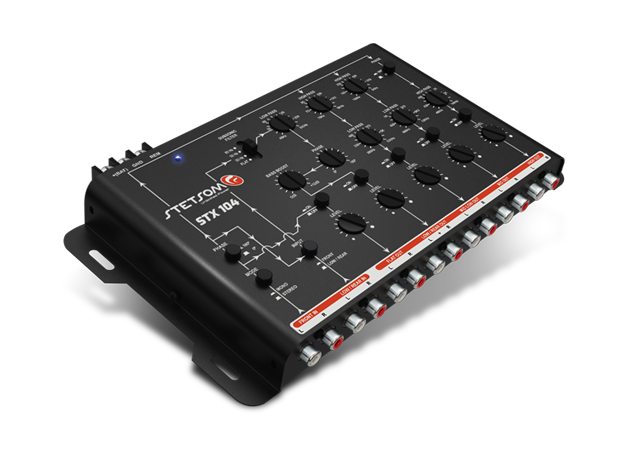

Stetsom STX 104 Digital Audio Crossover 5 Channels
Stetsom STX 104 Digital Audio Crossover 5 Channels
Couldn't load pickup availability
Get the most out of your system with the Stetsom STX 104.
Details
Stetsom's STX104 is a crossover designed to provide high performance combined with sound fidelity in 5 channels. It has high reliability with very low noise levels and harmonic distortion, ideal for professional sound.
Features:
- Multi-Channel Control: Offers precise audio management across five channels for tailored sound customization.
- Extensive Frequency Coverage: Handles frequencies from 70Hz to 12.5kHz, ensuring full-range audio performance.
- Minimal Distortion: Maintains audio integrity with harmonic distortion less than 0.02% THD.
- Clear Sound Quality: High signal-to-noise ratio greater than 90dB for crisp and clean audio output.
Specifications:
Via High: 400Hz - 10KHz (12 dB/8ª)
Via Mid: 150Hz - 12,5KHz (12 dB/8ª)
Via Low: 70Hz - 10KHz (12 dB/8ª)
Maximum Output Voltage: 9V RMS
Maximum Input Voltage: 4V RMS
Signal to Noise: >90dB
Input Impedance: 10K OHMS
Harmonic Distortion: < 0,02% THD
Channel Separation: > 80dB
Frequency Response: 20Hz - 200Khz
Supply Voltage: 10V - 16V DC
Current Consumption: 0,25A MAX
Impedance Output: 50 OHMS
Dimensions (H x W x D): 33 x 264 x 160 mm
Weight: 780g
| Specification | Details |
|---|---|
| Model | STX 104 Digital Audio Crossover (5 channels) |
| UPC | 7897748701589 |
| Frequency Crossovers | High: 400 Hz–10 kHz (12 dB/oct) Mid: 150 Hz–12.5 kHz (12 dB/oct) Low: 70 Hz–10 kHz (12 dB/oct) |
| Max Output Voltage | 9 V RMS |
| Max Input Voltage | 4 V RMS |
| Signal-to-Noise Ratio | > 90 dB |
| Input Impedance | 10 kΩ |
| Harmonic Distortion | < 0.02% THD |
| Channel Separation | > 80 dB |
| Full Frequency Response | 20 Hz–200 kHz |
| Supply Voltage | 10–16 V DC |
| Current Consumption | 0.25 A max |
| Output Impedance | 50 Ω |
| Dimensions (H×W×D) | 33 × 264 × 160 mm (≈1.3 × 10.4 × 6.3 in) |
| Weight | 780 g / ≈1.72 lb |
