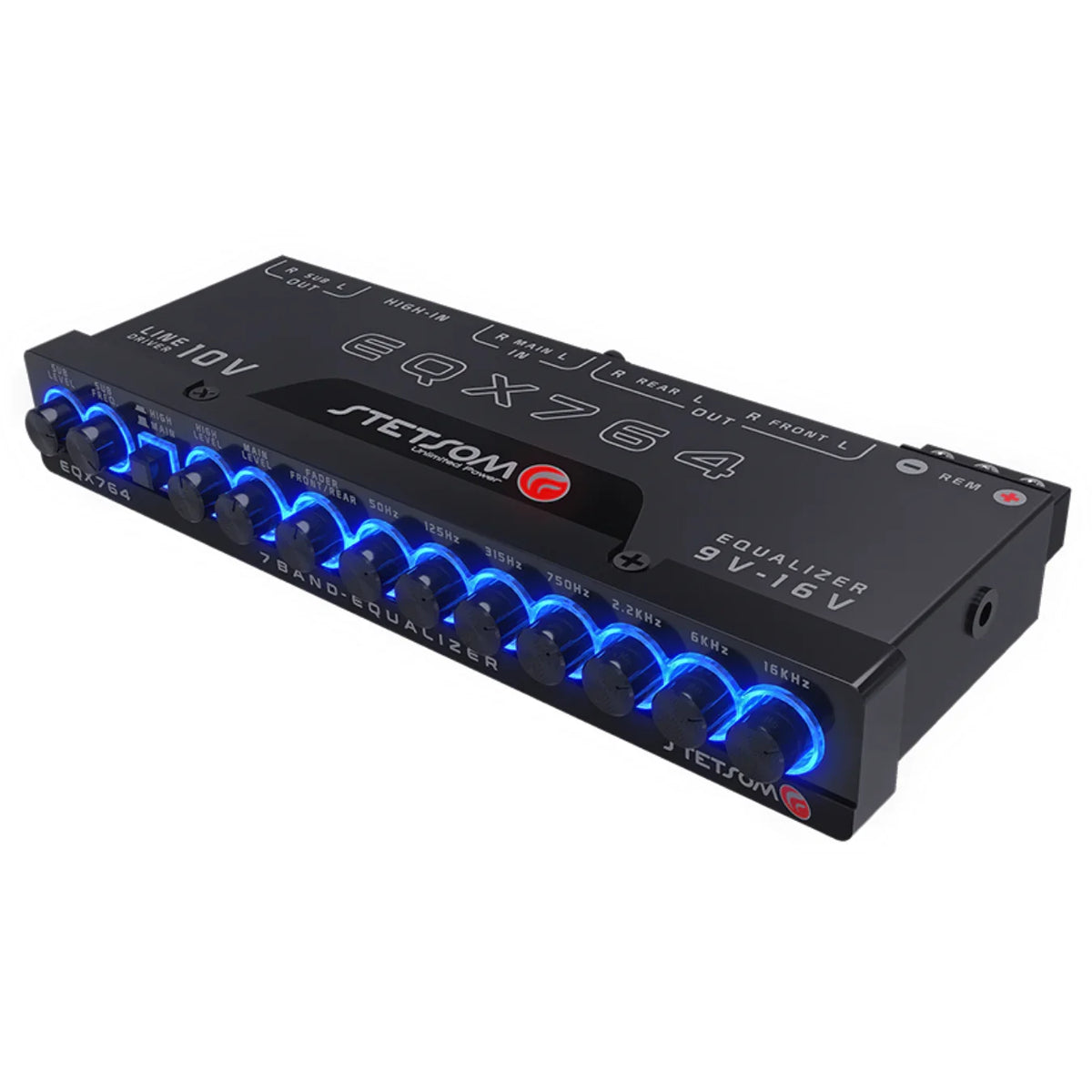

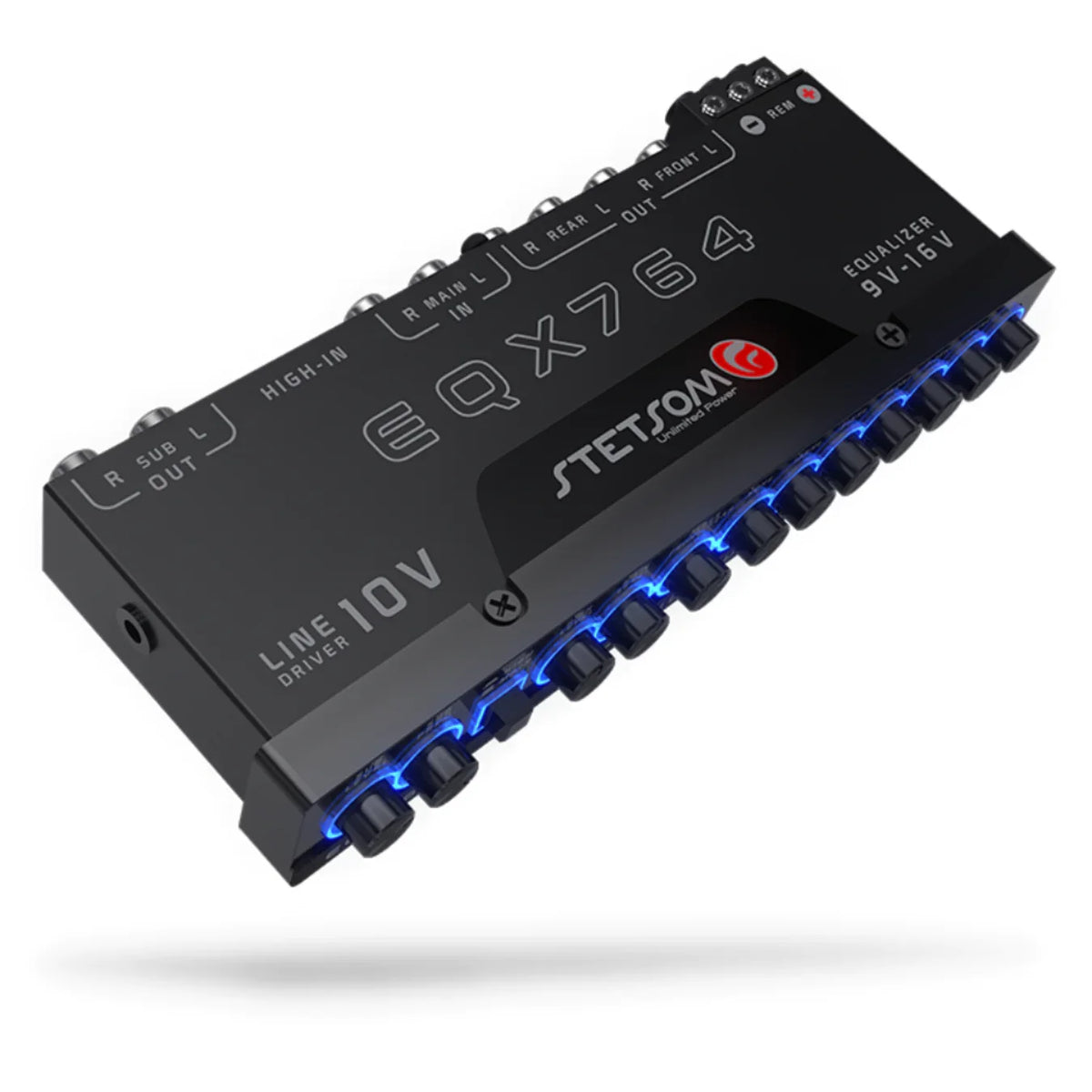

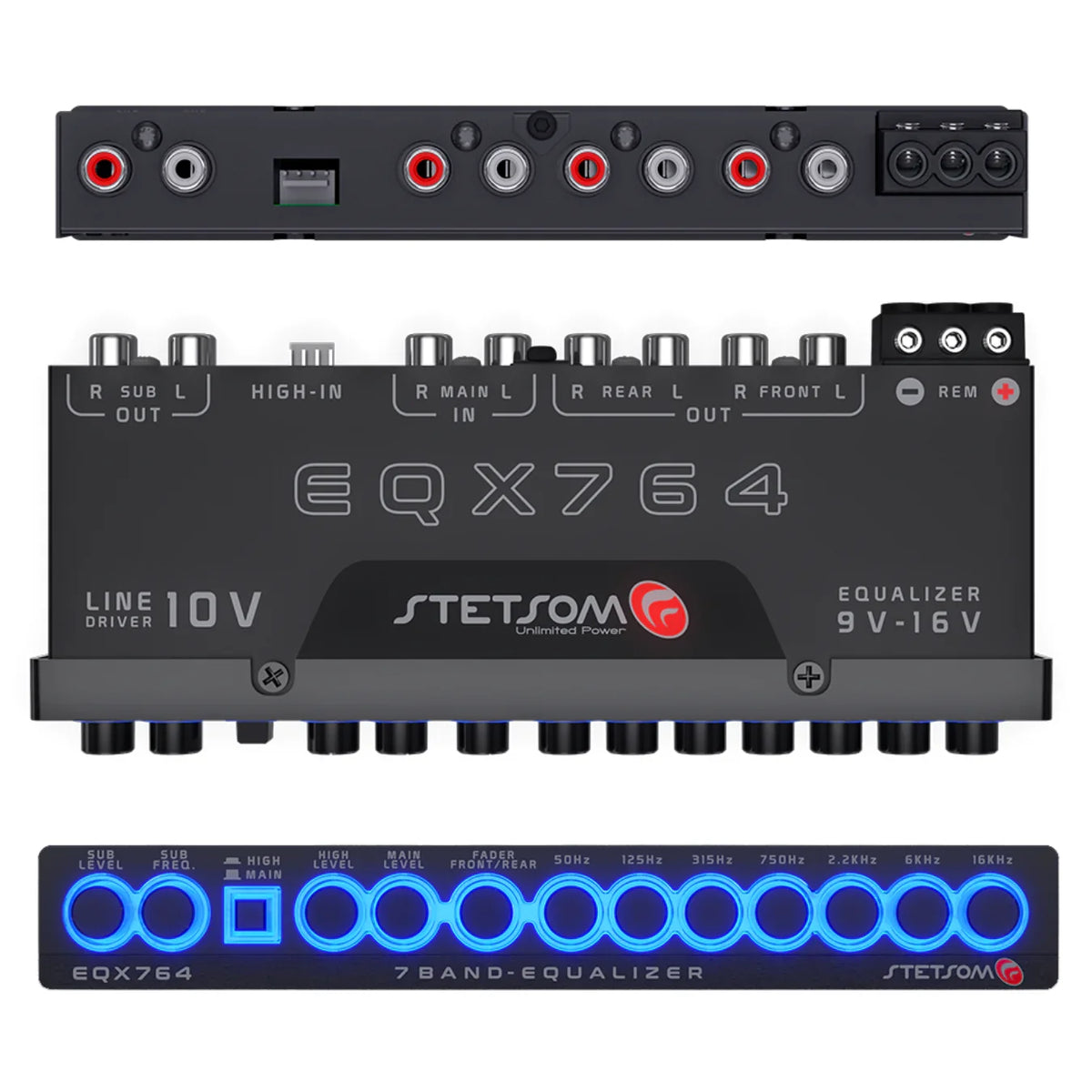

Stetsom EQX764 Graphic Equalizer 7 Band Equalization Modern Blue LED

Stetsom EQX764 Graphic Equalizer 7 Band Equalization Modern Blue LED

$59.99 USD
$59.99 USD
Sale Sold out
Shipping calculated at checkout.

Get the most out of your system with the Stetsom EQX764. Built-in LED lighting adds a custom look.

Details

Enhance your audio experience with the Stetsom EQX764 Graphic Equalizer. Featuring 7 bands of equalization and a modern blue LED display, this equalizer allows you to fine-tune your sound to perfection. With its high-quality construction and precise equalization capabilities, this product is a must-have for any audiophile.

Features:

  • Dedicated LEVEL and FREQUENCY controls for the SUB output
  • An input channel selection switch (MAIN or HIGH)
  • LEVEL controls for adjusting the level of each input (HIGH and MAIN)
  • FRONT/REAR FADER control for adjusting the balance between the FRONT and REAR outputs
  • Blue LEDs illuminate the controls for easy adjustment, even in the dark
  • 7-band equalization controls: 50Hz, 125Hz, 315Hz, 750Hz, 2.2KHz, 6KHz, and 16KHz

Specifications:

Inputs:
  • Main In (RCA)
  • High In (Wire)
Outputs: SUB OUT, FRONT and REAR
Audio Controls:
  • SUB LEVEL & FREQUENCY
  • Input Selector (Main and HIGH)
  • LEVEL (MAIN & HIGH)
  • FADER (FRONT and REAR)
  • EQUALIZER (-12dB ~ +12dB)
SUB frequency control: 60Hz ~ 90Hz
V OUT @ 14.4V:
  • Sub Out: 10V RMS
  • Front & Rear: 8.5V RMS (Line DRIVER)
Input Sensitivity:

Main (RCA): 3.3V RMS @ 14.4V

High (WIRE): 25V RMS @ 14.4V
Input Impedance:

Main (RCA): 20K Ohms

High (WIRE): 1K Ohms
Output Impedance: 47 Ohms
Frequency Response: 5Hz ~ 140KHz
THD: <0.1%
SNR: >100dB
Crosstalk: >85dB
Supply Voltage: 9V ~ 16V DC
Max Consumption: 290mA @ 12.6V
Dimensions (L X W X H) 7.65" x 3.24" x 1" inches
Weight: .68 lb / 310 g
UPC 7897748705358
