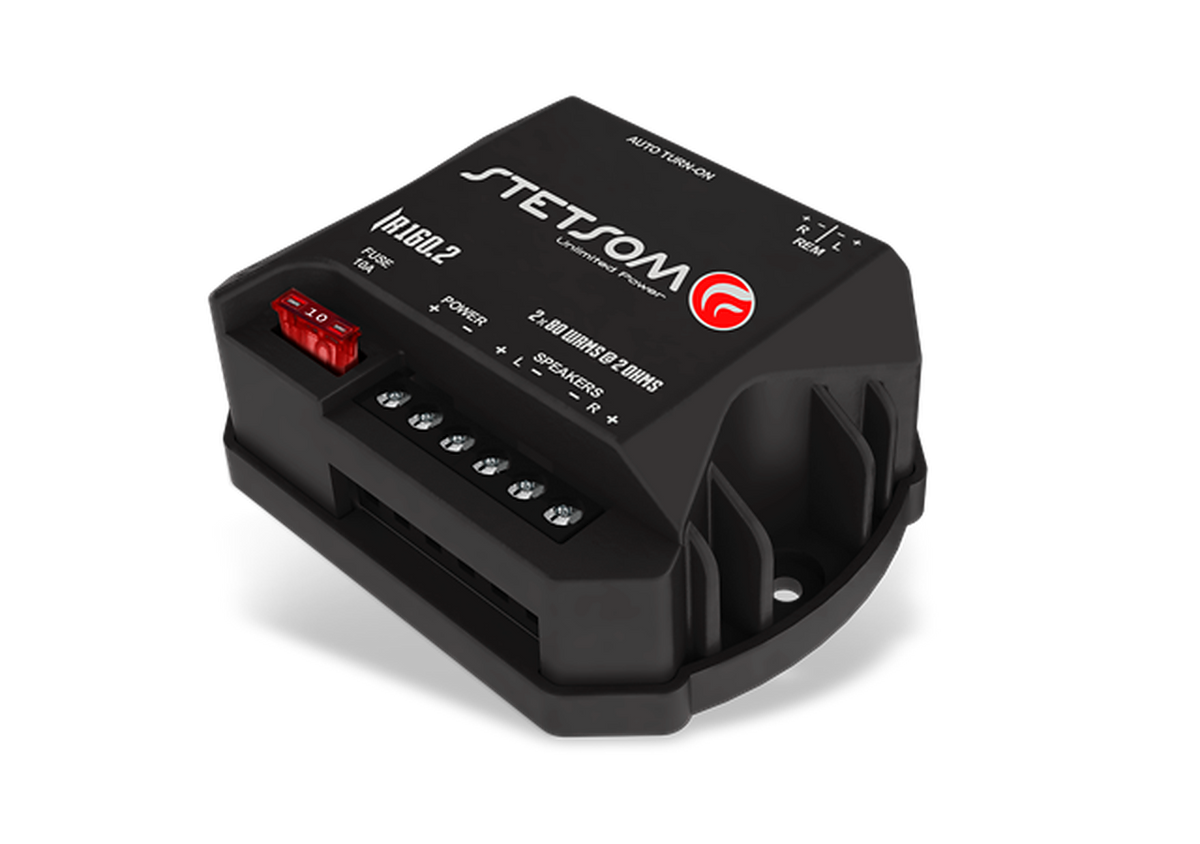

Stetsom IR160.2 Digital Amplifier

Looking for more volume without distortion? The Stetsom IR160.2 amplifier puts out plenty of clean power.

Details

Stetsom IR160.2 RCA 2 Channel 2 Ohms Power Module

Digital amplifier, this Sound Module from Stetsom provides well-defined audio, being in the 2 Ohms model with 2 channels of 80W RMS each. This is a Module that is suitable for internal sound, so it is much easier and more assertive when equipping your automotive sound project.

Technical Specifications:

Number of Channels: 2

2 Ohms RMS Power: 13.8V 2 x 80W RMS

RMS Power at 4 Ohms:13.8V 2 x 45W RMS

Supply Voltage: 9.5 ~ 15V

Frequency Response: 35Hz ~ 20KHz

Noise Signal Ratio: > 90 dB

Harmonic Distortion: > 0.03% THD

Input Sensitivity: 2V

Input Impedance: 2.4K Ohms

Minimum Output Impedance: 2 Ohms

Music Sign Consumption: 6.4A

Consumption with Bar Signal: 12.8A

Dimensions:

Total Weight (Product + Packaging): 0.138(g)

Height: 08.00(cm)

Width: 04.00(cm)

Depth: 08.00(cm)

Package Included:

01 Stetsom IR160.2 RCA 2 Channel 2 Ohms Power Module

item Dimensions LxWxH 3.03 x 2.28 x 1.14 inches
Voltage 16 Volts
Manufacturer Stetsom
Brand Stetsom
Number of Channels 4
About this item
Features Auto-turn On system: Provides Automatic Remote Trigger via audio connector
With well-defined bass, mids, and treble with unparalleled tone this amplifier is ideal for internal sound
Amazing design. Unrivaled robustness as it is developed in high performance aluminum
High sound fidelity in bass, medium and treble. Safety Energy technology: providing very high efficiency and low consumption. Does not interfere with FM: We suggest distributing the speaker cables as far as possible from the radio antenna cable, if you use internal antenna, it must be grounded to the vehicle chassis.
Number of Channels 2 RMS Power at 2 Ohms 13.8V 2 x 80W RMS (Stereo) RMS Power at 4 Ohms 13.8V 2 x 45W RMS (Stereo) Supply Voltage 9~15V Frequency Response 50Hz ~ 23 KHz Noise Signal Ratio > 90 dB Distor Harmonic tion > 0.03 % THD Input Sensitivity 2 V Input Impedance 2.4K Ohms Minimum Output Impedance 2 Ohms Consumption with Musical Signal 6.4 A Consumption with Bass Signal 12.8 A Dimensions (Hx W x C) mm 29 x 58 x 77 Weight Kg 0.15 kg

UPC: 7897748704665
