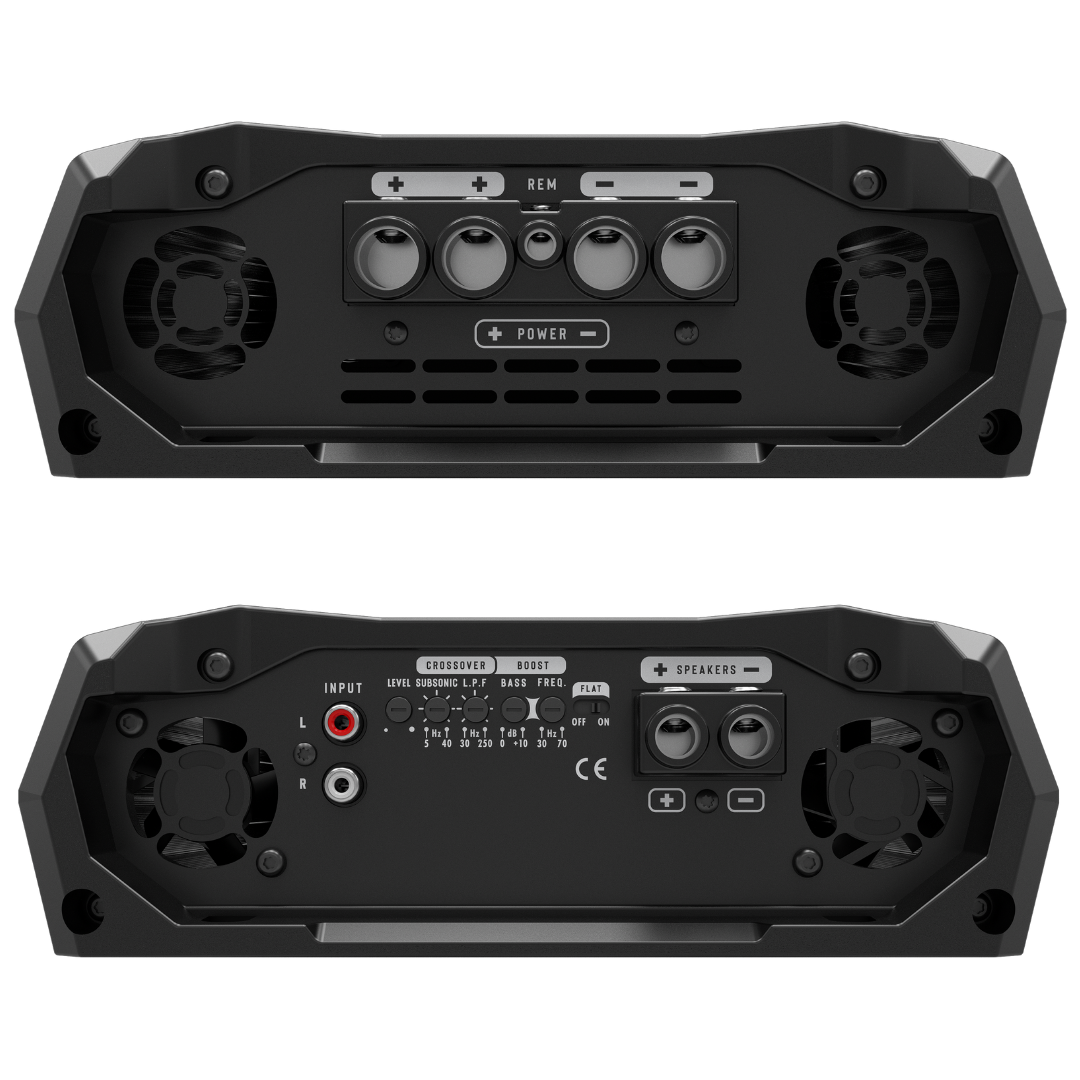

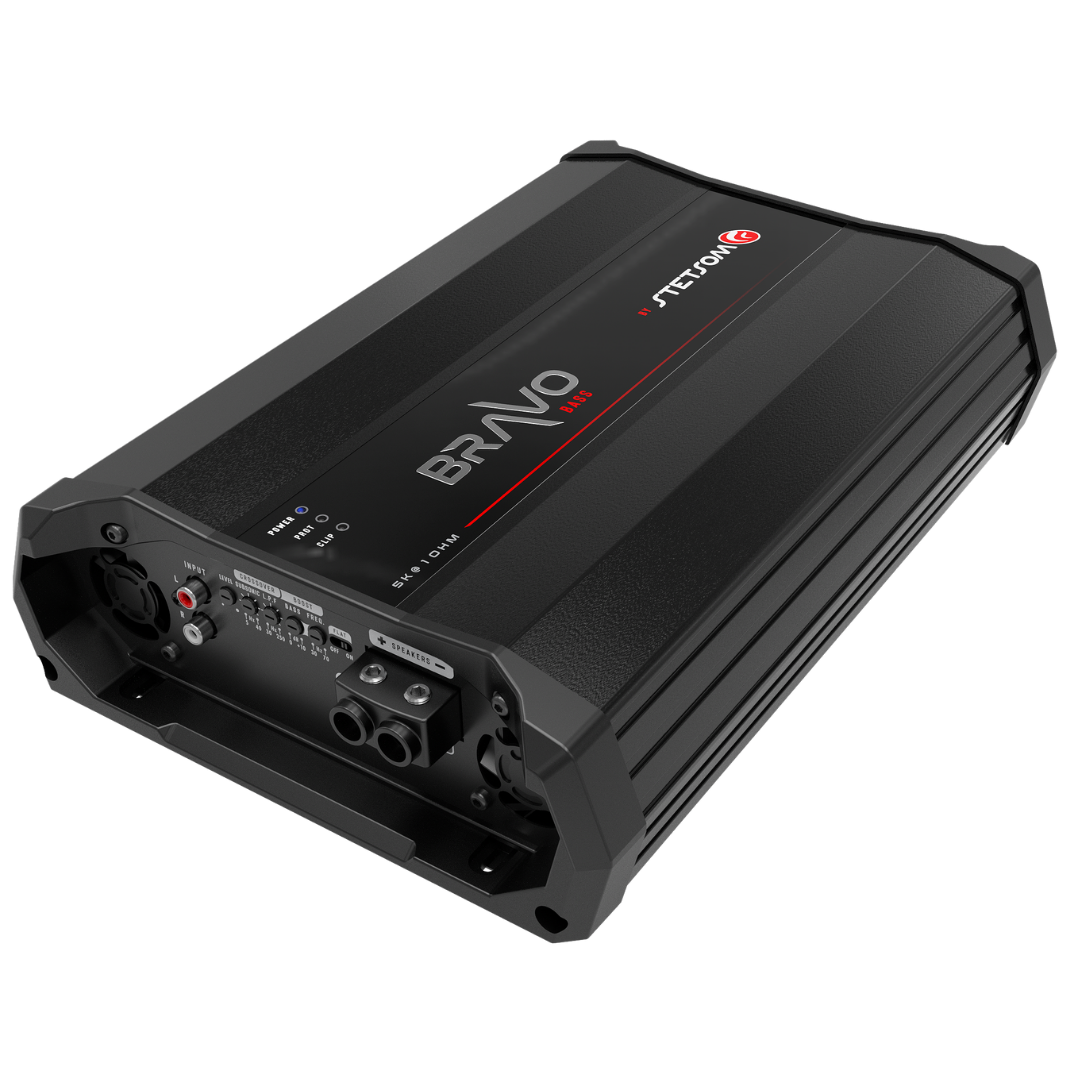

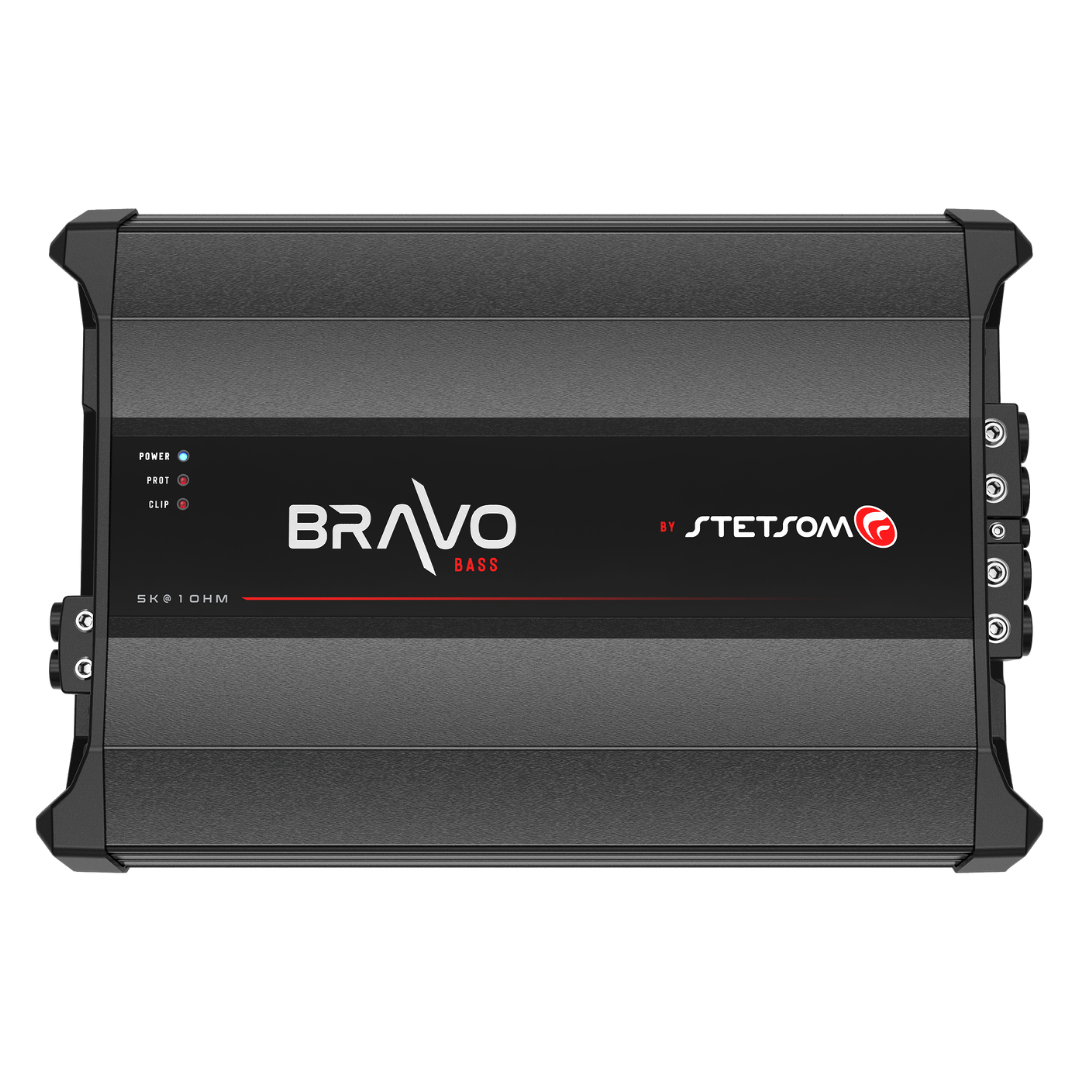

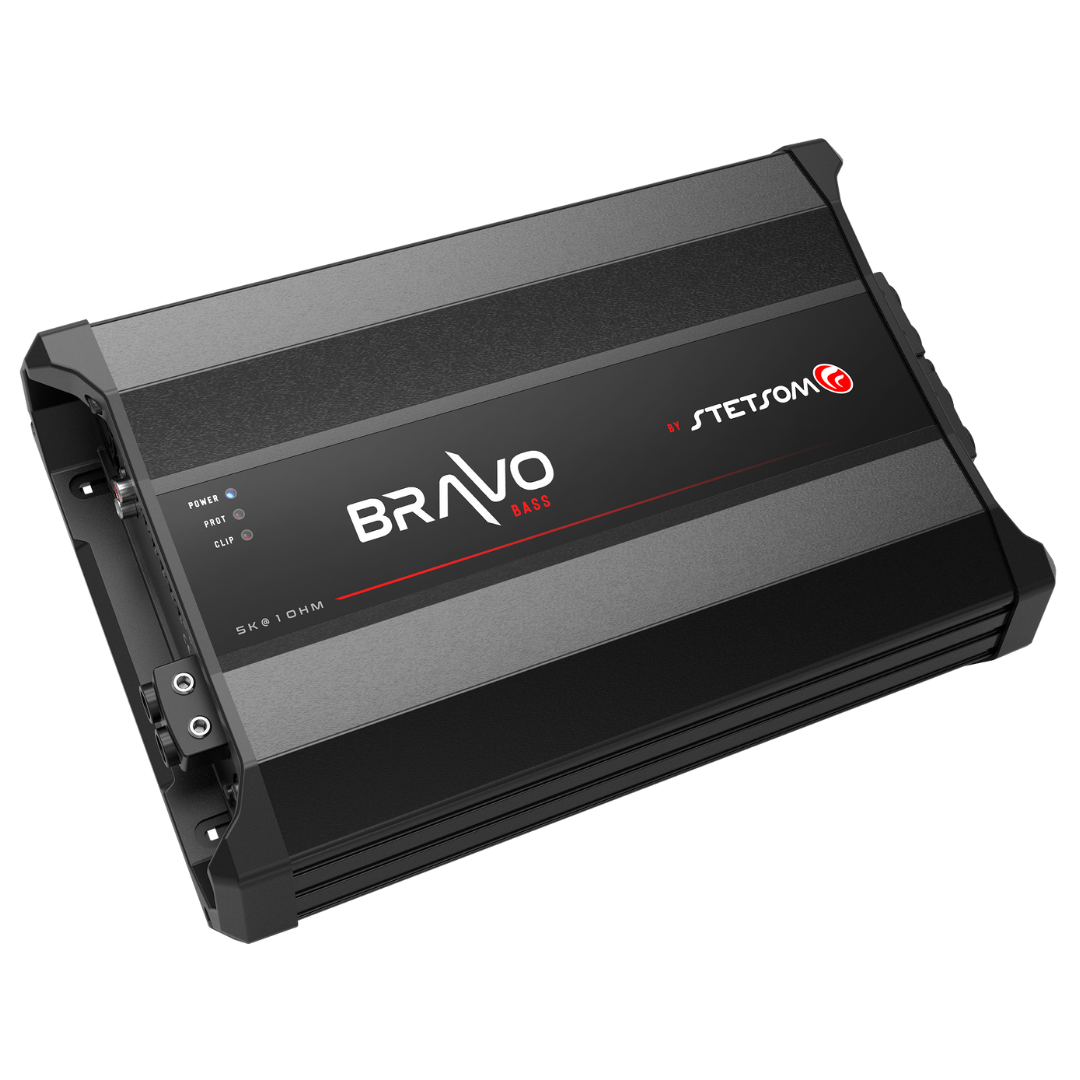

Power your system with the Stetsom STE-BRAVOFULL5K1. This 1-channel Class D car amplifier delivers 5,000W RMS.
At a glance
Power: 5,000W RMS
Channels: 1
Class D
Details
High power amplification with Stetsom BRAVO FULL 5K Digital Full-Range Mono 1-Channel Class D Amplifier, delivering up to 5000 Watts RMS of power. Delivers dynamic sound with superior control and accuracy. Perfect for professional audio applications.
TECHNICAL SPECIFICATIONS:
Outpout Impedance
1 Ohm
2 Ohms
Number of Channels
1
1
RMS Power at 1 Ohm @ 14.4V
5300W
5300W
RMS Power at 2 Ohms @ 14.4V
3300W
3000W
RMS Power at 1 Ohm @ 12.6V
5000W
5000W
RMS Power at 2 Ohms @ 12.6V
2800W
2600W
Minimum input sensitivity
200mV
200mV
Signal to noise ratio
>90dB
>90dB
Frequency response (-3dB)
10Hz ~ 12KHz
10Hz ~ 12KHz
Crossover low pass
90Hz ~ 12KHz
90Hz ~ 12KHz
Crossover high pass
10Hz ~ 90Hz
10Hz ~ 90Hz
Bass boost
Freq: 30Hz ~ 70Hz / Boost: 0dB ~ +10dB
Freq: 30Hz ~ 70Hz / Boost: 0dB ~ +10dB
Input impedance
12K Ohms
12K Ohms
Supply voltage
9V ~ 16V DC
9V ~ 16V DC
Musical/Bass consumption
242A/485A
227A/445A
Dimensions (H x W x L)
3.14" x 9.11" x 13.11"
3.14" x 9.11" x 13.11"
Weight
9.36 lb
9.36 lb
