DS18 SMD Monoblock Amplifier with VM-1 Voltmeter and Digital LED Lights 2000W RMS at 1-Ohm - Steve Meade Designs

DS18 SMD Monoblock Amplifier with VM-1 Voltmeter and Digital LED Lights 2000W RMS at 1-Ohm - Steve Meade Designs

$524.95 USD
$524.95 USD
Sale Sold out
Shipping calculated at checkout.

Looking for more volume without distortion? The DS18 SMD Monoblock Amplifier with VM-1 mono amplifier puts out 2,000W RMS. Built-in LED lighting adds a custom look.

At a glance

  • Power: 2,000W RMS
  • Channels: Mono
  • Class D

Details

Monoblock Amplifier with VM-1 Voltmeter and Digital LED Lights

Introducing the SMD-2000.1D— engineered by DS18 in collaboration with Steve Meade Designs. Built for superior audio performance, it features premium Korean components and Sky High Car Audio’s OFC Internal Wiring. With DS18’s reputation as the LOUDEST in pro audio and Steve Meade’s industry-standard installation peripherals, this amp is built for extreme power and convenience.

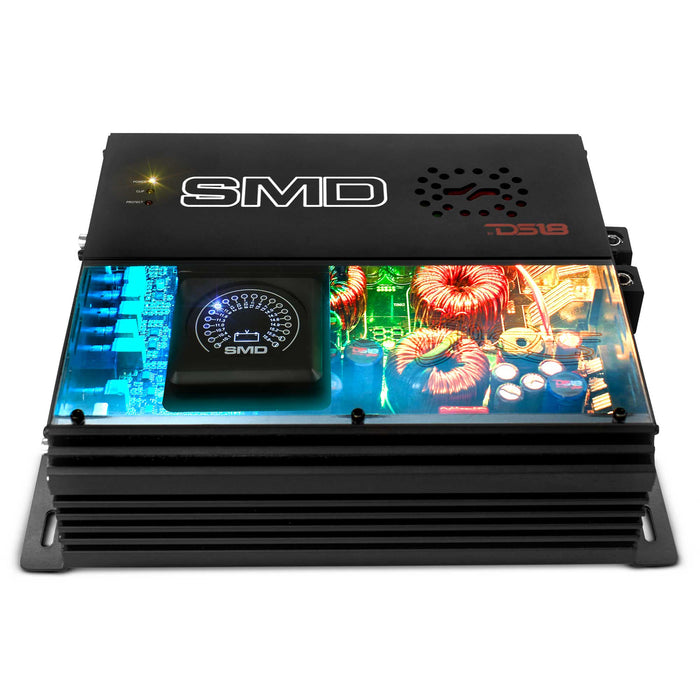

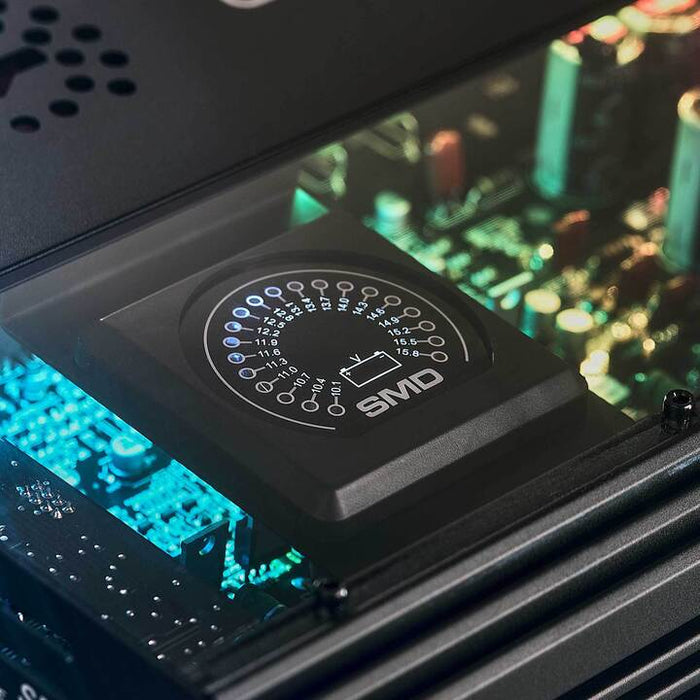

With the SMD-2000.1D, we achieved that and more. What sets the SMD-2000.1D apart is its unique clear half-top design ensuring efficient heat dissipation through a reverse-mounted board and dual cooling fans. It also features an exclusive built-in SMD VM-1 digital/analog-style LED voltmeter that monitors power draw in real-time. Customizable RGB lighting adds another layer of personalization, allowing you to match your vehicle’s interior or create dynamic light displays.

Manufactured using premium components from Korea, this amplifier guarantees the reliability and powerful bass amplification that DS18 is known for. The SMD-2000.1D is not only visually striking but also engineered for top-tier performance. It delivers an impressive 800W RMS at 4-ohm, 1400W RMS at 2-ohm, and 2000W RMS at 1-ohm, driving even the most demanding subwoofer setups with ease.

The SMD-2000.1D is designed for audiophiles seeking superior bass output and power efficiency. As a Class D amplifier, it prioritizes efficiency and low heat production, delivering pristine audio performance with minimal distortion. Equipped with a precision attenuation knob for easy bass control, it maintains a <0.02% THD, ensuring exceptional Total Harmonic Distortion levels. With 0 AWG power and ground inputs and a 200A fusing requirement, it’s built for robust power delivery. Additional features include a Fixed LPF (Low-Pass Filter) and Tiffany RCA connectors for the highest quality signal transfer in your setup.

Crafted with precision using only the best components, DS18’s SMD-2000.1D is a monoblock amplifier capable of powering high-output subwoofers with deep, controlled bass. Its advanced protection suite includes thermal overload, DC output, short circuit, and voltage input protection, ensuring safe operation in any setup.

Features:

  • 1 Channel Subwoofer Monoblock
  • Exclusive SMD Design ~ Class D
  • 1 - 4 Ohm Stable ~ 2000 Watts @ 1 Ohm RMS
  • VM-1 Voltmeter ~ Fans ~ Linkable

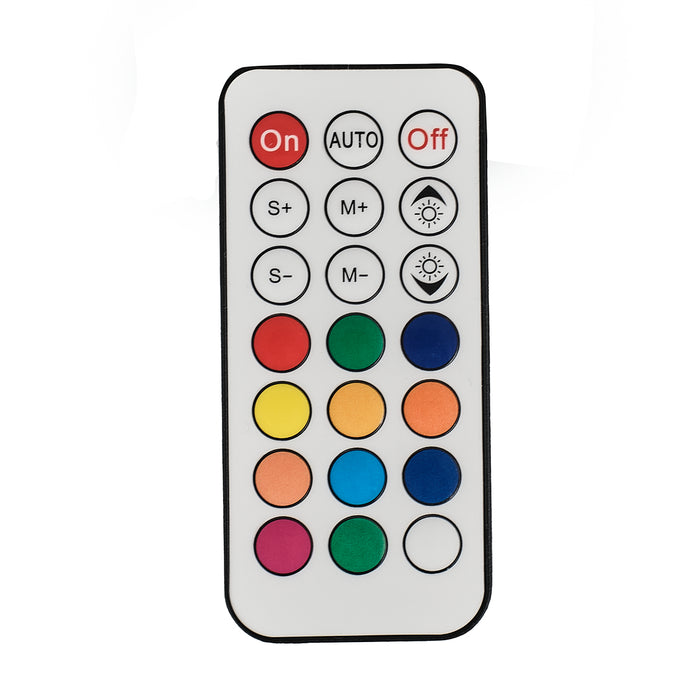

  • Acrylic Window ~ Digital LED Lighting w/ Remote

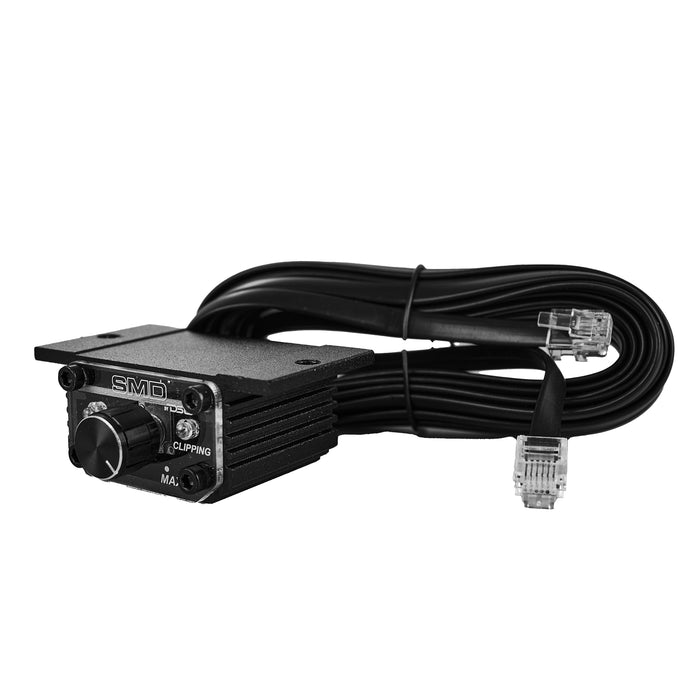

  • Bass Knob ~ LED Indicators ~ Made in Korea

Specifications:

Specification Value
Model SMD-2000.1D
Type Class D Monoblock Subwoofer Amplifier
Channels 1
RMS Power @ 4 Ω 800 W
RMS Power @ 2 Ω 1,400 W
RMS Power @ 1 Ω 2,000 W
Frequency Response 15 Hz–250 Hz
Signal‑to‑Noise Ratio > 98 dB
THD < 0.02 %
Minimum Impedance 1 Ω
Input Voltage Range 8.5–16.9 V
Protection Features Thermal, DC Offset, Short Circuit, Voltage Input protection
Cooling Reverse-mounted board + dual fans
Filters Fixed LPF, subsonic (10‑50 Hz), adjustable bass boost (30‑60 Hz, 0‑9 dB)
Controls Gain (200 mV–6 V), LPF frequency, bass boost, subsonic filter
Indicators VM‑1 digital voltmeter, RGB LED lighting, clip/protect LEDs
Power/Ground Inputs 0 AWG terminals, 200 A fuse recommended
Dimensions (L×W×H) 11.1″ × 9.15″ × 3″ (282 × 232 × 76 mm)
Weight 9 lb (4.08 kg)
UPC 810097266490
