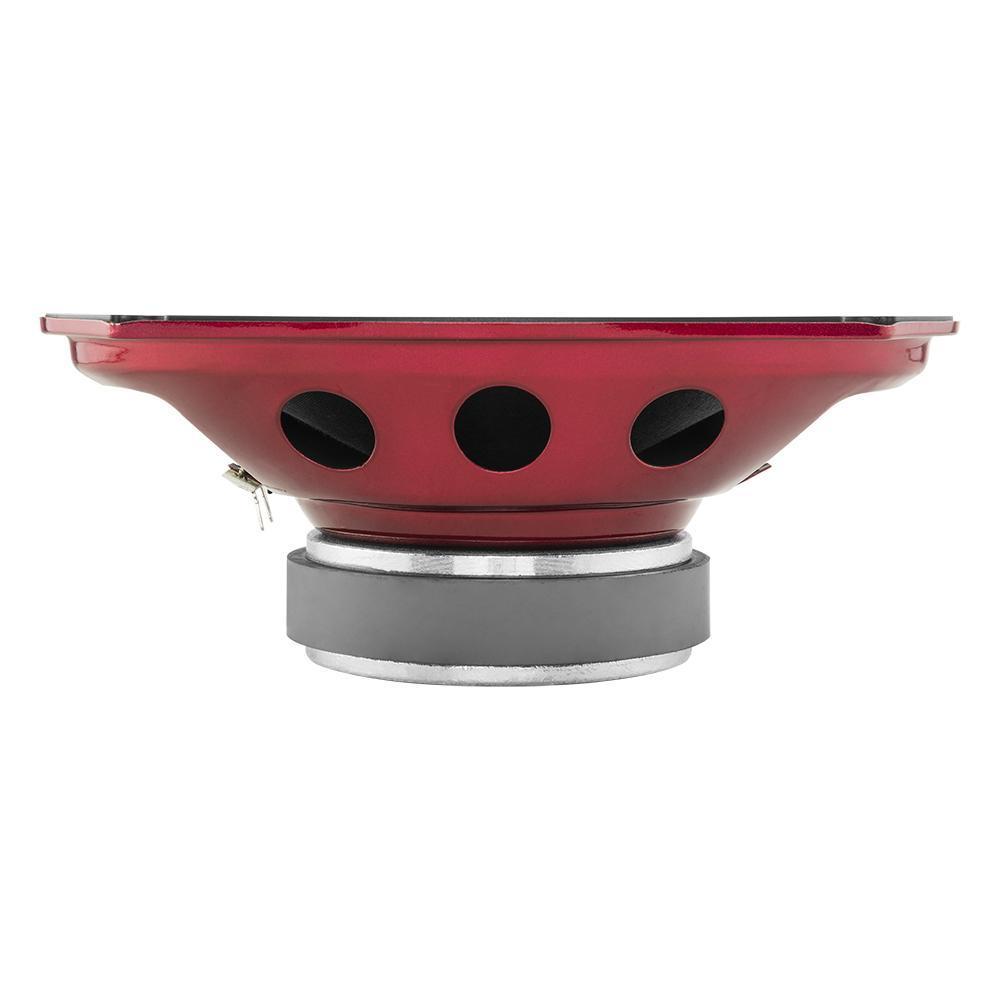

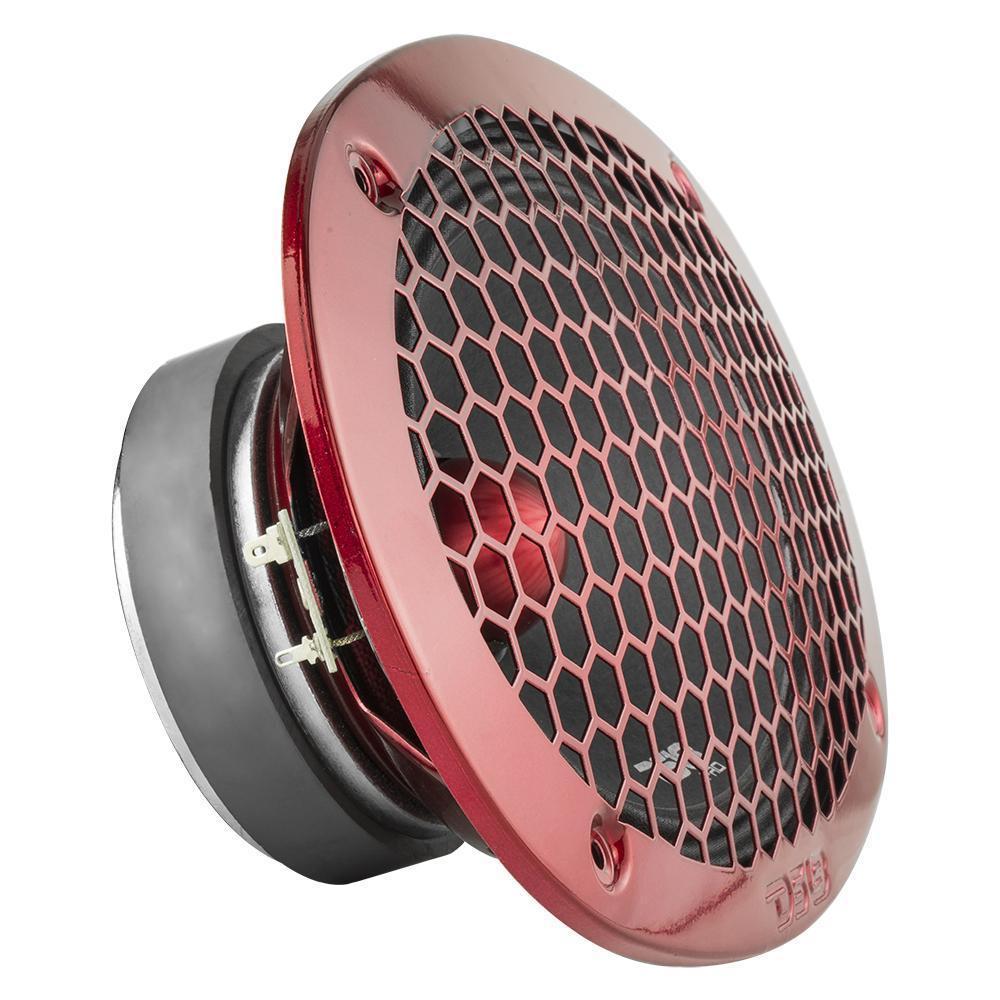

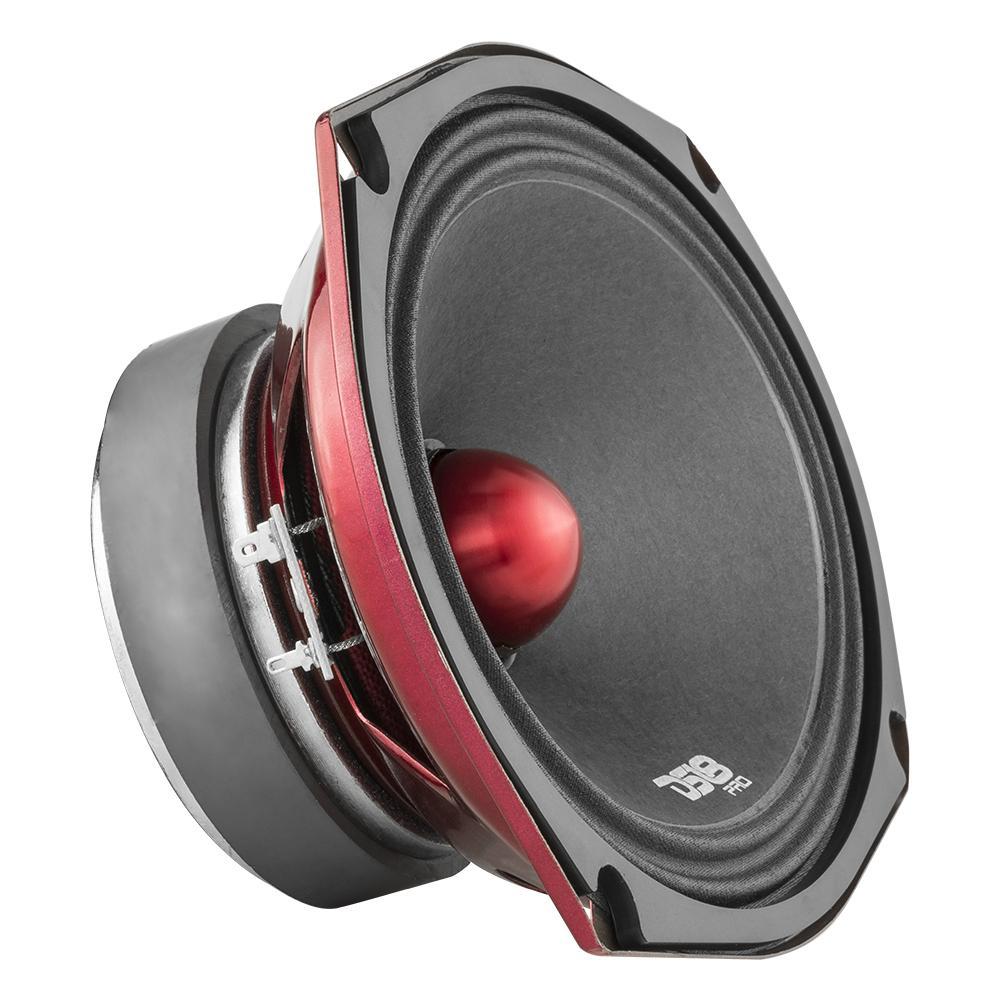

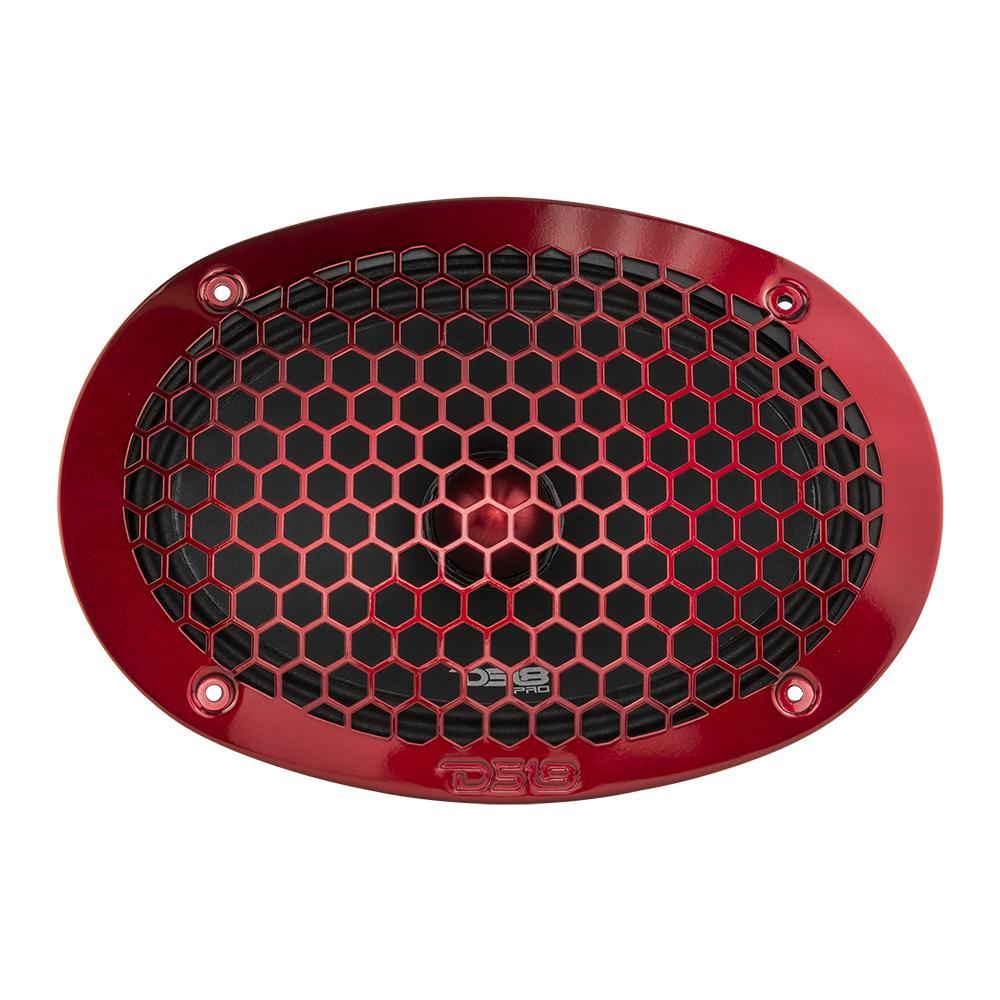

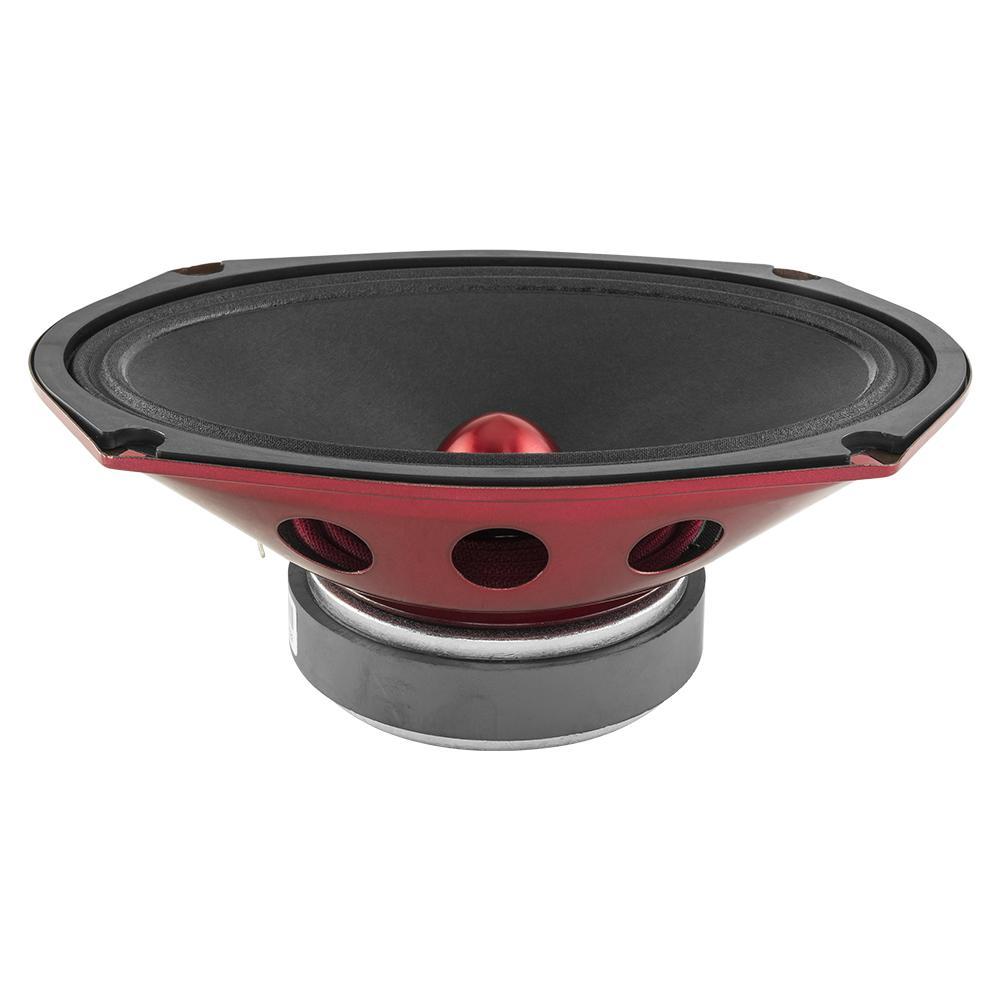

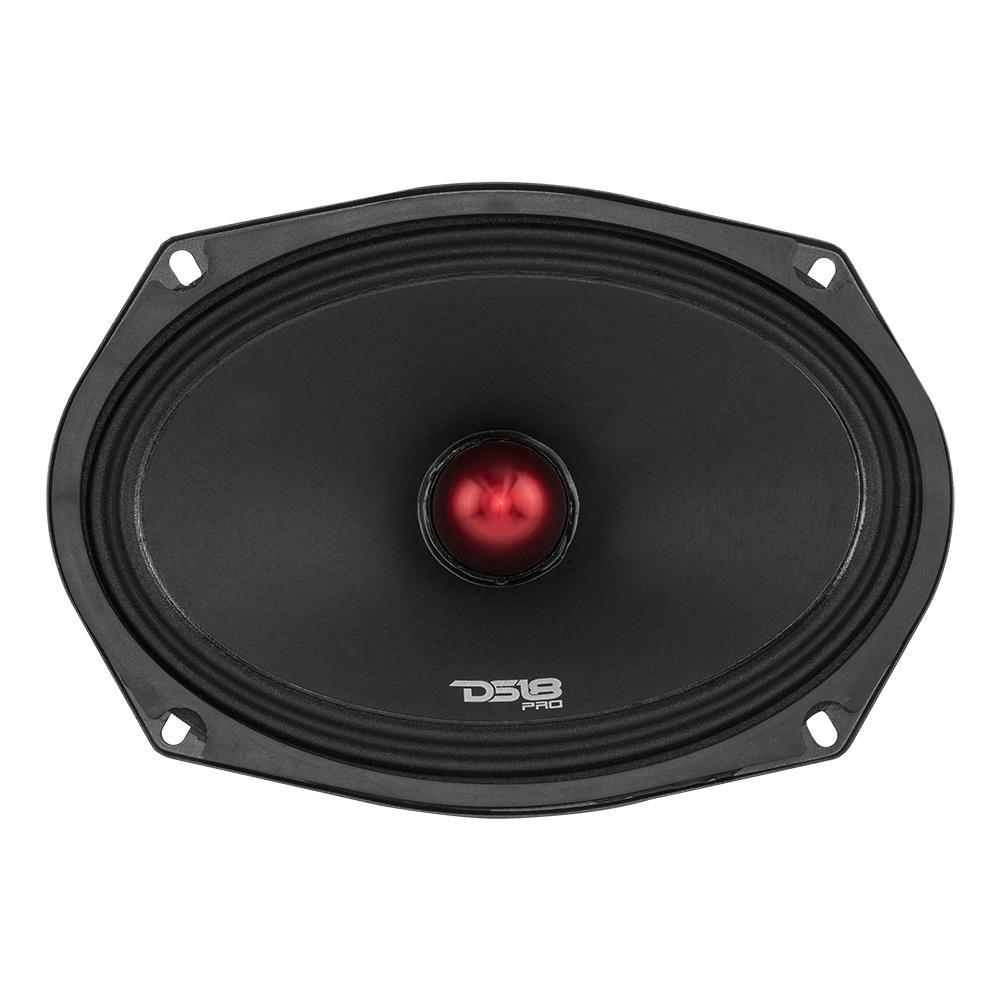

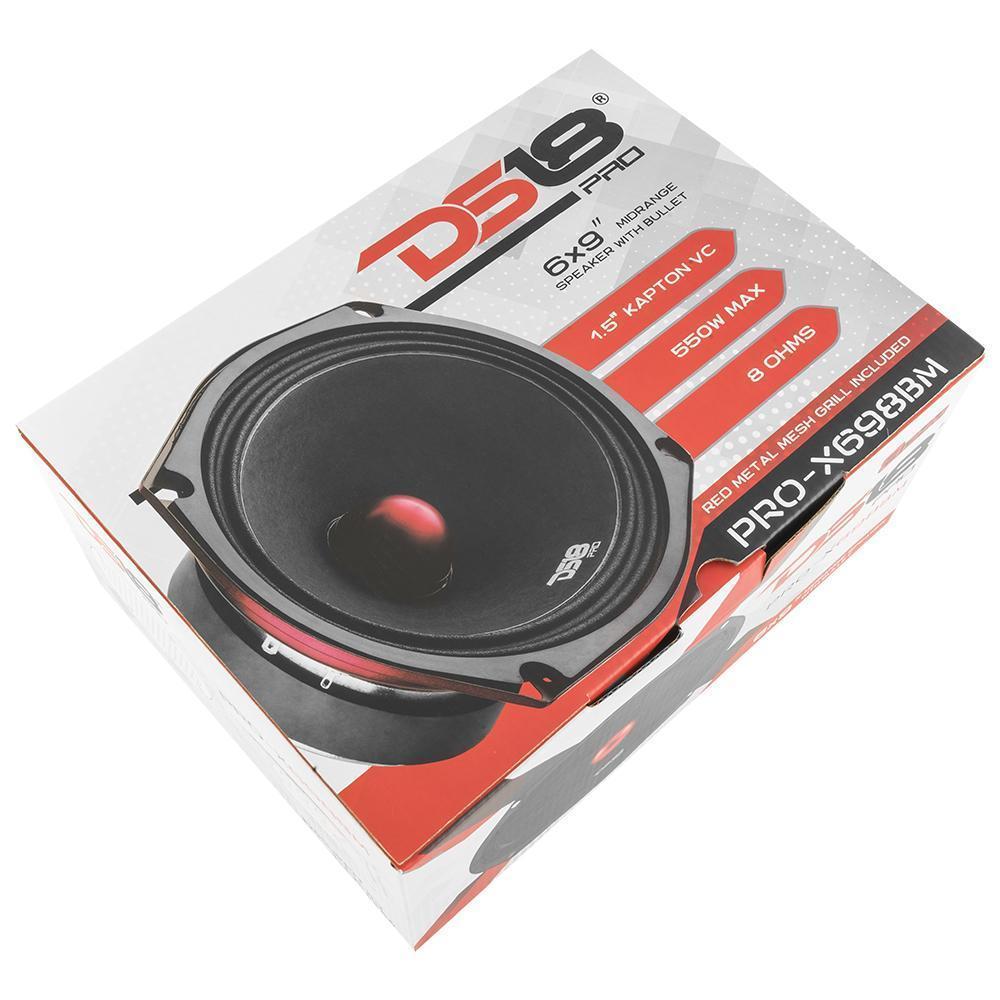

Get clearer, louder sound with the DS18 DS-PRO-X698BM, a 6x9-inch speaker.
At a glance
Impedance: 8 ohm
Details
During the focused RnD period of perfecting the PRO-EXL line, DS18 identified the opportunity to spawn off another line since there was a division amongst competition audiophiles and concert/voceteo audiophiles.
Therefore, DS18 created the PRO audio line, which features a wide variety of midranges that produce concert-like sounds that will knock the wind out of you
DETAILS:
Model: PRO-X694
Type: Midrange Loudspeaker
Size: 6X9 inch
RMS Power: 275W
MAX Power: 550W
Frequency Response: 106-17KHz
Impedance: 8 ohm
Sensitivity: 98dB
MATERIALS:
Surround: Cloth Edge
Frame: Red Steel Basket
Cone: Non-Pressed Paper Cone
Magnet: Ferrite
Voice Coil Wire: CCAW
DIAMETERS:
Voice Coil Size: 1.5 inch
Magnet Size: 27 oz
Mounting Depth: 3.35 inch
Cut-Out Dimension: 8.62 x 5.91 inch
PARAMETERS:
Vas 14.69 LTR
Xmax 9.2 mm
Fs 100 Hz
Qms 7.223
Qes 1.118
Qts 0.968
Re 5.2ohms
SPECIFICATIONS:
SERIES
Pro Series
SOLD AS
Piece
WARRANTY
1 Year Warranty
UNIVERSAL
Yes
AAIAID
FXVX
YOUTUBE VIDEO
https://youtu.be/DoSwCJgBNdY
VEHICLE TYPE
Marine|Jeep|Car|Truck/SUV
BRAND
DS18
UPC
810005181884
DIAMETER
6x9 Inch
WATT
700 Watts
OHM
8 ohm
STYLE
Mid Range
DIM LENGTH
10.875
DIM WIDTH
8.175
DIM HEIGHT
5.0
DIM UNIT
in
WEIGHT
5.5
WEIGHT UNIT
lb
