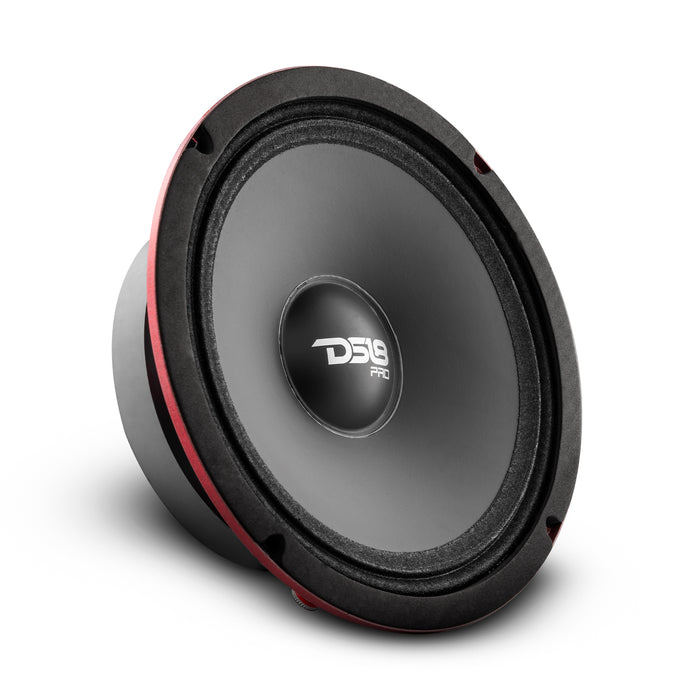

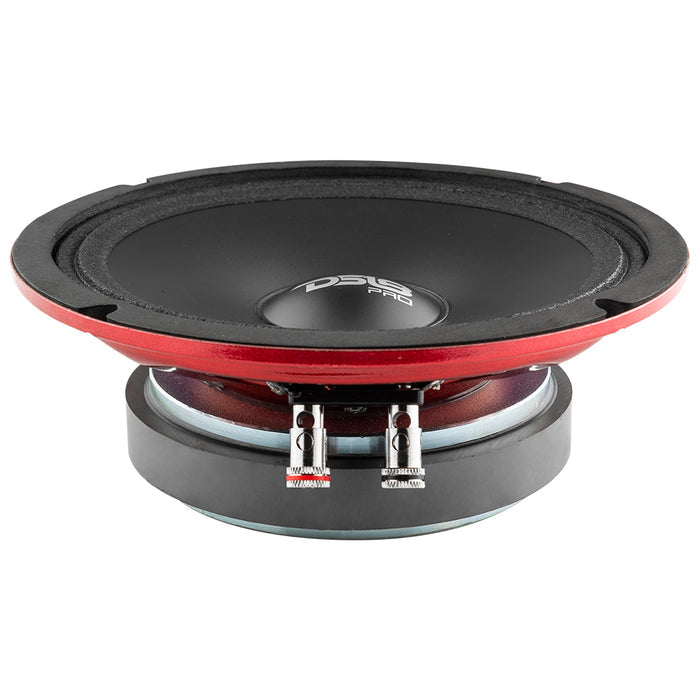

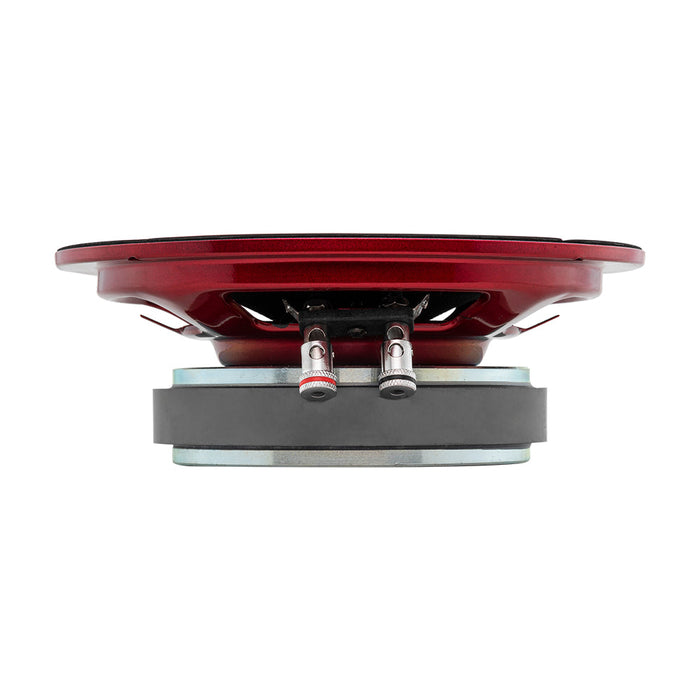

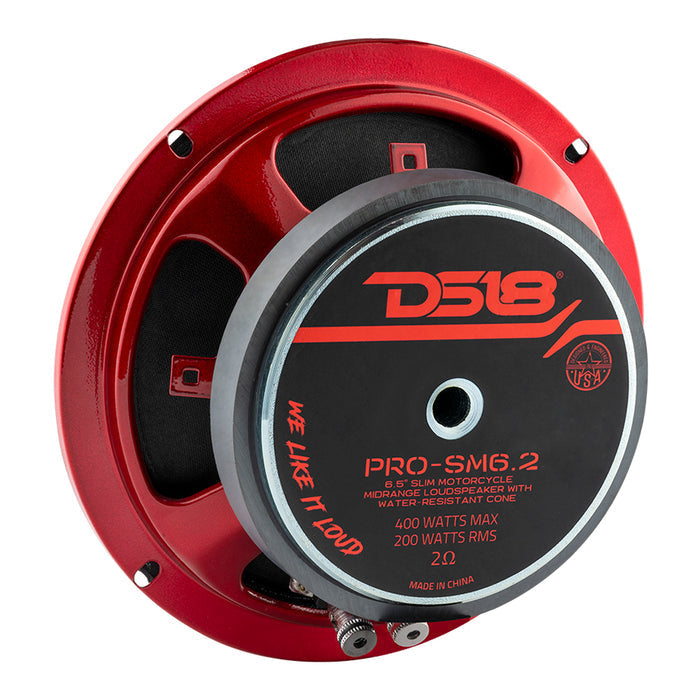

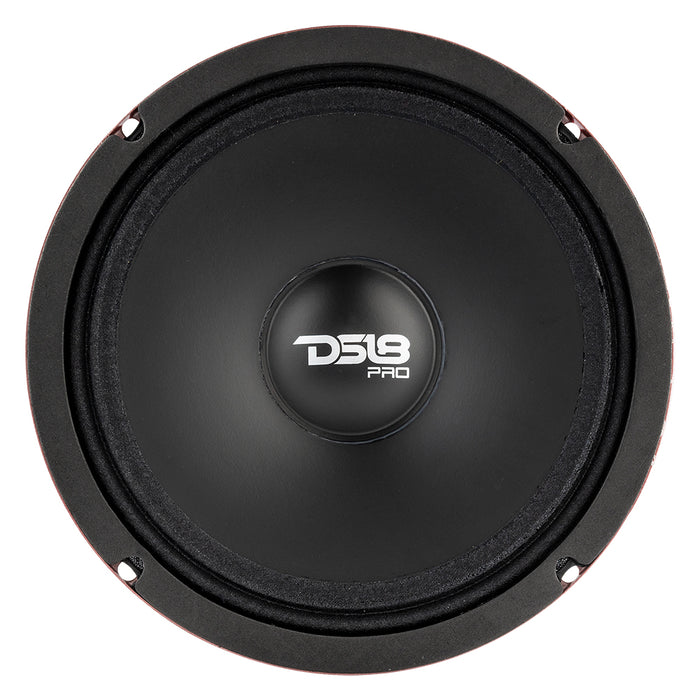

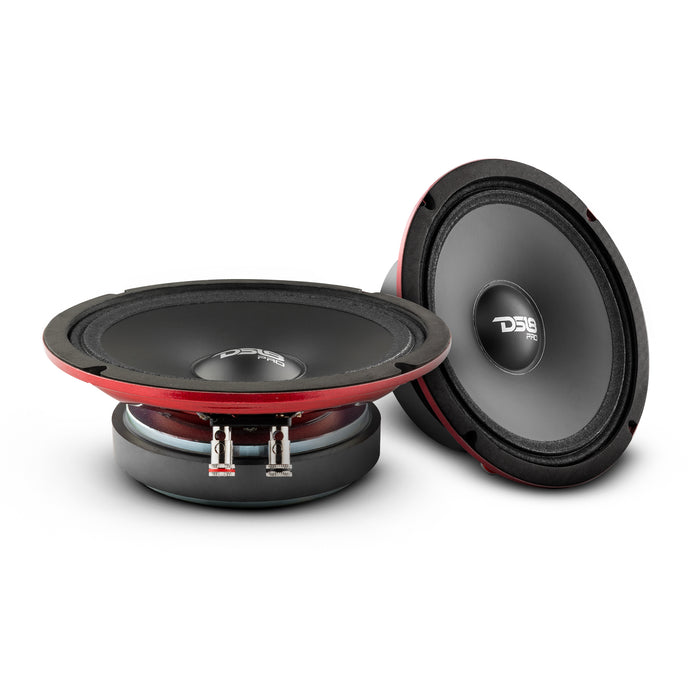

The DS18 RO 6.5” Shallow delivers crisp, detailed sound with 200W RMS of power handling.
At a glance
Power: 200W RMS
Impedance: 2 ohm
Details
sp
Features:
6.5" Shallow Mid-Range
Water Resistant
RMS Power: 200 Watts(400 Watts Peak)
Impedance: 2 Ohm
Ferrite Magnet
95dB
Specifications:
SKU PRO-SM6.2 Nominal Diameter 6.5” / 165.1mm Nominal Impedance 2 OHMS RMS Power Handling 200 Watts MAX Power Handling 400 Watts Sensitivity (1w/1m) 95 dB Frequency Response 80Hz-14KHz Recommended Hi Pass Crossover 180 Hz SKU PRO-SM6.2
UPC: 810005181853
Motor:
Voice Coil Diameter 1.5” / 38.1 mm Voice Coil Former Material Kapton Winding Material CCAW Cone Material Water Resistant Paper Dust Cap Material Water Resistant Surround Material Coated Cloth Basket Material Steel Basket Color Glossy Red Magnet Material Ferrite Magnet Weight 20 Oz
Thiele & Small Parameters:
Vas 4.7L / 0.165ft3 Xmax 8 mm Fs 188 Hz Qms 6.869 Qes 1.522 Qts 1.246 Mms 5.082 g Cms 0.142 m/N Bl 2.811 Le 0.289mH Sd 153.94 cm2 Re 2 OHMS
Measurement:

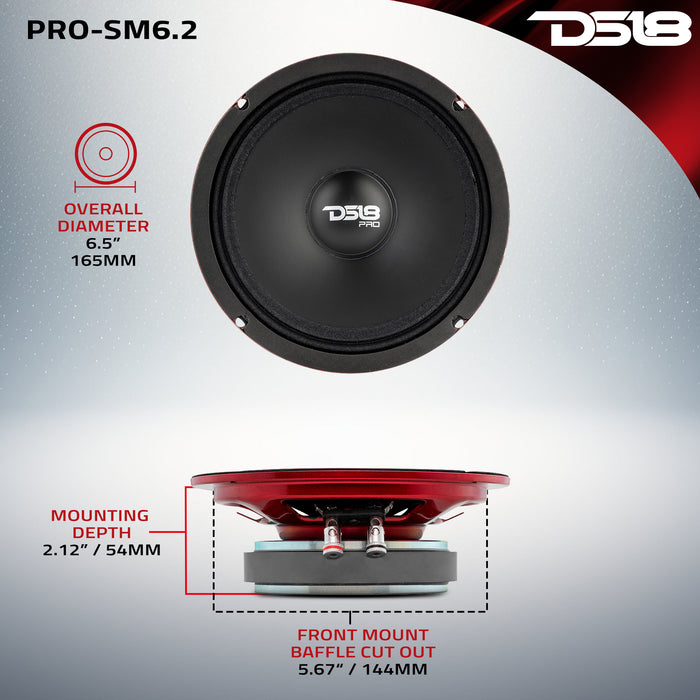

Overall Diameter 6.5” / 165mm Overall Depth 2.32” / 59 mm Front Mount Baffle Cutout 5.67“ / 144 mm Mounting Depth 2.12” / 54 mm Motor Diameter 4.33" / 110 mm
