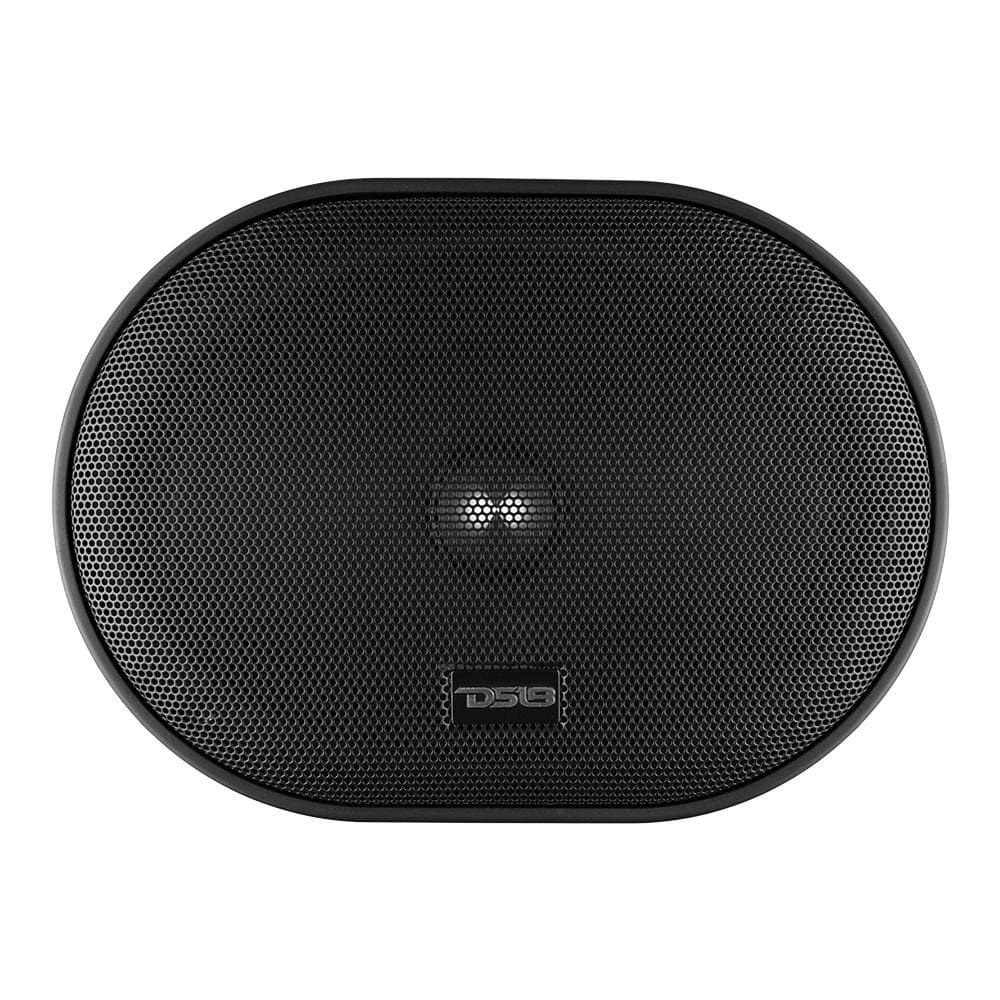

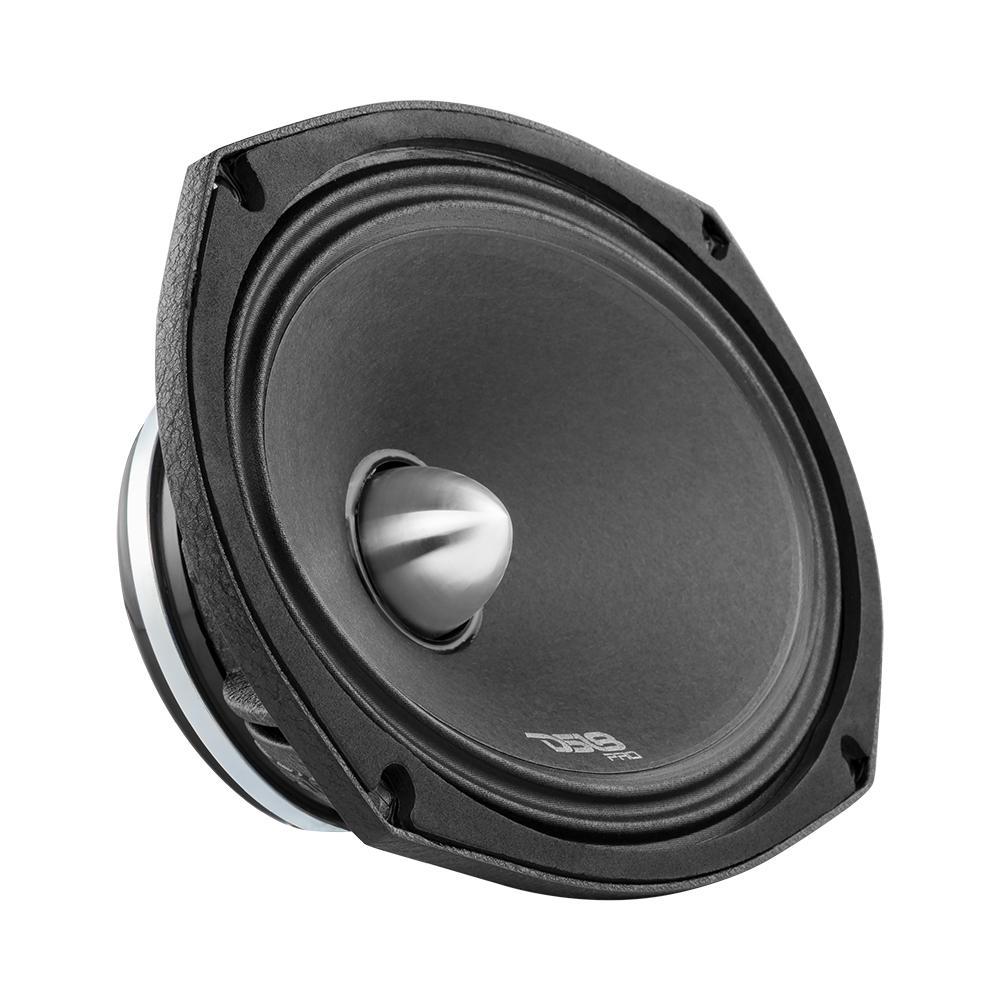

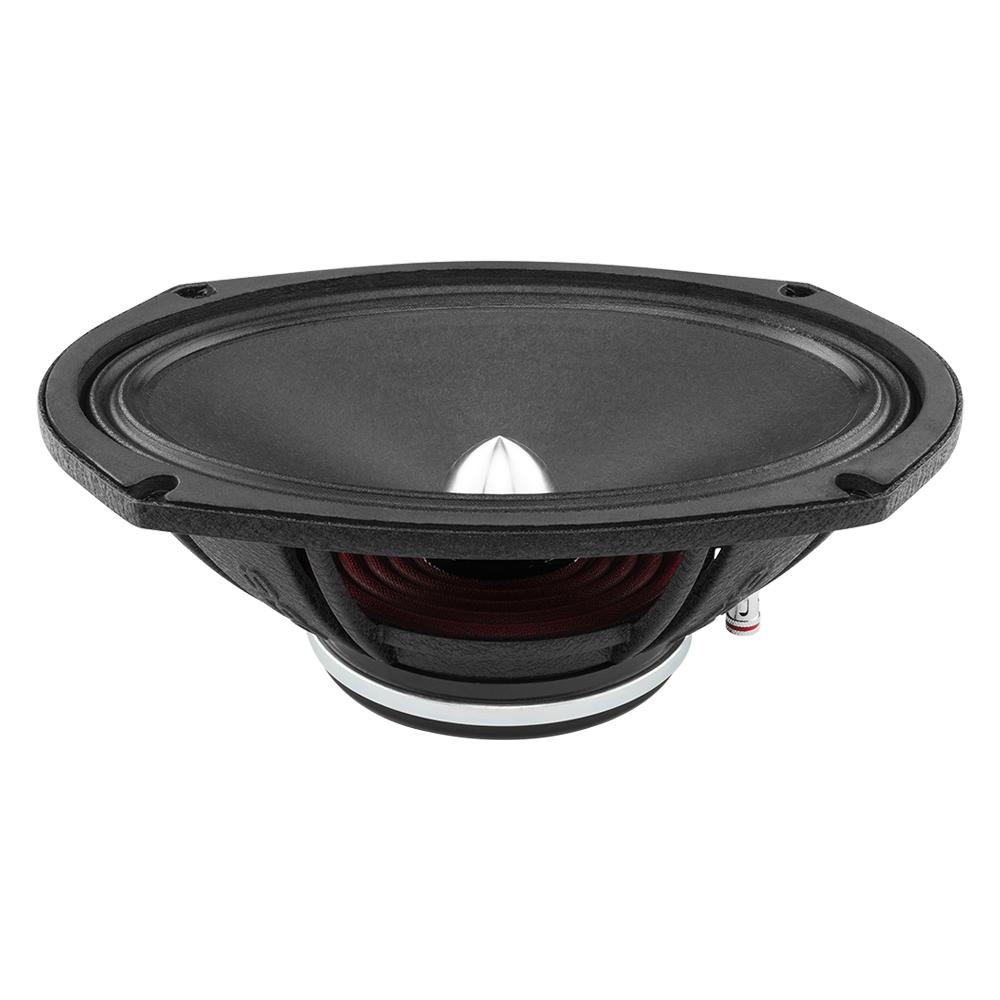

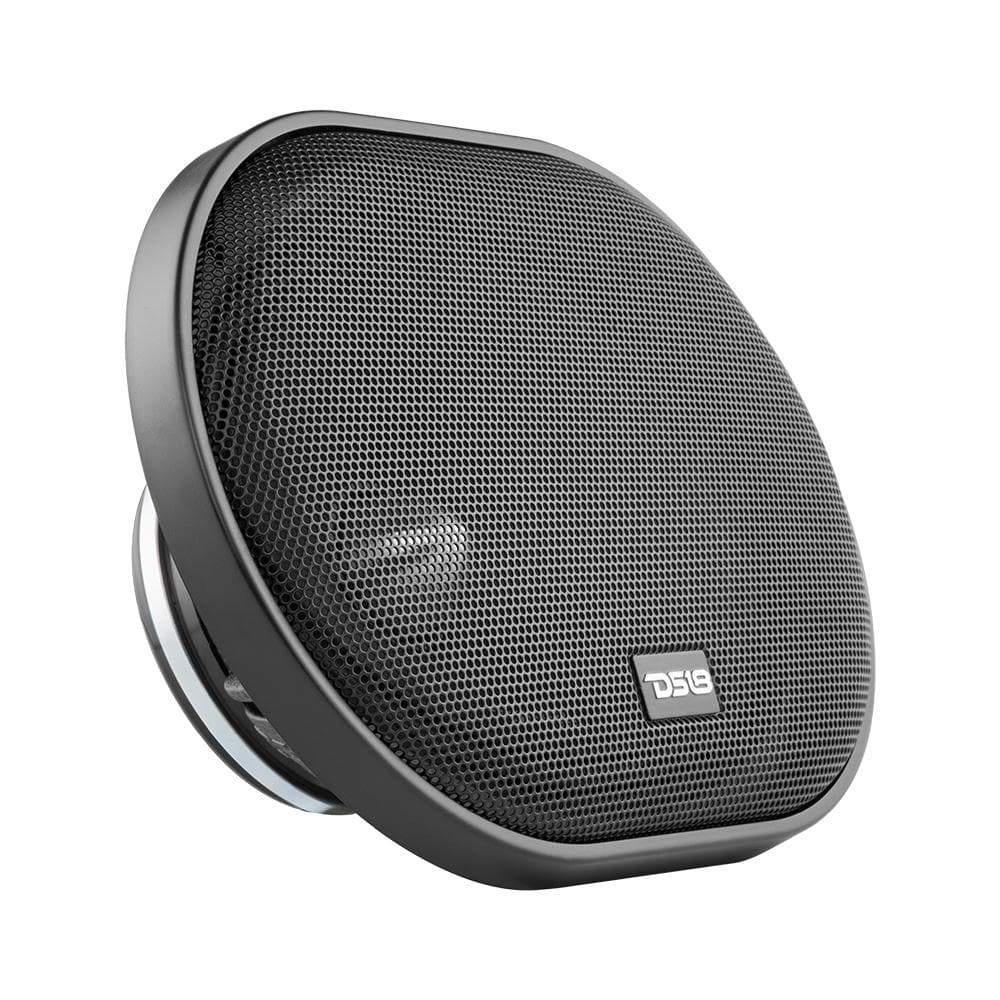

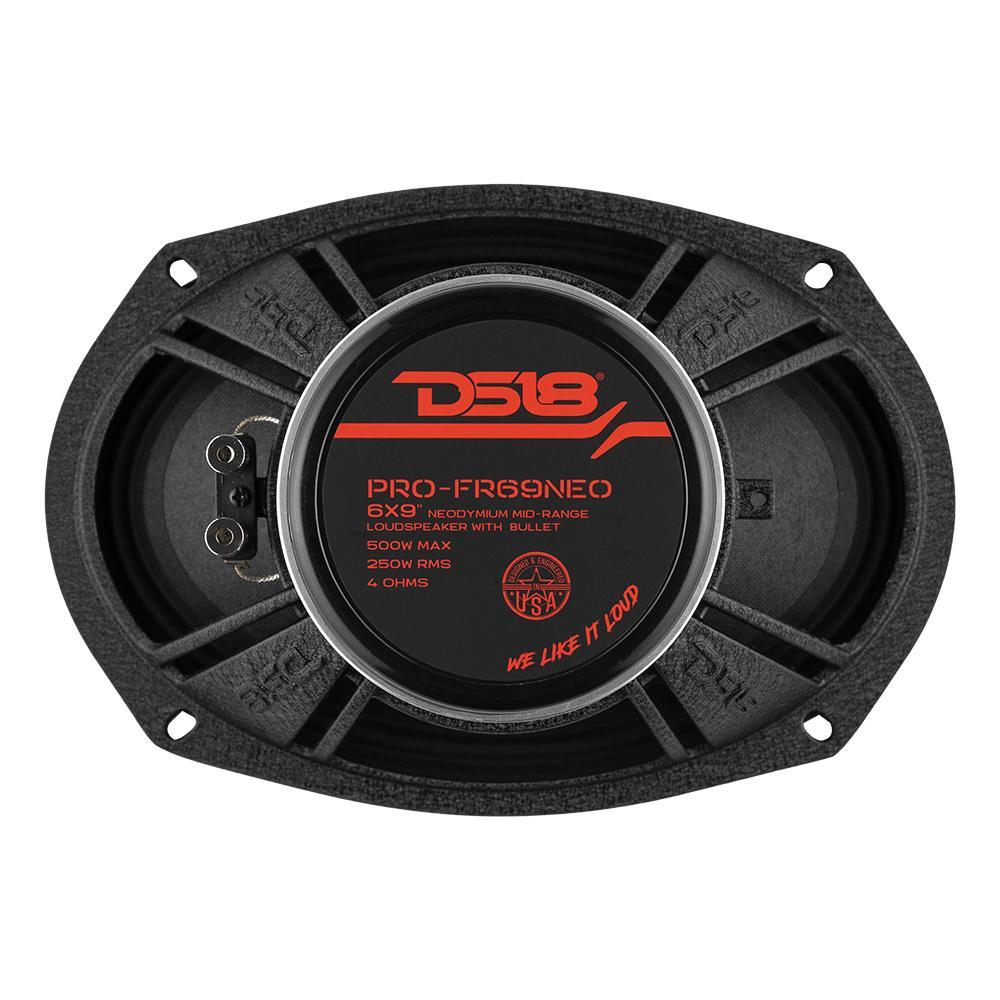

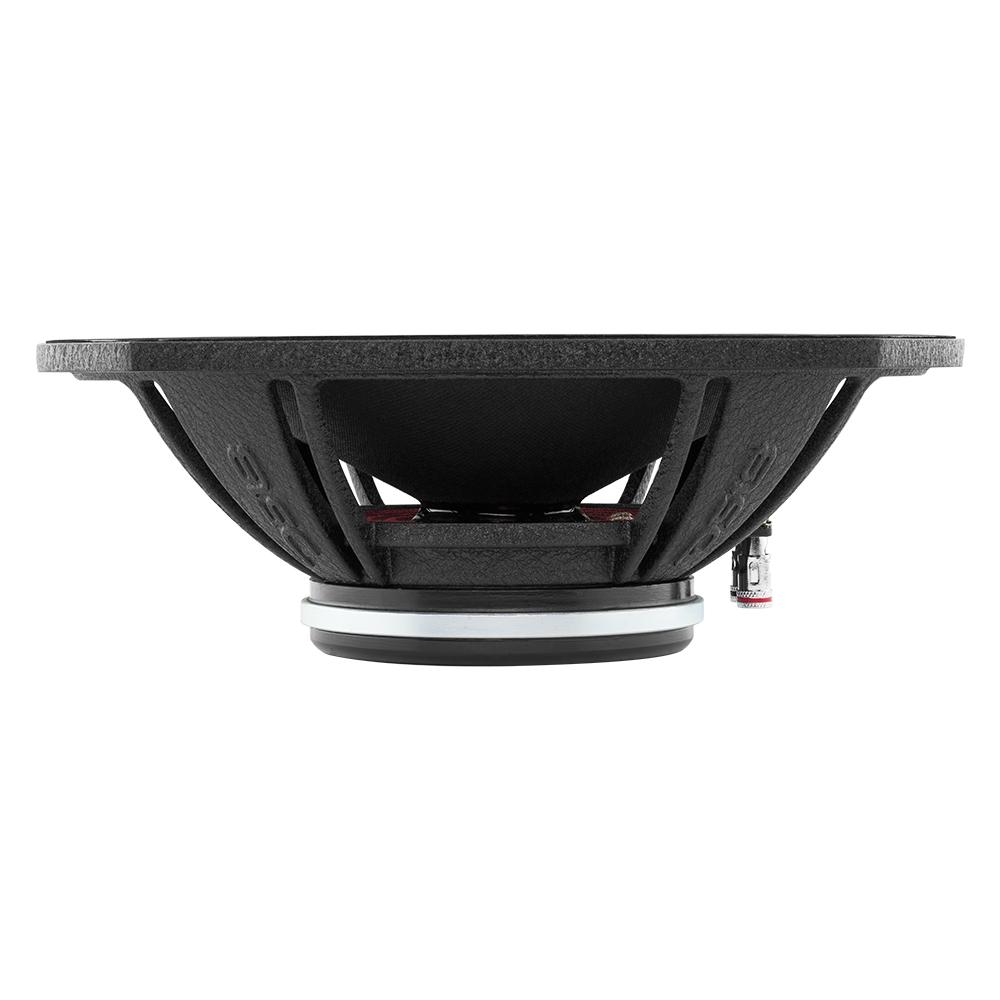

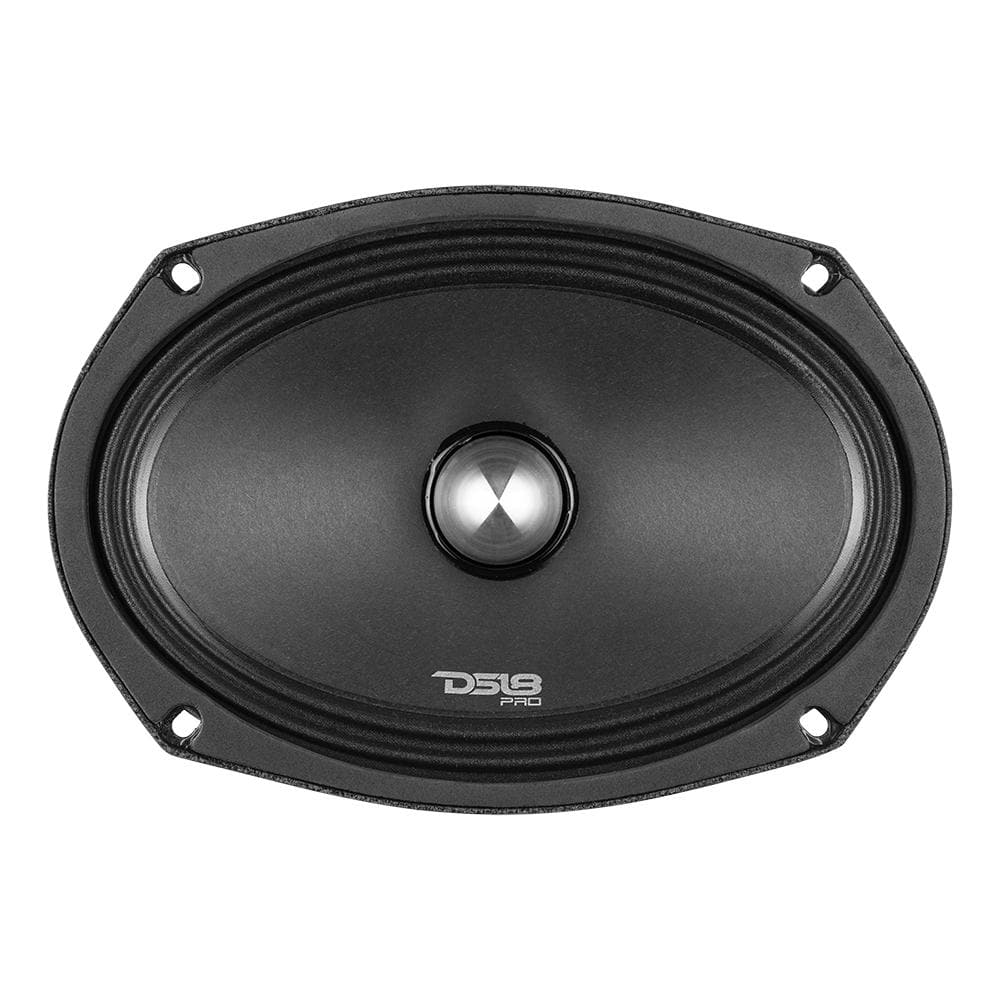

DS18 DS-PRO-FR69NEO PRO 6x9 Inch Neodymium Full-Range Loudspeaker W/ Bullet 500 Watts 4-Ohm W/ Grill

The DS18 DS-PRO-FR69NEO delivers crisp, detailed sound.

At a glance

• Impedance: 4 ohm

Details

Versatility is paramount in large and small audio systems alike. Many DS18 fans have been wanting a more powerful 6x9 so they can get clear and loud sound from their 6x9s.

We have obliged the overwhelming requests by releasing our PRO-FR69NEO. This Neodymium driven midrange speaker will be the loudest 6x9 we have while also handling the most power.

The great thing about NEO motor structures is that you get better performance, higher wattage handing, better efficiency, and much lighter in weight than a traditional speaker with a ferrite motor structure.

This is a 4 ohm speaker that handles 250w RMS and 500e MAX power with a DB sensitivity rating of 98db. This neo also has a built in bullet resonator to help this screaming mids range all the way from 100hz to 9000hz with eclxyteme clarity and loudness.

KEY FEATURES

• Neodymium motor structure that handles more power, lighter, and more efficient than ferrite motors.
• Silver bullet resonator that will bring the loudness and clarity of this speaker to the highest pinnacle.
• High RMS rating of 250w RMS and 500w MAX at 4 ohms so you can have a very high powered 6x9 to blow away the competition.
• High decibel rating so it does not take max power to get the fullest sound.

DETAILS:

• Nominal Diameter 6x9 inch
• Nominal Impedance 4 ohms
• RMS Power Handling 250w
• MAX Power Handling 500w
• Sensitivity (1w/1m) 98dB
• Frequency Response 100Hz-9KHz
• Recommended HI Pass Crossover 120Hz

MOTOR:

• Voice Coil Diameter 38.6mm/1.5 inch
• Voice Coil Former Material Kapton
• Winding Material CCAW
• Cone Material Paper
• Bullet Material Aluminum
• Surround Material Cloth
• Basket Material Aluminum
• Magnet Material Neodymium
• Magnet Weight 2.8Oz
• Displacement Volume 0.0524L

MEASUREMENTS:

• Overall Diameter 9.44X6.57 inch
• Overall Depth 3.31 inch
• Front Mount Baffle Cutout 8.74X5.97 inch
• Mounting Depth 2.874 inch
• Motor Diameter 4.13 inch

SPECIFICATIONS:

• Installation Guide
