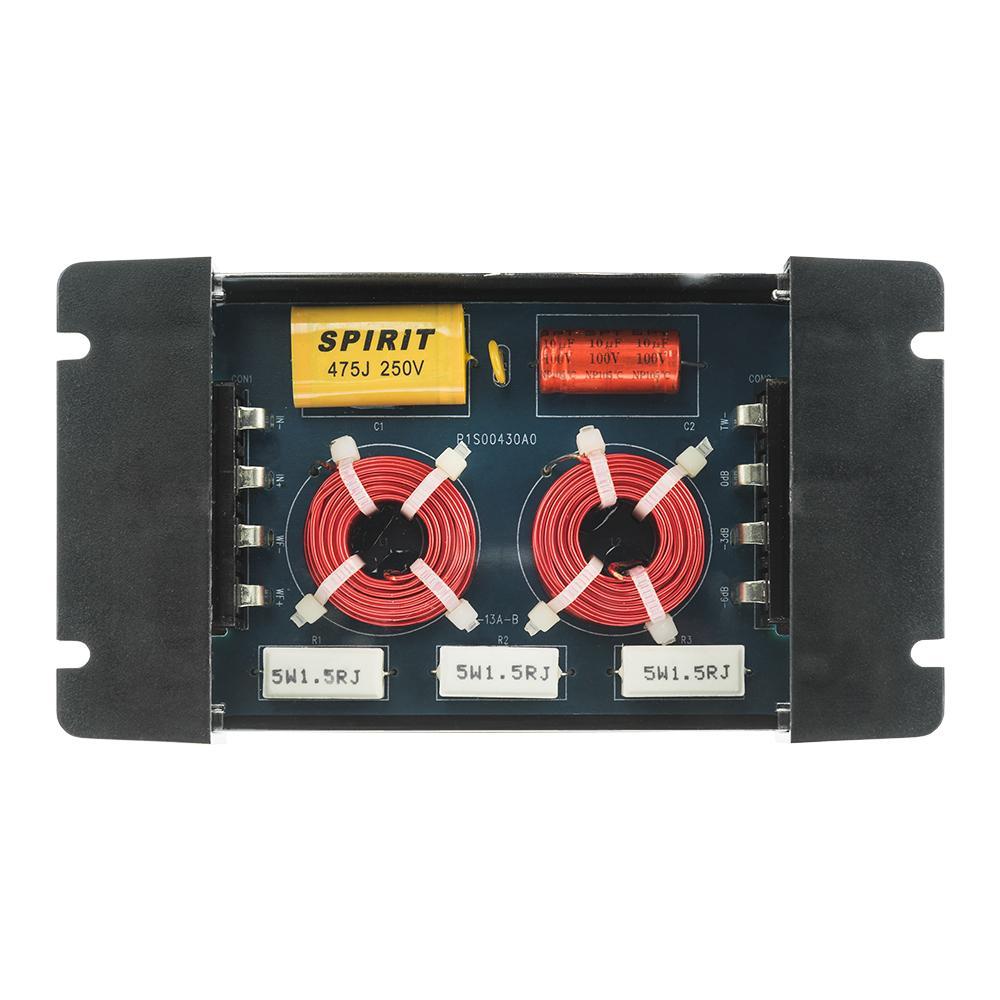

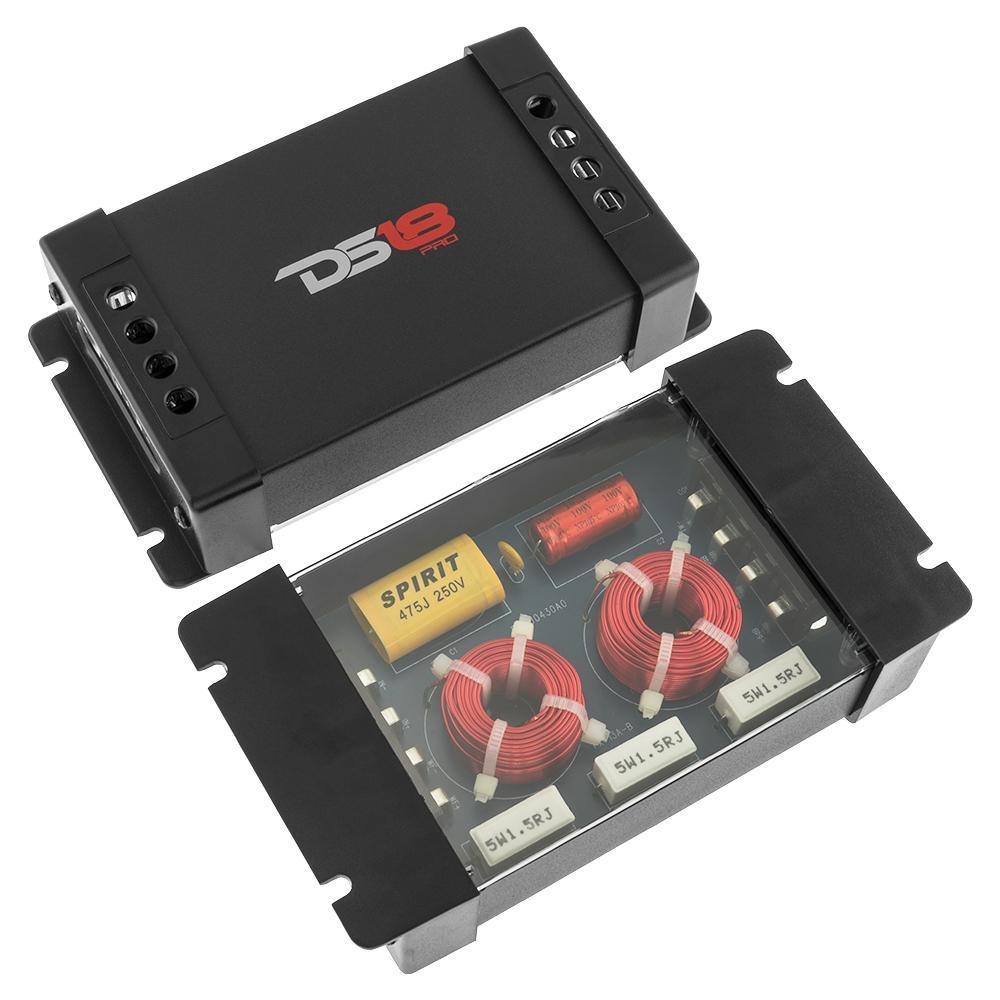

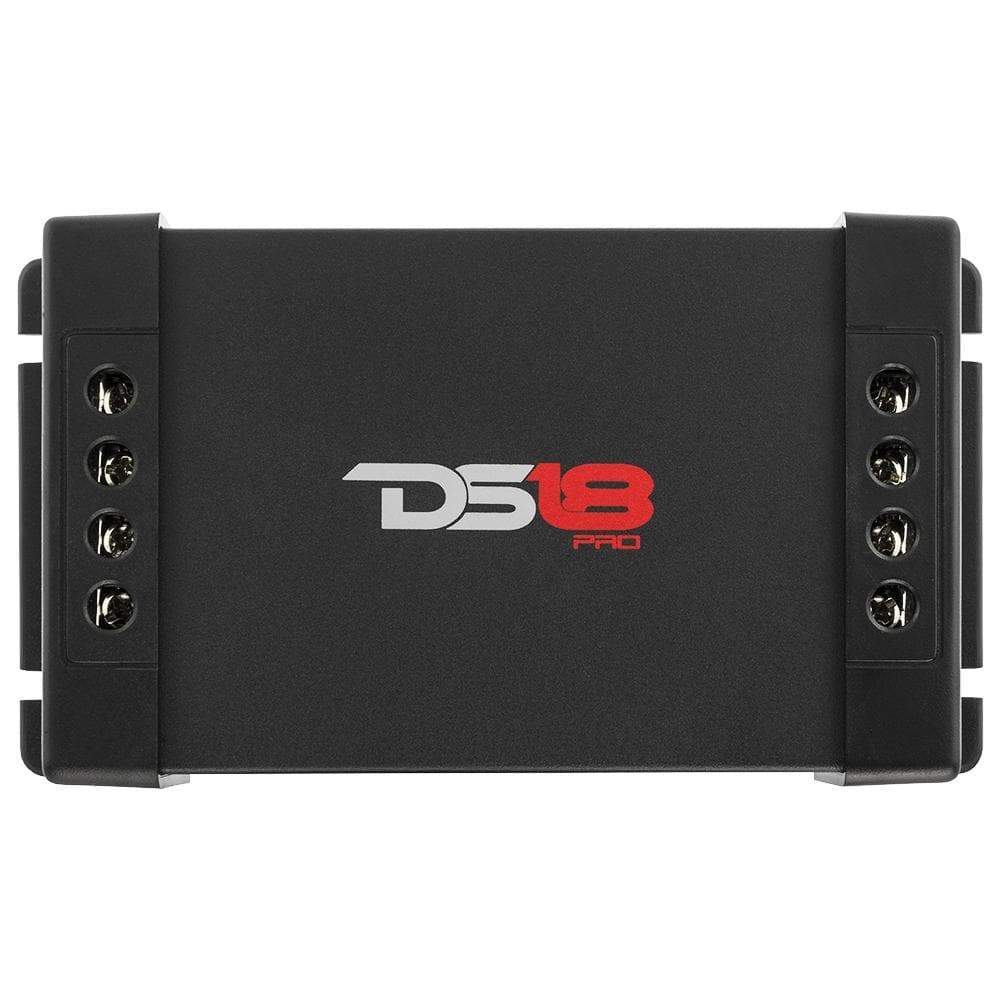

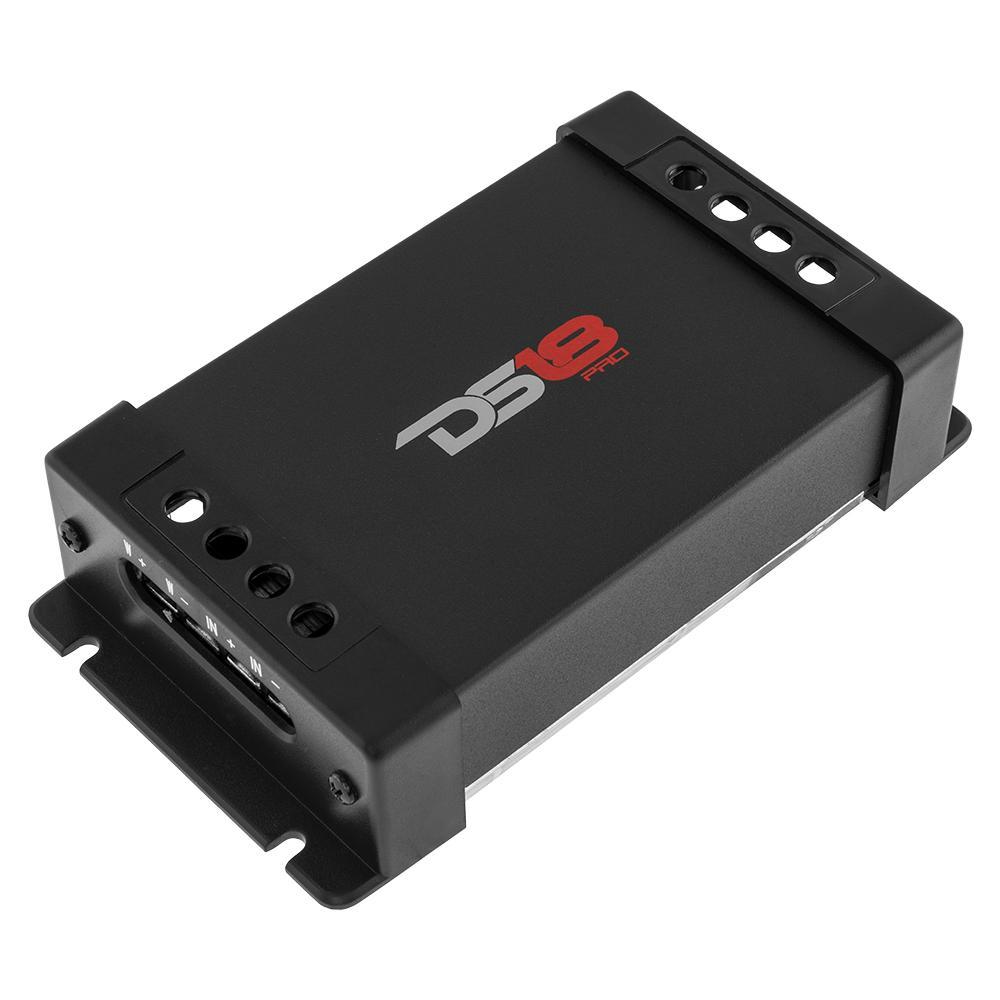

DS18 DS-PRO-CFX 2-Way Passive Crossover

The DS18 DS-PRO-CFX helps your aftermarket gear work cleanly with your vehicle's audio.

Details

DS18 PRO-CFX 2-Way Passive Crossover (Pair)

Unlock powerful, high-clarity sound with DS18’s PRO-CFX 2-Way Passive Crossovers. Designed for custom car audio setups, these crossovers handle up to 300W RMS, filtering frequencies for optimal speaker performance. With a compact, easy-to-install design, the PRO-CFX lets you run two speakers from a single amp channel—delivering loud, clean audio with precision and control.

Features:

• Passive Crossover
• 2-Way
• 1 X Input
• 1 X High ~ 1 X Mid-Range Output
• 0 ~ -6DB Gain For Tweeter
• Pair

Specifications:

SKU
PRO-CFX
Passive Crossover Ways
2-Ways (High and Low Frequency)
Frequency Crossover point
3.5KHz (@ 4 ohms)
Power Handling
Up to 300 Watts
Cut-Off Slope
12dB/oct
Tweeter Attenuation
(-3dB/-6dB)
Top Cover Material
Steel
Bottom Cover Material
Clear Acrylic

Crossover Features:

Capacitor Type
NP Mylar
Coil Type
KSV
Terminal Type
Screw-On
Housing Material
Metalic housing + plastic side covers + Clear Acrylic
Adjustments
Tweeter Attenuation

Extra Features:

Connectors

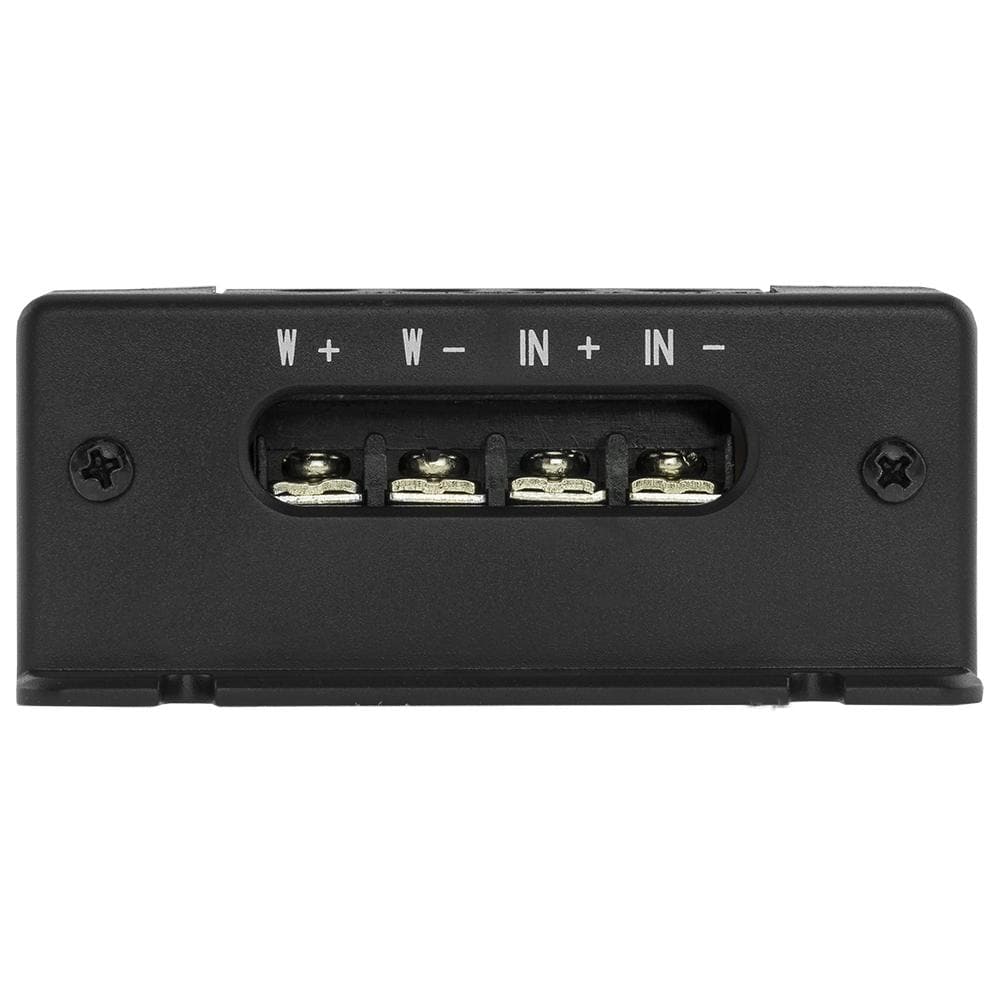

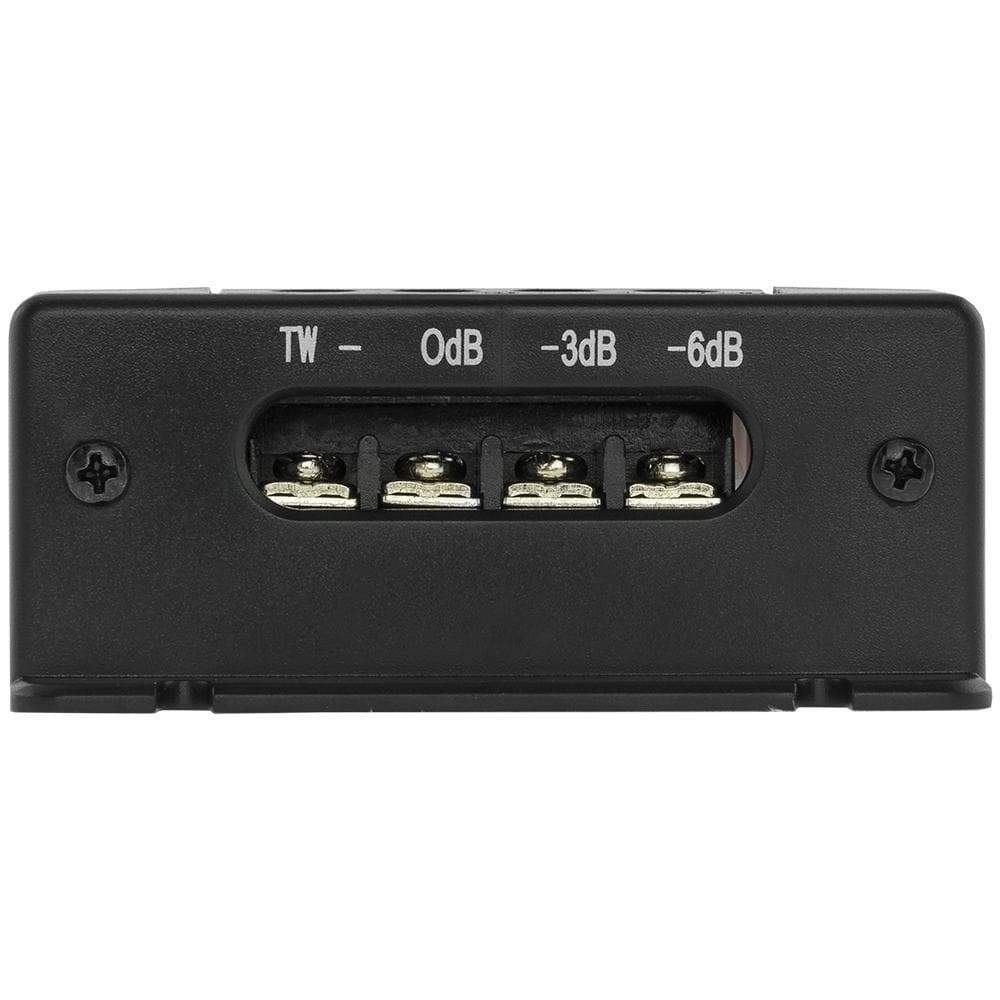

TW-: Tweeter (Negative) 0dB: Tweeter (Positive) -3dB: Tweeter Attenuation -3dB (Positive) -6dB: Tweeter Attenuation -6dB (Positive) W+: Woofer (Positive) Connect to Speaker W-: Woofer (Negative) Connect to Speaker IN+: Input (Positive) Connect to Amp IN-: Input (Negative) Connect to Amp

Crossover Measurement:

Overall Length
6.3" / 160mm
Overall Depth
3.5" / 88mm
Overall Height
1.5" / 38mm
Gross Single Unit Weight (lb)
2
Single Unit Box Dimensions W x L x H
7.5 x 6.75 x 2
Quantity of Units in Master Carton
10
Gross Master Carton Weight
20.5
Master Carton Dimensions W x L x H
15.75 x 10.75 x 7.5
