Replace tired factory sound with the AudioControl PNW-69 – 100W RMS (200W peak).
At a glance
Power: 100W RMS (200W peak)
Details

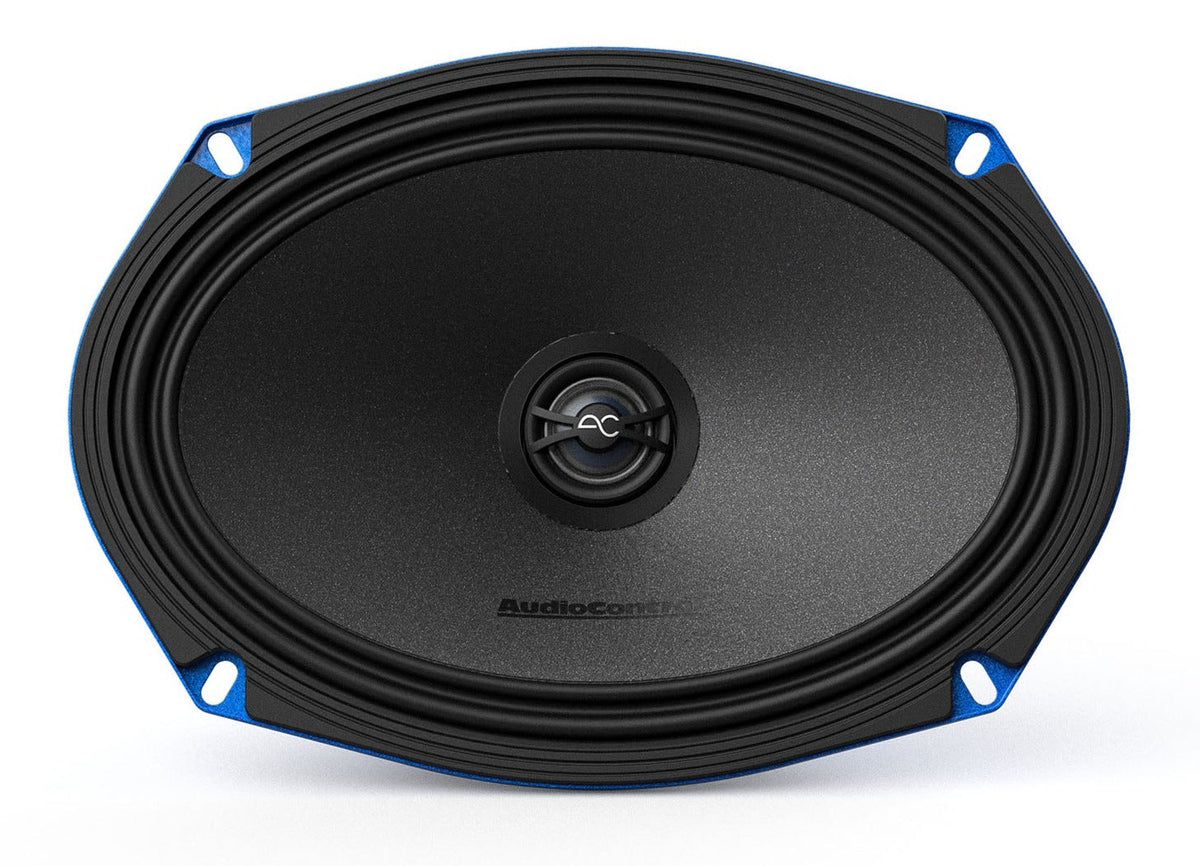

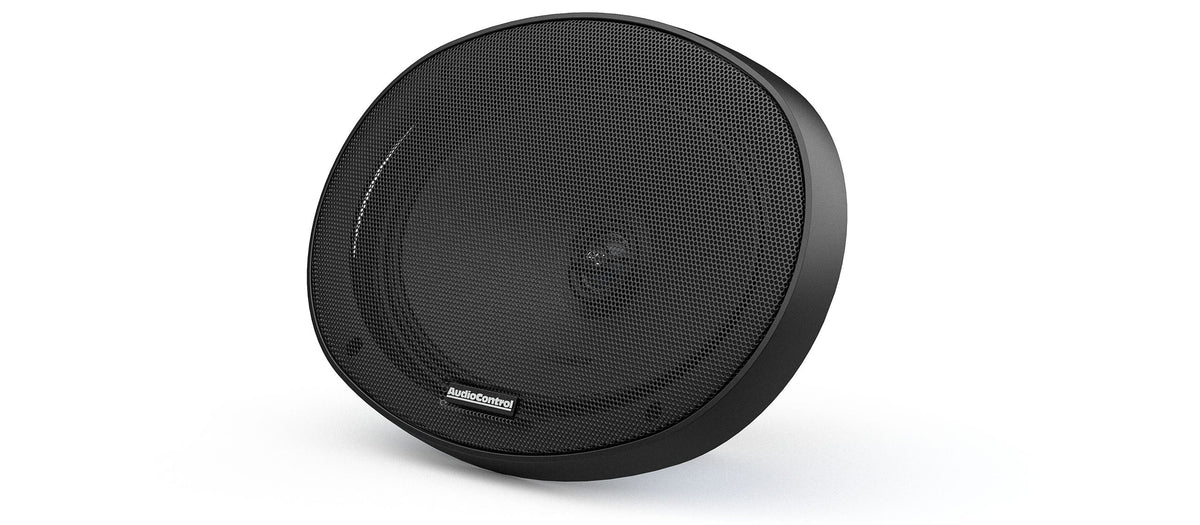

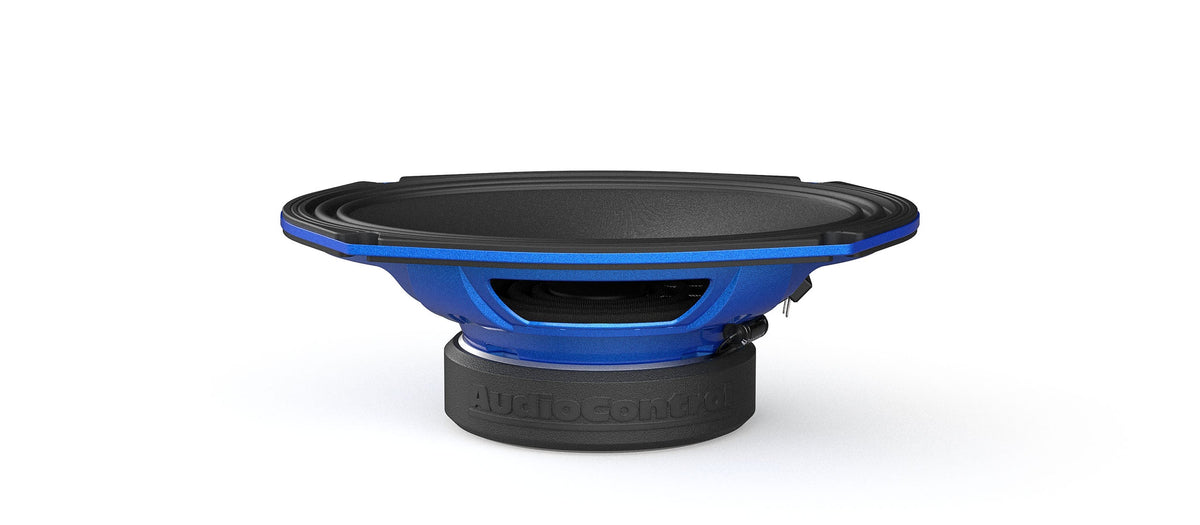

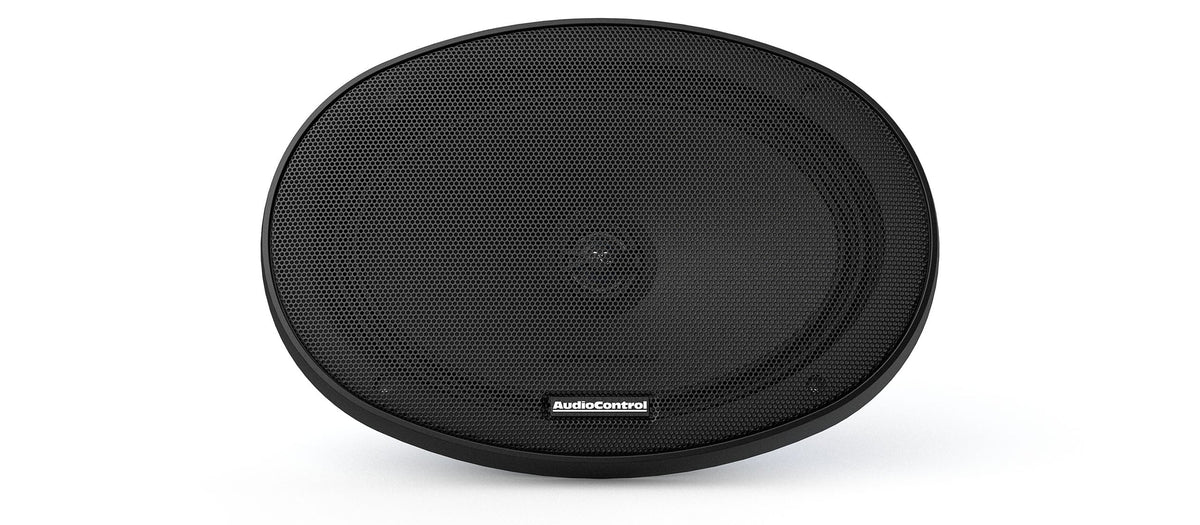

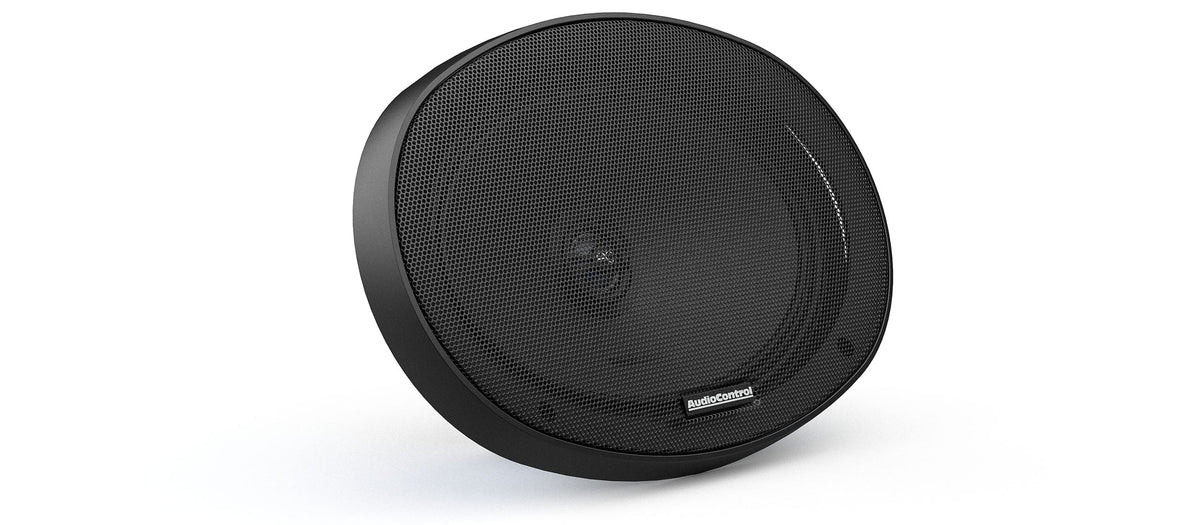

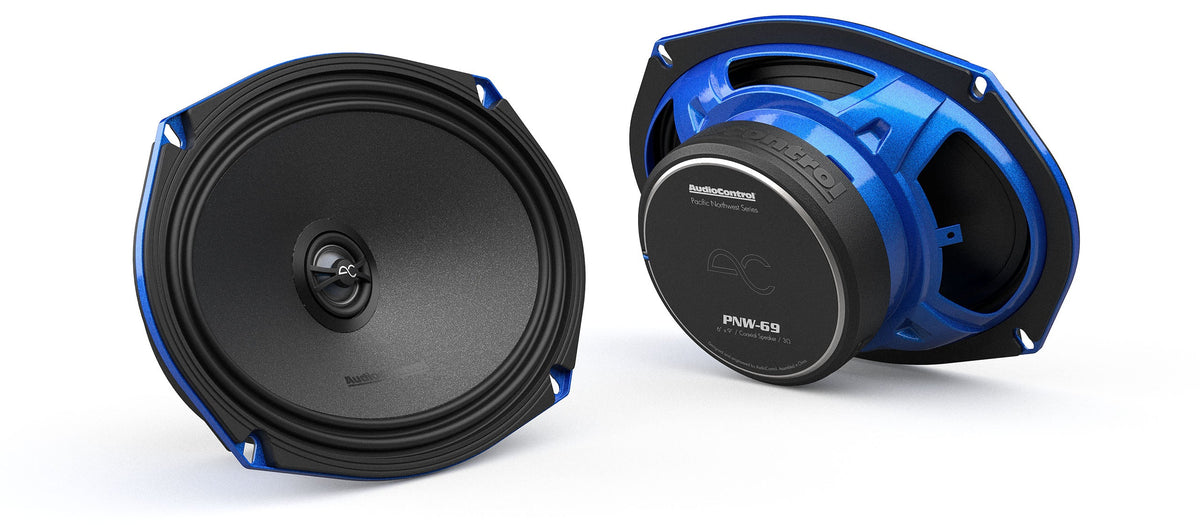

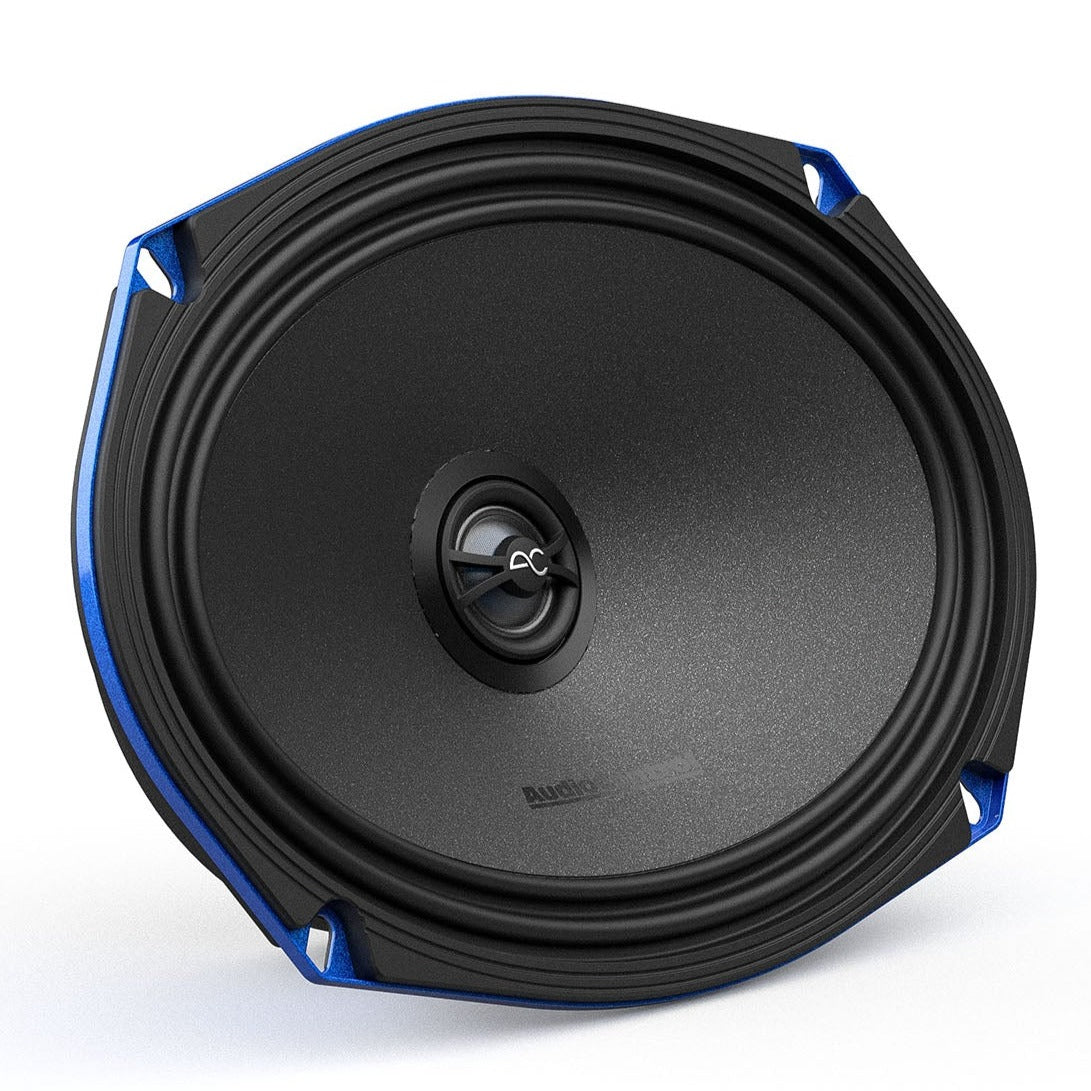

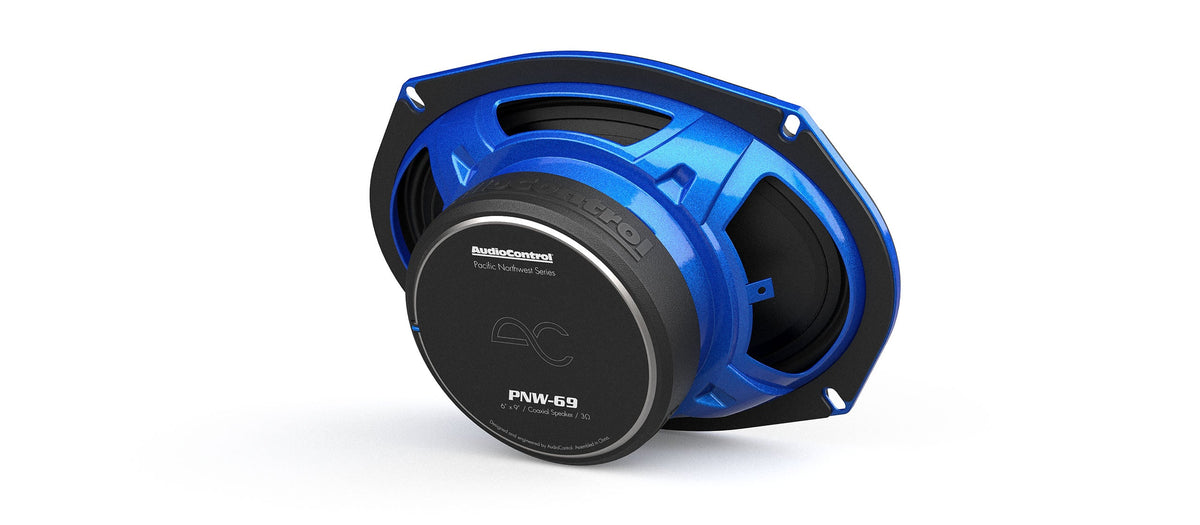

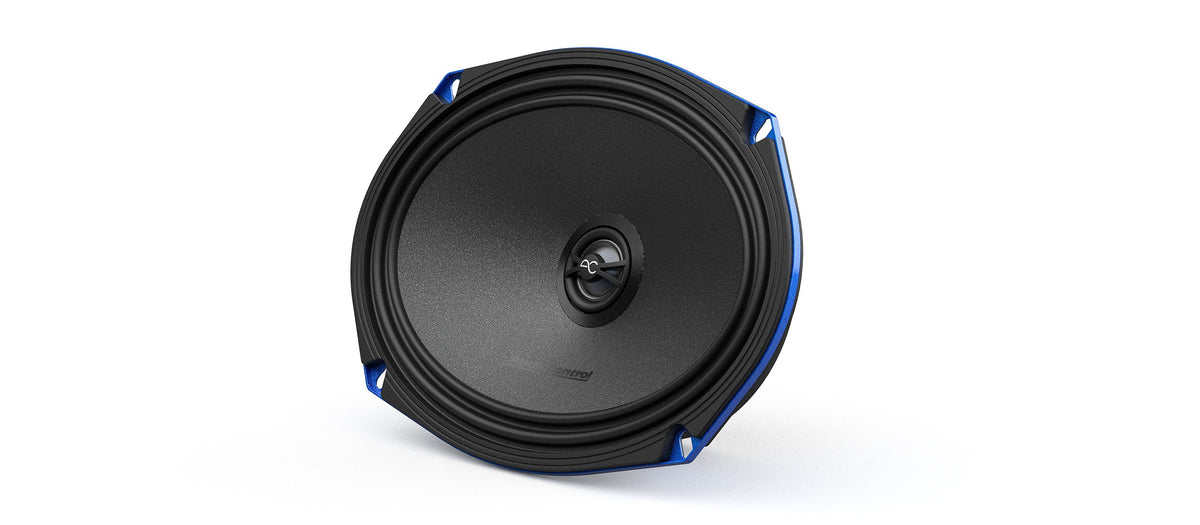

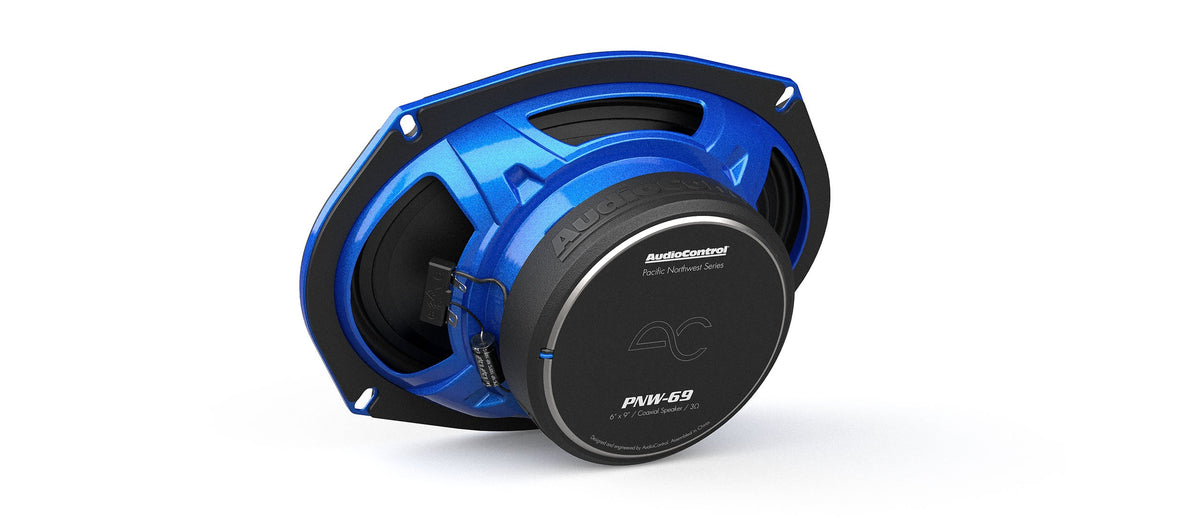

PNW Series 6 x 9" High-Fidelity Coaxial Speakers
Experience the vibrant landscapes of the Pacific Northwest through your music with AudioControl’s PNW speakers. Backed by over 45 years of engineering top-quality audio components, these speakers offer a wild auditory adventure like no other. Combine them with AudioControl’s legendary amplifiers for an unmatched audio experience.
Features:
Edge-enhanced steel frame for added structural strength
Black anodized voice coil former for superior heat dissipation
Linear double-roll surround for precise cone movement
Complex FEA-designed high-efficiency motor
Rigid poly mica-coated cone for optimized sound reproduction
Rear dampened hybrid silk dome tweeter for extended frequency response
Concentric point source design for seamless transition from midrange to tweeter
Sonic diffuser and radiant collar for better off-axis frequency response
High-quality mounting hardware included
Specifications:
Crossover Type: Butterworth
DC Resistance (Re): 2.6 ohms
Filter Type: HP
System Frequency (Fs) Response: 50-20k Hz
XO Frequency: 5250 Hz
Slope (Octave): -6 dB
Tweeter Voice Coil Diameter: 20 mm
Midrange Voice Coil Diameter: 35 mm
In the Box: PNW-69 Speakers, Manual
Dimensions:
Overall Dimensions: 6 x 9 in / 167 x 235 mm
Overall Diameter (w/o Metal bracket): 7.2 x 10.43 in / 183 x 265 mm
Cut Out Diameter: 5.74 x 8.34 in / 146 x 212 mm
Mounting Depth: 2.95 in / 75 mm
Mounting Height (w/o Grille): 0.24 in / 6.3 mm
Mounting Height (w/ Grille): 0.98 in / 25 mm
Motor Diameter (w/ Cover): 4.6 in / 117 mm
Weight: 11 lbs
SKU: AC-PNW69 UPC: 850038647490
