Get clearer, louder sound with the AudioControl PNW-65CS2, a 6.5-inch speaker rated 80W RMS (160W peak).
At a glance
Power: 80W RMS (160W peak)
Details

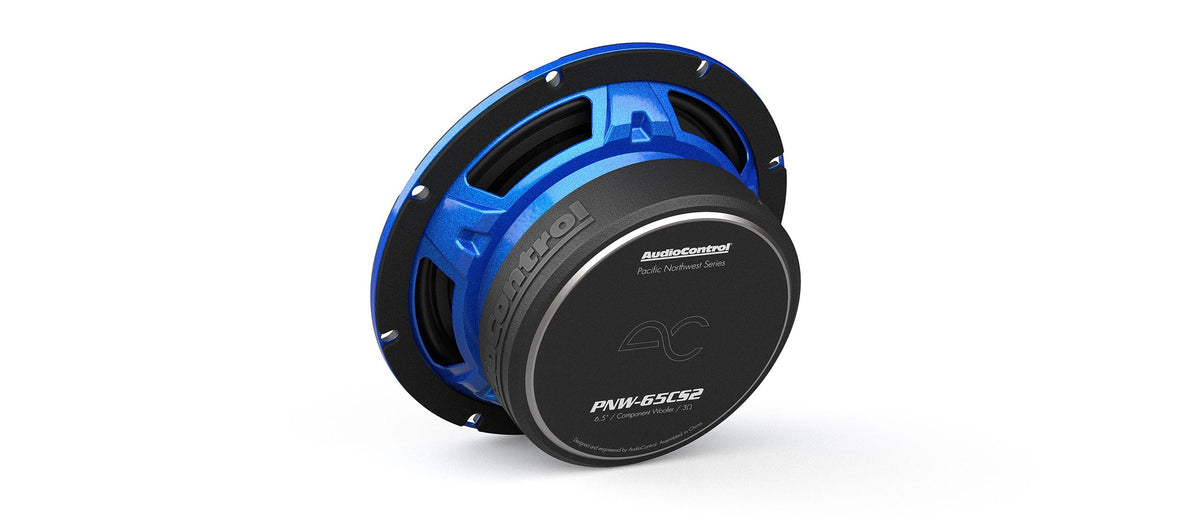

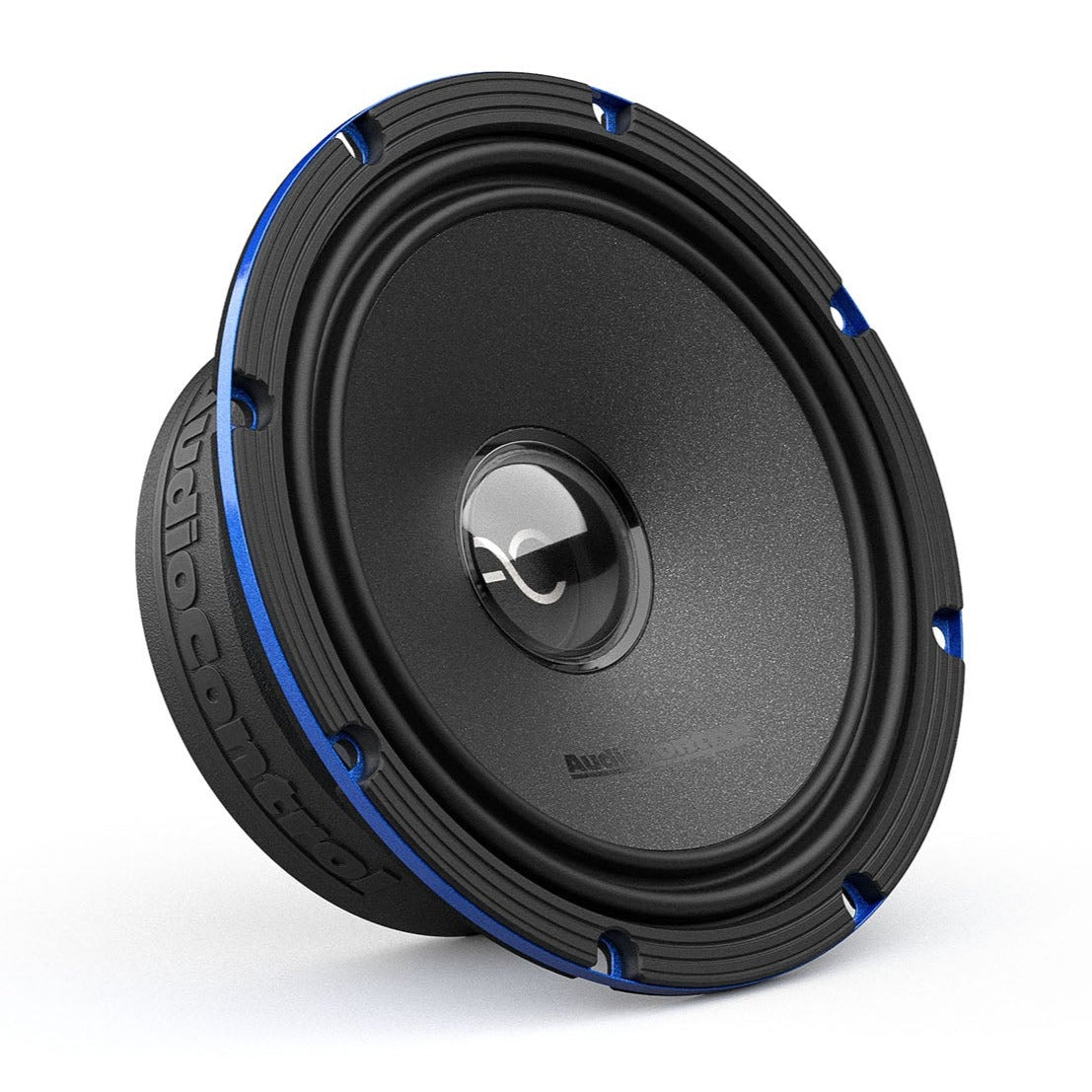

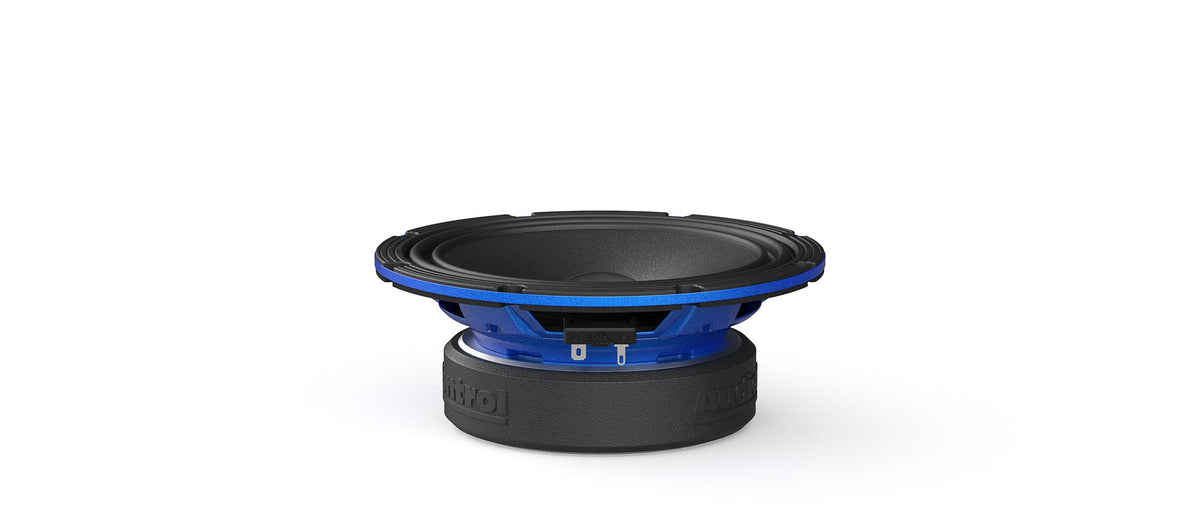

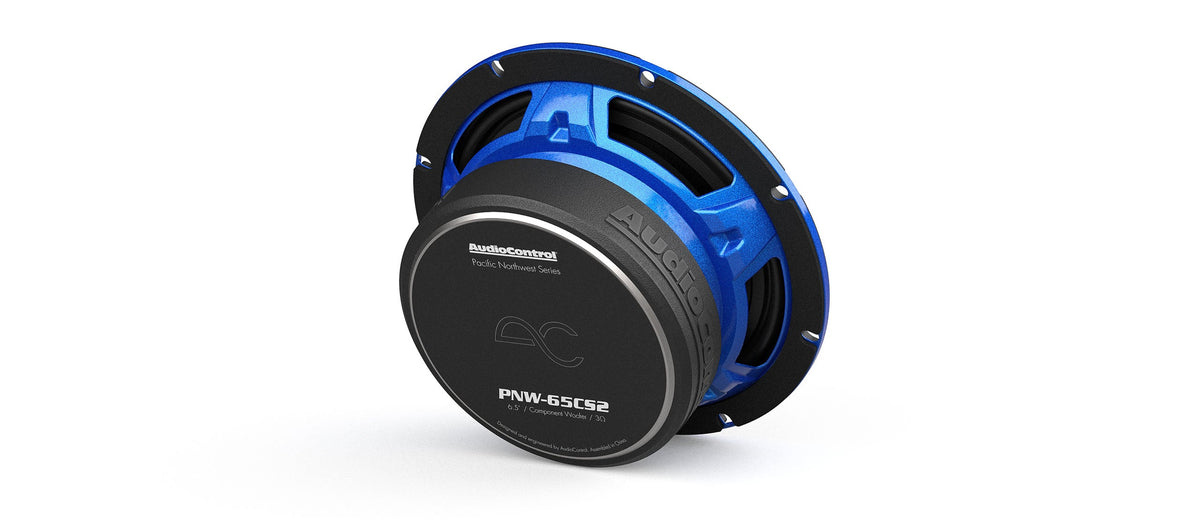

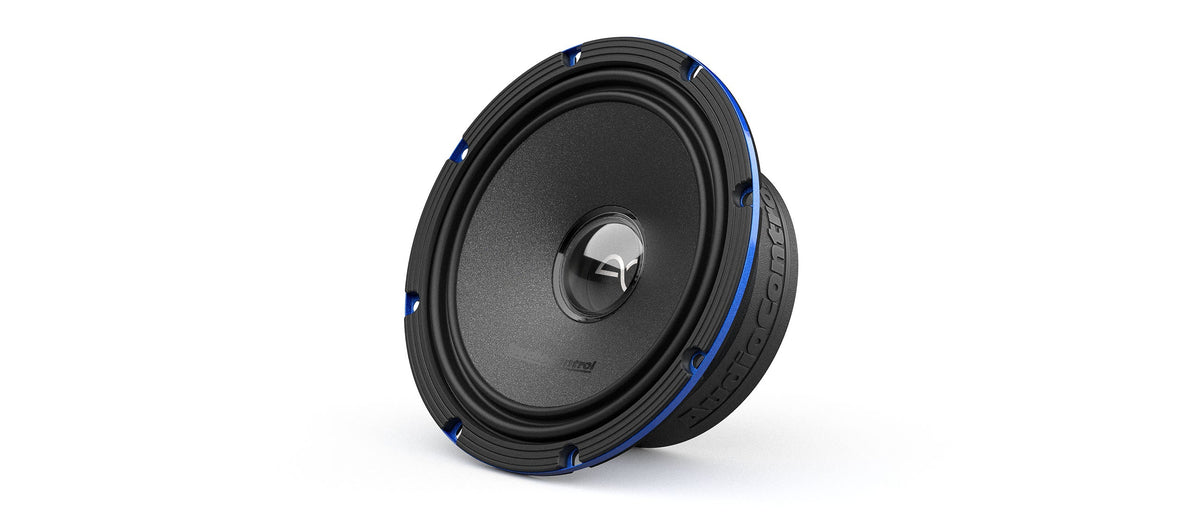

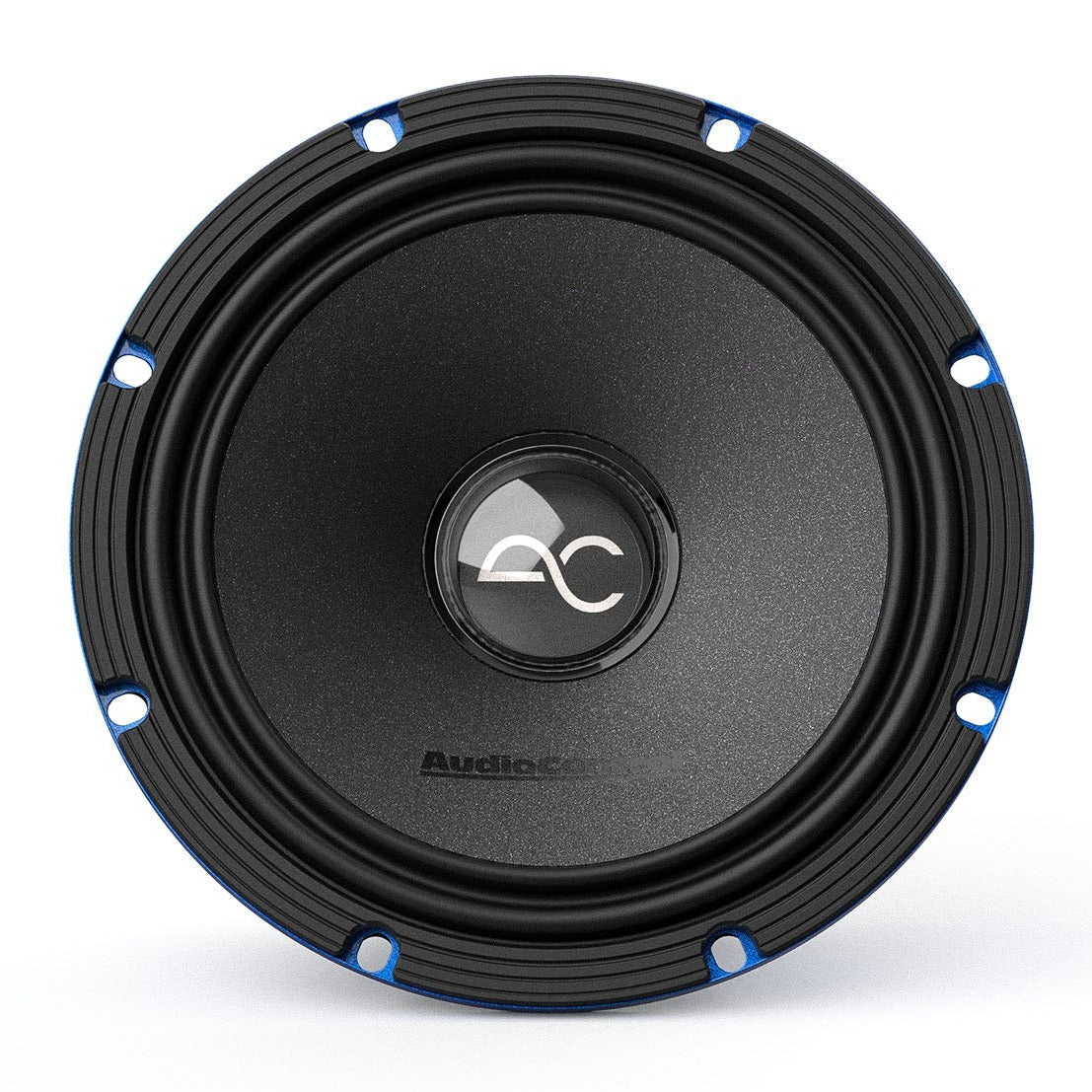

PNW Series 6.5" High-Fidelity Component Speakers
Embark on an auditory adventure with AudioControl’s PNW speakers, backed by over 45 years of engineering top-quality audio components. Combine these speakers with AudioControl’s legendary amplifiers to experience the vibrant landscapes of the Pacific Northwest through your music like never before. The PNW line features an edge-enhanced steel frame for ultimate structural strength, a black anodized voice coil former for superior heat dissipation, and a linear double-roll surround for precise cone movement. Plus, the rigid poly mica-coated cone optimizes sound reproduction.
Features:
Edge-enhanced steel frame for added structural strength
Black anodized voice coil former for superior heat dissipation
Linear double-roll surround for precision cone movement
Complex FEA-designed high-efficiency motor
Rigid poly mica-coated cone for optimized sound reproduction
Rear dampened hybrid silk dome tweeter for extended frequency response
High-quality mounting hardware included
Specifications:

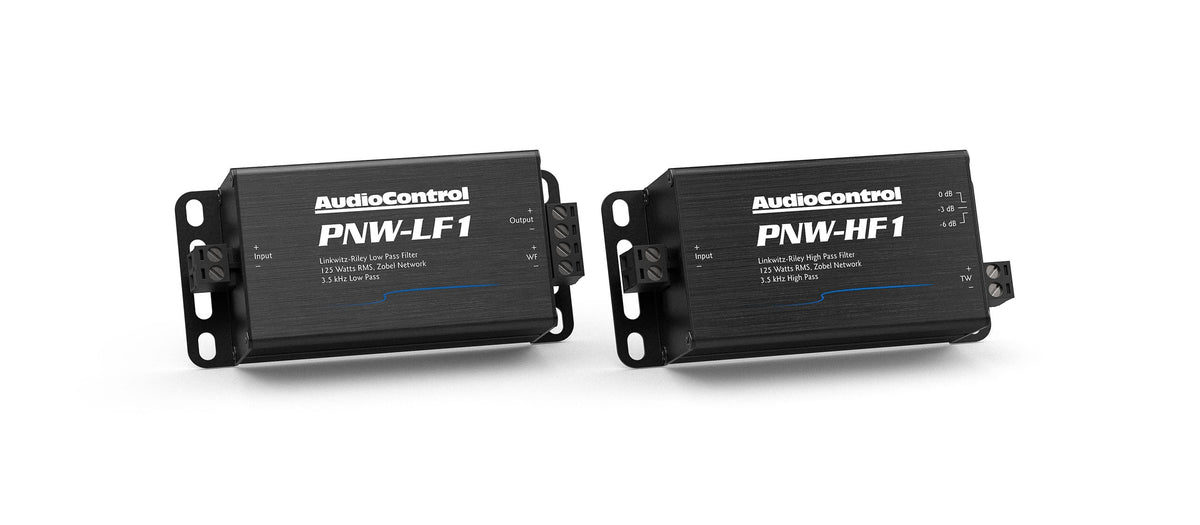

Crossover Type: 2nd order Linkwitz-Riley
DC Resistance (Re): 2.3 ohms
Filter Type: HP / LP
System Frequency (Fs) Response: 60-20k Hz
XO Frequency: 3.5kHz HP / LP
Slope (Octave): -12 dB
Tweeter Voice Coil Diameter: 25 mm
Midrange Voice Coil Diameter: 35 mm

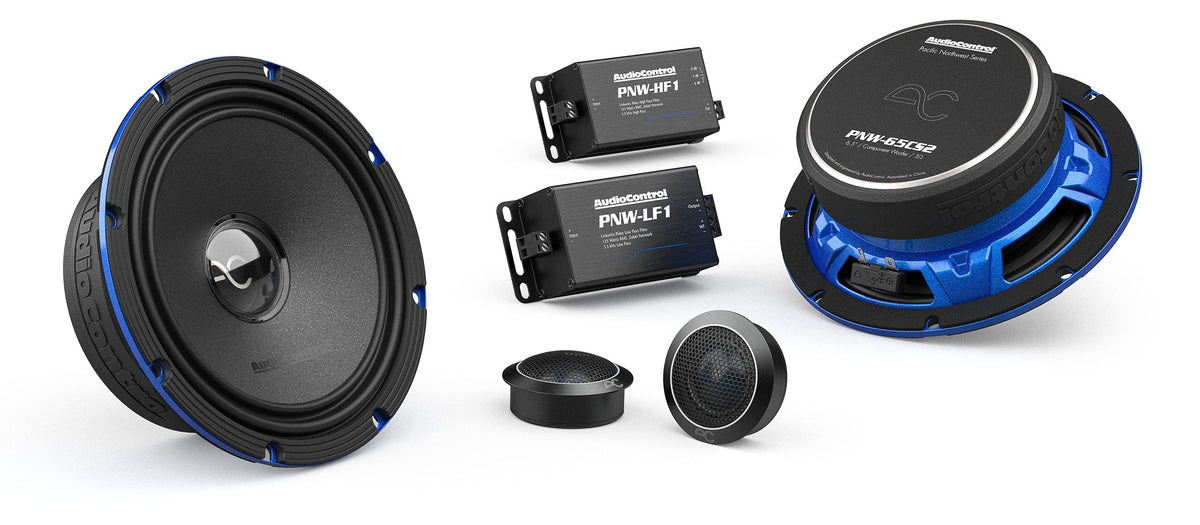

In the Box: PNW-65CS2 Speakers, Manual
Dimensions:
Overall Diameter (w/o Grille): 6.5 in / 166 mm
Cut Out Diameter: 5.59 in / 142 mm
Mounting Depth: 2.36 in / 60 mm
Mounting Height (w/o Grille): 0.20 in / 5.2 mm

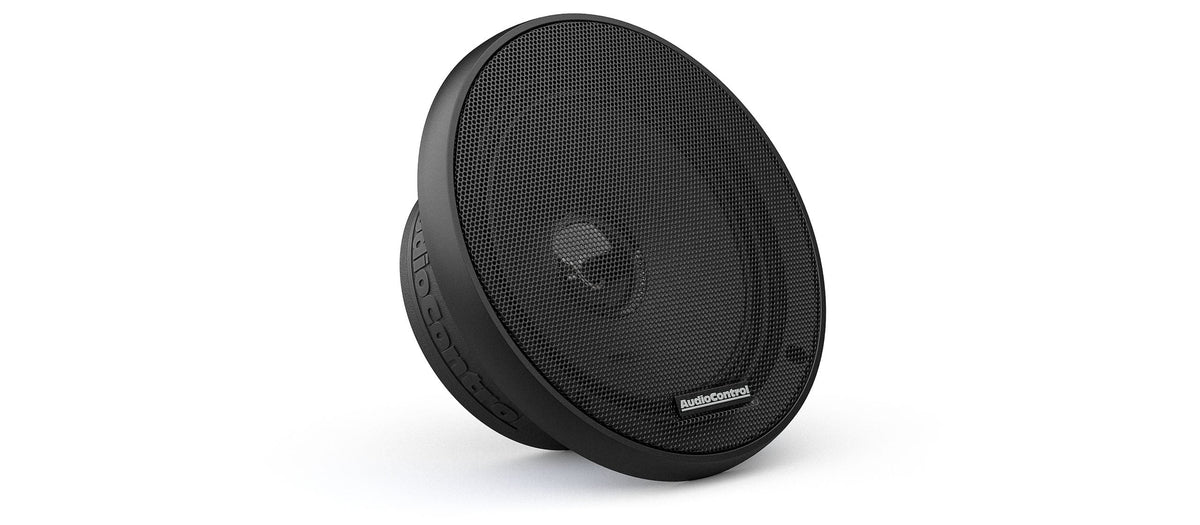

Mounting Height (w/ Grille): 0.86 in / 22 mm
Motor Diameter (w/ Cover): 4.6 in / 117 mm

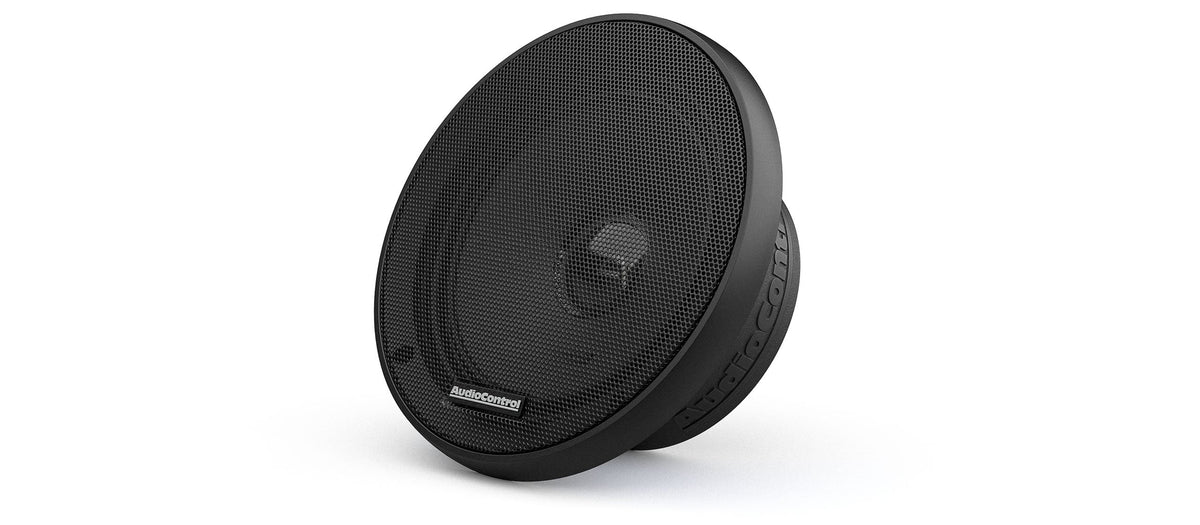

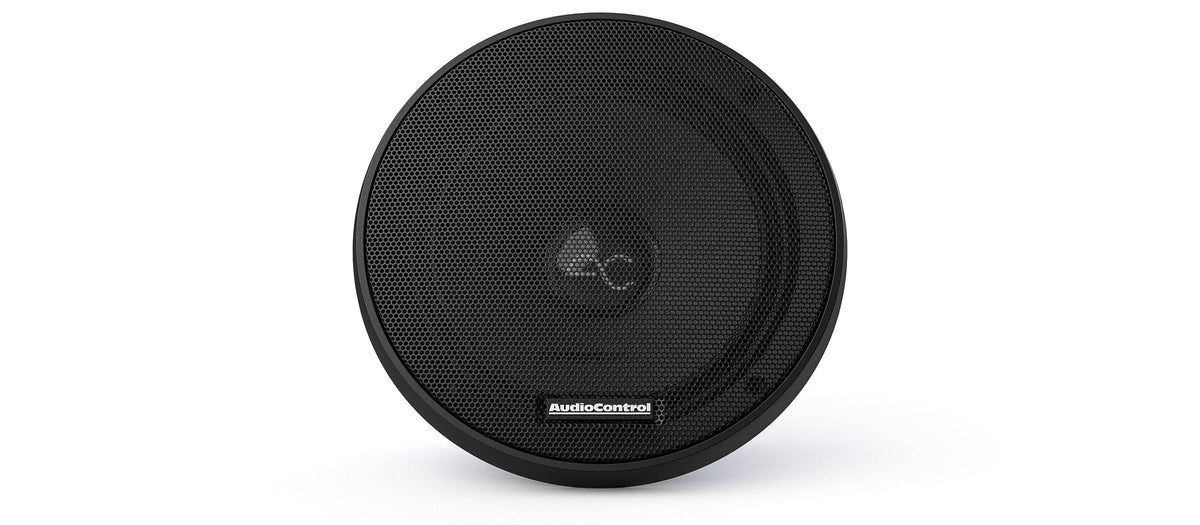

Grille Overall Diameter: 7.05 in / 179 mm

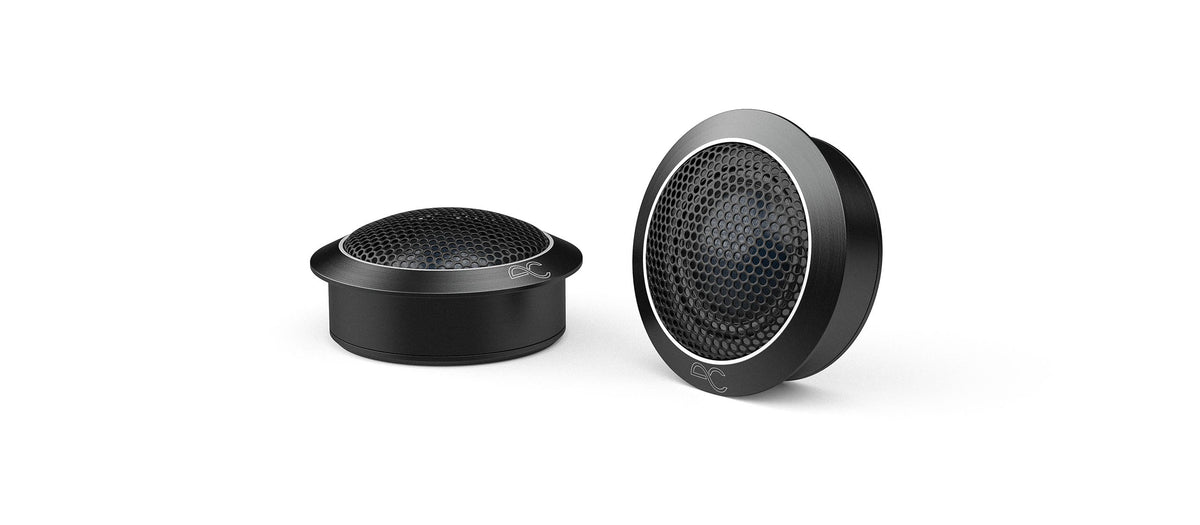

Tweeter Dimensions:
Overall Diameter: 2.13 in / 54 mm
Cut Out Diameter: 1.85 in / 47 mm
Mounting Depth: 0.63 in / 16 mm
Weight: 11.4 lbs
SKU: AC-PNW65CS2 UPC: 850038647506
