Replace tired factory sound with the AudioControl PNW-65 – 80W RMS (160W peak).
At a glance
Power: 80W RMS (160W peak)
Details

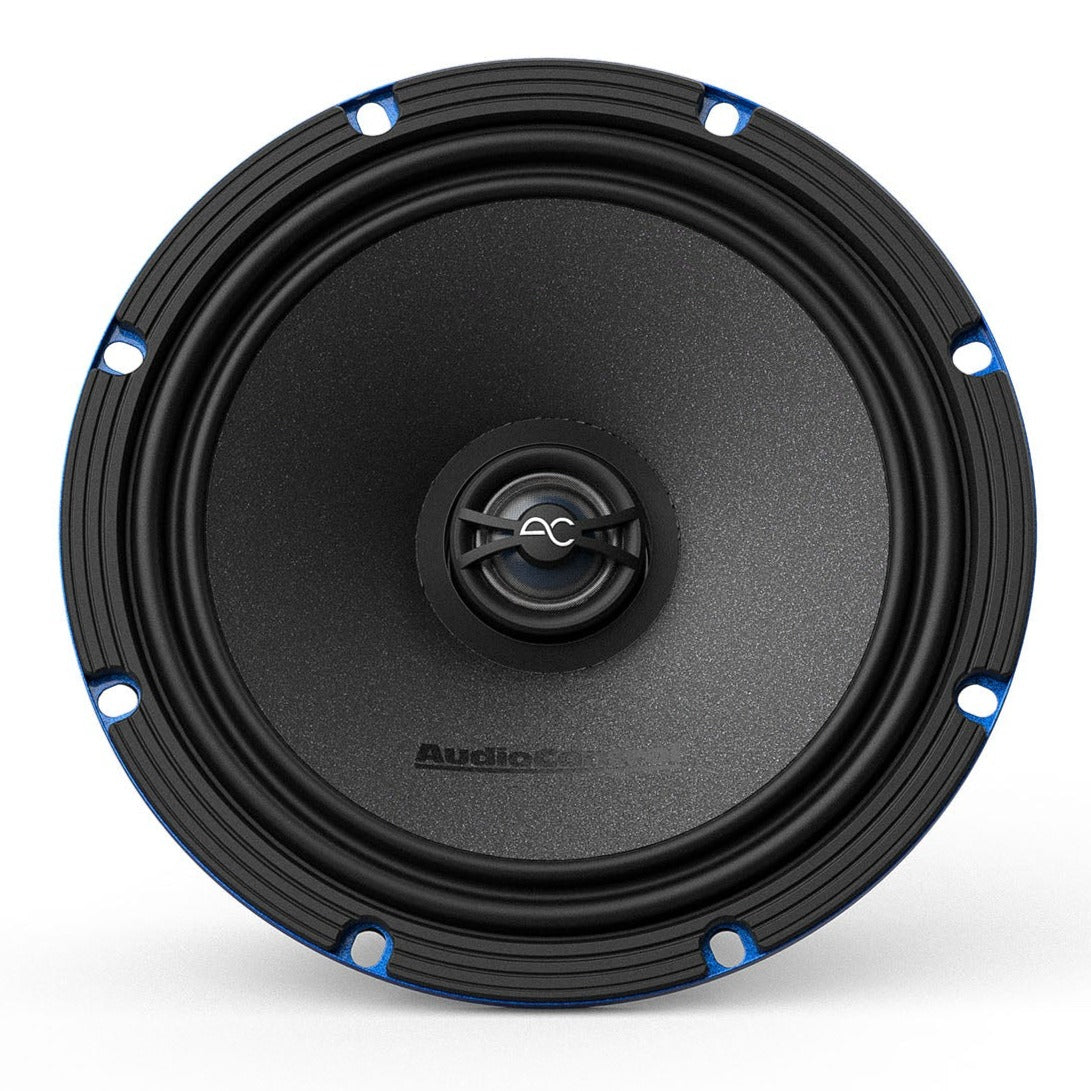

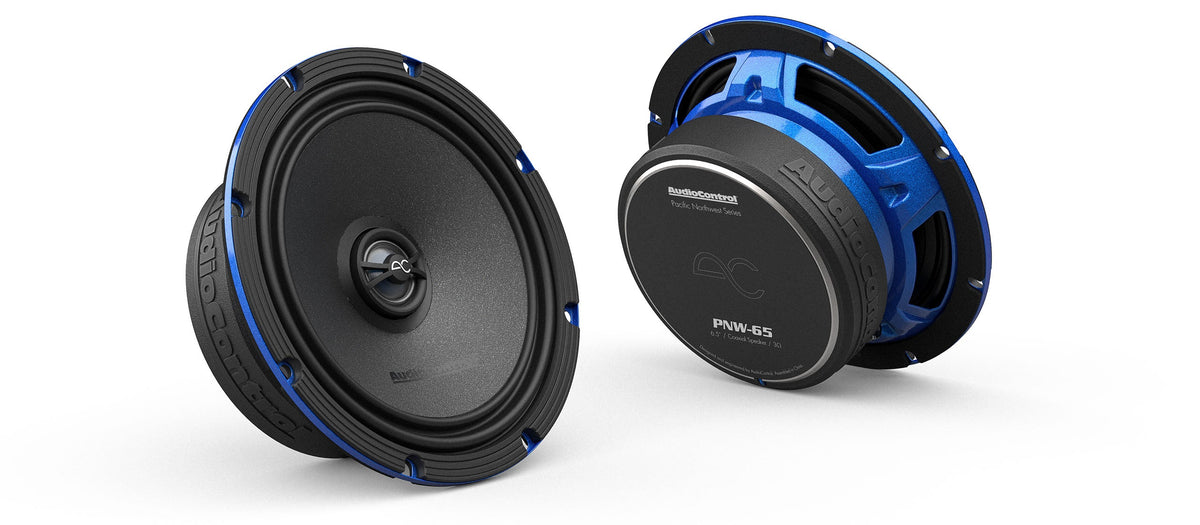

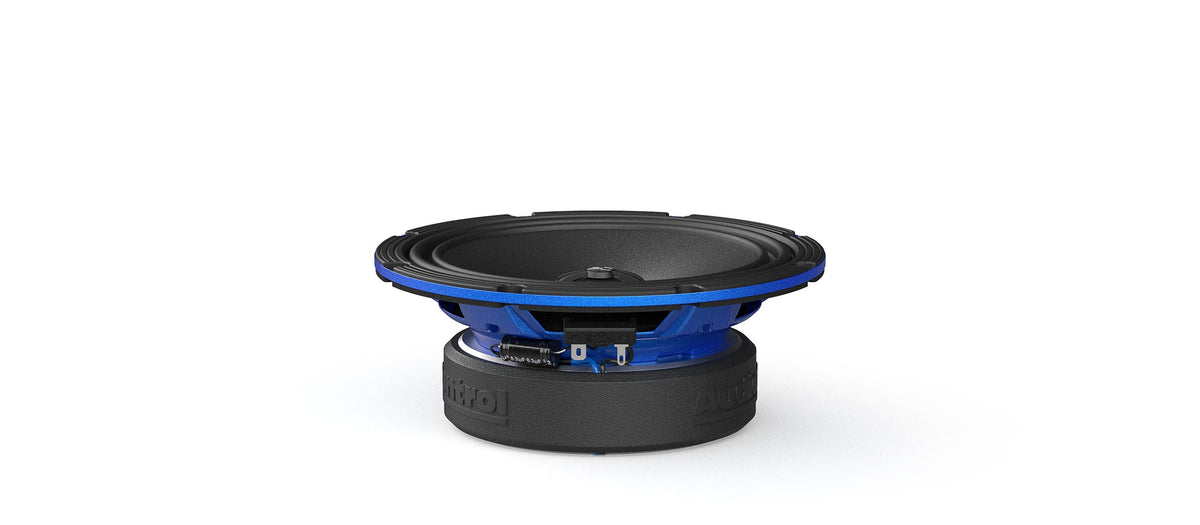

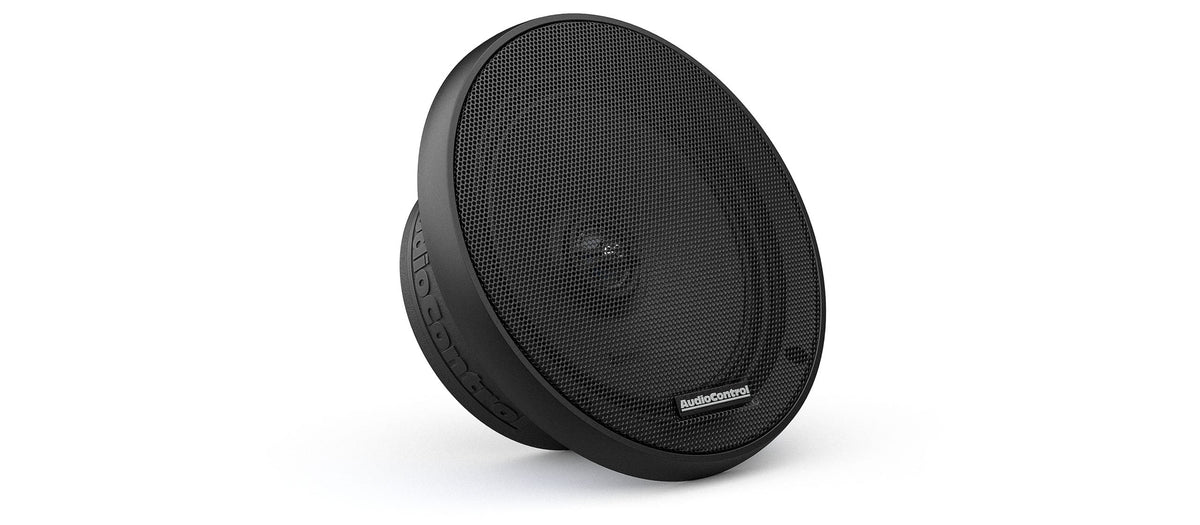

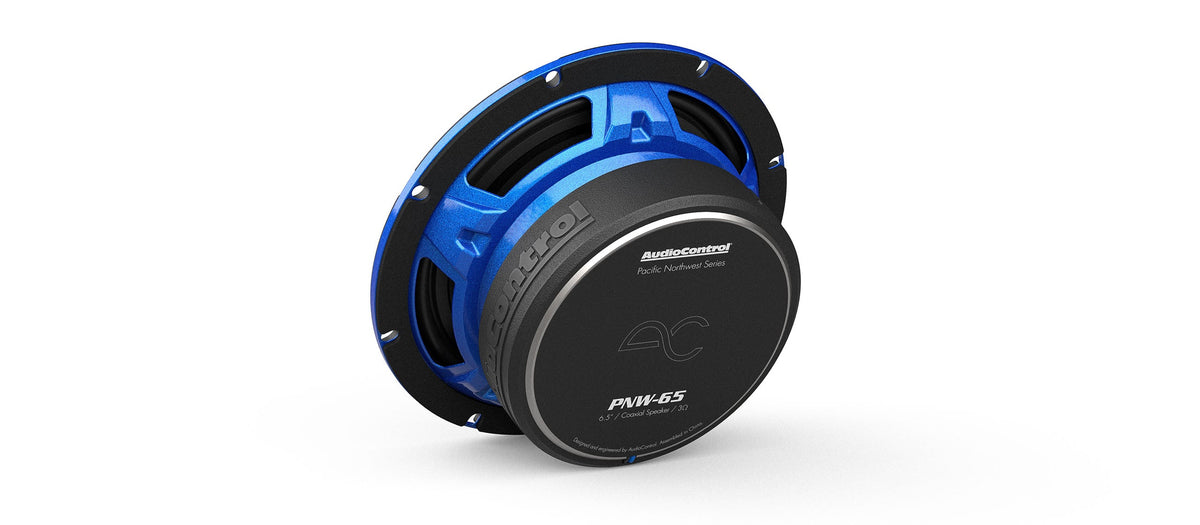

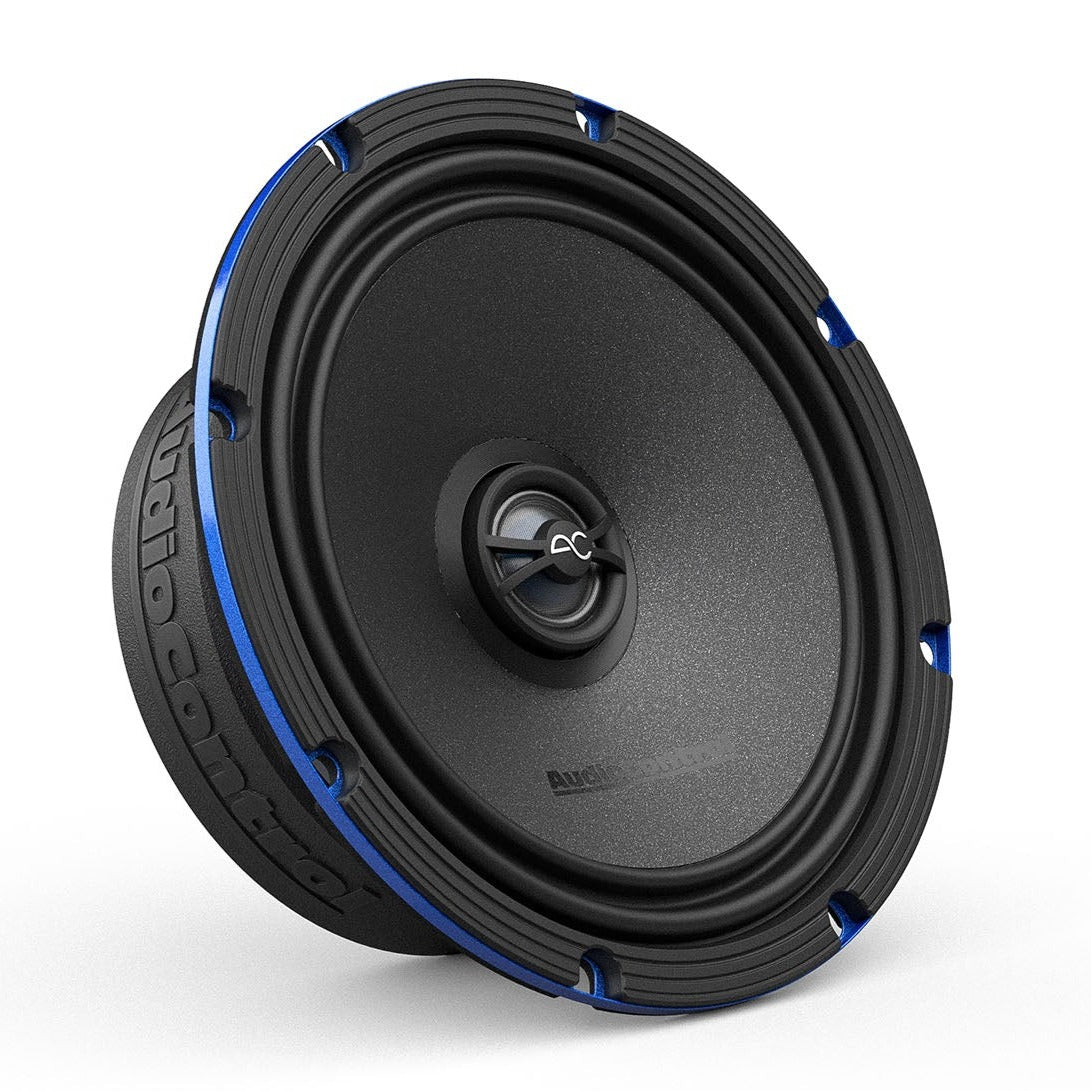

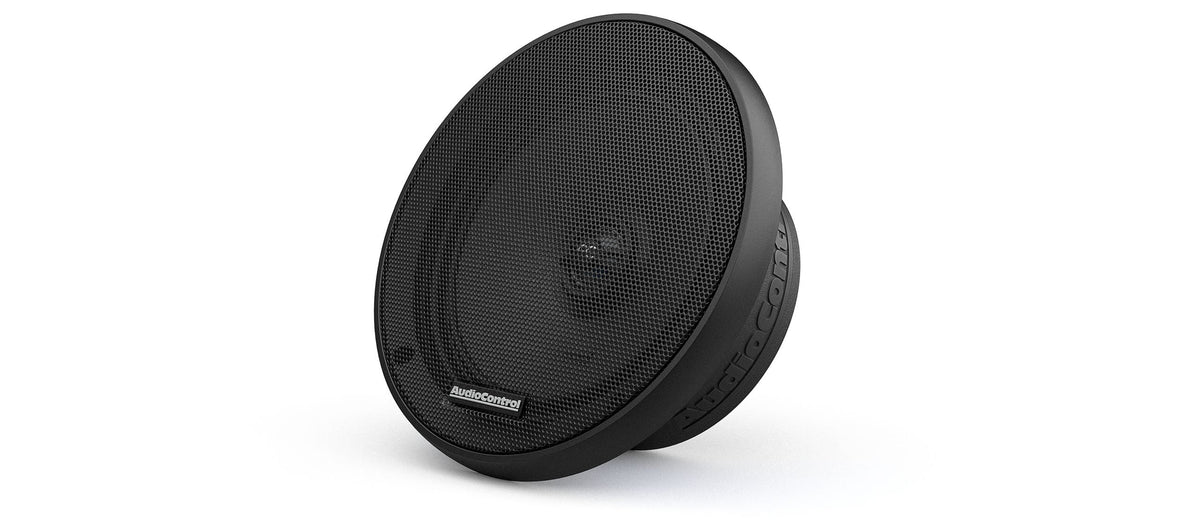

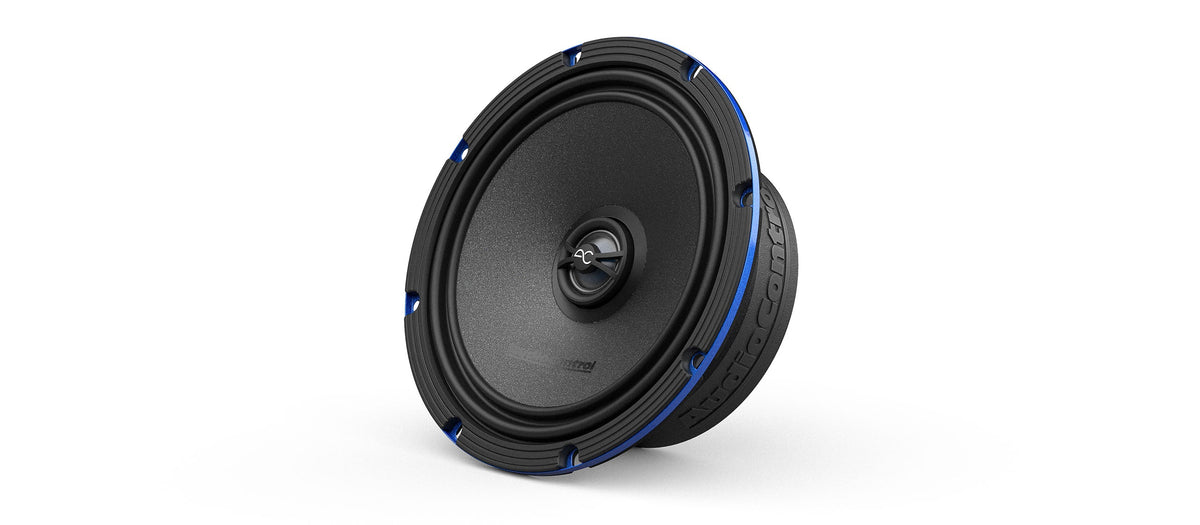

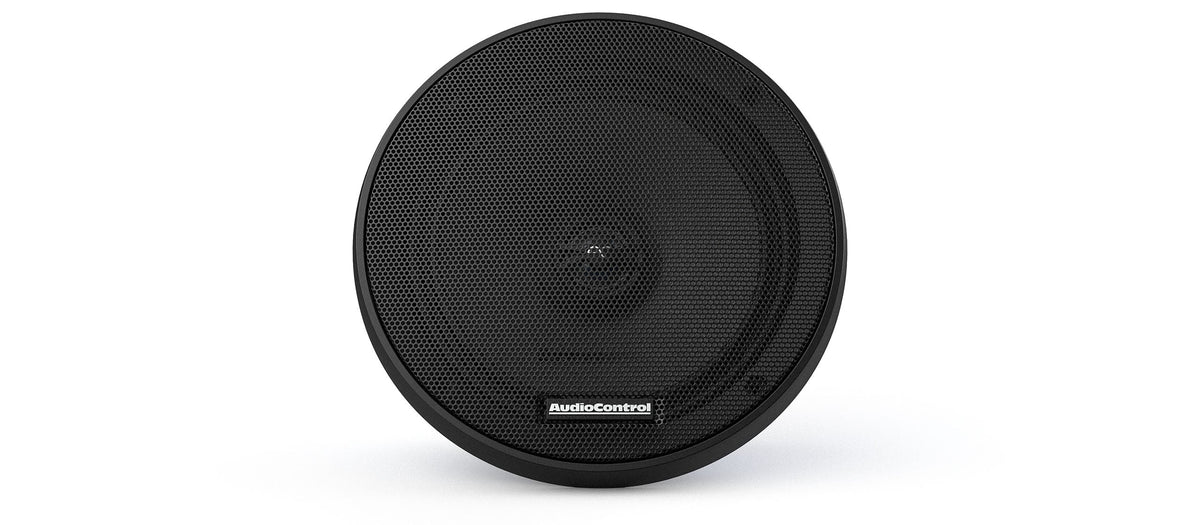

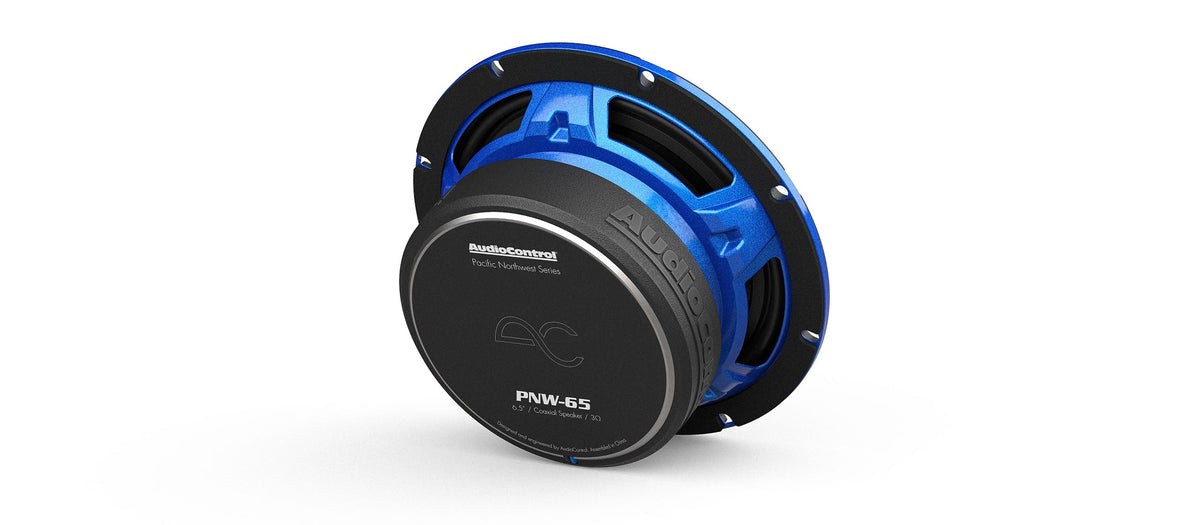

PNW Series 6.5" High-Fidelity Coaxial Speakers
Embark on an auditory adventure with AudioControl’s PNW speakers, backed by over 45 years of engineering top-quality audio components. Combine these speakers with AudioControl’s legendary amplifiers to experience the vibrant landscapes of the Pacific Northwest through your music like never before. Featuring an edge-enhanced steel frame for ultimate structural strength, a black anodized voice coil former for superior heat dissipation, and a linear double-roll surround for precise cone movement, the PNW line ensures optimal sound reproduction with its rigid poly mica-coated cone.
Features:
Edge-enhanced steel frame for added structural strength
Black anodized voice coil former for superior heat dissipation
Linear double-roll surround for precision cone movement
Complex FEA-designed high-efficiency motor
Rigid poly mica-coated cone for optimized sound reproduction
Rear dampened hybrid silk dome tweeter for extended frequency response
Concentric point source design for a seamless transition from midrange to tweeter
Sonic diffuser and radiant collar for better off-axis frequency response
High-quality mounting hardware included
Specifications:
Crossover Type: Butterworth
DC Resistance (Re): 2.3 ohms
Filter Type: HP
System Frequency (Fs) Response: 60-20k Hz
XO Frequency: 5250 Hz
Slope (Octave): -6 dB
Tweeter Voice Coil Diameter: 20 mm
Midrange Voice Coil Diameter: 35 mm
In the Box: PNW-65 Speaker, Manual
Dimensions:
Overall Diameter (w/o Grille): 6.5 in / 166 mm
Cut Out Diameter: 5.59 in / 142 mm
Mounting Depth: 2.36 in / 60 mm
Height (w/o Grille): 0.20 in / 5.2 mm
Height (w/ Grille): 0.86 in / 22 mm
Motor Diameter (w/ Cover): 4.6 in / 117 mm
Grille Overall Diameter: 7.05 in / 179 mm
SKU: AC-PNW65 UPC: 850038647483
