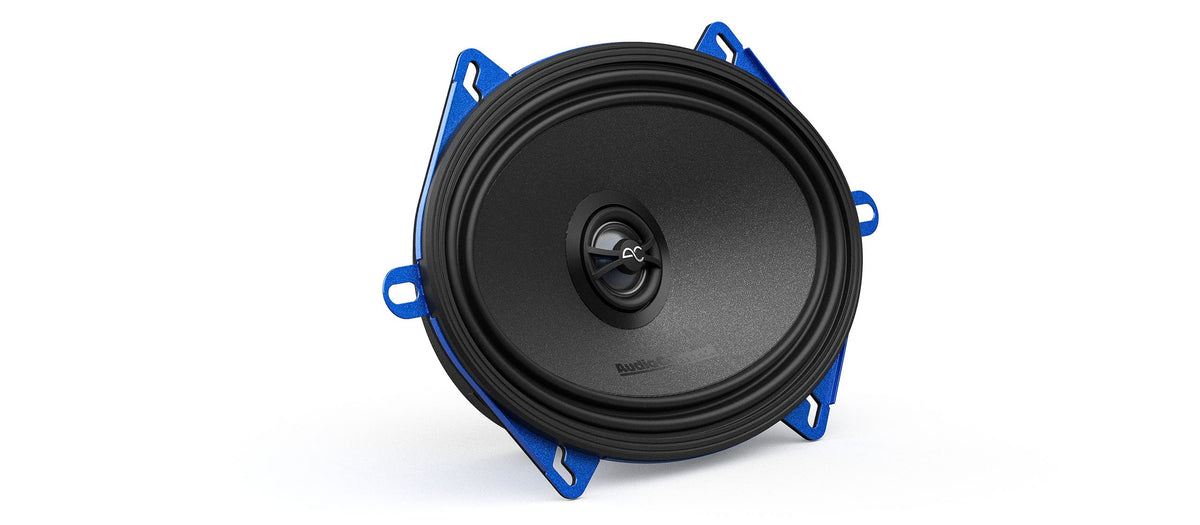

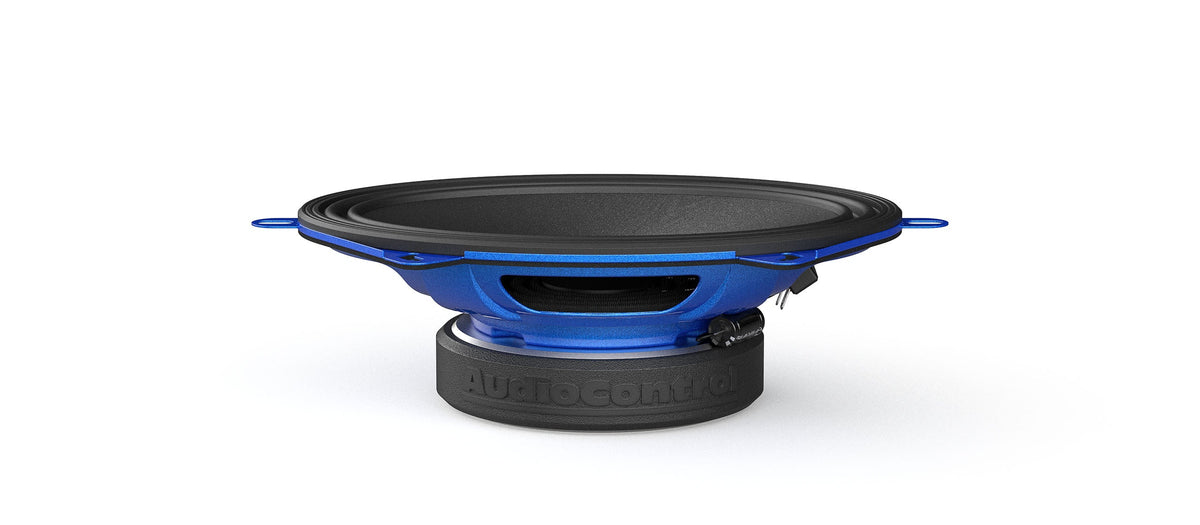

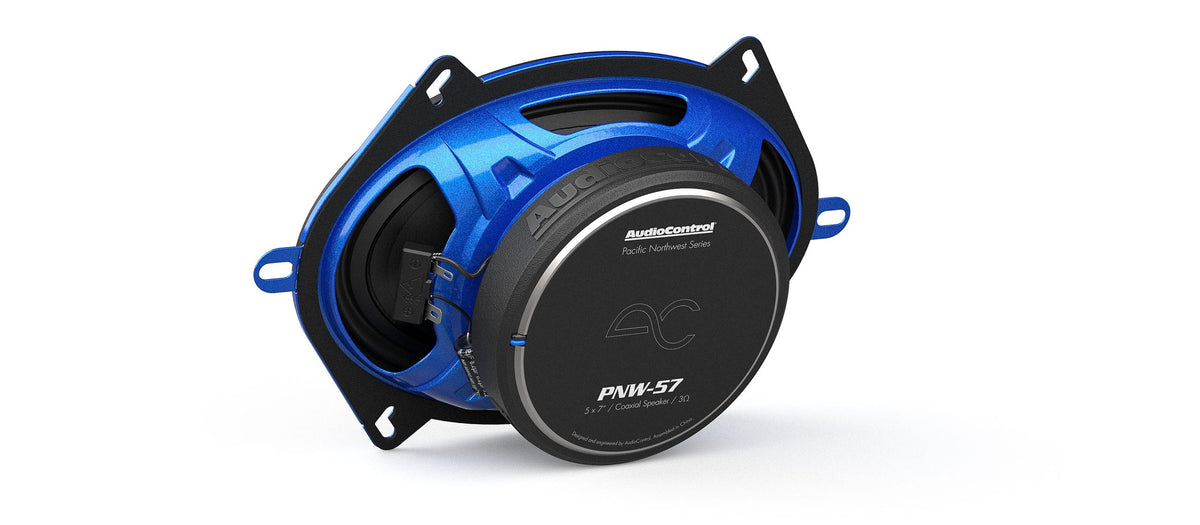

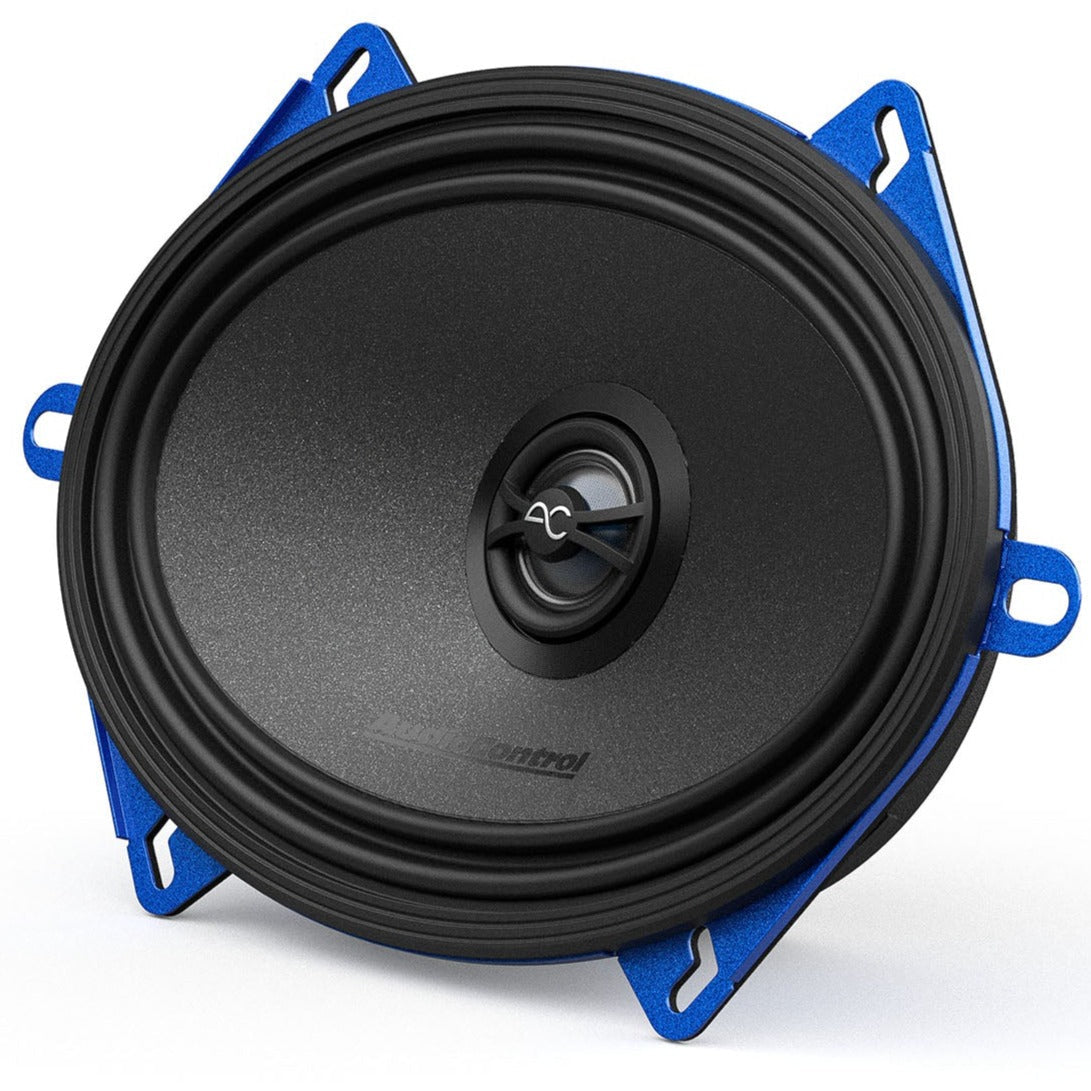

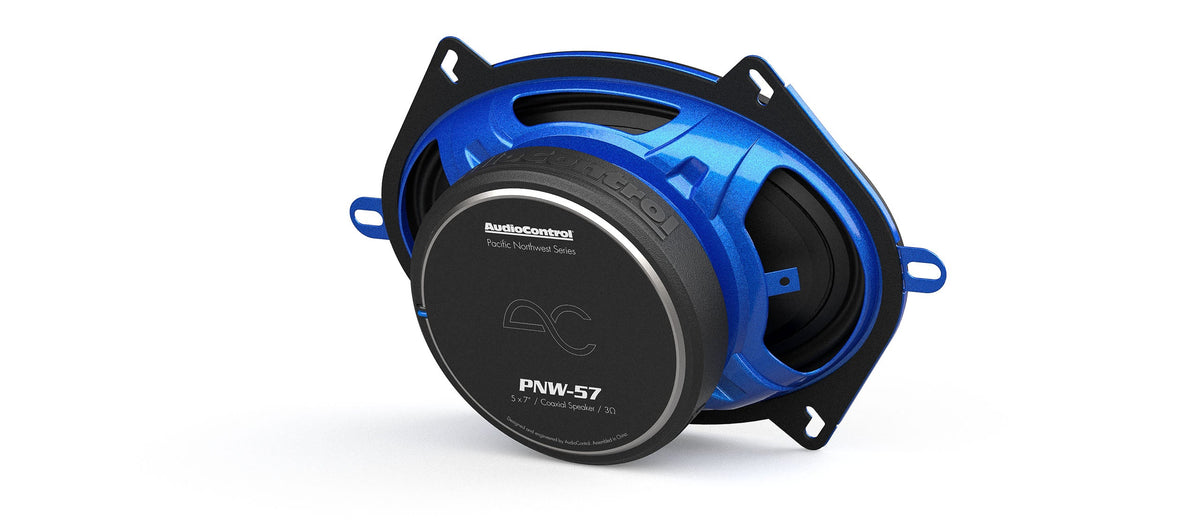

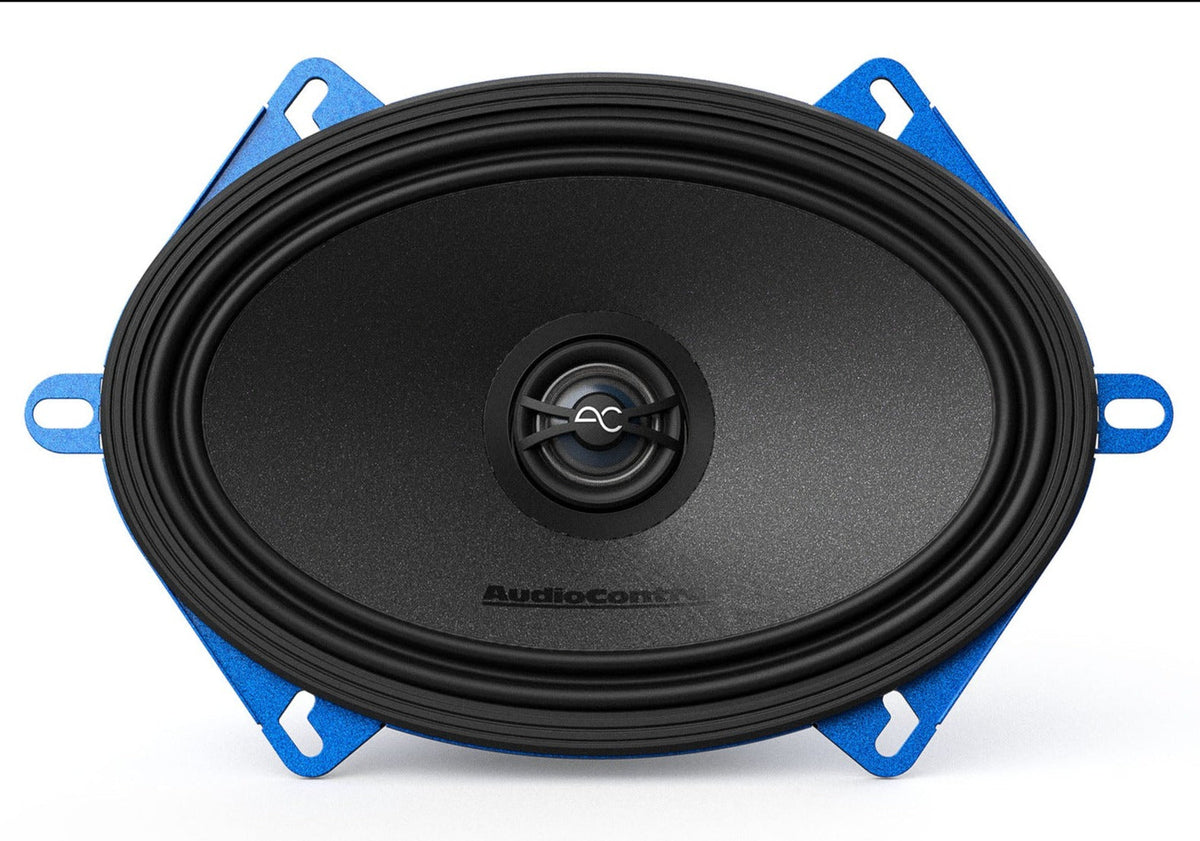

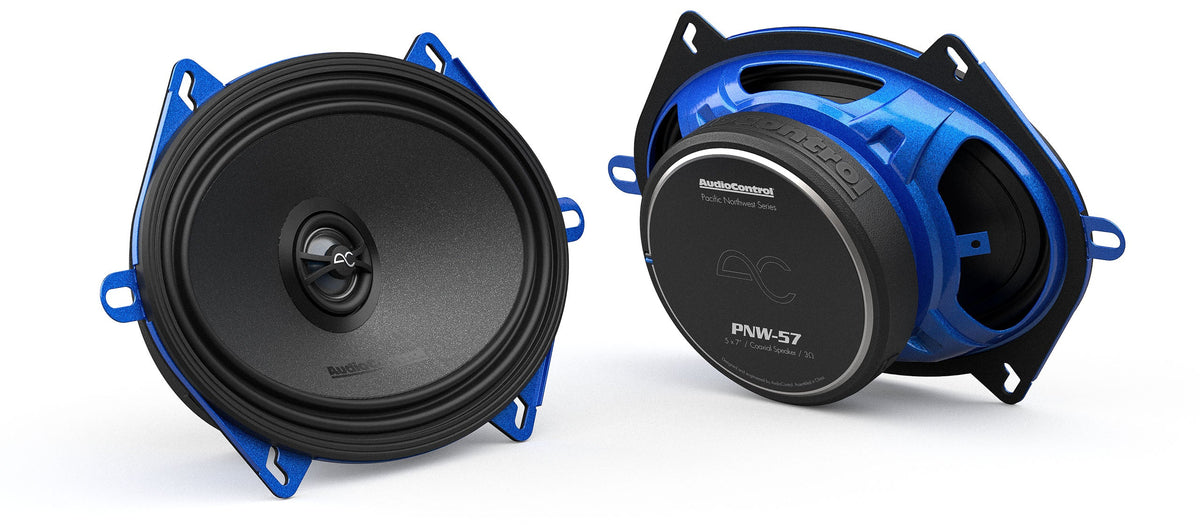

AudioControl PNW-57 PNW Series 5×7″ High-Fidelity Coaxial Speakers – 70W RMS / 140W Peak

Get clearer, louder sound with the AudioControl PNW-57, a 7-inch speaker rated 70W RMS (140W peak).

At a glance

• Power: 70W RMS (140W peak)

Details

PNW Series 5 x 7" High-Fidelity Coaxial Speakers

Experience the PNW Series from AudioControl, offering a wild new auditory adventure backed by over 45 years of engineering top-quality audio components. Combined with AudioControl’s legendary amplifiers, immerse yourself in the vibrant landscapes of the Pacific Northwest through your music like never before. The PNW line boasts an edge-enhanced steel frame for ultimate structural strength, a black anodized voice coil former for superior heat dissipation, and a linear double-roll surround for precise cone movement. Additionally, the rigid poly mica-coated cone optimizes sound reproduction for a truly immersive audio experience.

Features:

• Edge-enhanced steel frame for added structural strength
• Black anodized voice coil former for superior heat dissipation
• Linear double-roll surround for precision cone movement
• Complex FEA-designed high-efficiency motor
• Rigid poly mica-coated cone for optimized sound reproduction
• Rear dampened hybrid silk dome tweeter for extended frequency response
• Concentric point source design for a seamless transition from midrange to tweeter
• Sonic diffuser and radiant collar for better off-axis frequency response
• High-quality mounting hardware included

Specifications:

• Crossover Type: Butterworth
• DC Resistance (Re): 2.3 ohms
• Filter Type: HP
• System Frequency (Fs) Response: 60-20k Hz
• XO Frequency: 5250 Hz
• Slope (Octave): -6 dB
• Tweeter Voice Coil Diameter: 20 mm
• Midrange Voice Coil Diameter: 35 mm

In the Box: PNW-57 Speaker, Manual

Dimensions:

• Overall Diameter: 5.5 x 8.73 in / 140.6 x 221.9 mm
• Cut Out Diameter: 4.64 x 6.96 in / 118 x 177 mm
• Mounting Depth: 2.24 in / 57 mm
• Height: 0.22 in / 5.6 mm
• Motor Diameter (w/ Cover): 4.17 in / 106 mm

Weight: 5.85 lbs

SKU: AC-PNW57
UPC: 850038647476
