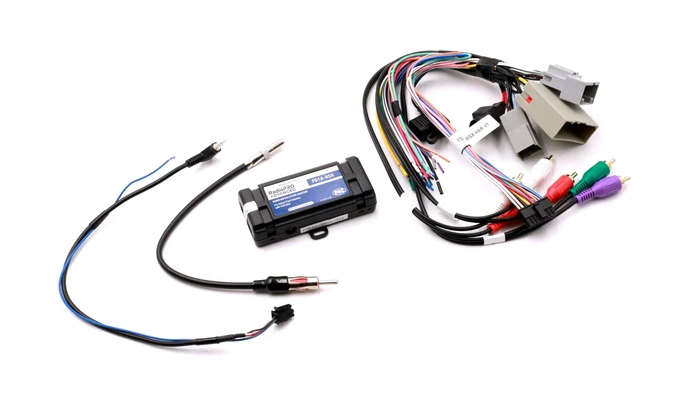

PAC FD1A-RSX RadioPRO Advanced Data Interface for Select 2013-2014 Ford Vehicles

Get the most out of your system with the PAC FD1A-RSX.

Details

Upgrade your vehicle’s audio system with the PAC FD1A-RSX RadioPRO Advanced — an all-in-one radio replacement and steering wheel control interface designed for select Ford vehicles equipped with MS-CAN databus radios. The FD1A-RSX allows you to replace the factory radio with an aftermarket head unit while retaining important factory functions, including pre-programmed steering wheel controls, rear seat entertainment, rear seat controls, and compatible THX or Sony factory amplifiers. It also provides data bus-driven outputs for retained accessory power, vehicle speed sense, illumination, reverse trigger, and parking brake connections.

Designed to simplify aftermarket radio installation, the FD1A-RSX comes pre-programmed for compatible factory steering wheel control functions and allows two aftermarket radio functions to be assigned to each compatible steering wheel control button using short-press and long-press commands. Its plug-and-play design connects directly to the factory wiring, eliminating the need for cutting or splicing, while a micro-USB connection allows the interface to be updated with compatible firmware.

Key Features

• Radio Replacement Interface – Allows installation of an aftermarket radio in select Ford, Lincoln, and Mercury vehicles with MS-CAN databus radios
• Pre-Programmed Steering Wheel Controls – Retains compatible factory steering wheel controls without requiring initial programming
• Dual-Command Steering Wheel Controls – Assign up to two aftermarket radio functions to each compatible SWC button using short-press and long-press commands
• Factory Amplifier Retention – Retains compatible factory THX or Sony amplified audio systems when the original radio is removed
• Rear Seat Entertainment Retention – Retains compatible factory rear seat entertainment functionality
• Rear Seat Control Retention – Maintains compatible factory rear seat control functions
• Retained Accessory Power – Provides a data-controlled 12V accessory/RAP output for the aftermarket radio
• Vehicle Speed Sense Output – Provides a data bus-driven VSS signal for compatible aftermarket navigation and radio applications
• Illumination Output – Provides an illumination signal for compatible aftermarket equipment
• Reverse Trigger Output – Provides a data-controlled reverse signal for compatible aftermarket radios and camera systems
• Parking Brake Output – Provides a parking brake signal for compatible aftermarket equipment
• Factory AUX Retention – Retains the factory auxiliary audio input on compatible vehicles
• Factory Amplified & Non-Amplified Compatibility – Supports select vehicles with either factory amplified or non-amplified audio systems
• Plug-and-Play Installation – Designed for direct connection to the factory harness without cutting or splicing
• Color-Coded Wiring – Simplifies identification and connection of installation wires
• Micro-USB Update Port – Allows the interface to be updated with compatible firmware
• PAC-UP Compatible – Supports PAC firmware updates when required
• Compact Design – Streamlined interface housing helps simplify installation behind the dash
• Aftermarket Navigation Support – Provides the necessary data-controlled outputs for compatible aftermarket navigation systems
• Factory Data Bus Maintained – Keeps the vehicle data bus intact for supported vehicle functions, servicing, and emissions testing
• Easy Radio Integration – Provides a streamlined solution for upgrading the factory radio while maintaining important vehicle features

Specifications

• Product Type: Radio Replacement & Steering Wheel Control Interface
• Brand: PAC
• Model: FD1A-RSX
• Series: RadioPRO Advanced
• Part Number: FD1A-RSX
• Vehicle Network: MS-CAN Databus
• Vehicle Compatibility: Select Ford, Lincoln, and Mercury vehicles
• Vehicle Years: Select 2005–2016 applications
• Radio Replacement: Yes
• Steering Wheel Control Retention: Yes
• Steering Wheel Control Programming: Pre-Programmed
• Dual SWC Commands: Short Press / Long Press
• Factory Amplifier Retention: Yes, THX or Sony systems where supported
• Rear Seat Entertainment Retention: Yes, where supported
• Rear Seat Control Retention: Yes, where supported
• Factory AUX Retention: Yes, where supported
• Retained Accessory Power (RAP): Yes
• Accessory Output: 12V / 10A
• Vehicle Speed Sense (VSS): Yes
• Illumination Output: Yes
• Reverse Trigger Output: Yes
• Parking Brake Output: Yes
• Factory Amplified Systems: Supported
• Non-Amplified Systems: Supported
• Premium Amplified Fade: Not Supported
• Ford SYNC Retention: No
• Firmware Updateable: Yes
• Update Connection: Micro-USB
• PAC-UP Compatible: Yes
• Installation Type: Vehicle-Specific Interface
• Installation Method: Plug-and-Play
• Wiring Modification Required: No Cutting or Splicing

What's in the Box

• PAC FD1A-RSX RadioPRO Advanced Interface
• Vehicle-Specific Wiring Harness
• Radio Connection Harness
• Factory Connection Wiring
• Installation Documentation

SKU: PAC-FD1A-RSX
