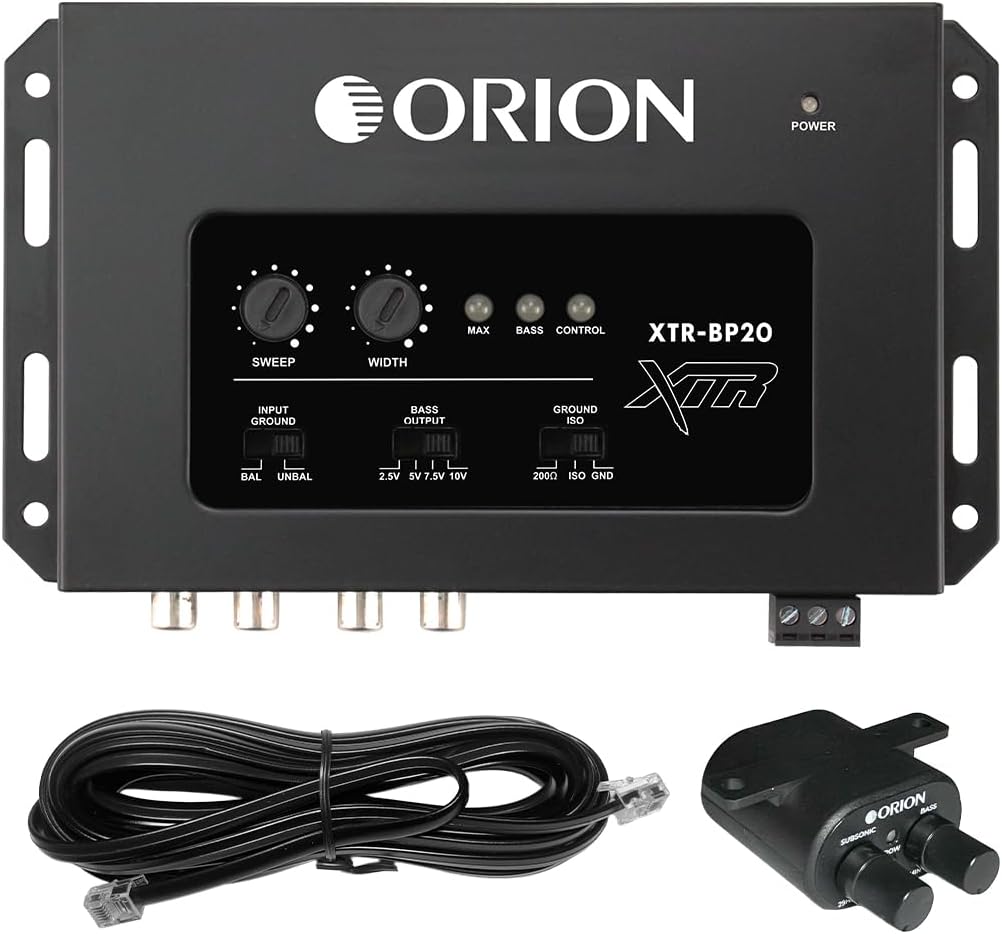

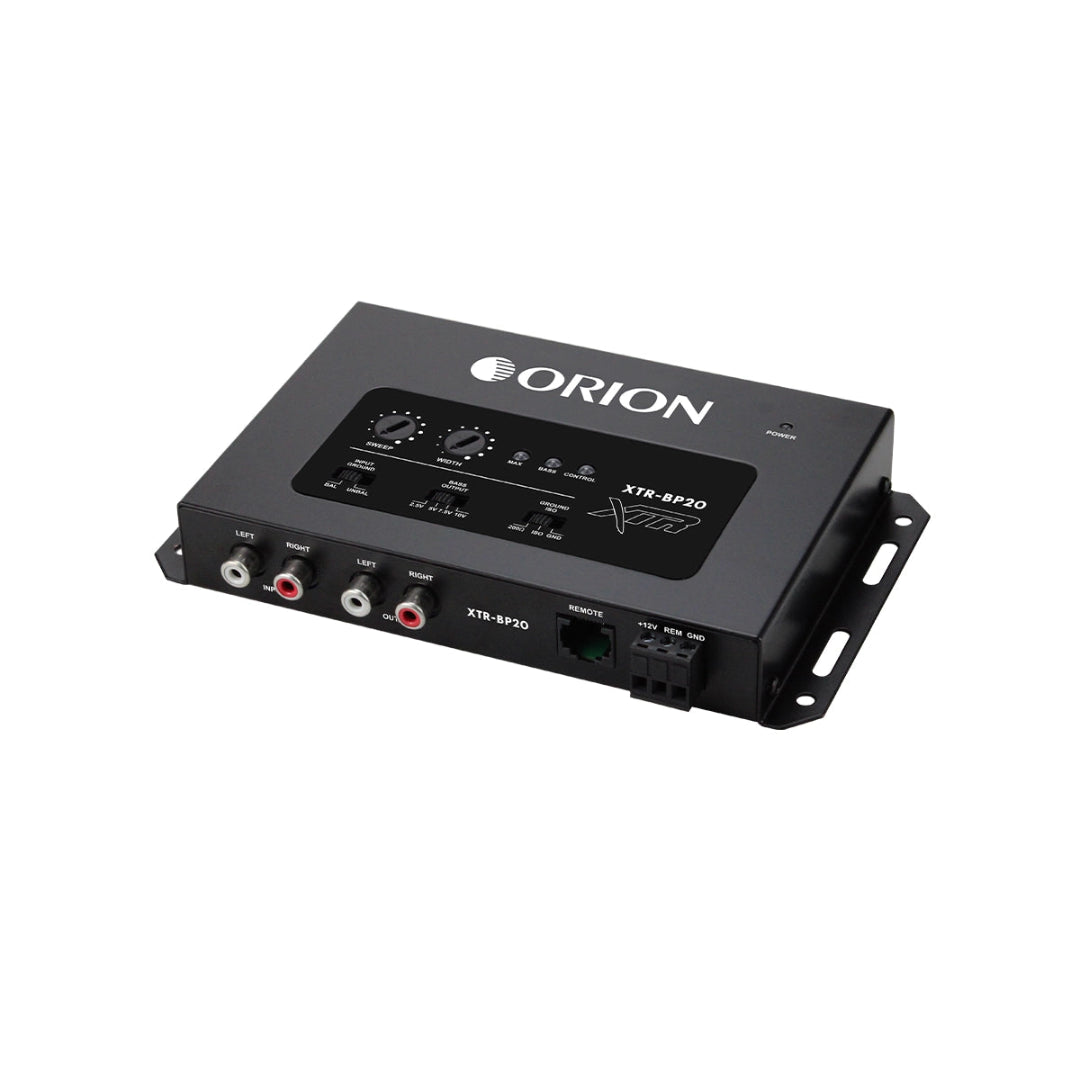

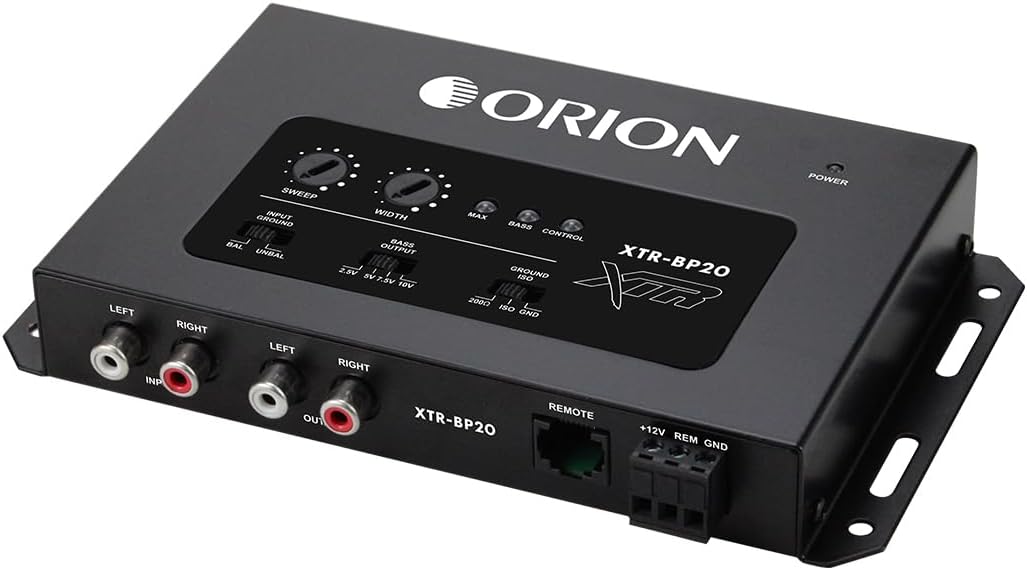

Orion XTR-BP20 High-Performance Bass Processor – 10V Output & Bass Control

The Orion XTR-BP20 helps your aftermarket gear work cleanly with your vehicle's audio.

Details

XTR-BP20 Bass Processor delivers controlled, powerful low-frequency performance with 10V output, precision sweep and width tuning, ground isolation, and balanced/unbalanced inputs for clean, deep bass in car audio systems.

Features:

• XTR Bass Processor: Enhances low-frequency performance for deeper, tighter subwoofer bass.
• Bass Restoration: Recovers lost bass from compressed or factory audio.
• Sweep & Width Control: Adjust center frequency and bandwidth for precise bass tuning.
• Selectable Output: 2.5V, 5V, 7.5V, or 10V to match amplifier input.
• High SNR & Low Distortion: Clean bass with >110dB SNR and <0.02% THD.
• Balanced/Unbalanced Inputs: Compatible with factory and aftermarket head units.
• Ground Isolation: Reduces alternator noise and interference.
• Remote Bass Control: Adjust bass in real time from the driver’s seat.

Specifications:

Power Supply: 6.5V – 18V

Maximum Input Level: 10V

Maximum Output Level: 10.5V

Input Sensitivity: 10.5V

Input Impedance: >50K Ohms

Output Impedance: 100 Ohms

EQ Boost / Cut: 15 dB

Signal-to-Noise Ratio: >110 dB

THD @ 2V Output: <0.02%

Channel Separation: >80 dB

CMRR: -70 dB Balanced / -29 dB Unbalanced

Frequency Response: 10 Hz – 30 kHz

Subsonic Filter: 31 Hz – 71 Hz

Current Draw: 180 mA

Interchannel Gain Tracking: 0.1 dB

Fuse Rating: 1A

Dimensions: 7.28” x 4.13” x 1.02”

UPC: 818550019454
