Orion CEA600.4D 600W RMS 4-Channel Class D Amplifier – 2400W Max

Looking for more volume without distortion? The Orion CEA600.4D 4-channel amplifier puts out 600W RMS (2,400W peak).

At a glance

• Power: 600W RMS (2,400W peak)
• Channels: 4
• Class D

Details

The Orion CEA600.4D Cobalt Elite Series is a compact 4-channel Class D amplifier delivering 600W RMS for clean, efficient power to mids and highs. Ideal for factory upgrades or aftermarket systems, it supports speakers or bridged sub setups with adjustable crossovers and gain control for precise tuning. Built-in protection ensures reliable performance against heat, voltage drops, and shorts, while the compact design fits easily in tight spaces. Perfect for clear, balanced full-range sound.

Features:

• High-efficiency Class D design delivers clean, full-range audio with low heat and power draw
• 4-channel output powers front/rear speakers or bridged subwoofer configurations

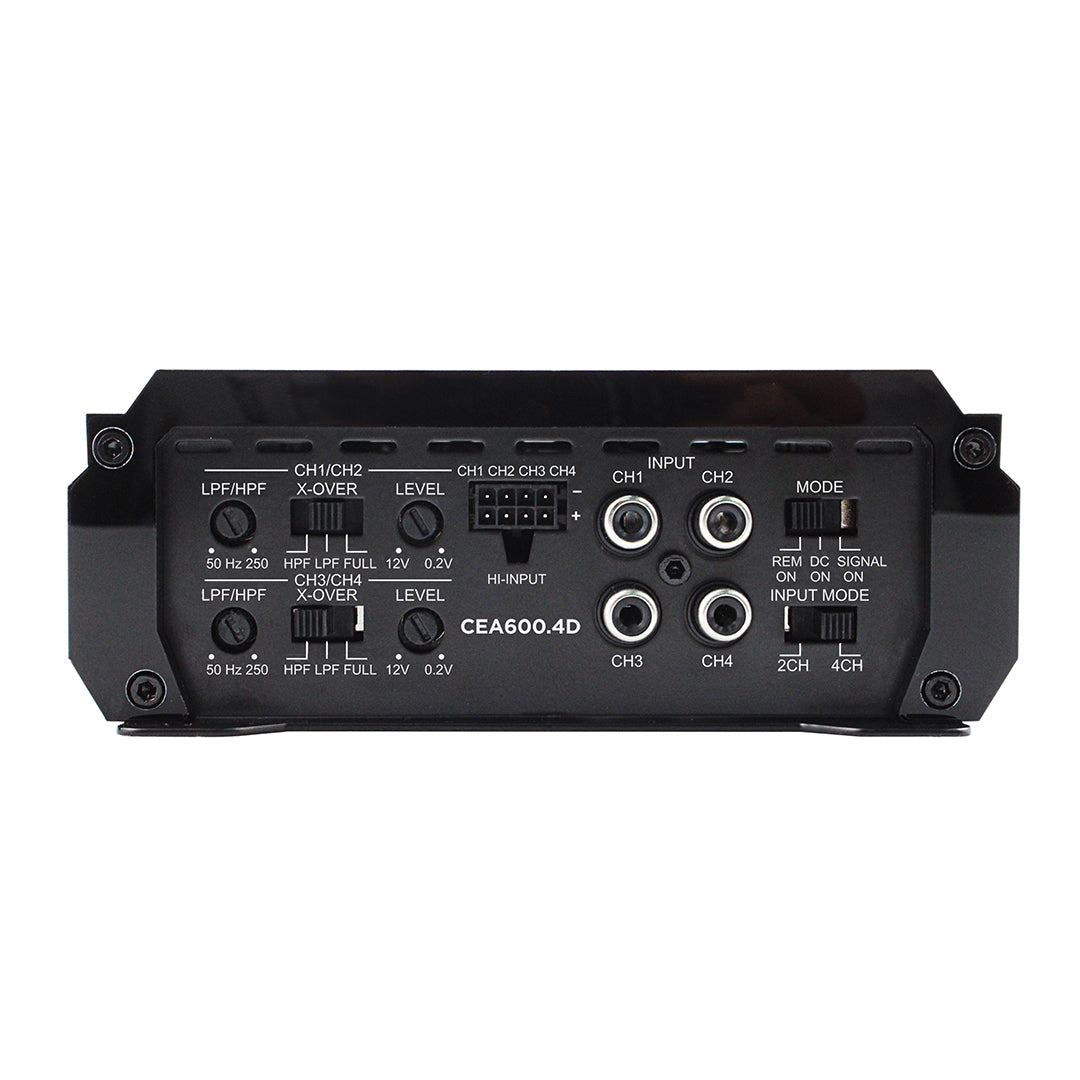

• High-pass/low-pass crossovers and gain control for precise system tuning
• All-MOSFET power supply and output stage for clean, stable signal performance
• Compact low-profile design for easy installation in tight spaces
• Built-in protection: thermal, short circuit, and voltage safeguards
• Heavy-duty high-current power and speaker terminals
• Remote gain control included for easy in-car adjustment
• Soft turn-on/turn-off with turn-on delay for system protection
• Intelligent LED indicator for power status and fault monitoring

Specifications:

RMS WATTS @ 2 Ohms: 4CH x 150W

RMS WATTS @ 4 Ohms: 4CH x 100W

RMS WATTS @ 4 Ohms Bridge: 2CH x 300W

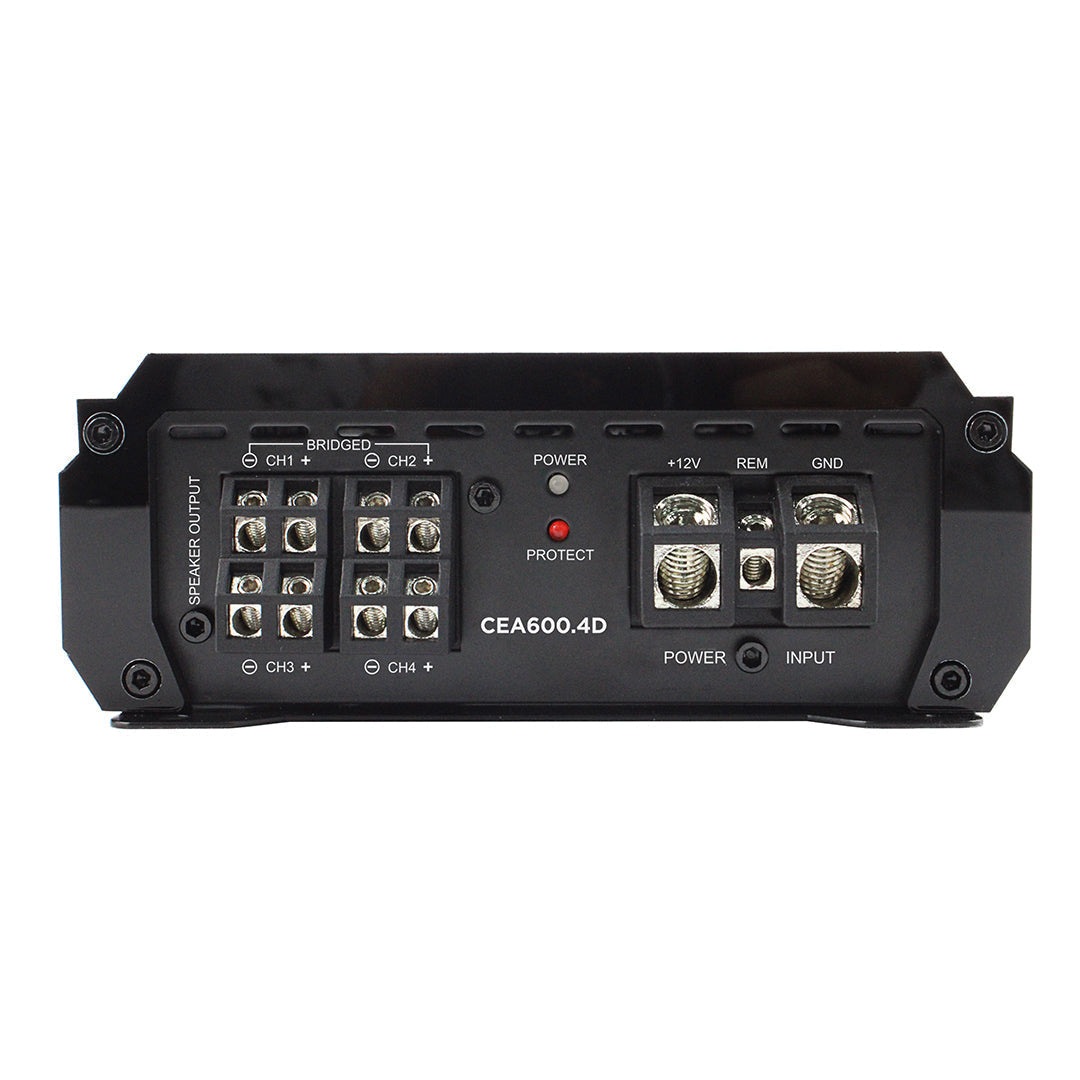

POWER TERMINAL MANAGEMENT

-Positive Terminals: 1 x 4 AWG.

-Negative Terminals: 1 x 4 AWG.

-Remote Turn-ON Signal: 10 AWG.

-Speaker Output Terminals: 10 AWG

Frequency Response: 11Hz - 30kHz

High Pass Filter: 50Hz - 250Hz

Low Pass Filter: 50Hz - 250Hz

Supply Voltage: 10 - 16V

Signal to Noise Ratio: 98dB

Bass Boost: 0 - 12dB Variable

Variable Input Level Control: 0.2V - 12.0V

Recommended Fuse Rating: 80A

Dimensions (L x W x H): 8.66" x 5.71" x 2.13"

UPC: 818550014220
