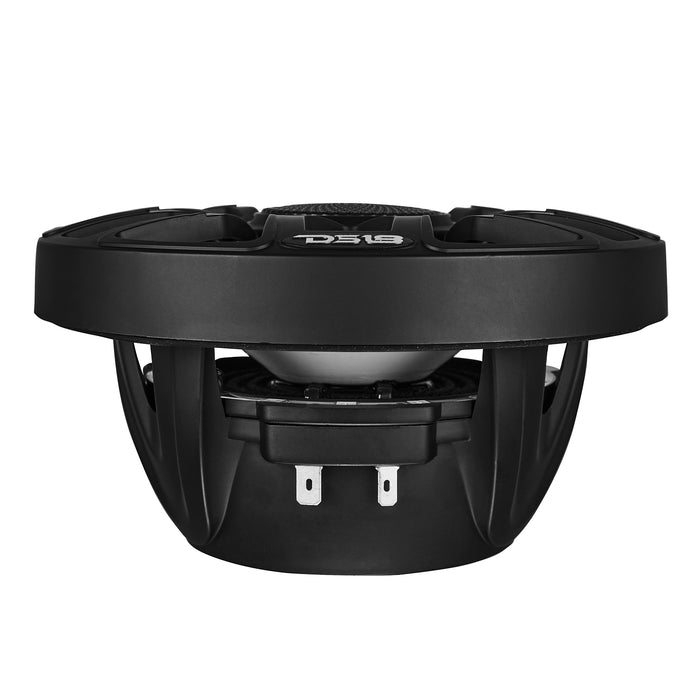

DS18 NXL 6.5" 2-Way Coaxial Marine Speaker With Digital Led Lights And Bullet Tweeter 150 Watts 4-Ohm Black
DS18 NXL 6.5" 2-Way Coaxial Marine Speaker With Digital Led Lights And Bullet Tweeter 150 Watts 4-Ohm Black
Couldn't load pickup availability
Get clearer, louder sound with the DS18 NXL 6.5" 2-Way, a 6.5-inch marine speaker rated 150W RMS (300W peak). Built to handle water, sun and spray for boats, UTVs and towers. Built-in LED lighting adds a custom look.
At a glance
- Power: 150W RMS (300W peak)
- Impedance: 4 ohm
Details
6.5" Marine Grade Coaxial Speaker with LED Lights and Bullet Tweeter
Transform your marine audio experience with the NXL-IQ6! These 6.5" Marine Grade 2-Way Coaxial’s are engineered for dynamic outdoor environments, delivering powerful sound with a 150W RMS and 300W MAX.

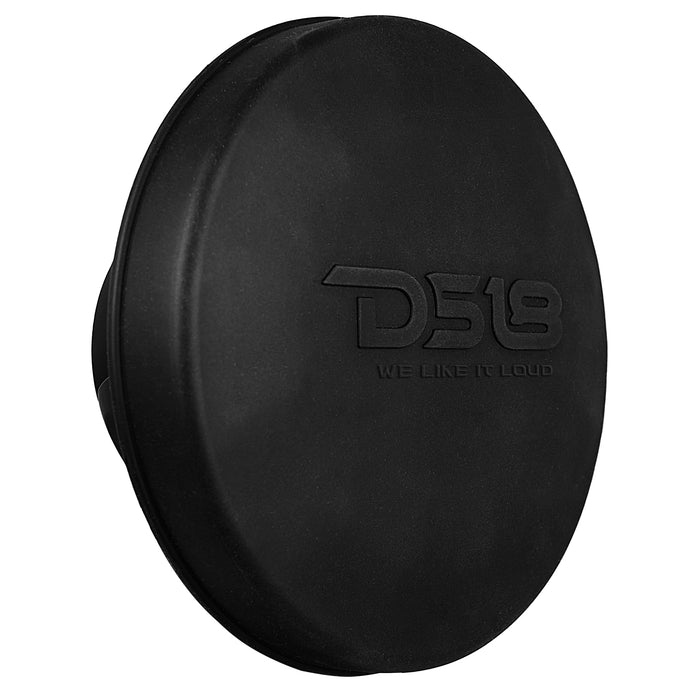

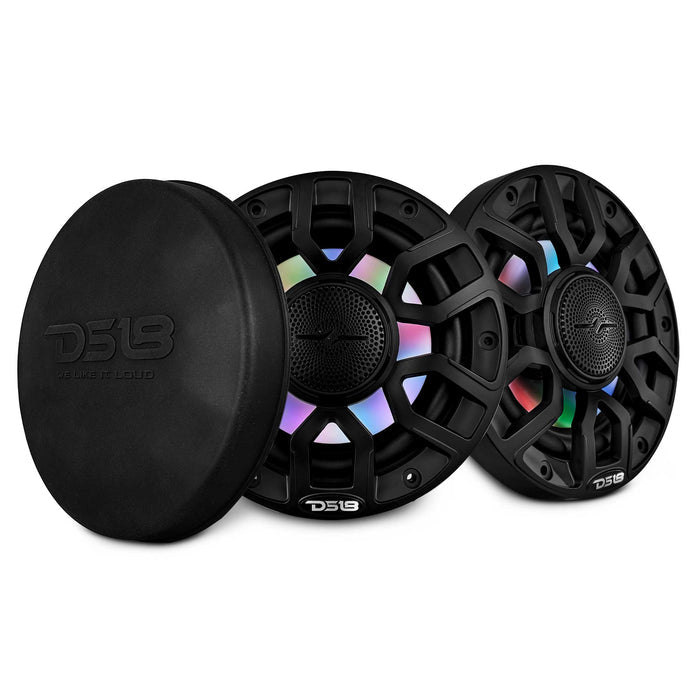

Built to withstand the elements, they feature IP65 water-resistant and UV-stable construction, making them perfect for your boat's audio system. Each speaker includes a high-quality injection-molded polypropylene cone with UV protection, durable soft rubber surround, and protective silicone covers for added durability. Plus, they come in pairs for a complete sound experience.
Features:
- 6.5" 2-Way Marine Speaker
- RMS Power: 150 Watts
- Impedance: 4 Ohm ~ 95dB
- Ferrite & Neodymium Magnets
- Digital LED Lighting
- Black ~ Water Resistant IP65
General Specifications:
Nominal Diameter: 6.5" / 165mm
Nominal Impedance: 4 ohms
RMS Power Handling: 150W
MAX Power Handling: 300W
Sensitivity (1w/1m): 95dB
Frequency Response: 45Hz-20KHz
Number of Ways: 2-Ways
Recommended High-Pass Crossover: 60Hz

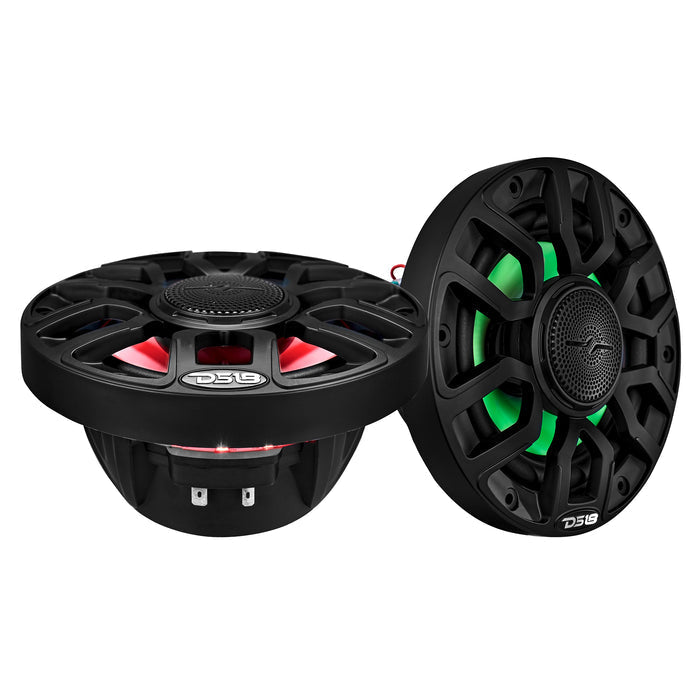

Sold in Pair or Single: Pair
Body Features:
UV Protection: Yes, 100% Stable
Marine Grade Type: IP65

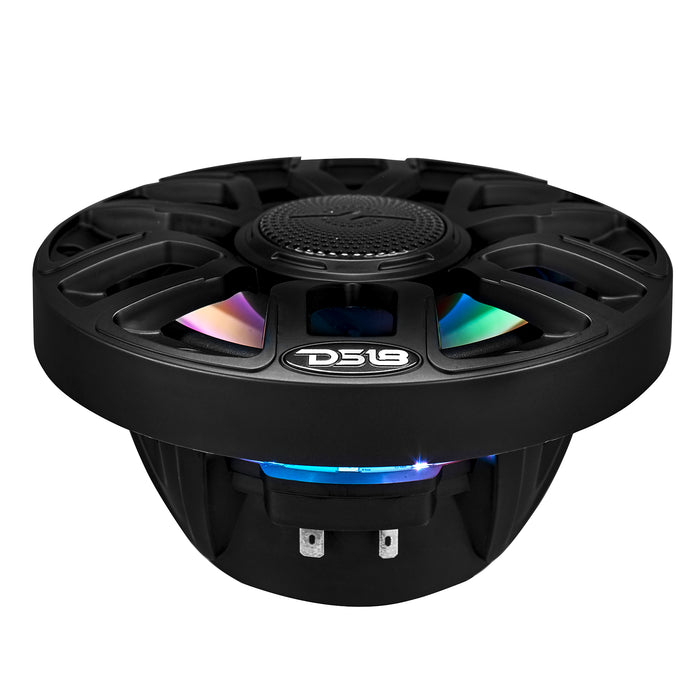

LED Lights: Yes, Digital LED integrated (behind cone)
Digital LED Connection Type: 12V & Digital IN/OUT terminal
Digital LED Chip Type: 1815S
Grill Type: Injection Molded Composite ASA with UV Protection coating
Color / Finish: Matte Black
Woofer Specifications:
Voice Coil Diameter: 1.5" / 38.6mm
Voice Coil Former Material: Glass Fiber
Winding Material: CCAW
Cone Material: PPI
Dust Cap Material: PPI
Surround Material: Rubber
Basket Material: Injection Molded Composite PC with UV Protection coating
Magnet Material: Ferrite+Neodymium
Magnet Weight: 13 oz + 1.1 oz
Tweeter Specifications:
Type: Floating Bullet Tweeter
Voice Coil Diameter: 1" / 25.4mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Diaphragm Material: Aluminium
Bullet Material: Injection Molded Composite PC with UV Protection coating
Magnet Material: Neodymium (N35H)
Magnet Weight: 0.4 oz
Thiele Small Parameters:
Equivalent Volume Vas: 3.15L / 0.11ft3
Excursion (one way) Xmax: 3mm
Free Air Resonance Fs: 94Hz
Mechanical Factor Qms: 7.497
Electrical Factor Qes: 1.205
Total Factor Qts: 1.038
Moving Mass Mms: 16.603 g
Compliance Cms: 0.1679 mm/N
Bl Factor BI: 5.138
Voice Coil Inductance Le: 1.4 mH
Diaphragm Area Sd: 114.99cm2
DC Resistance Re: 3.3 Ohms
Efficiency Bandwidth Product EBP: 78.8

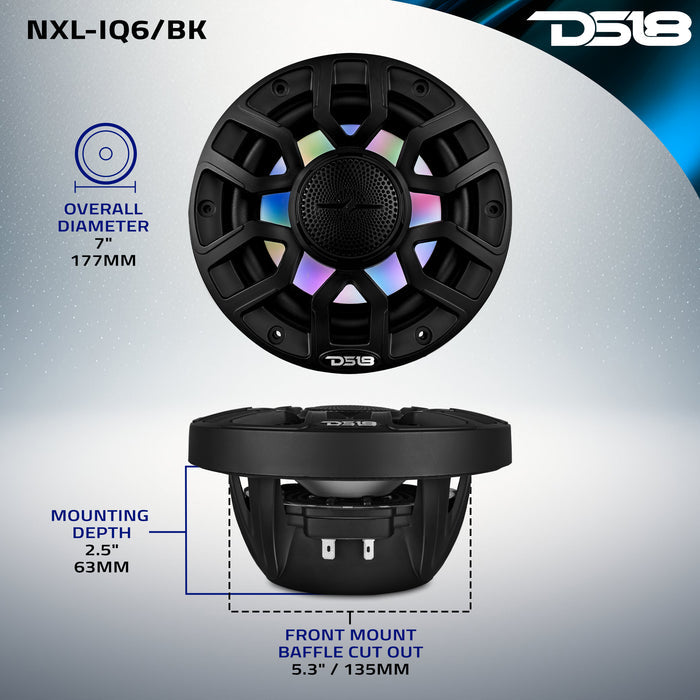

Speaker Measurement:
Overall Diameter: 7" / 177mm
Overall Depth: 3.75" / 95mm
Front Mount Baffle Cutout: 5.3" / 135mm
Mounting Depth: 2.5" / 63mm
Motor Diameter: 3.75" / 95mm
| Category | Specification |
|---|---|
| UPC | 810097266902 |
| Model | NXL-IQ6/BK |
| Speaker Size | 6.5" (165mm) |
| Type | 2-Way Coaxial Marine Speaker |
| Power Handling (RMS/MAX) | 150W RMS / 300W MAX |
| Impedance | 4 Ohm |
| Sensitivity | 95 dB (1W/1m) |
| Frequency Response | 45Hz – 20kHz |
| Recommended Crossover | 60Hz (High-Pass) |
| Number of Ways | 2-Way |
| Water Resistance | Marine Grade IP65 |
| UV Protection | 100% Stable (UV-Protected Enclosure and Components) |
| Sold As | Pair |
