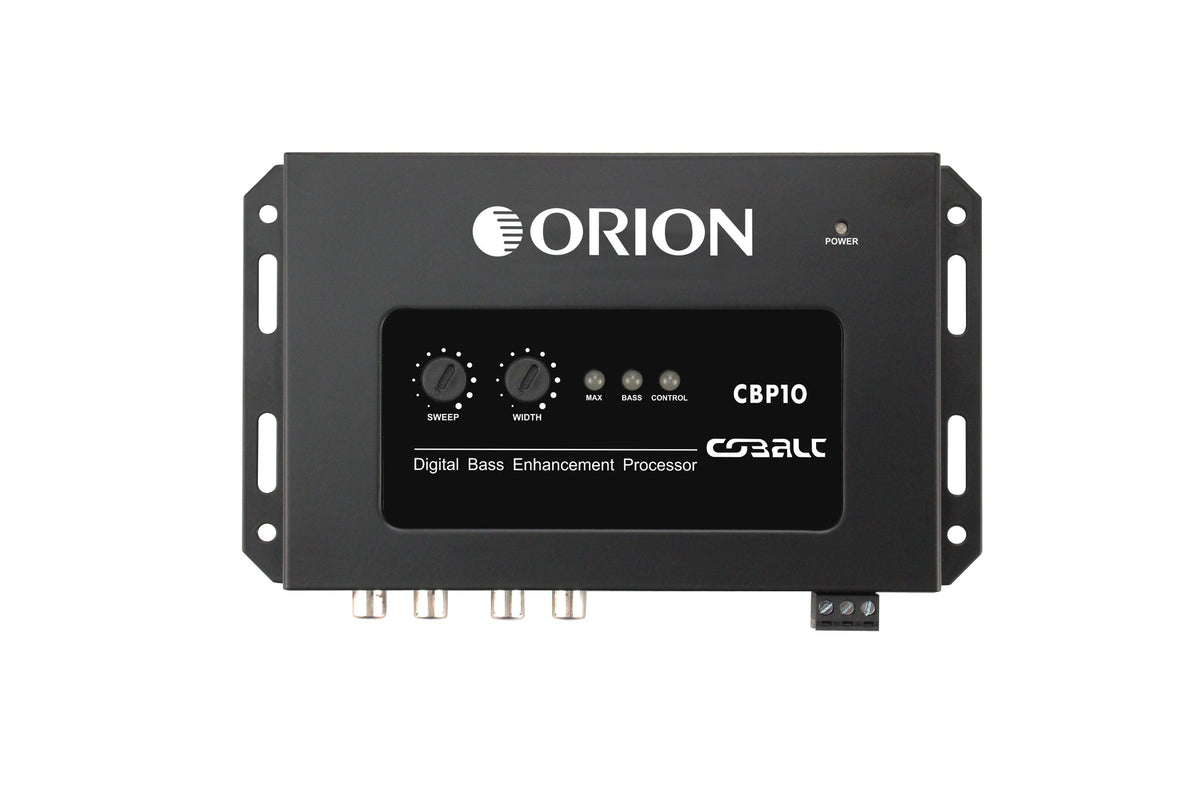

Orion CBP10 Digital Bass Processor with Bass Restoration – 10V Output

The Orion CBP10 helps your aftermarket gear work cleanly with your vehicle's audio.

Details

Boost your car audio with the CBP10 Digital Bass Enhancement Processor, designed to restore lost low frequencies and deliver deeper, more controlled bass. With adjustable sweep and width controls, selectable 2.5V–10V output, and ultra-clean signal performance, it integrates easily into factory or aftermarket systems for powerful, precise sound.

Features:

• Digital Bass Enhancement Processor: Restores lost bass from factory or compressed audio for deeper, tighter sound
• Sweep Frequency Control: Targets your preferred bass frequency range with precision
• Width Bandwidth Control: Adjusts bass from wide, deep response to tight, punchy output
• Selectable Output Voltage: 2.5V–10V output to match various amplifier setups
• High Signal-to-Noise Ratio: >110dB for clean, low-noise performance
• Ultra-Low Distortion: <0.02% THD for clear audio at all volume levels
• Balanced / Unbalanced Inputs: Compatible with factory and aftermarket systems
• Ground Isolation Control: Reduces alternator whine and unwanted noise
• Remote Bass Control Ready: Enables easy in-car bass adjustment

Specifications:

Power Supply: 6.5V – 18V

Maximum Input Level: 10V

Maximum Output Level: 10.5V

Input Sensitivity: 10.7V

Input Impedance: >50K Ohms

Output Impedance: 100 Ohms

EQ Boost / Cut: 15 dB

Signal-to-Noise Ratio: >110 dB

THD @ 2V Output: <0.02%

Channel Separation: >80 dB

CMRR: -63 dB Balanced / -29 dB Unbalanced

Frequency Response: 10 Hz – 30 kHz

Subsonic Filter: 31 Hz – 71 Hz

Current Draw: 180 mA

Interchannel Gain Tracking: 0.1 dB

Fuse Rating: 1A

Dimensions: 7.28” x 4.13” x 1.02”

UPC: 818550019447
