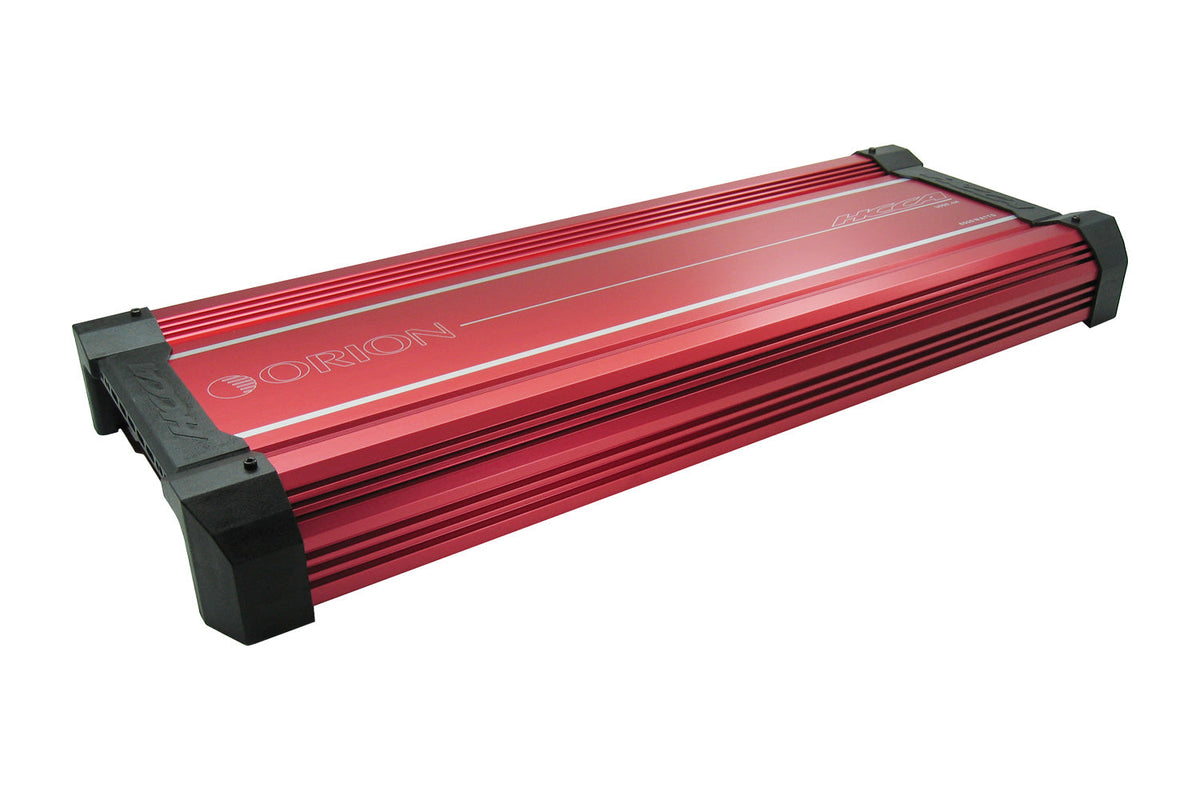

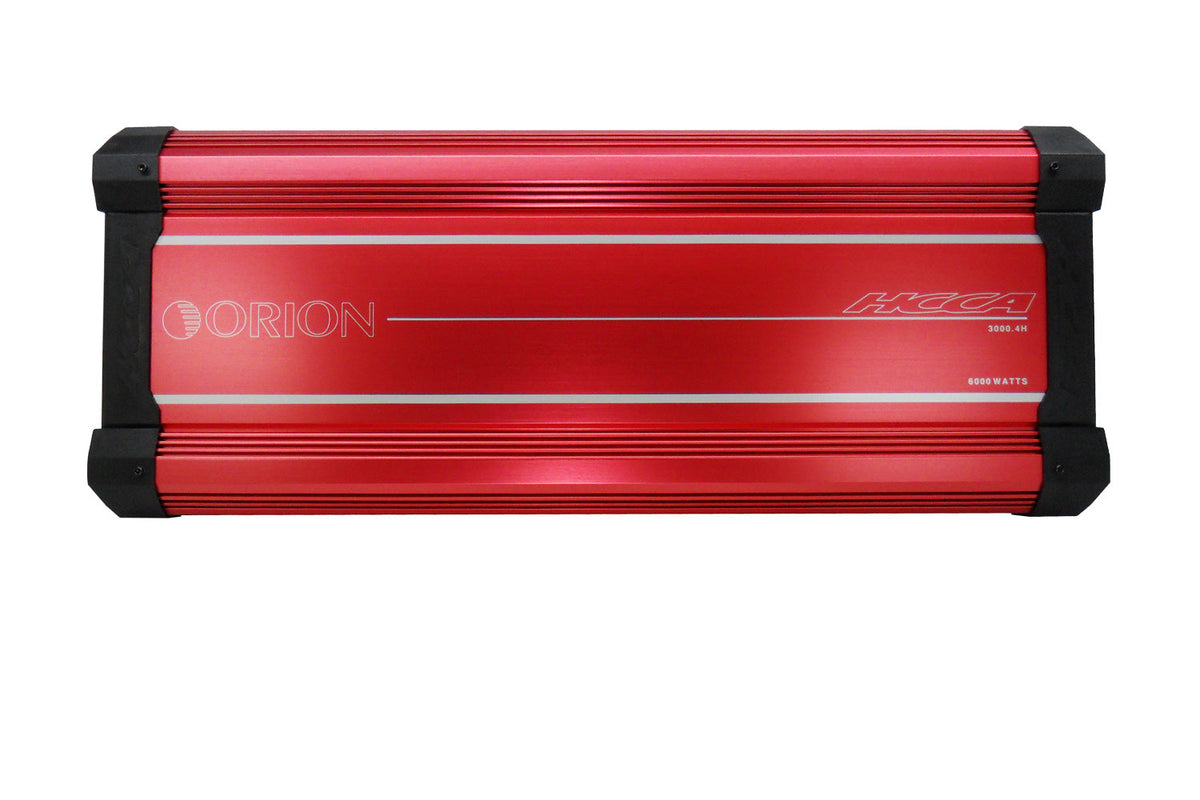

Orion HCCA3000.4H HCCA Series 3000W RMS 4-Channel Class-H Amplifier

The Orion HCCA3000.4H is a 4-channel amp built to drive your speakers or subs with 3,000W RMS.

At a glance

• Power: 3,000W RMS
• Channels: 4

Details

ORION HCCA3000.4H HCCA Series 3000W RMS 4-Channel Class-H Amplifier

Experience the cutting-edge efficiency of Class-H amplification, delivering unparalleled power and precision.Immerse yourself in an auditory adventure with 3000 Watts RMS, producing commanding and detailed sound performance.The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring long-lasting reliability.The amplifier's sleek design seamlessly integrates into your audio setup, adding a touch of sophistication to your system.Meticulously engineered for optimal audio precision, power efficiency, and unwavering performance.

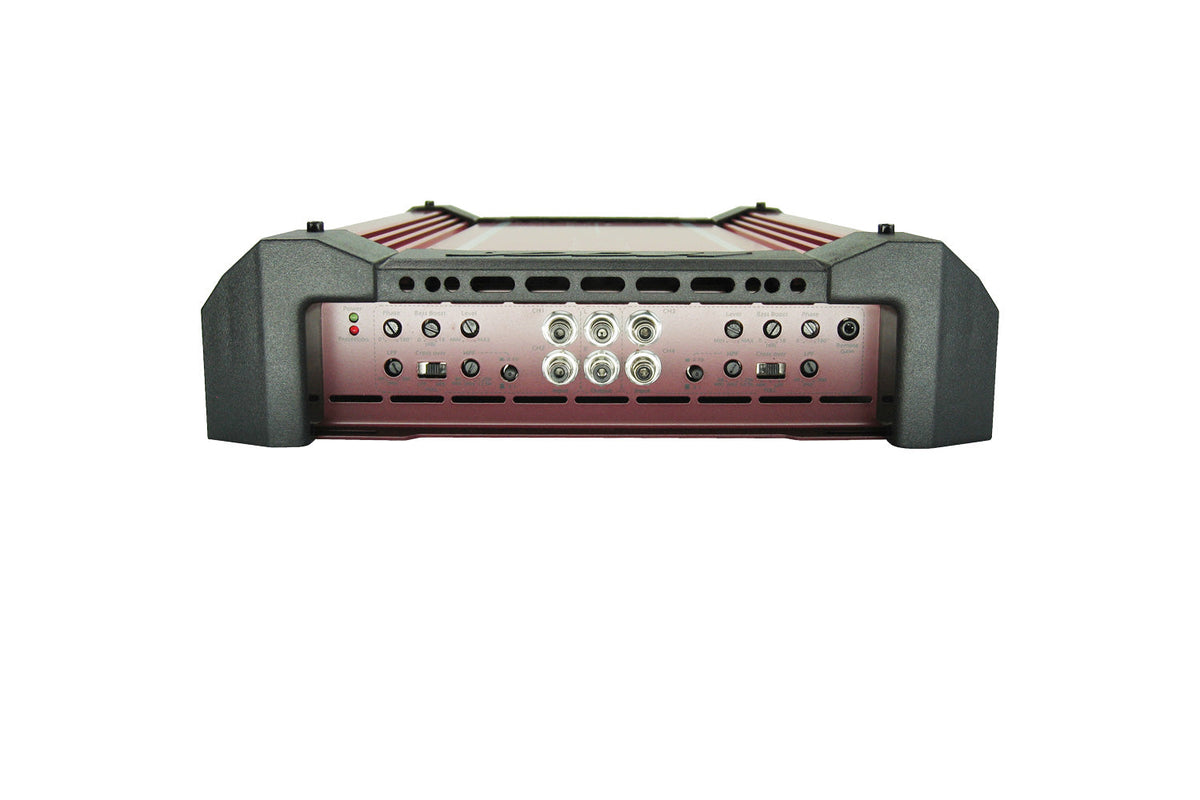

Features:

• All MOSFET Power Supply
• Remote Gain Control
• Heavy Gauge Direct-Wire High Current Power and Speaker Terminals
• Electronic Crossover Network
• Bass Boost Circuitry
• Tri-Mode Capable
• High-Pass/Low-Pass Filter Control
• Power and Protection LED Indicators
• Soft Turn-on/Turn-off
• Balanced Input (CMRR)
• 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage

Power Ratings:

- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 4 x 450W
- RMS WATTS @ 2 Ohms @ 0.5% THD+N: 4 x 750W
- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 150W

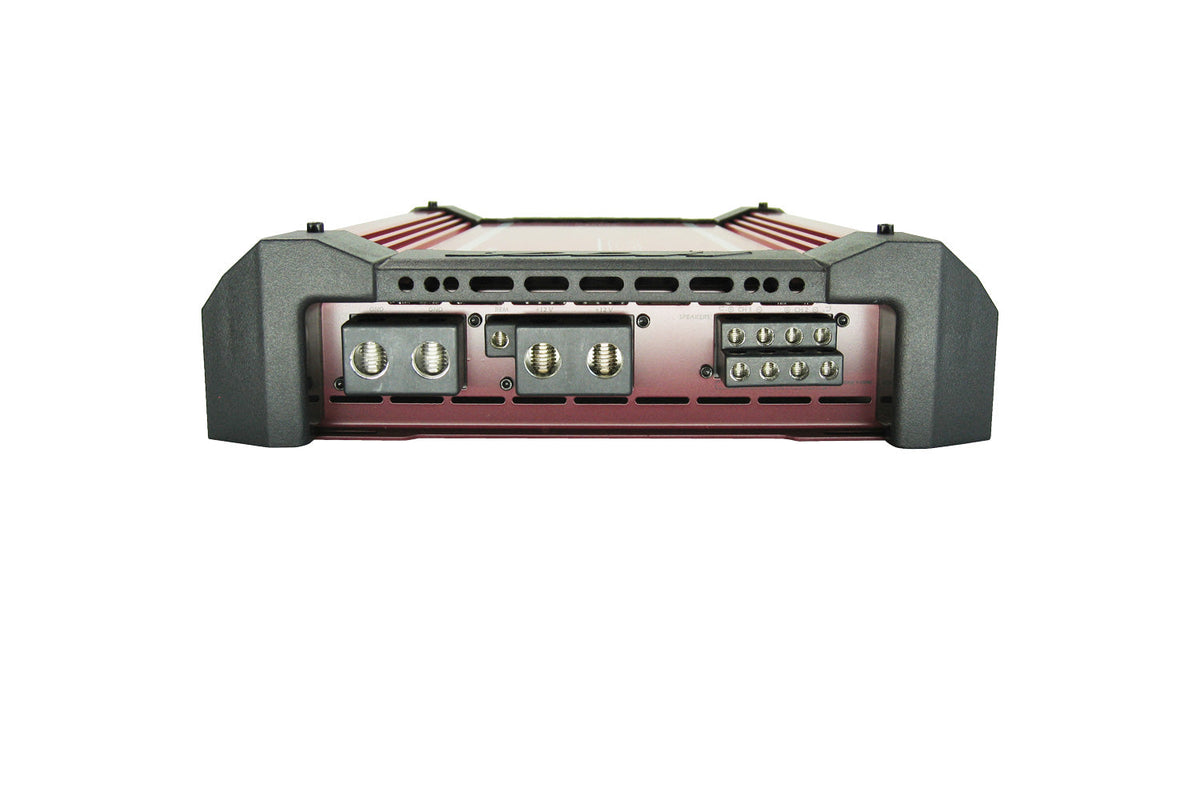

Power Terminal Management:

Positive Terminals: 1 x 0 AWG.
Negative Terminals: 1 x 4 AWG.
Remote Turn-ON Signal: 10 AWG.
Speaker Output Terminals: 10 AWG.

Specifications:

Frequency Response 10Hz to 35kHz +/- 1 dB
- Linear Bandwidth 20Hz to 65kHz +/- 3 dB
- High Pass Crossover Continuously variable (40-1.25kHz/400-12.5kHz)
- Low Pass Crossover Continuously variable (40-300Hz)
- Phase shift control 0 to 180
- Bass Boost 0-18dB variable
- Distortion at Rated Power 0.005% THD+N
- Damping Factor > 100
- Input Sensitivity(RMS) 200mV to 6V
- Supply Voltage Range 9 to 16V
- Input Impedance 20K Ohms
- Amplifier Efficiency > 67% into 2 Ohms load at max. power
- SNR at rated output power and lowest impedance > 95dB
- Fuses: 250A recommended (not included)
- Dimensions (L x W x H): 24.02" x 11.89" x 3.15" (610x302x80mm)

UPC: 818550010703
