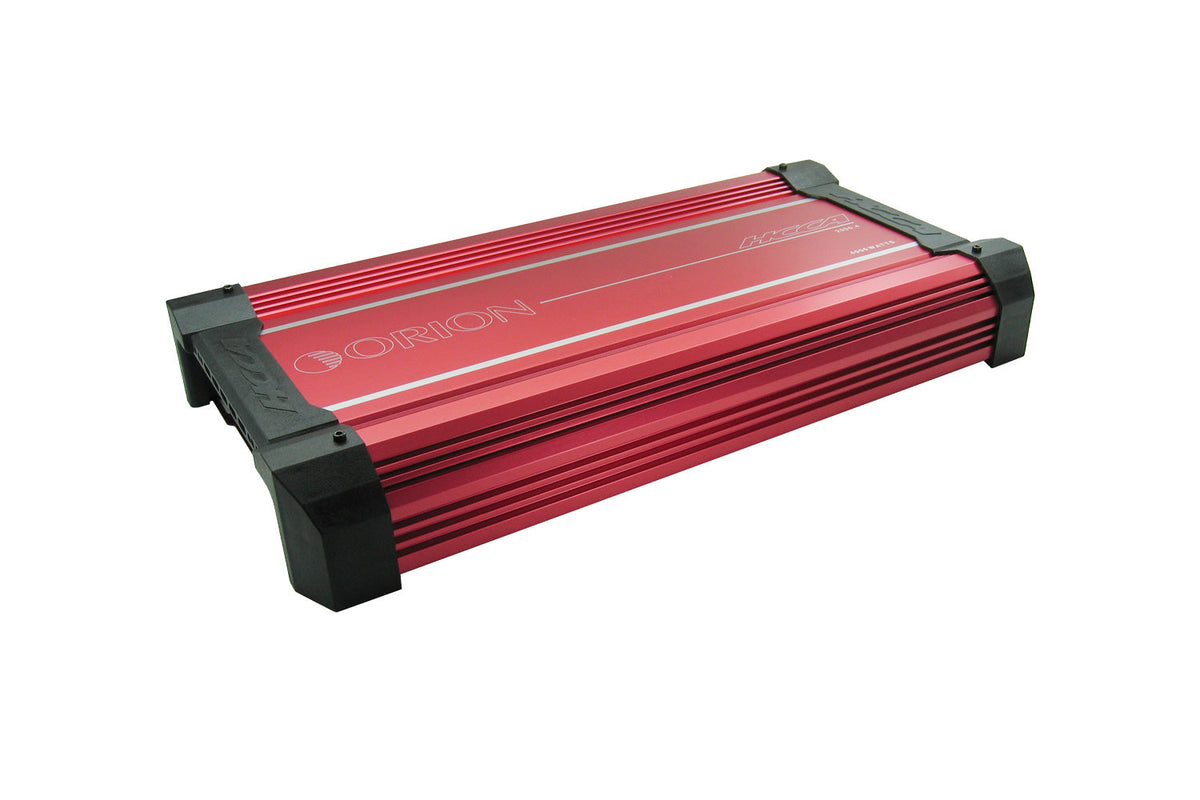

Orion HCCA2000.4 HCCA Series 2000W RMS 4-Channel Class-AB Amplifier

Looking for more volume without distortion? The Orion HCCA2000.4 4-channel amplifier puts out 2,000W RMS.

At a glance

• Power: 2,000W RMS
• Channels: 4
• Class AB

Details

ORION HCCA2000.4 HCCA Series 2000W RMS 4-Channel Class-AB Amplifier

Experience the harmonious blend of Class-AB amplification, combining the efficiency of Class B with the sound quality of Class A for an unparalleled sonic journey.Immerse yourself in a world of commanding audio power with 2000 Watts RMS, delivering impactful and dynamic sound performance.The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance. Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring lasting reliability.The amplifier's sleek design seamlessly integrates into your audio setup, adding a touch of sophistication without compromising performance.Meticulously engineered for optimal audio precision, power efficiency, and unwavering performance.

Features:

• All MOSFET Power Supply
• Remote Gain Control
• Heavy Gauge Direct-WireHigh Current Power and Speaker Terminals
• Electronic Crossover Network
• Bass Boost Circuitry
• Tri-Mode Capable
• High-Pass/Low-Pass Filter Control
• Power and Protection LED Indicators
• Soft Turn-on/Turn-off
• Balanced Input (CMRR
• 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage

Power Ratings:

RMS WATTS @ 4 Ohms @ 0.5% THD+N: 4 x 300W
- RMS WATTS @ 2 Ohms @ 0.5% THD+N: 4 x 500W
- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 1000W

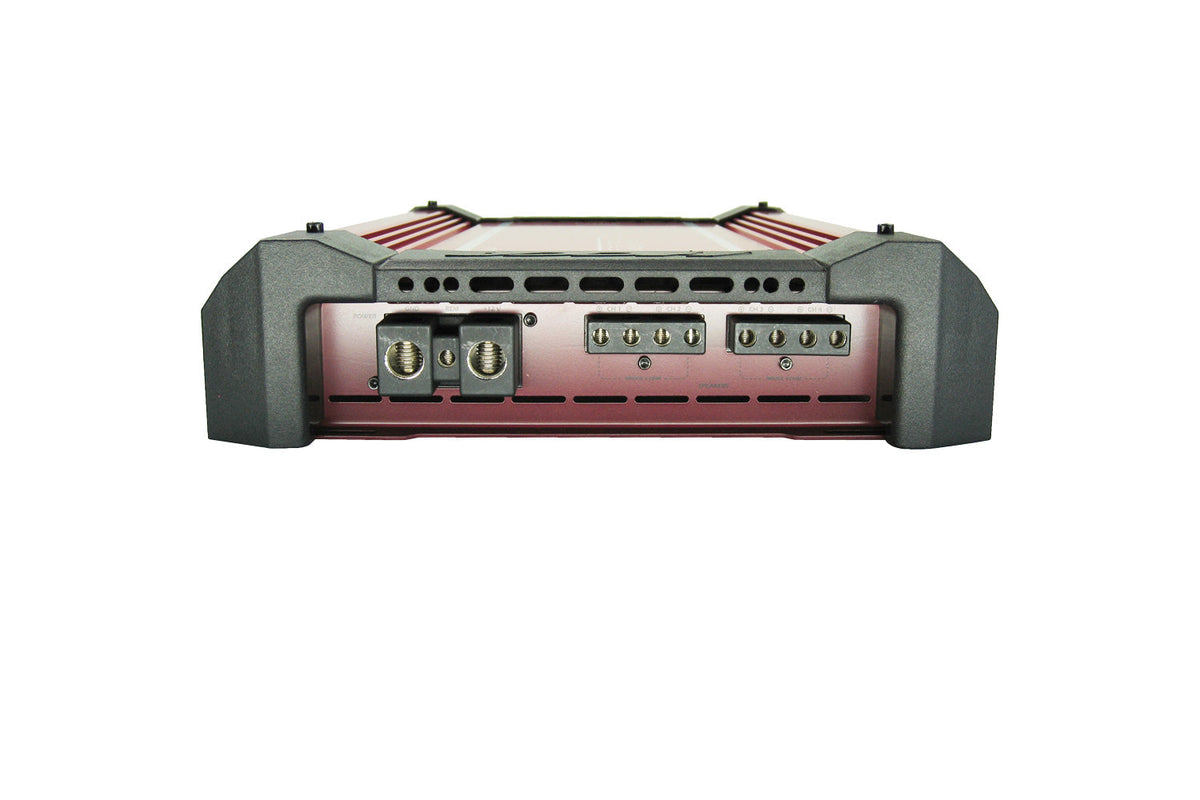

Power Terminal Management:

Positive Terminals: 1 x 0 AWG.
Negative Terminals: 1 x 4 AWG.
Remote Turn-ON Signal: 10 AWG.
Speaker Output Terminals: 10 AWG.

Specifications:

Frequency Response 10Hz to 35kHz +/- 1 dB
- Linear Bandwidth 20Hz to 65kHz +/- 3 dB
- High Pass Crossover Continuously variable (40-1.25kHz/400-12.5kHz)
- Low Pass Crossover Continuously variable (40-300Hz)
- Phase shift control 0 to 180
- Bass Boost 0-18dB variable
- Distortion at Rated Power 0.005% THD+N
- Damping Factor > 100
- Input Sensitivity(RMS) 200mV to 6V
- Supply Voltage Range 9 to 16V
- Input Impedance 20K Ohms
- Amplifier Efficiency > 67% into 2 Ohms load at max. power
- SNR at rated output power and lowest impedance > 95dB
- Fuses: 200A recommended (not included)
- Dimensions (L x W x H): 20.47" x 11.89" x 3.15" (520x302x80mm)

UPC: 818550010697
