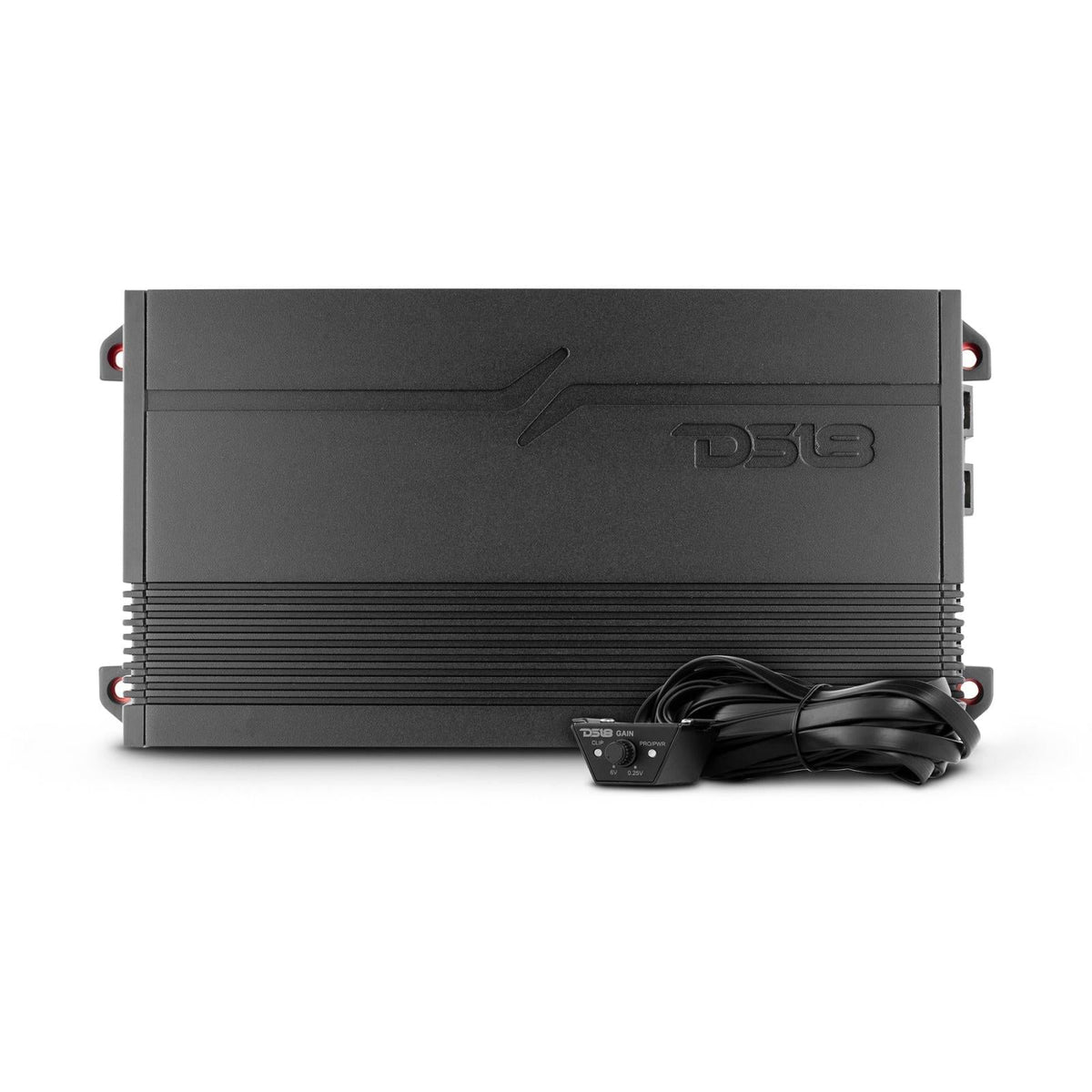

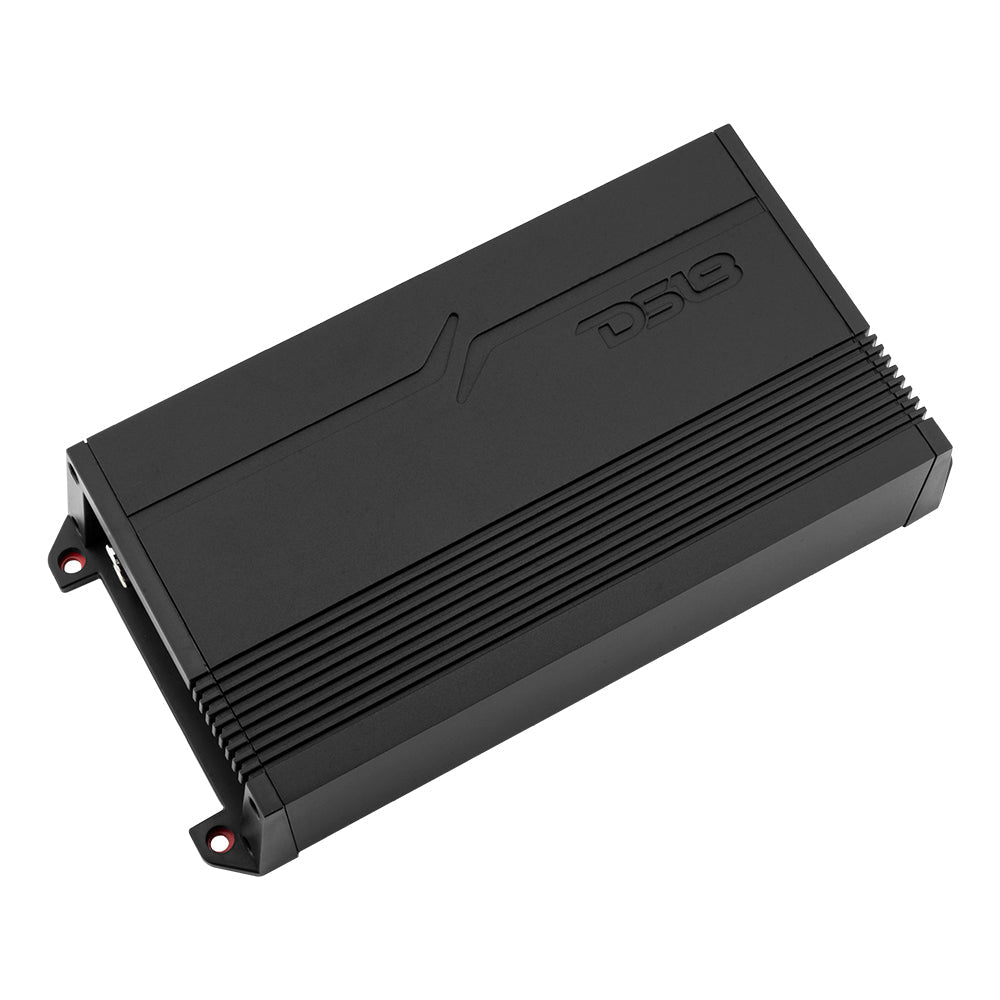

DS18 GEN-X 600W RMS Monoblock Amplifier – Class D 1-Ohm Car Audio Amp
DS18 GEN-X 600W RMS Monoblock Amplifier – Class D 1-Ohm Car Audio Amp
Regular price
$239.95 USD
Regular price
Sale price
$239.95 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The DS18 GEN-X is a mono Class D amp built to drive your speakers or subs with clean, steady power.
At a glance
- Channels: Mono
- Class D
Details
The G1800.1D delivers deep, powerful bass with up to 600W RMS @ 1-Ohm, engineered for clean, efficient performance. Built with a Class D circuit, low-pass filter, and remote bass knob, it gives you full control over your sound. High-level input compatibility ensures easy integration, while advanced protection features—including thermal, short circuit, and voltage safeguards—keep your system safe.
Features:
- 1 Channel Subwoofer Monoblock
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 600 Watts @ 1 Ohm
- Power/Protection/Clip Indicator
- Bass Control Knob
Specifications:
| SKU | G1800.1D |
| UPC | 810005189958 |
| Class | D |
| Amplifier Type | Monoblock Subwoofer |
| Channels | 1 |
| Peak Power | 1800W |
| RMS Power @ 4 Ohm | 250W |
| RMS Power @ 2 Ohm | 400W |
| RMS Power @ 1 Ohm | 600W |
| Minimum Impedance | 1 Ohm |
| Operating Voltage | 9 – 15V |

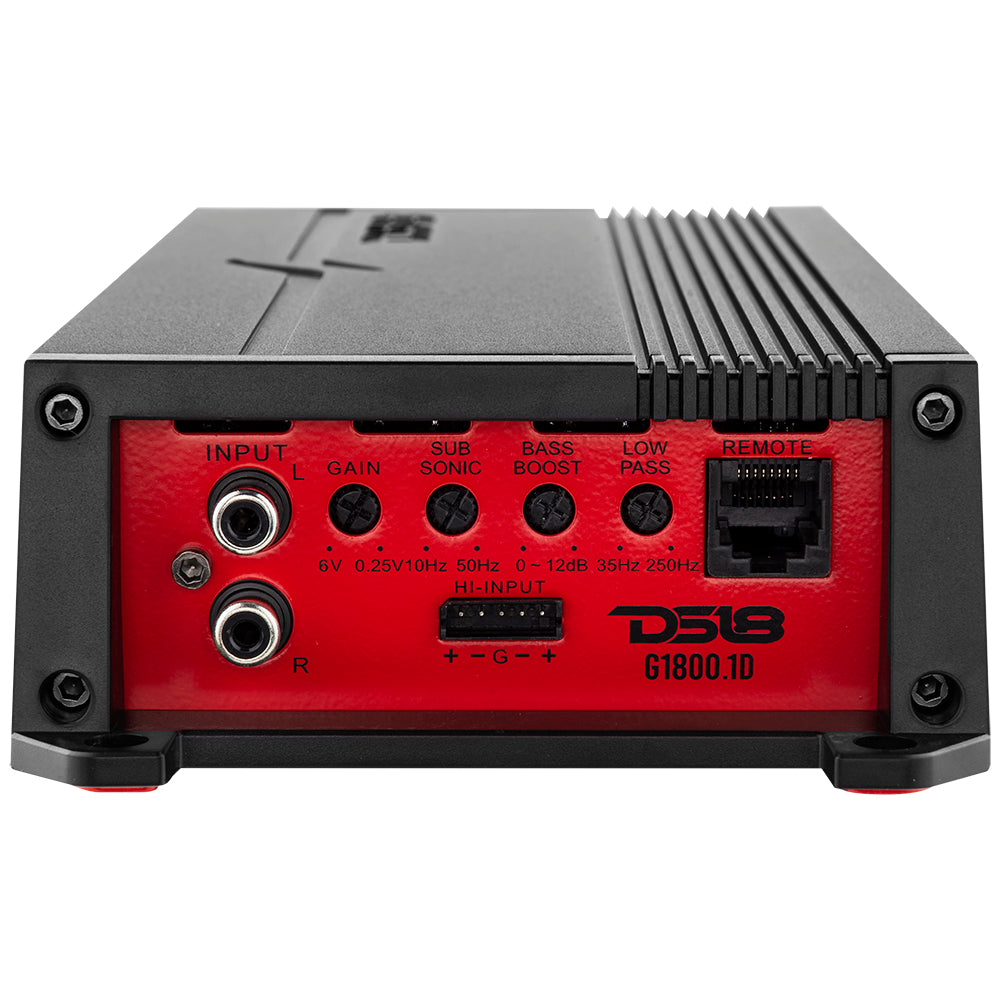

Performance & Controls:
| Frequency Response | 10Hz – 500Hz |
| Signal-to-Noise Ratio | >93dB |
| Low Pass Filter | 35Hz – 250Hz |
| High Pass Filter | N/A |
| Subsonic Filter | Yes (10Hz – 50Hz) |
| Efficiency @ 4 Ohm | 90% |
| Damping Factor | 45 |
| THD % | 0.0014% |
| Input Sensitivity | 0.25V – 6V |
| X-Over Filter Range | 35Hz – 250Hz |
| Bass Boost Range | 0 – 12dB |
| Bass Boost Frequency | 45Hz |
| Phase Selector | No |

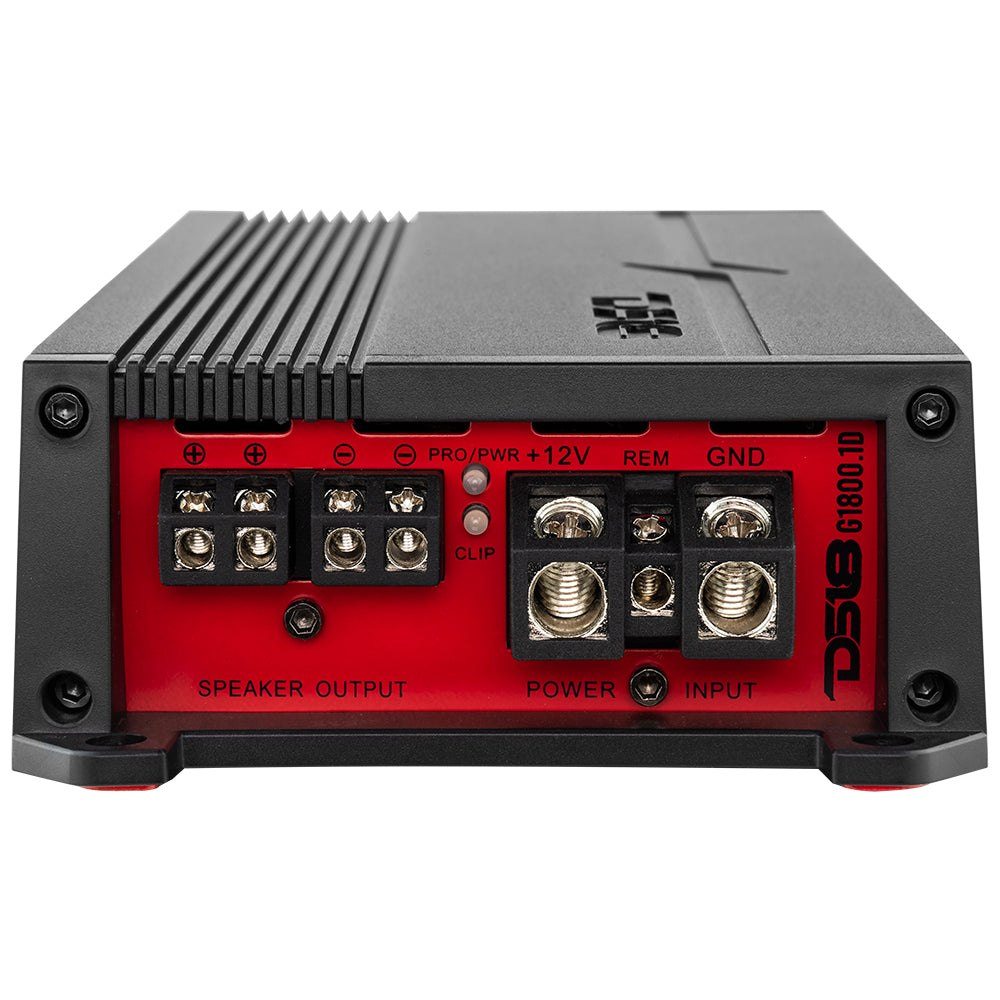

Build & Protection:
| High Level Input | Yes |
| Selectable X-Over | Fixed LPF |
| LED Indicators | Power / Protection / Clip |
| Voltage Protection | Yes |
| Clipping Protection | Yes |
| Thermal Protection | Yes |
| Speaker Output Size | 8GA |
| Power Input Size | 4GA |
| Fuse Rating | 80A |

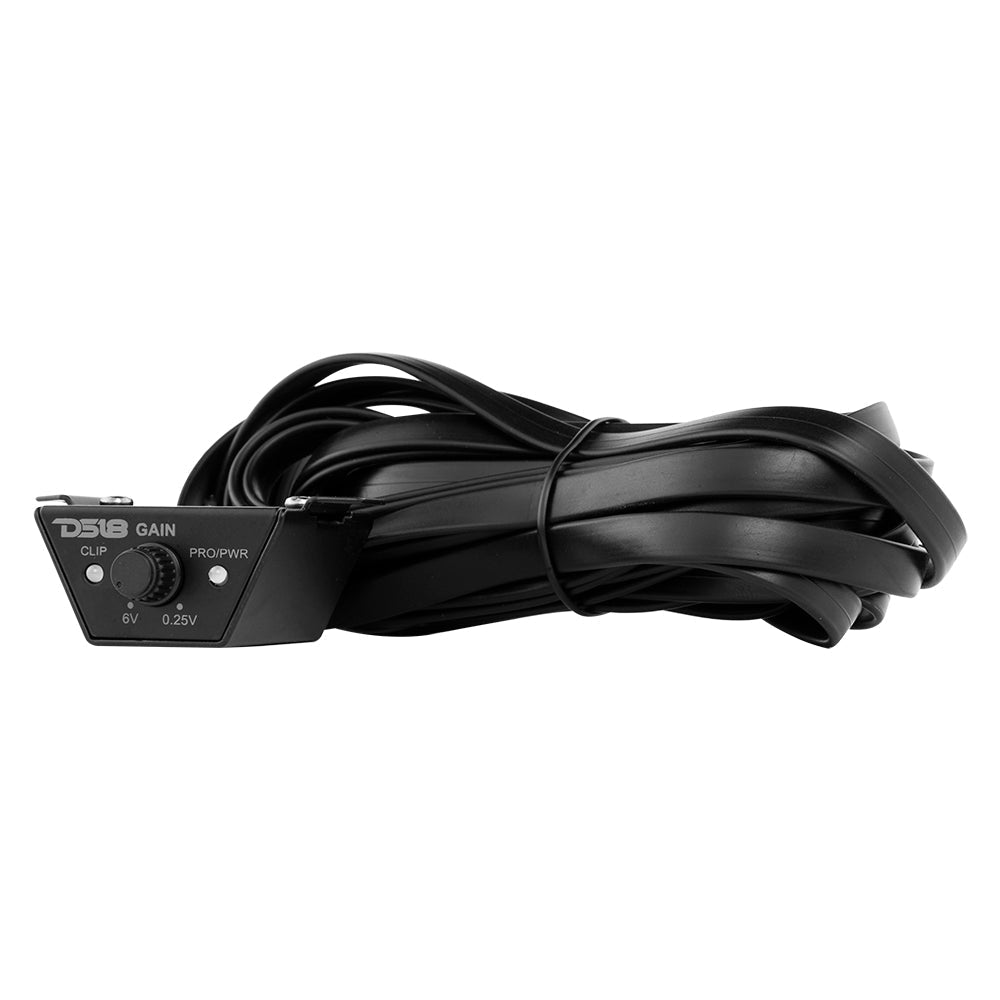

| Remote Level Control | Yes |
| Body Color / Finish | Matte Black |
Measurements:
| Product Weight | 4.5 lb |
| Product Dimensions (L × W × H) | 11.75 × 7.5 × 3.25 in |
| Master Carton Weight | 24 lb |
| Master Carton Dimensions | 15 × 12.5 × 10.75 in |
| Master Carton Quantity | 6 Units |
| Sold In | Single Unit |
