DS18 RZR-PROWFCC62LD Polaris RZR Pro 2020+ Loaded Waterfall Console Enclosure, 6.5" Speakers + Tweeters, LED

A ready-to-install bass upgrade: this 6.5-inch enclosure from DS18 comes loaded, so you skip matching subs to a box.

Details

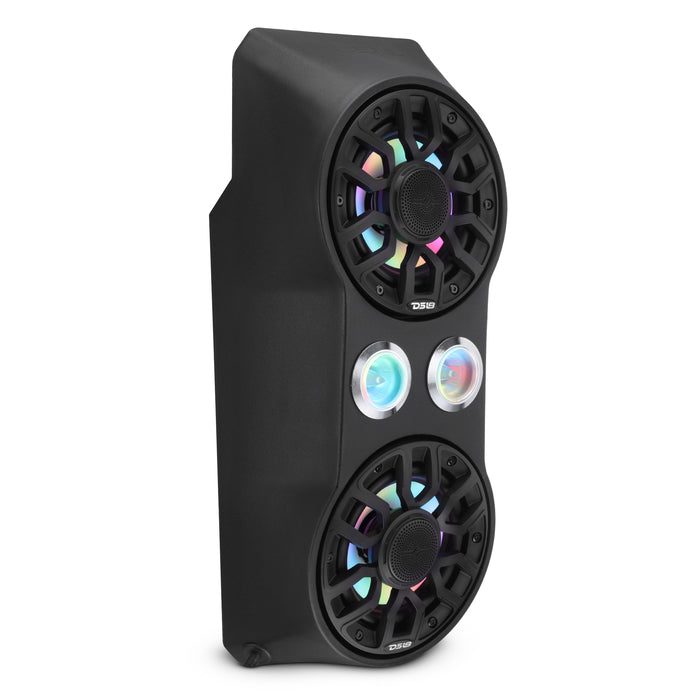

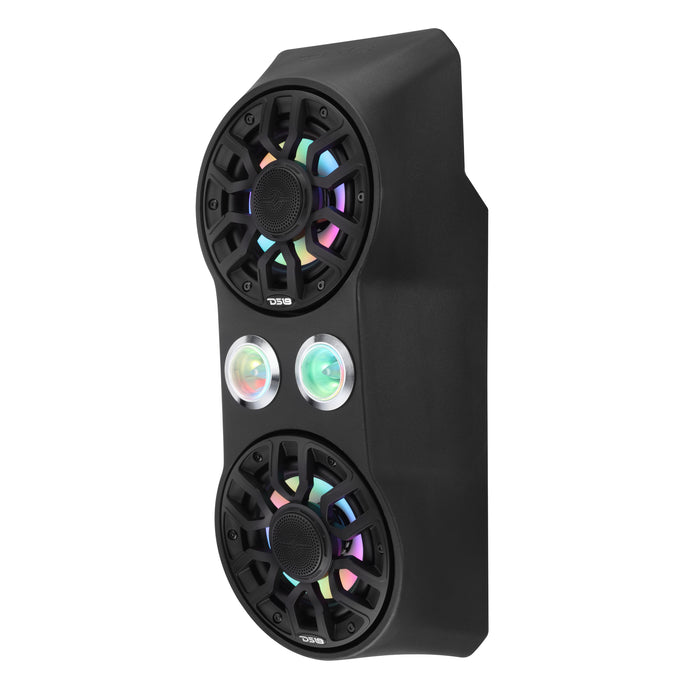

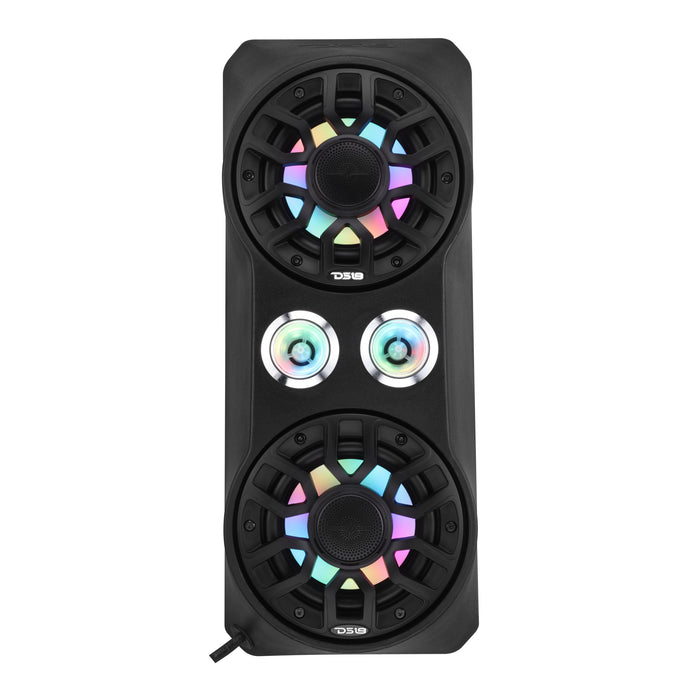

The DS18 RZR-PROWFCC62LD waterfall center console enclosure is designed for 2020+ Polaris RZR Pro models and includes two 6.5” water-resistant speakers and two 2.3” super bullet tweeters for powerful, balanced sound. It offers easy plug-and-play installation using factory mounting points and included hardware. Built-in LED lighting adds a customizable look (controller sold separately), while IP65-rated marine-grade construction provides protection against water, dust, and harsh conditions. The sealed, damped enclosure enhances clarity for strong, trail-ready audio performance.

Features:

• Precision-designed for 2020+ Polaris RZR Pro
• Includes (2) 6.5” Marine Speakers and (2) Super Bullet Tweeters
• Plug-and-Play Installation
• Integrated LED Lighting
• Marine-Grade Durability (IP65 Rated)

Specifications:

General

Total Impedance
4Ω + 4Ω (Speaker) / 4Ω + 4Ω (Tweeter)
Load Configuration
Individual
Input Wire
11 Core OFC Tinned (SPK+TW+LED)
Box Type
Sealed Enclosure
Box Material
Polyethylene (PE)
Finish Material
Black
UV Protection
Yes
IP Rating
IP65
OEM Fit
Yes
Compatible Model / Year
RZR-PRO / 2020-2024 2 & 4 Doors Models
Compatible Speaker Model
DS18 NXL & NVY Series and Most DS18 6.5" Speakers

Speaker Specifications (Woofer) (NXL-IQ6/BK)

Speaker Type / Size
2 x 6.5" Waterproof Coaxial with Digital LED
RMS Power Handling
150W (Each)
MAX Power Handling
300W (Each)
Sensitivity (1w/1m)
95dB
Frequency Response
45Hz - 20kHz
Recommended High-Pass Crossover
60Hz
Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
Glass Fiber
Winding Material
CCAW
Cone Material
Injection Molded Polypropylene + UV Compliant
Surround Material
Butyl (Rubber)
Basket Material
Injection Molded Composite PC with UV Protection coating
Magnet Material
Ferrite + Neodymium
Magnet Weight
13 oz + 1.1oz

Speaker Specifications (Tweeter) (NXL-IQ6/BK)

Type
Floating Bullet Tweeter
Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Aluminium
Bullet Material
Injection Molded Composite PC with UV Protection coating
Magnet Material
Neodymium (N35H)
Magnet Weight
0.4 oz

Tweeter Specifications (PRO-TW7LD)

Speaker Type / Size
2 x 2.3" Super Bullet with Digital LED
AES Power Handling
50W (Each)
Program Power Handling
100W (Each)
Peak Power Handling
200W (Each)
Sensitivity (1w/1m)
102dB
Frequency Response
4kHz - 20kHz
Recommended High-Pass Crossover
4kHz
Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCA
Diaphragm Material
Aluminum
Magnet Material
Neodymium
Magnet Weight
0.9 oz

Measurement

Overall Height
20.3" / 516mm
Overall Width
8.3" / 211mm
Overall Depth
5.67" / 144mm

UPC: 810199441443
