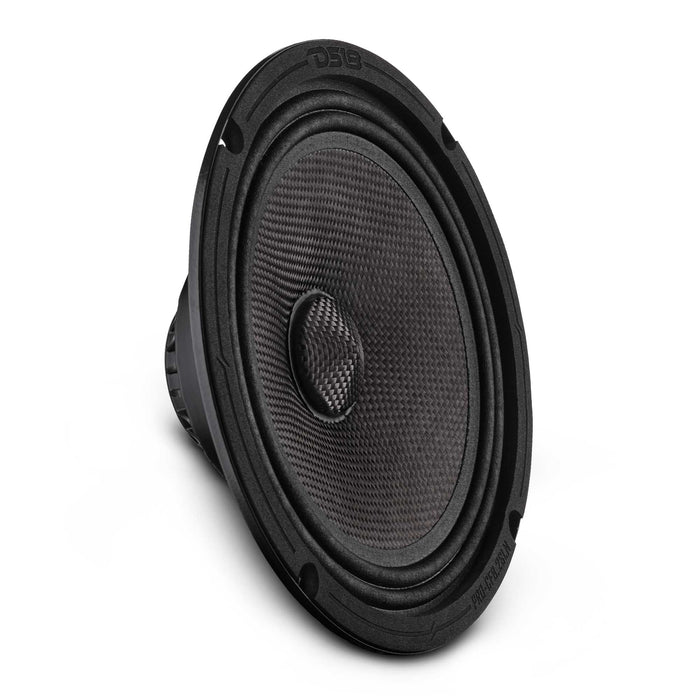

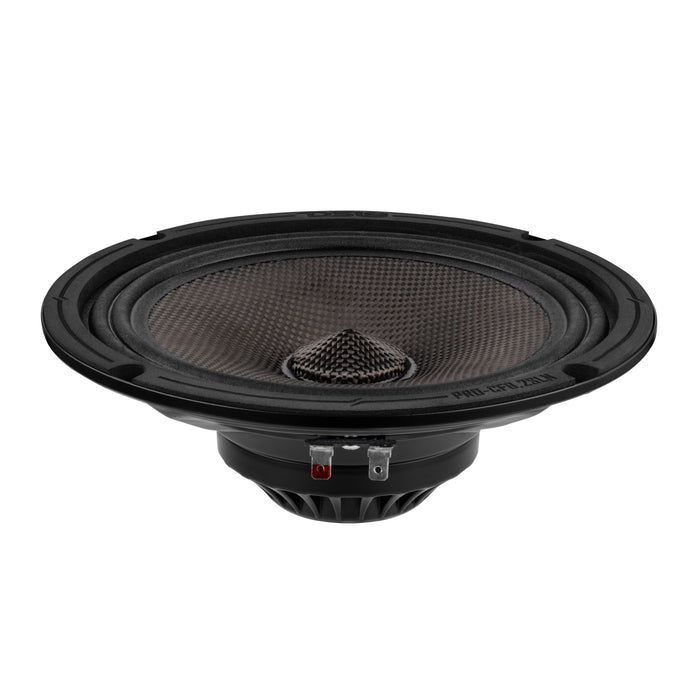

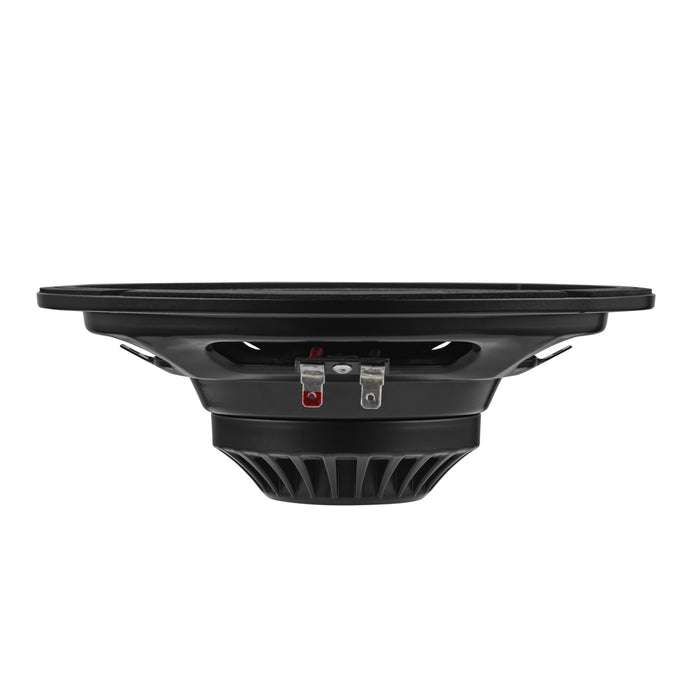

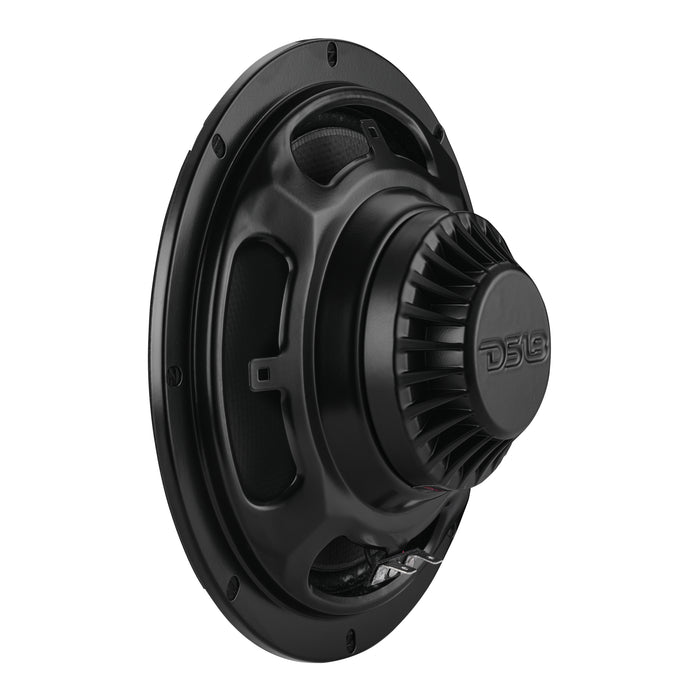

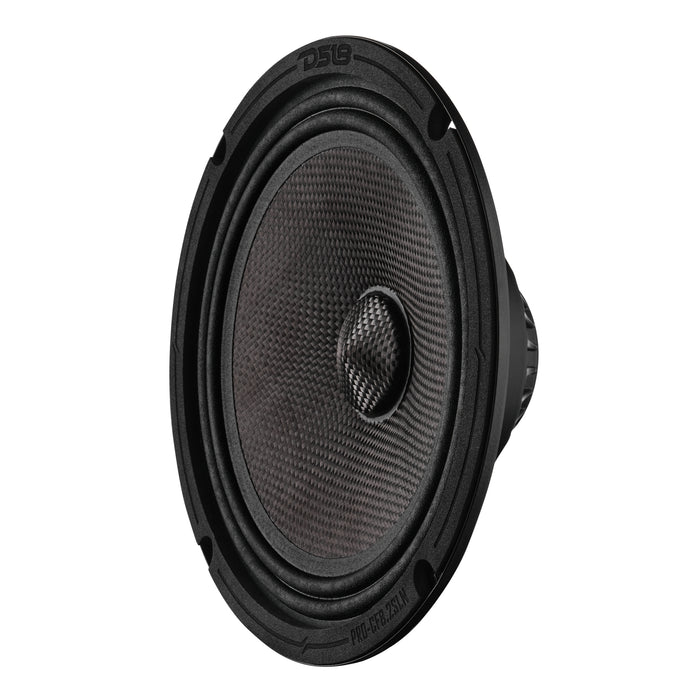

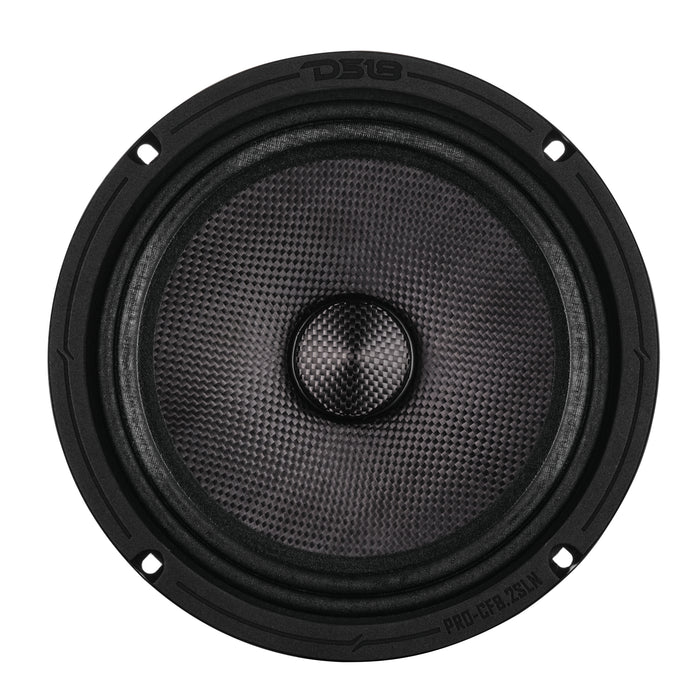

DS18 PRO-CF8.2SLN 8” Slim Motorcycle & Motorsports Loudspeaker With Neodymium Magnet and Water Resistant Carbon Fiber Cone – 200W RMS 2-Ohm

Replace tired factory sound with the DS18 PRO-CF8.2SLN – 200W RMS.

At a glance

• Power: 200W RMS
• Impedance: 2 ohm

Details

The DS18 PRO-CF8.2SLN is an 8" slim midrange speaker built for motorcycles, powersports, and marine audio. With 200W RMS / 400W MAX at 2Ω, 95dB sensitivity, and a neodymium magnet, it delivers loud, clear sound in tight spaces. A water-resistant carbon fiber cone, treated cloth surround, and slim 2.5" mounting depth make it perfect for rugged installs.

Features:

• 8" Slim Midrange Speaker 400W MAX / 200W RMS
• 2-Ohm Impedance for Full Amplifier Output
• Carbon Fiber Cone and Dust Cap – Fully Water-Resistant IP65
• Shallow 2.5" Mounting Depth for Tight Spaces
• Lightweight Neodymium Magnet with High 95dB Sensitivity

Specifications:

Nominal Diameter
8" / 203mm
Nominal Impedance
2 Ohms
RMS Power Handling
200W
MAX Power Handling
400W
Sensitivity (1w/1m)
95dB
Frequency Response
80Hz-5kHz
Recommended HI Pass Crossover
100Hz
Sold in Pair or Single
Single
Grill Included
No

Features

Demodulating Rings
Yes
Improved Heat Dissipation
Yes
Cone Shape
Curvilinear
Speaker Terminals
Spade

Motor

Voice Coil Diameter
1.5" / 38mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Water-Resistant Carbon Fiber
Dust Cap Material
Water-Resistant Carbon Fiber
Surround Material
Treated Cloth
Leads Connection Type
Crossed Spider
Basket Material
Steel
Basket Color/Finish
Glossy Black
Magnet Material
Neodymium
Magnet Weight
3.8 Oz

Thiele & Small Parameters

Equivalent Volume
6.84L / 0.241ft3
Excursion (one way)
2.5 mm
Free Air Resonance
106Hz
Mechanical Factor (Qms)
3.32
Electrical Factor (Qes)
0.51
Total Factor (Qts)
0.46
Mechanical Mass
17.549g
Mechanical Compliance
0.12 mm/N
BL Factor
6.87
Voice Coil Inductance
0.18mH
Cone Area
190cm2
DC Resistance
1.6 Ohms
Mechanical Mass w/o air
15.99g

Measurement

Overall Diameter
8.2" /209mm
Overall Depth
2.87" / 73mm
Front Mount Baffle Cutout
7" / 180mm
Mounting Depth
2.5" / 65mm
Motor Diameter
3.6" / 92mm

UPC: 810199440118
