DS18 NXL-M5 5-Channel Class D Marine Amplifier, 3600W Peak, IPX5, Bass Knob Included
DS18 NXL-M5 5-Channel Class D Marine Amplifier, 3600W Peak, IPX5, Bass Knob Included
Couldn't load pickup availability
The DS18 NXL-M5 is a 5-channel Class D amp built to drive your speakers or subs with 3,600W peak.
At a glance
- Power: 3,600W peak
- Channels: 5
- Class D
Details
Full Range 5 Channel IPX5 Grade Marine/Boat Amplifier 3600W
Introducing DS18’s NXL-M5, a full-range marine amplifier that combines cutting edge technology, unmatched durability, and mind-blowing sound quality.
Utilizing an impressive MAX power of 3600W, the NXL-M5 delivers unrivaled performance that will make your system soar. With its RMS power output of 4 x 150W and a whopping 600W for SUB’s, the NXL-M5 guarantees consistent audio performance that is guaranteed to satisfy even the most discerning audiophile. The DS18 NXL-M5 covers the full range of frequencies ensuring that every beat, note, and whisper is reproduced with unrivaled precision.
Crafted with a focus on longevity, the NXL-M5 is built to withstand the harshest marine environments. Made from hardware resistant to corrosion and UV rays, the NXL-M5 is guaranteed to stand the test of time, even under the most challenging circumstances. The coated 4-layer PCB provides an additional layer of protection against corrosion, guaranteeing the NXL-M5's reliability for years to come.

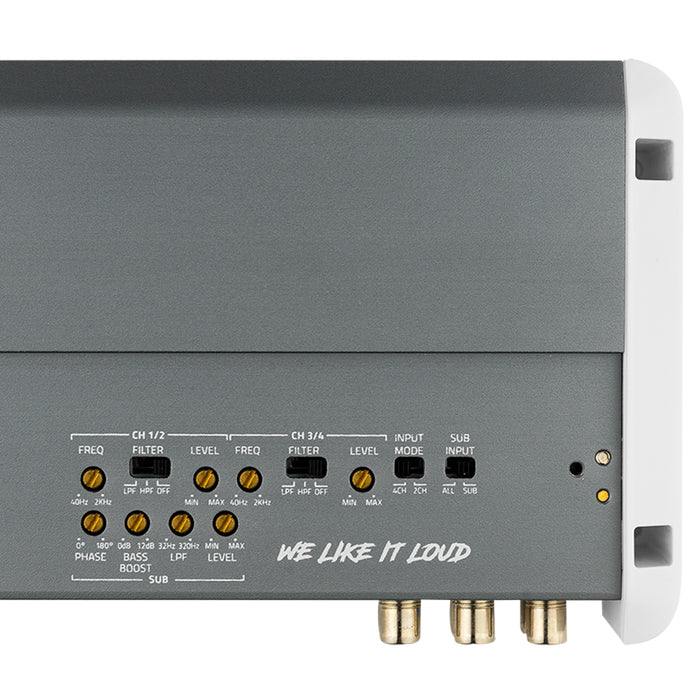

Your peace of mind is our top priority. The NXL-M5 features a stable and reliable Class D circuit design, accompanied by built-in protections against short circuits, thermal issues, and voltage fluctuations. This ensures that your amplifier remains safe and continues displaying extraordinary performance, no matter the circumstances. Its front cover shields the controls from the elements, ensuring that you can fine-tune your audio settings without worry. While the LED clip indicator provides visual feedback, enabling you to make precise adjustments effortlessly.

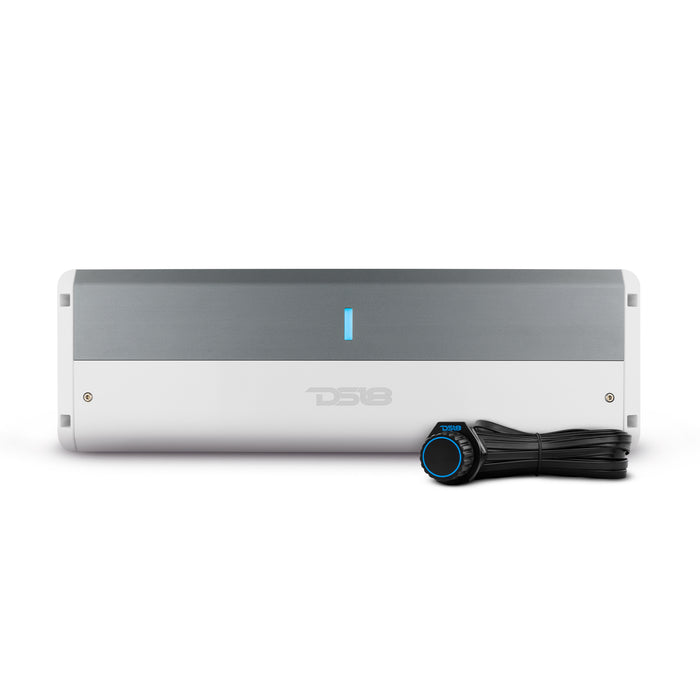

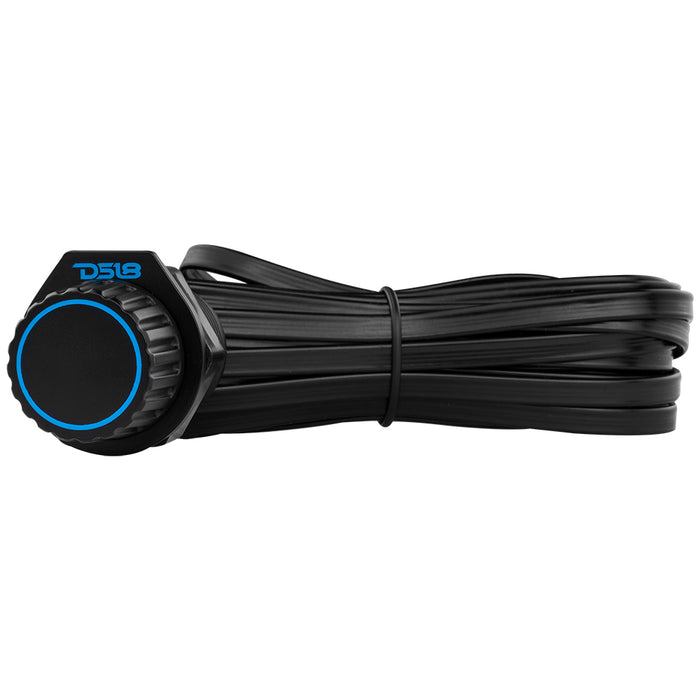

Take full command of your audio experience with the waterproof remote level bass knob specially designed for easy installation on your boat's panel or wet areas. Seamlessly adjust the bass output without compromising your enjoyment or exposing the amplifier to potential damage. DS18 understands the importance of convenience and versatility in your marine adventures.
At DS18, we pride ourselves on our commitment to excellence. The NXL-M5 undergoes rigorous Audio Precision Quality Control Verification and sound quality verification using AP instruments. This meticulous testing guarantees that every unit meets our uncompromising standards and provides you with an unparalleled listening experience.
| Specification | Details |
|---|---|
| Model / SKU | DS18 NXL‑M5 |
| Channels | 5 (4 full-range + 1 subwoofer) |
| Peak Power (Total) | 3,600 W |
| RMS Power @ 4 Ω (Front/Rear) | 4 × 150 W |
| RMS Power @ 2 Ω (Front/Rear) | 4 × 230 W |
| RMS Power for Sub @ 4 Ω | 300 W |
| RMS Power for Sub @ 2 Ω | 600 W |
| Bridgeable Power @ 4 Ω | 2 × 440 W |
| Frequency Response | 20 Hz – 20 kHz |
| Signal-to-Noise Ratio | > 90 dB |
| Total Harmonic Distortion (THD) | < 0.15% |
| Efficiency (@ 4 Ω) | > 97% |
| Channel Separation | > 55 dB |
| Crossover | HPF / LPF / Full; 40 Hz–2 kHz; Sub: 32 Hz–320 Hz |
| Bass Boost | 0–12 dB @ ~45 Hz |
| Phase Selector (Sub) | 0°–180° |
| Low-Level Input Range | 0.2 V–6 V |
| High-Level Input | Yes (≥ 5 V) |
| Power Input | 4 GA cable |
| Fuse Configuration | 3 × 40 A (total 120 A) |
| Protection Features | Thermal, Over-load, Short-circuit, Over-voltage, DC output protection |
| Indicators | Power / Protect / Clip LEDs |
| Amp Class & Type | Class D, Full-Range, Bridgeable |
| Water Resistance | IPX5 (splashproof) |
| Board Protection | 4-layer coated PCB with UV and corrosion resistance |
| Remote Bass Knob | Yes (waterproof) |
| Tiffany-Style RCAs | Yes |
| Dimensions (L×W×H) | 14.3″ × 4.5″ × 1.7″ (365 × 116 × 43 mm) |
| Weight | ~2.24 kg |
| Finish | Gray/White aluminum + ABS |
| UPC | 810097261907 |
