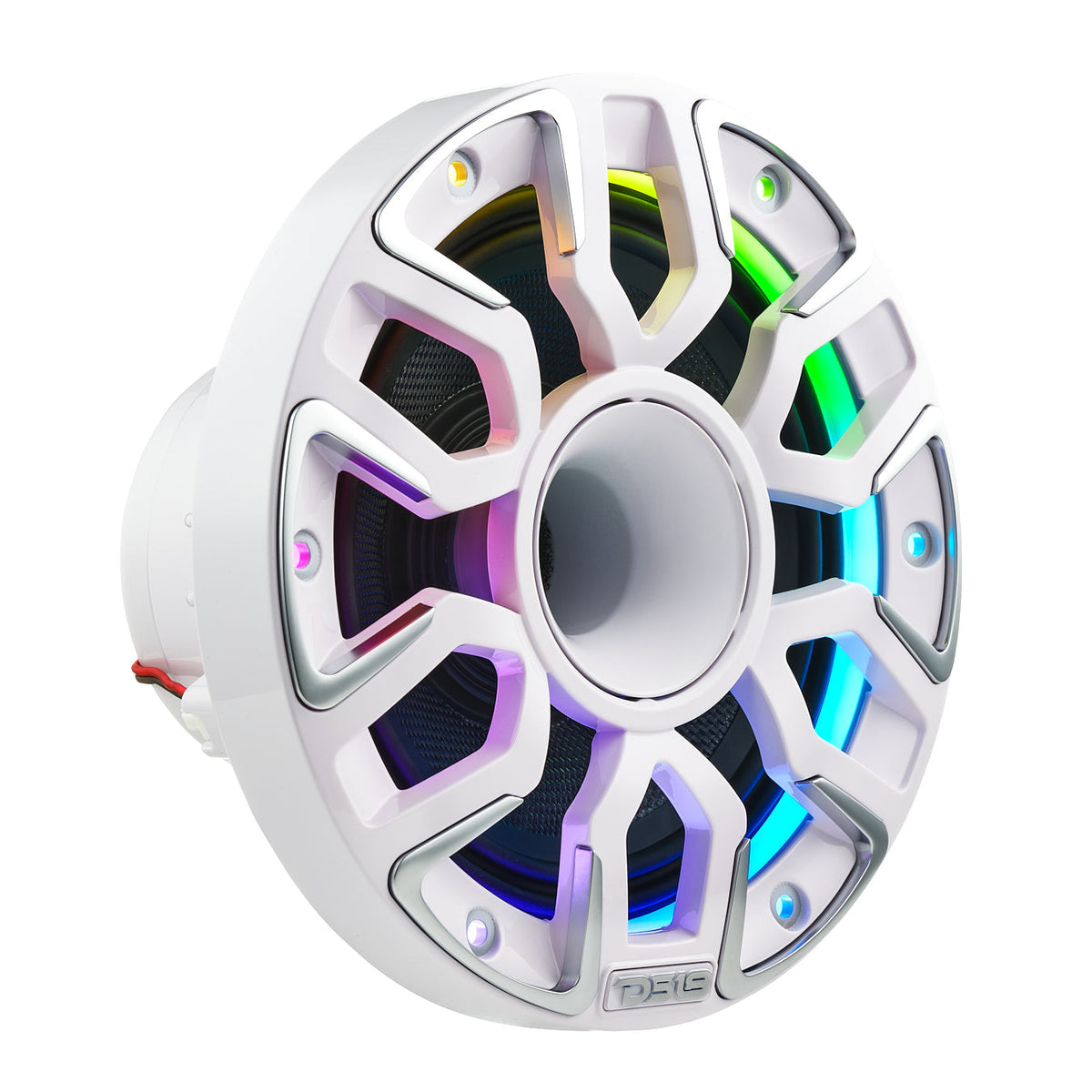

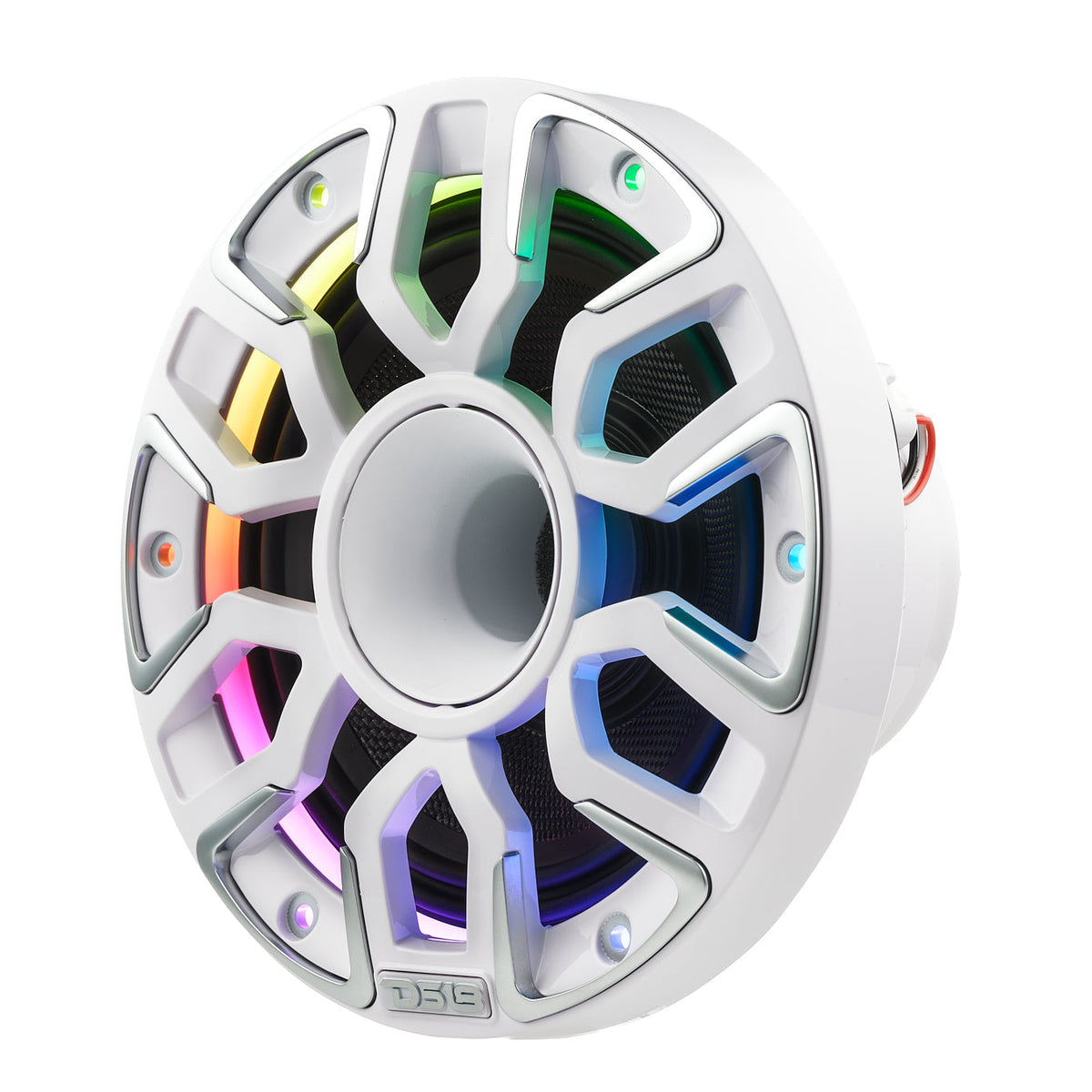

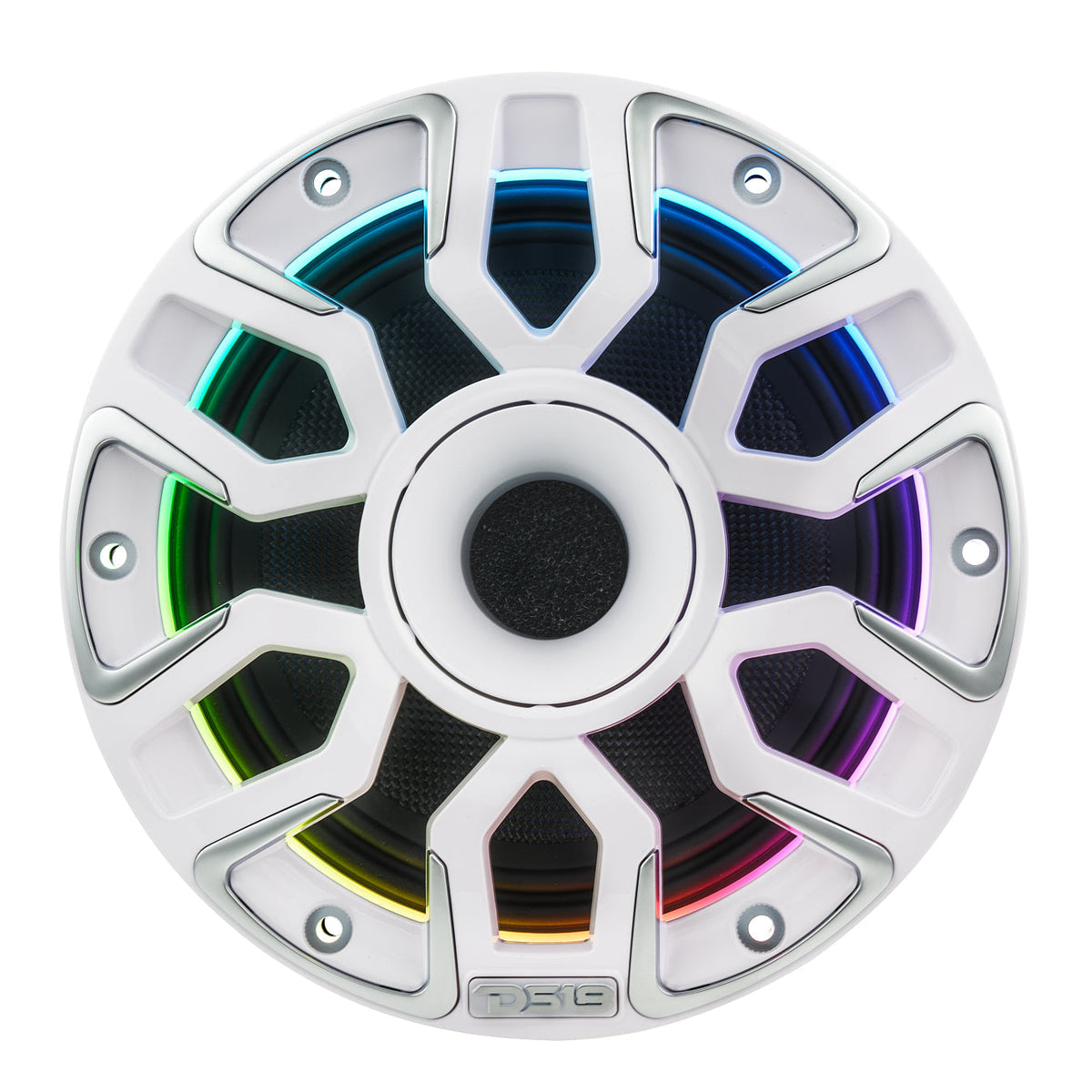

DS18 NVY-M6DC/WH 6.5” Marine-Grade Hybrid Coaxial Speaker with Kevlar Cone, Compression Driver & Neodymium Magnet – 200W RMS, 4-Ohm – White

The DS18 NVY-M6DC/WH delivers crisp, detailed sound with 200W RMS (400W peak) of power handling. Built to handle water, sun and spray for boats, UTVs and towers.

At a glance

• Power: 200W RMS (400W peak)
• Impedance: 4 ohm

Details

Crafted for precision and built to endure harsh marine conditions, the NVY-M6DC 6.5” Hybrid Coaxial Speaker delivers crisp, commanding sound through its Kevlar cone and high-output compression driver. Sealed terminals and a floating tweeter design ensure consistent, high-fidelity performance, making it a reliable choice for marine audio systems.

Features:

• Weatherproof Design: IP65-rated enclosure with UV-coated surfaces and stainless steel hardware for marine durability.
• Premium Audio Components: Kevlar cone, compression driver, and floating tweeter deliver crisp, high-output sound.
• Custom LED Lighting: Integrated digital LED ring, customizable via DS18 LC-DRM module and DS18 LC App (Android & iPhone).
• Easy Installation: Compact sealed frame and precision terminals for clean setup in marine and powersports environments.

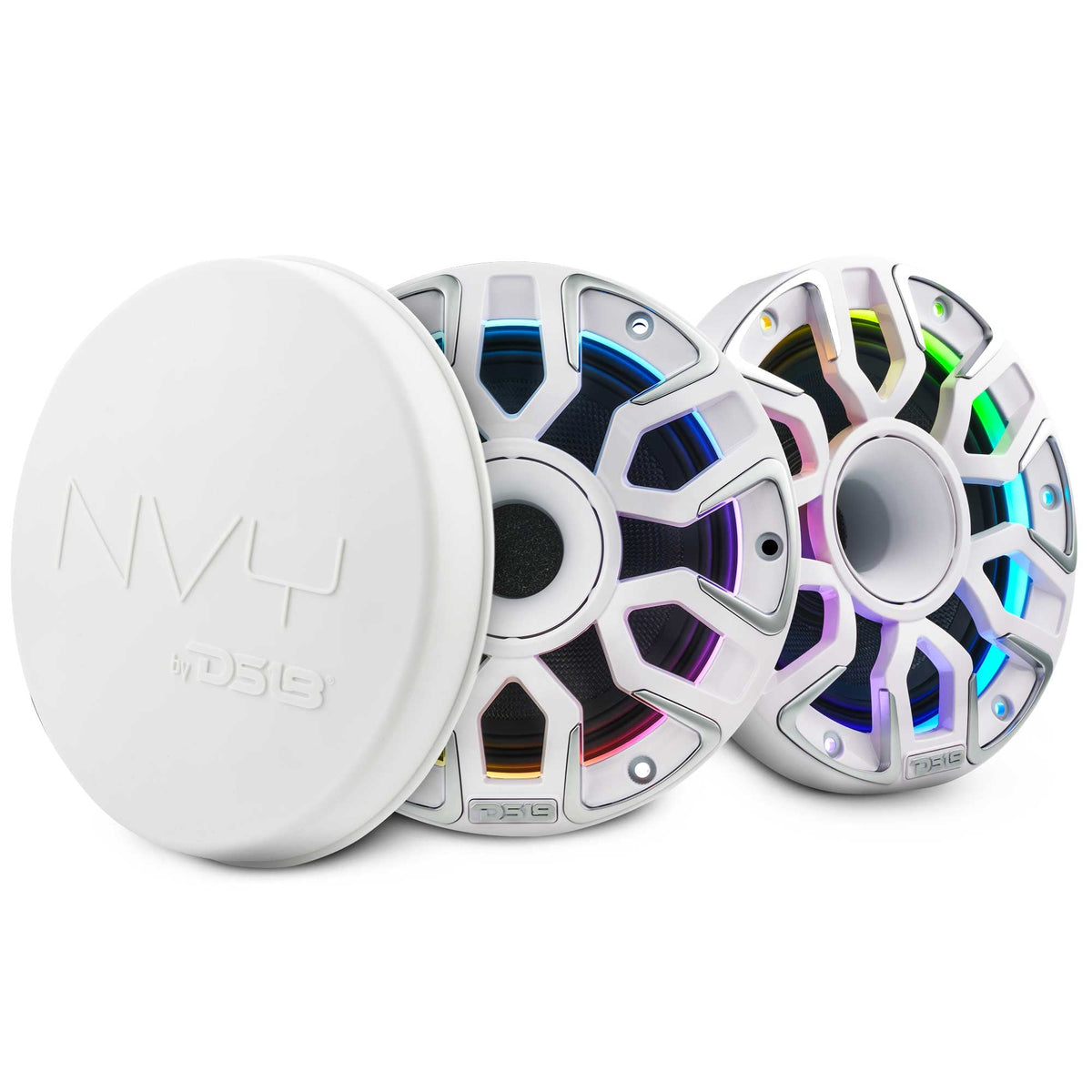

• Color Options: Choose Glossy White or Satin Black to match your style.
  Note: DS18 LC-DRM module required for LED functionality (sold separately).

Specifications:

General Specifications

• Nominal Diameter: 6.5" / 165mm
• Nominal Impedance: 4 ohms
• RMS Power Handling: 200W
• MAX Power Handling: 400W
• Sensitivity (1w/1m): 98dB
• Frequency Response: 50Hz-20KHz
• Number of Ways: 2-Ways
• Recommended High-Pass Crossover: 80Hz

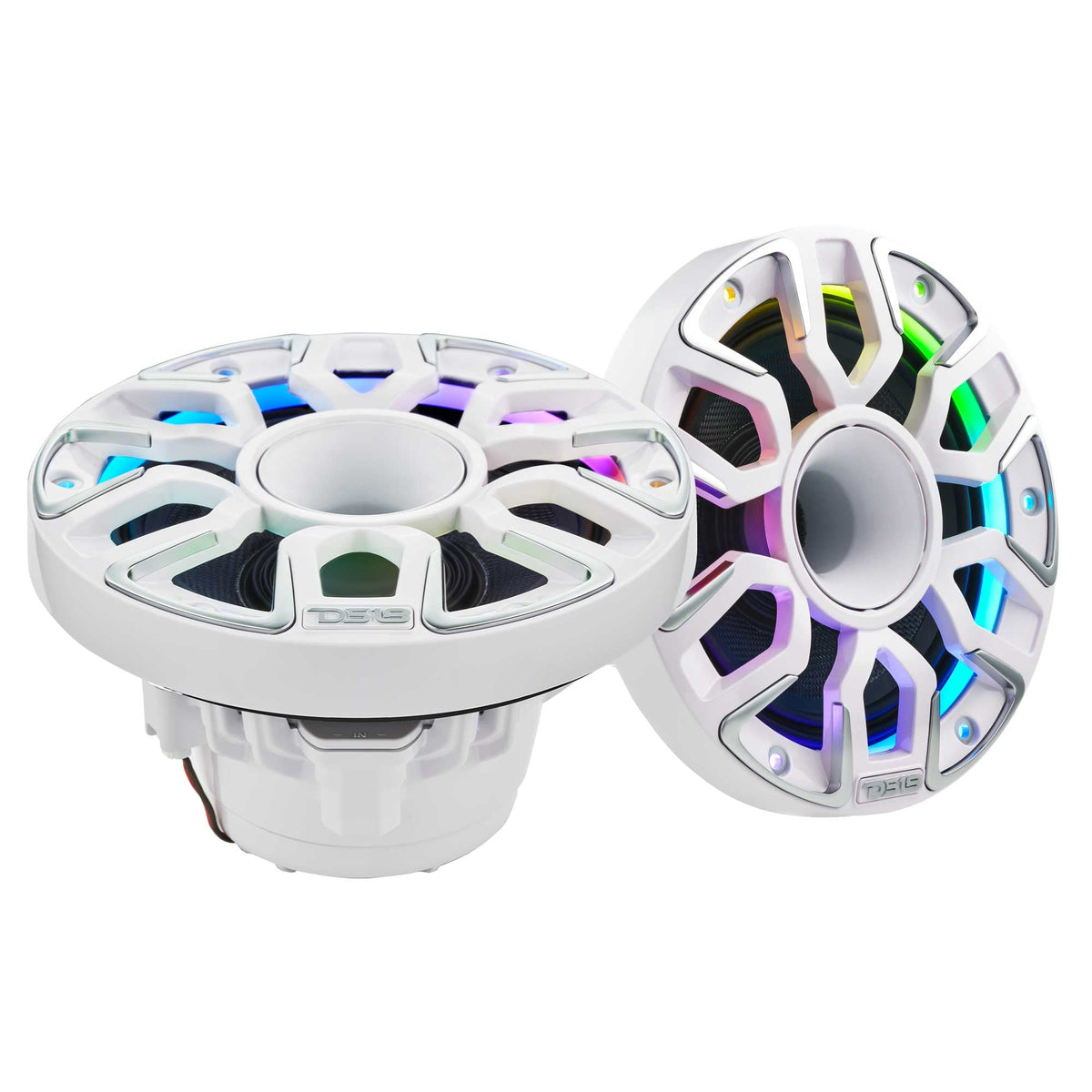

• Sold in Pairs
• UPC: 810097266650

Body / Features

• UV Protection: Yes, 100% Stable
• Protection Coating: Yes, with PU
• Decorative Strips: Yes. Electroplated
• Marine Grade Type: IP65
• Digital LED integrated
• Digital LED Chip Type: 1815S
• Grill Type: Injection Molded Composite ASA
• Color / Finish: Gloss White

Woofer Specifications

• Voice Coil Diameter: 2" / 50.6mm
• Voice Coil Former Material: Glass Fiber
• Winding Material: CCAW
• Cone Material: Kevlar
• Dust Cap Material: Kevlar
• Surround Material: Santoprene (Rubber)
• Basket Material: Aluminum Molded with UV Protection
• Magnet Material: Neodymium
• Magnet Weight: 6.5 Oz + 1.3 Oz

Driver Specifications

• Type Compression Horn
• Voice Coil Diameter: 1" / 25.4mm
• Voice Coil Former: Material Kapton
• Winding Material: CCAW
• Diaphragm Material: PEN
• Horn Material: Aluminum
• Magnet Material: Neodymium (N38H)
• Magnet Weight: 1.85 Oz

Thiele & Small Parameters

• Equivalent Volume Vas: 15.32L / 0.541ft3
• Excursion (one way) Xmax 2.2mm
• Free Air Resonance Fs: 120Hz
• Mechanical Factor Qms: 10.87
• Electrical Factor Qes: 0.714
• Total Factor Qts: 0.67
• Moving Mass Mms: 12.77g
• Compliance Cms 0.165mm / Bl Factor BI: 7.257
• Voice Coil Inductance Le: 0.25mH
• Diaphragm Area Sd: 122.7cm²
• DC Resistance Re: 3.2 Ohms
• Efficiency Bandwidth Product: EBP 168

Speaker Measurement

• Overall Diameter: 6.97″ / 177mm
• Overall Depth: 3.84″ /97.49mm
• Front Mount Baffle Cutout: 5.30″ /134.63mm
• Mounting Depth: 2.57″ 65.25mm
• Motor Diameter: 3.6" / 91.5mm

UPC: 810097267299
SKU: DS-NVY-M6DC/WH
