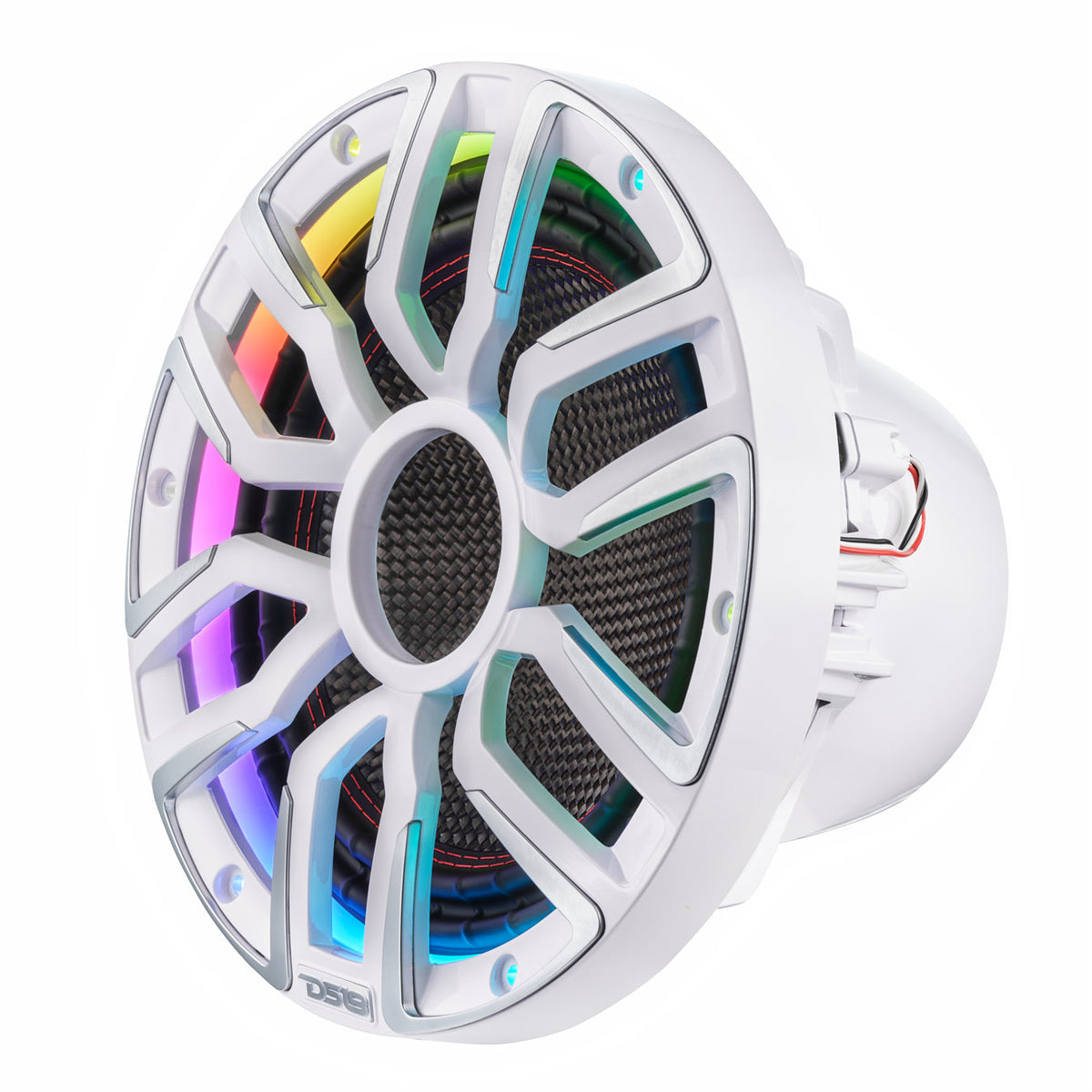

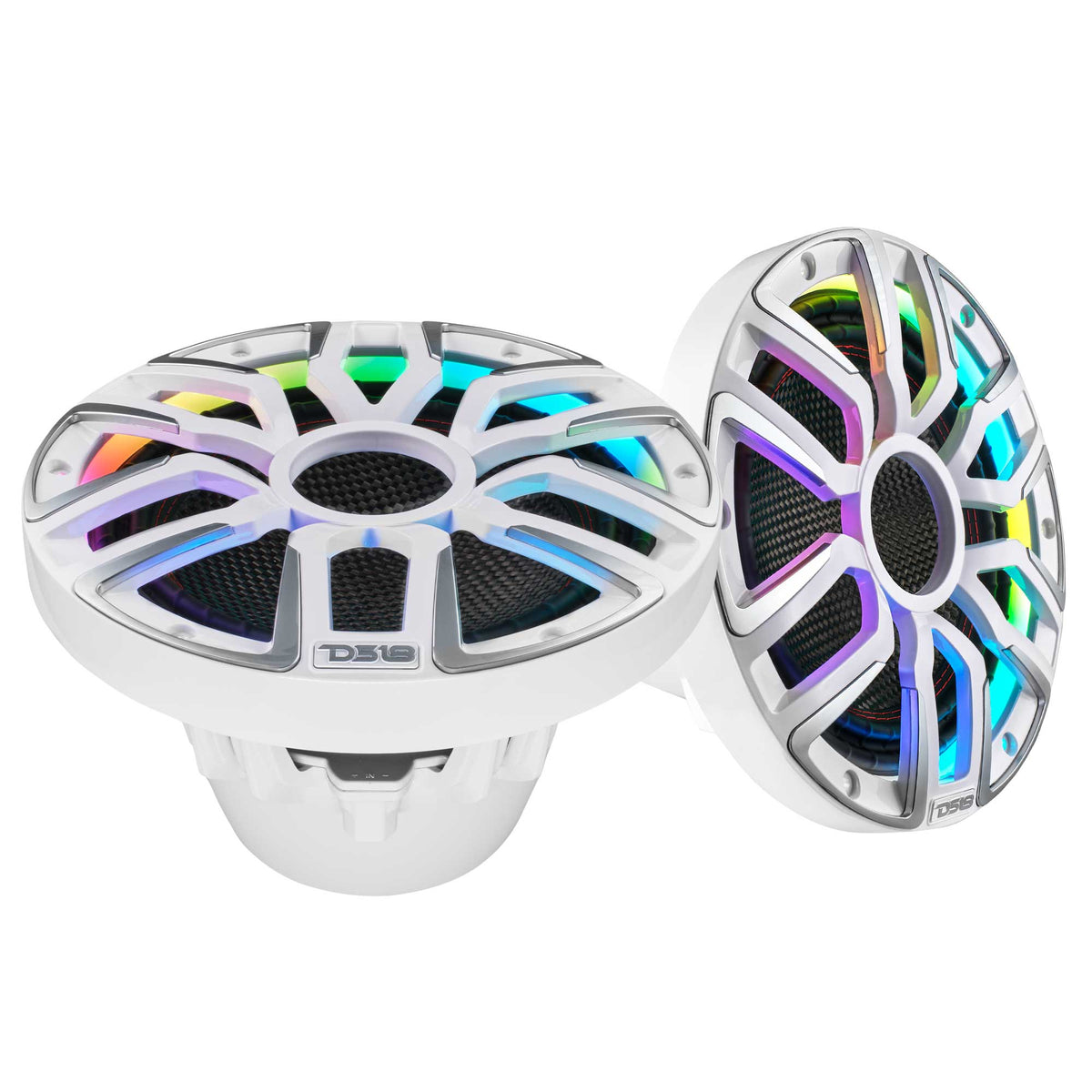

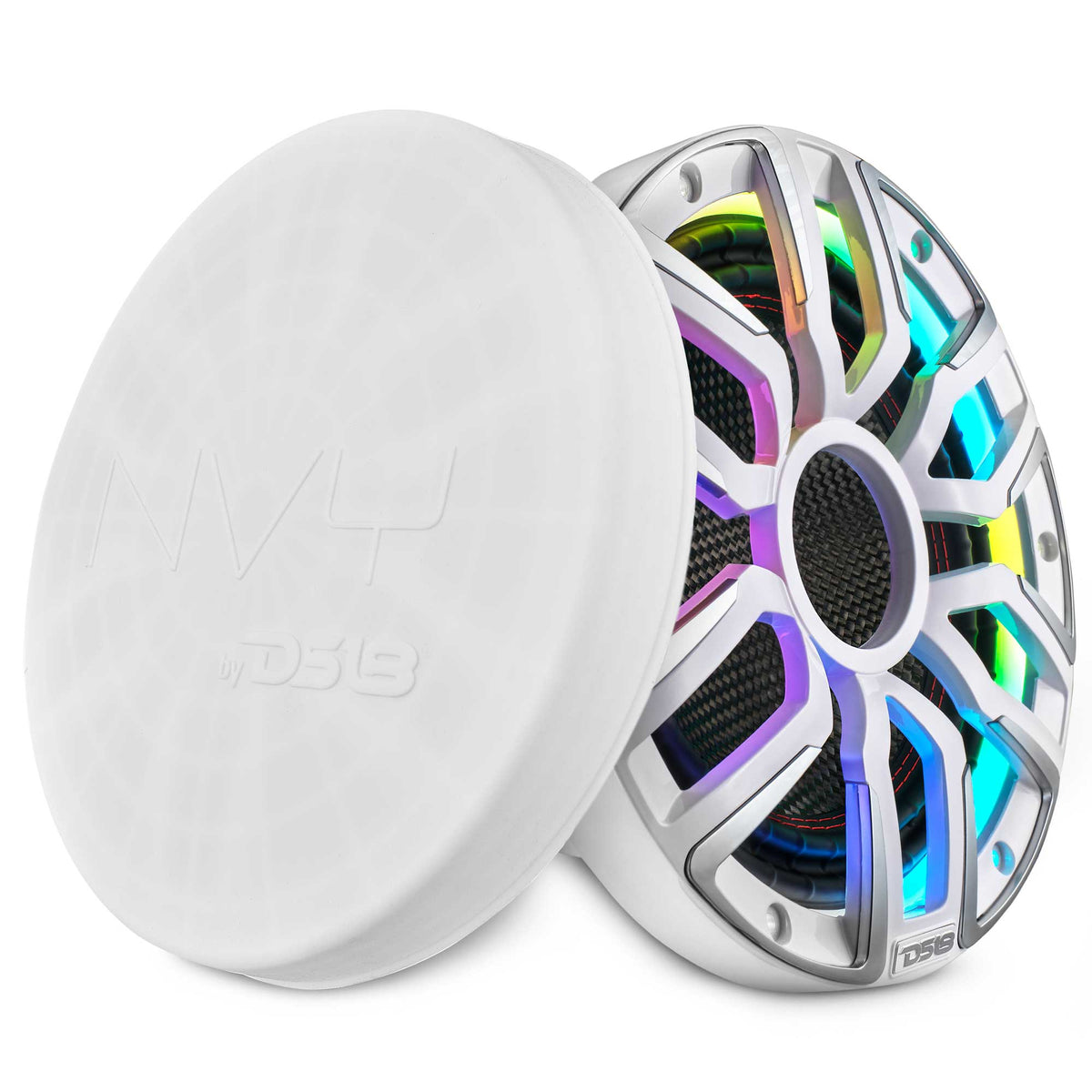

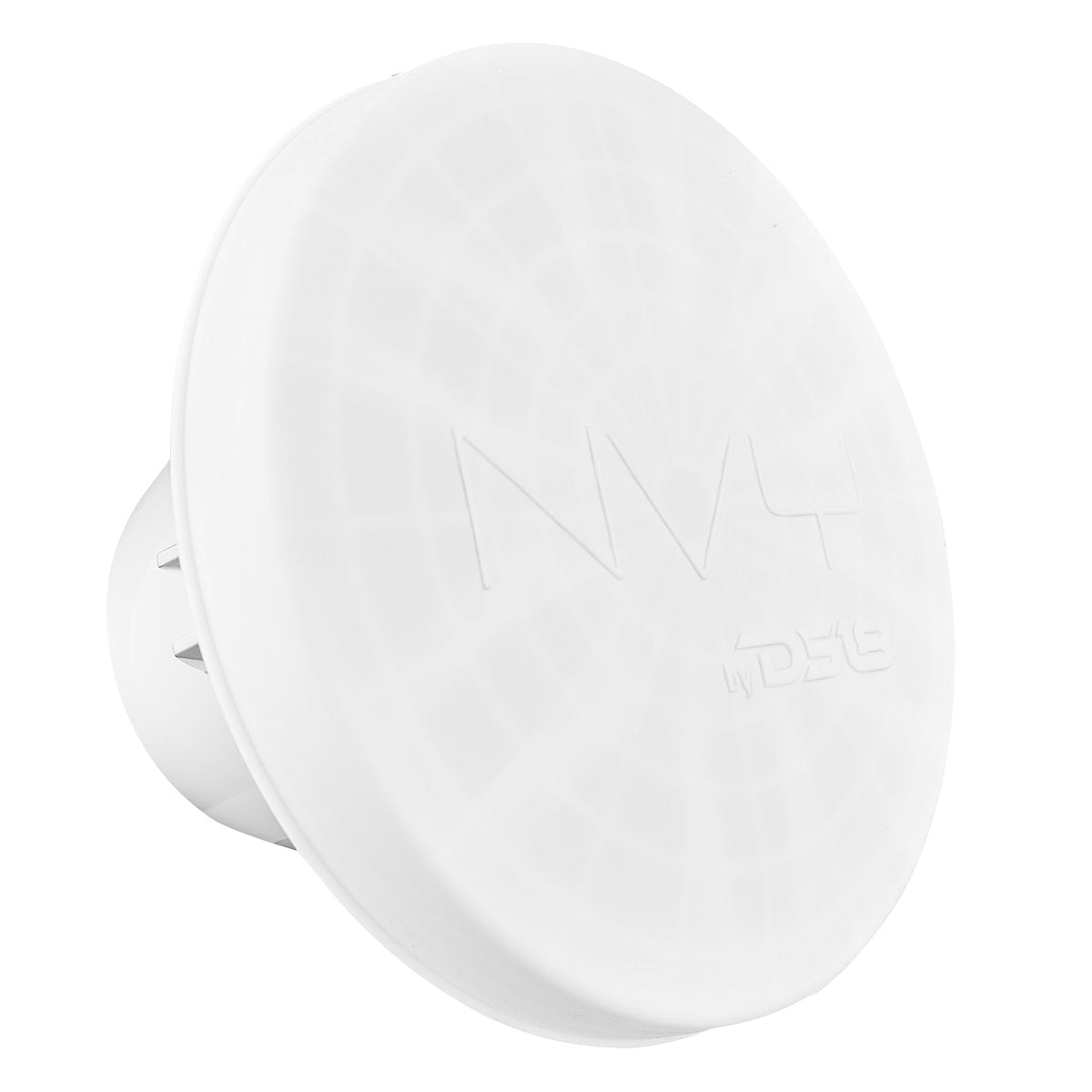

DS18 NVY-M10SUB/WH 10” Marine & Powersports Subwoofer with Carbon Fiber Cone and Neodymium Magnet – 600W RMS, 4-Ohm – White

Hit harder with the DS18 NVY-M10SUB/WH, a 10-inch 4-ohm subwoofer handling 600W RMS (1,200W peak).

At a glance

• Power: 600W RMS (1,200W peak)
• Size: 10"
• Impedance: 4 ohm

Details

The NVY-M10SUB delivers deep, controlled bass through its powerful neodymium magnet and ultra-rigid carbon fiber cone. Even at peak volume, sound remains clean and impactful. With up to 1200W peak power and 600W RMS, this subwoofer is built to elevate marine and powersports audio systems with reliable, high-performance bass.

Features:

• Built to Withstand the Elements: IP65-rated with UV-stabilized Santoprene surround and marine-grade aluminum construction for durability in ocean, off-road, and outdoor environments.

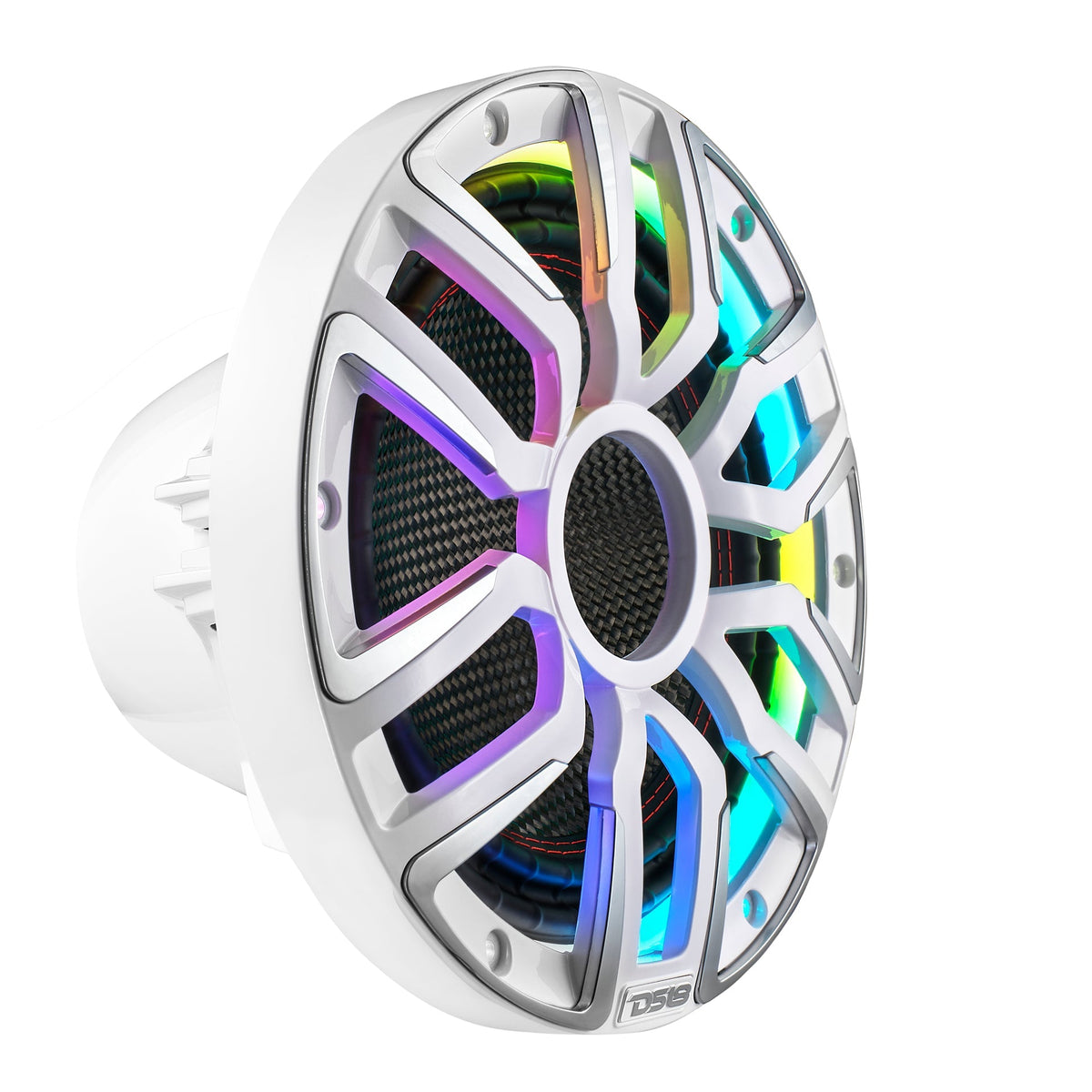

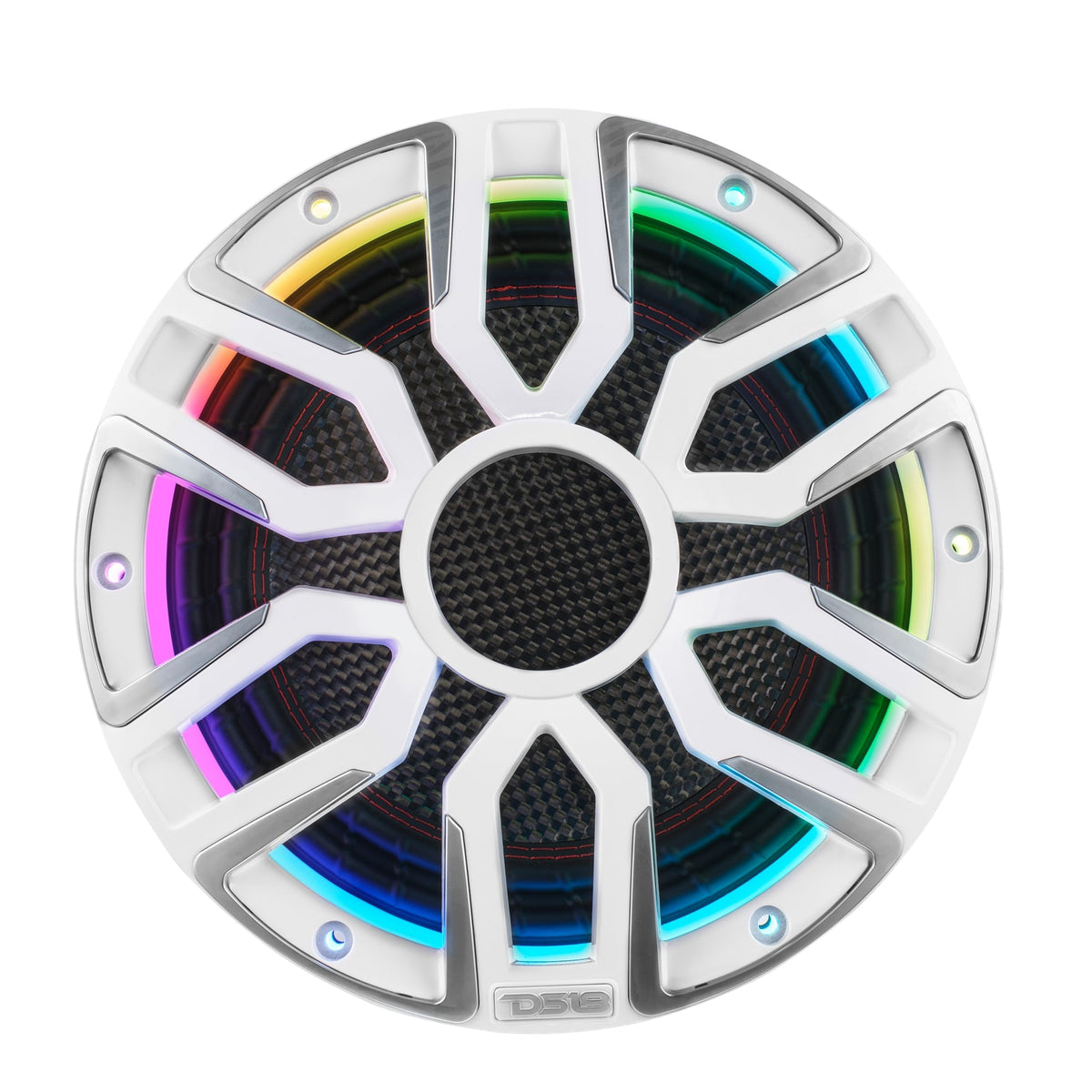

• Integrated LED Lighting: Digital LED ring lighting controlled via DS18 LC-DRM module and DS18 LC App (compatible with Android & iPhone).
  Note: DS18 LC-DRM module required and sold separately. Do not connect directly to DC power.
• Premium Finish Options: Available in Glossy White or Satin Black for seamless integration into high-end marine and powersports builds.
• Clean Installation: Designed for easy mounting with a polished frame and precision terminals.

General Specifications

• Nominal Diameter: 10" / 254mm
• Nominal Impedance: 4 ohms
• RMS Power Handling: 600W
• MAX Power Handling: 1200W
• Sensitivity (1w/1m): 85dB
• Frequency Response: 20Hz-250KHz
• Recommended Low-Pass Crossover: 120Hz
• Single

Body / Features

• UV Compliant: Yes, 100% Stable
• Protection Coating: Yes with PU
• Decorative Strips: Yes, Electroplated
• Marine Grade Type: IP65
• Digital LED Lights
• Grill Type: Injection Molded Composite (ASA)

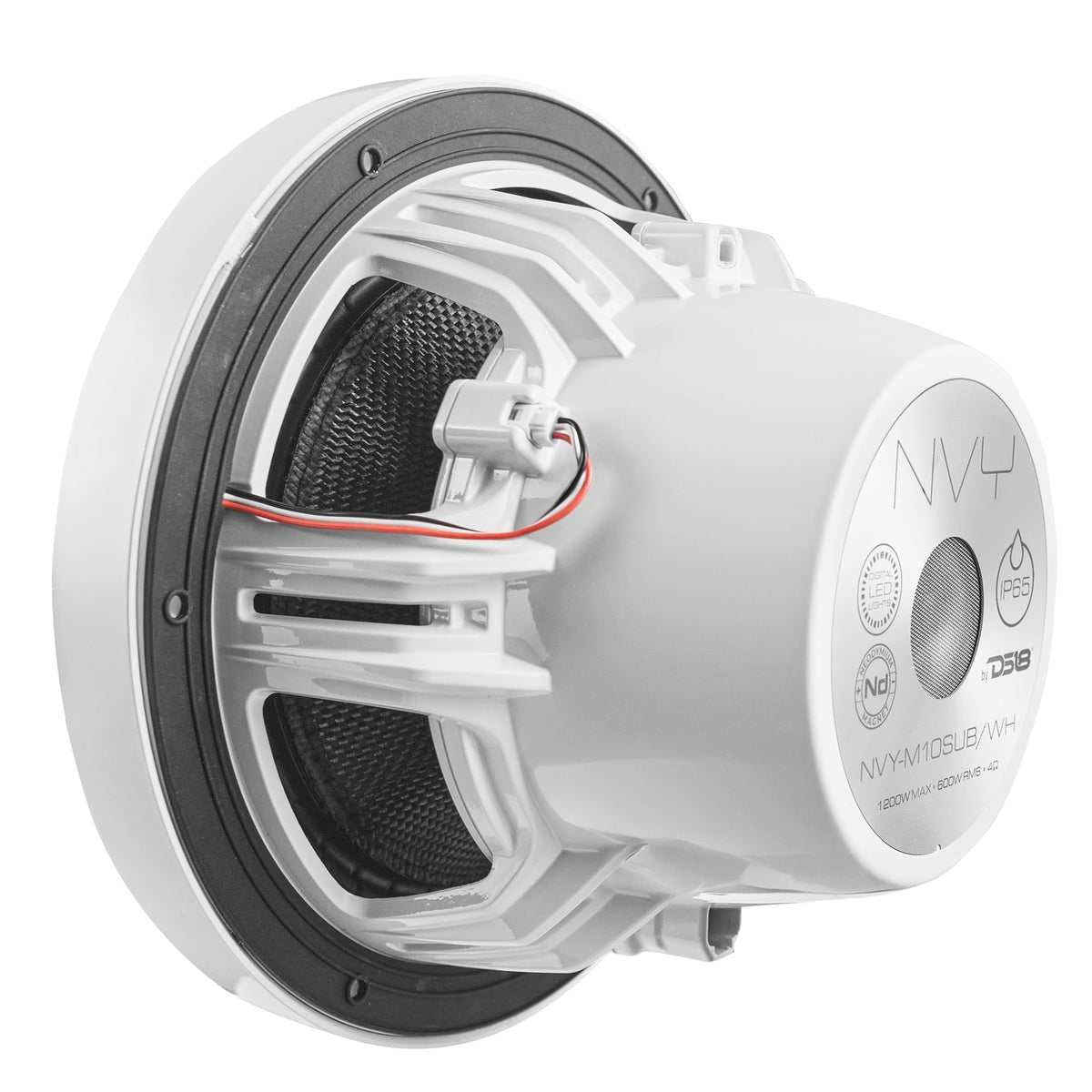

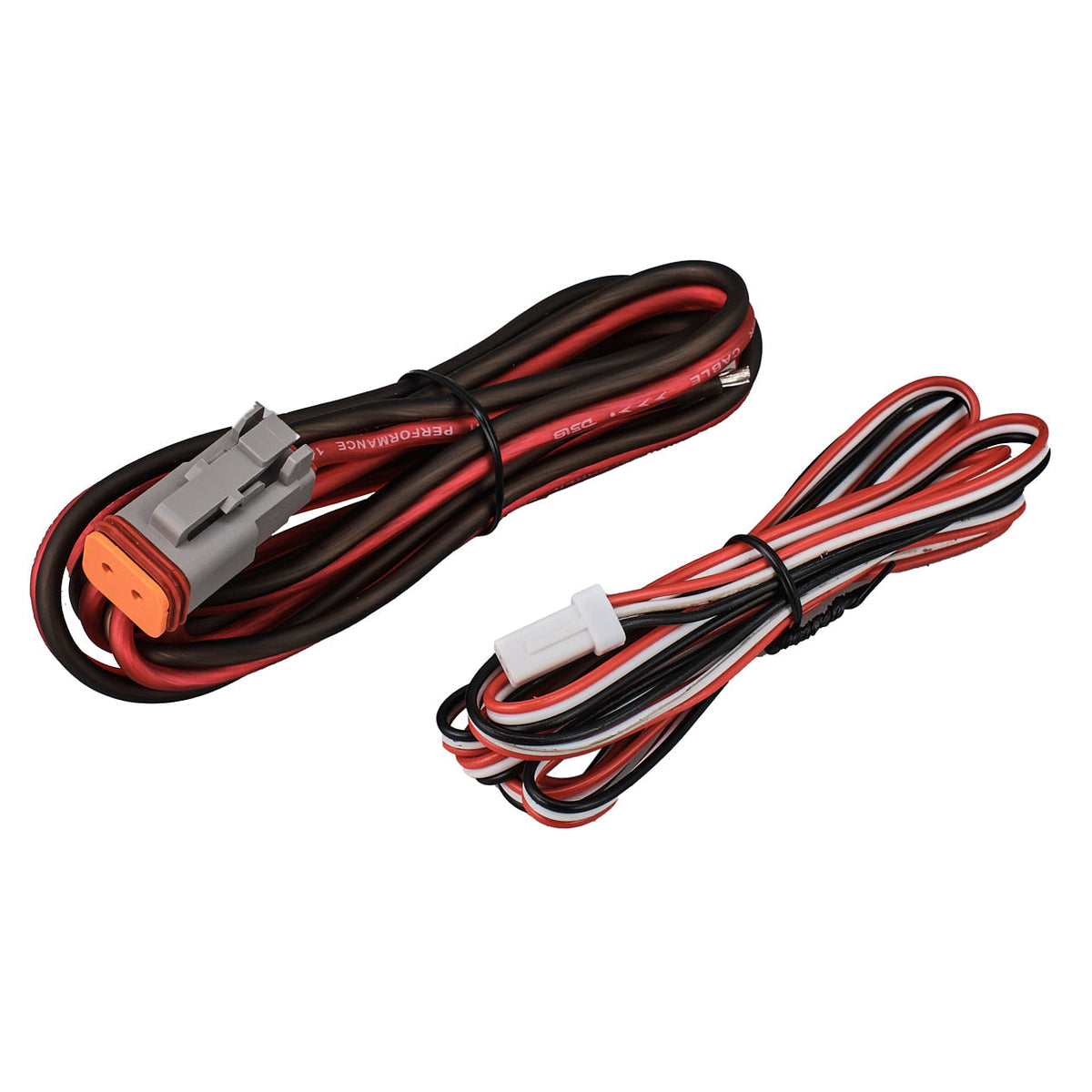

• Speaker / Lights Connector: Waterproof Type
• Color / Finish: White

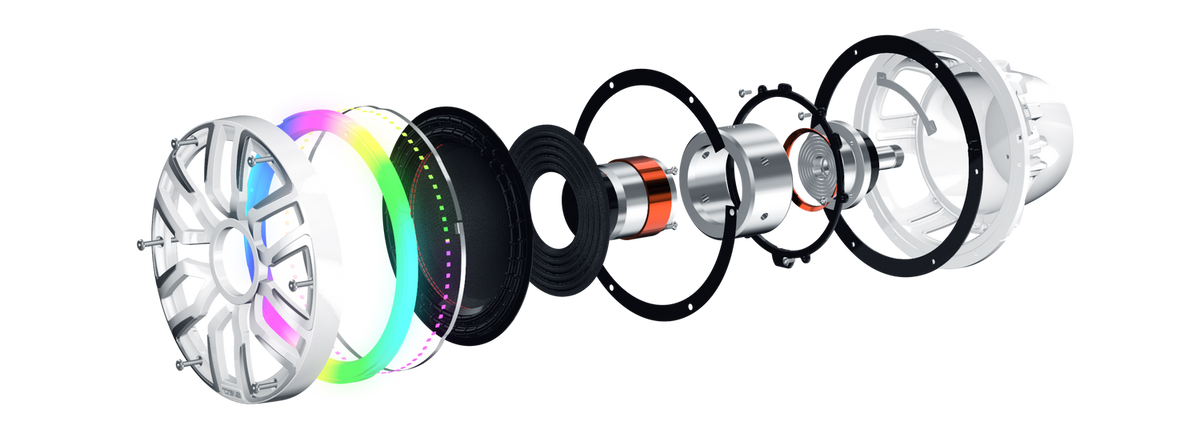

Woofer Specifications

• Voice Coil Diameter: 3" / 76.5mm
• Voice Coil Former Material: Black Aluminum
• Winding Material: CCAW
• Cone Material: Carbon Fiber
• Surround Material: Santoprene (Rubber)
• Basket Material: Aluminum Molded with PU Coating
• Magnet Material: Neodymium
• Magnet Weight: 20 Oz

Thiele & Small Parameters

• Equivalent Volume Vas: 13.65L / 0.482ft3
• Excursion (one way) Xmax: 9.75mm
• Free Air Resonance Fs: 38Hz
• Mechanical Factor Qms: 4.26
• Electrical Factor Qes: 0.45
• Total Factor Qts: 0.41
• Moving Mass Mms: 157.5g
• Compliance Cms: 0.11mm/N
• Bl Factor Bl: 18.7
• Voice Coil Inductance Le: 0.75mH
• Diaphragm Area Sd: 298.65cm2
• Dc Resistance Re: 3.7 Ohms
• Efficiency Bandwidth Product: EBP 84

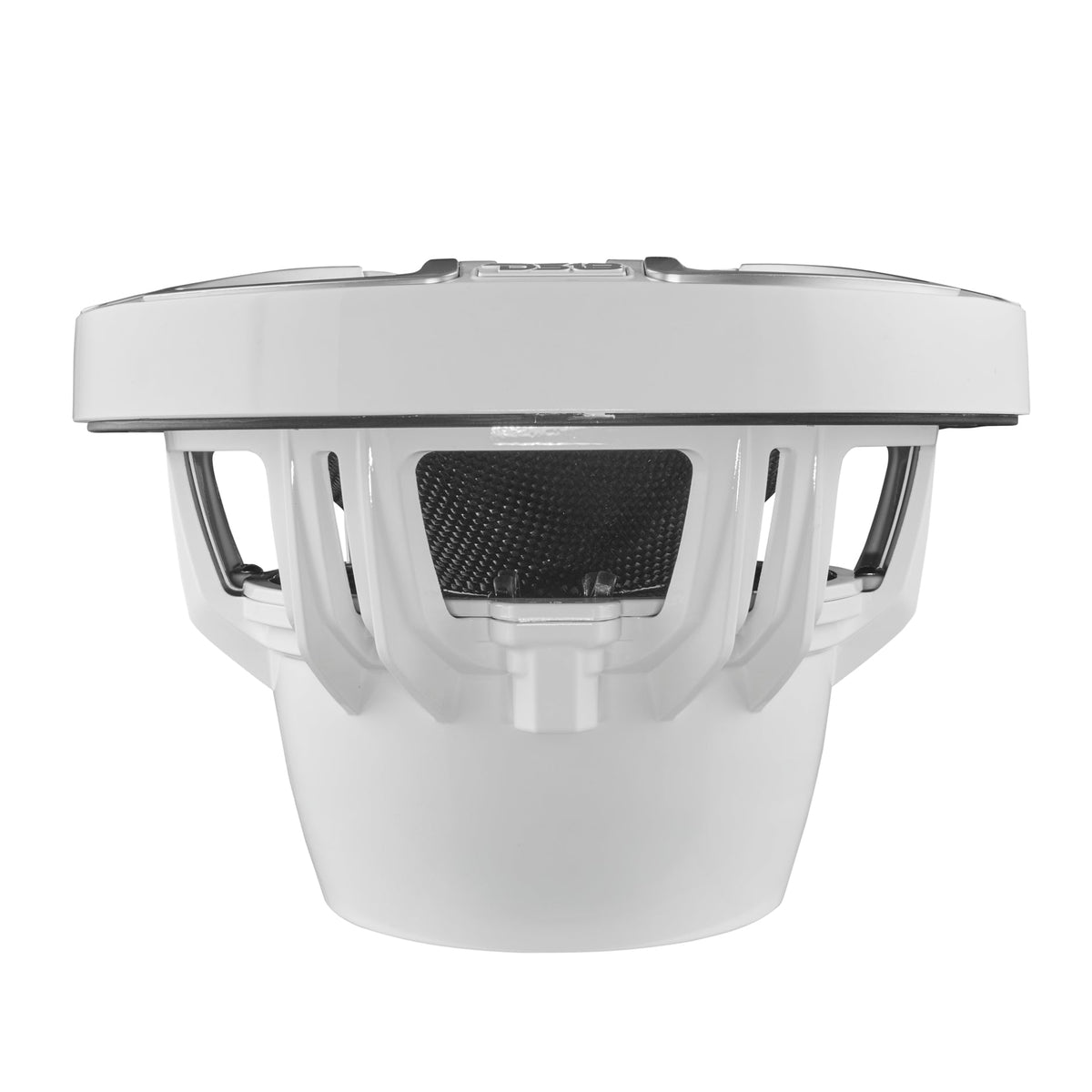

Speaker Measurement

• Overall Diameter: 10.5" / 268mm
• Overall Depth: 6.93" / 176mm
• Front Mount Baffle Cutout: 8.66" / 220mm
• Mounting Depth: 5.31" / 135mm
• Motor Diameter: 5.23" / 133mm
• UPC: 810097265790
