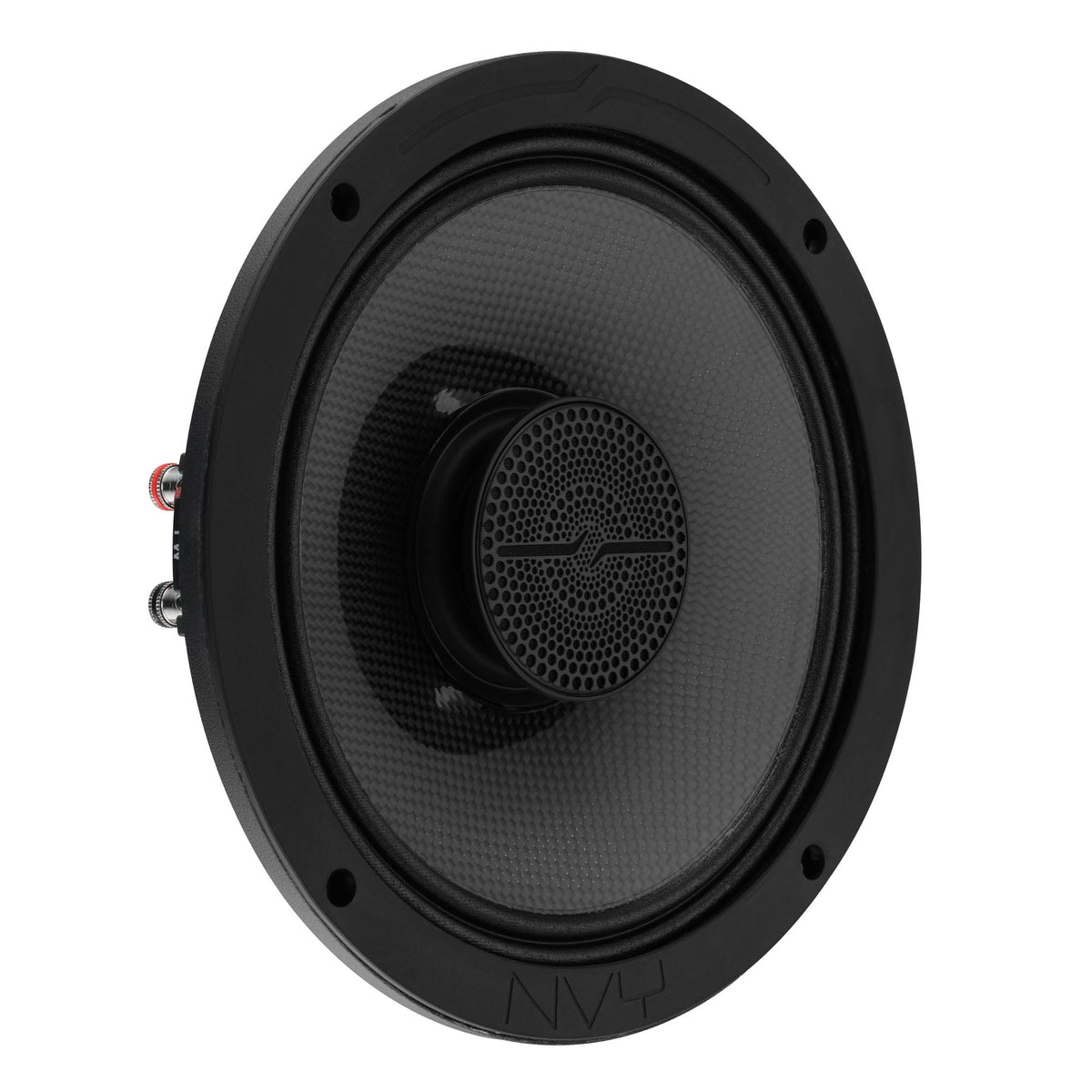

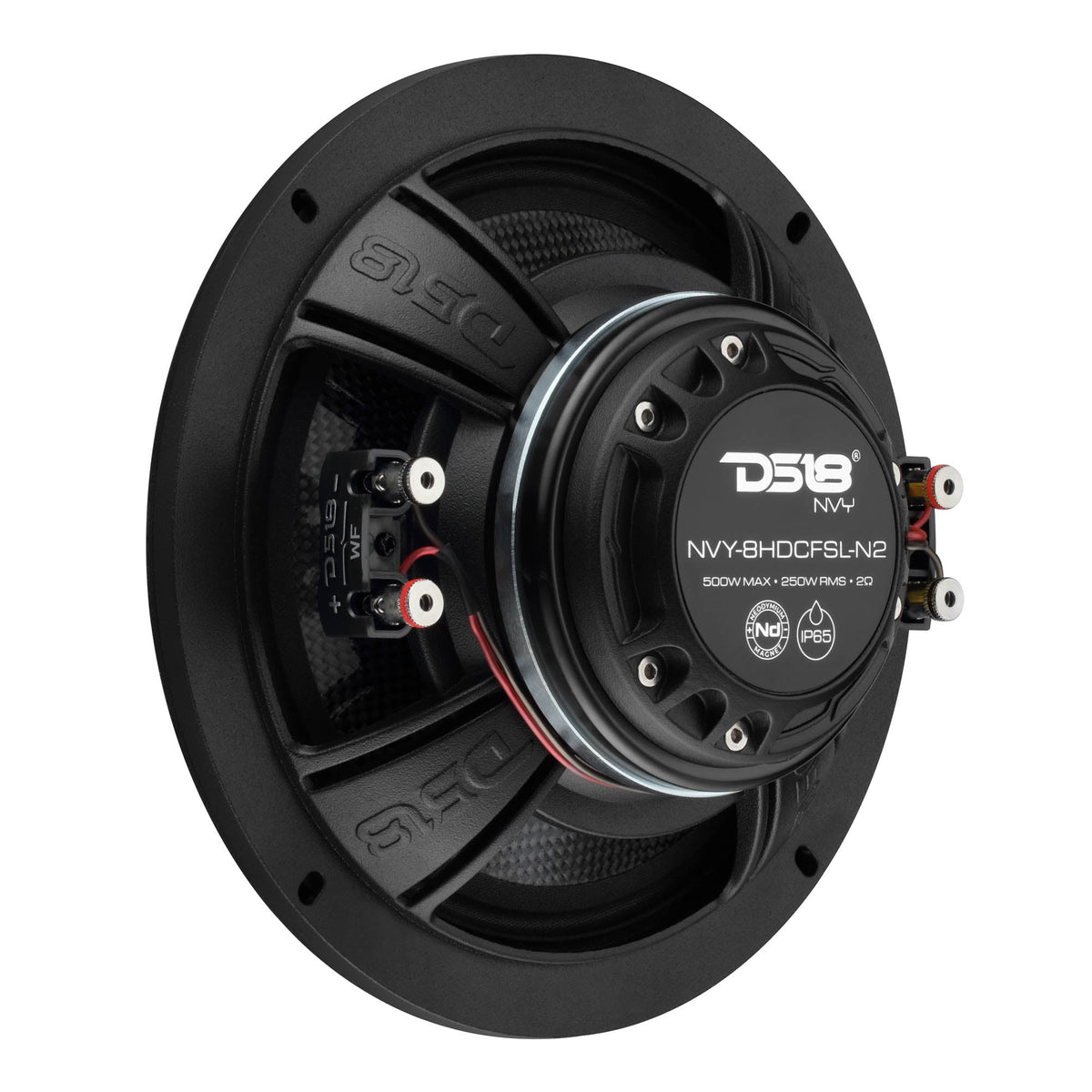

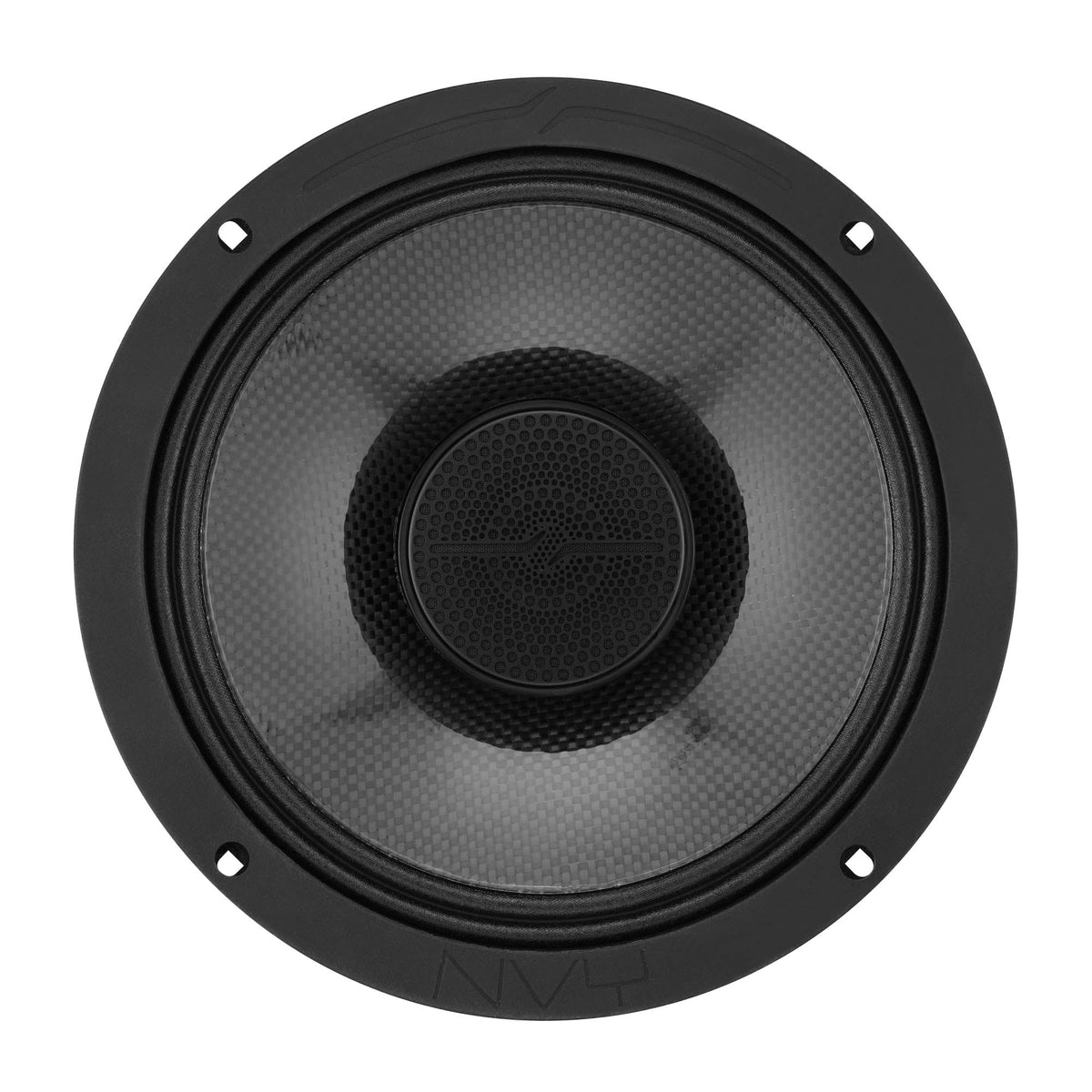

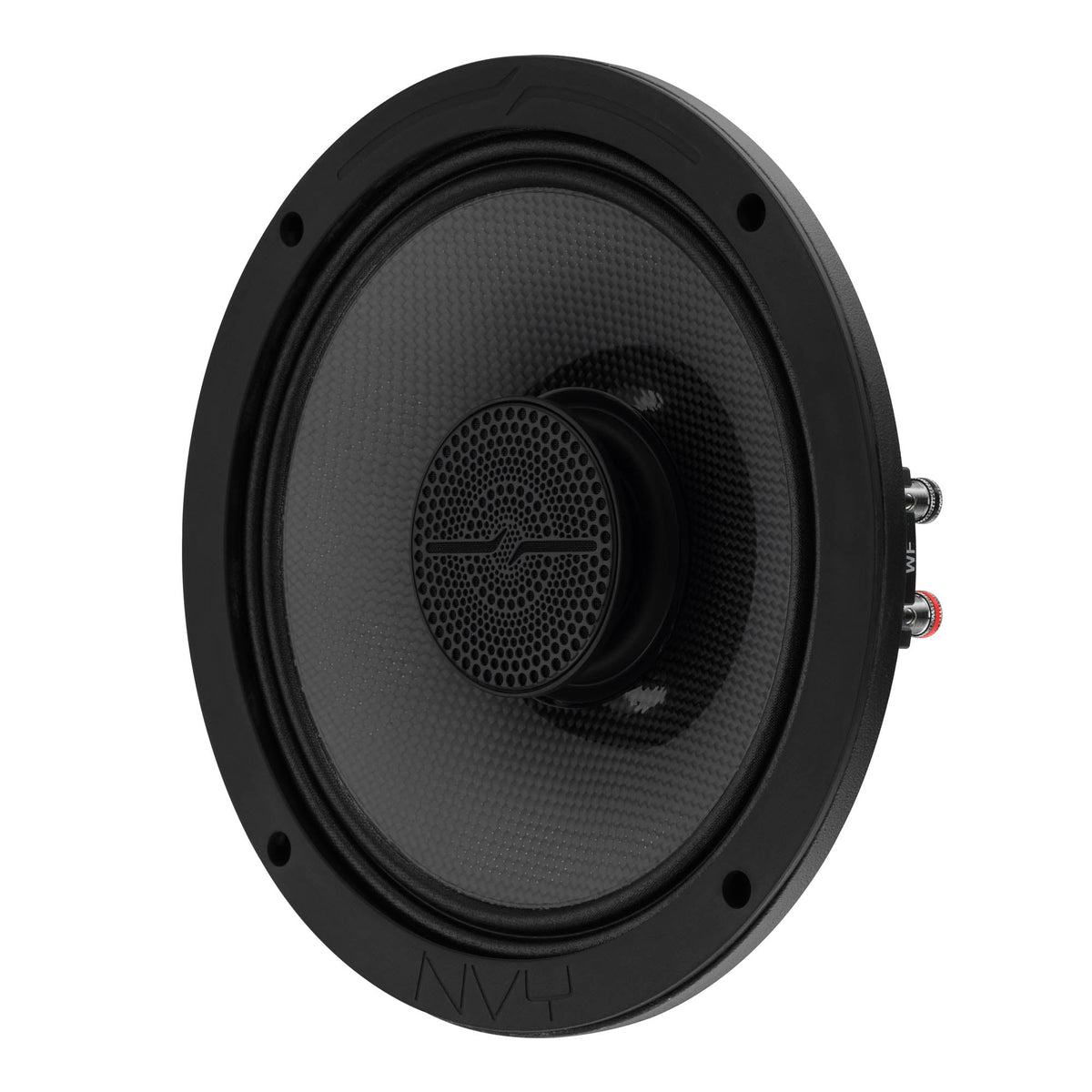

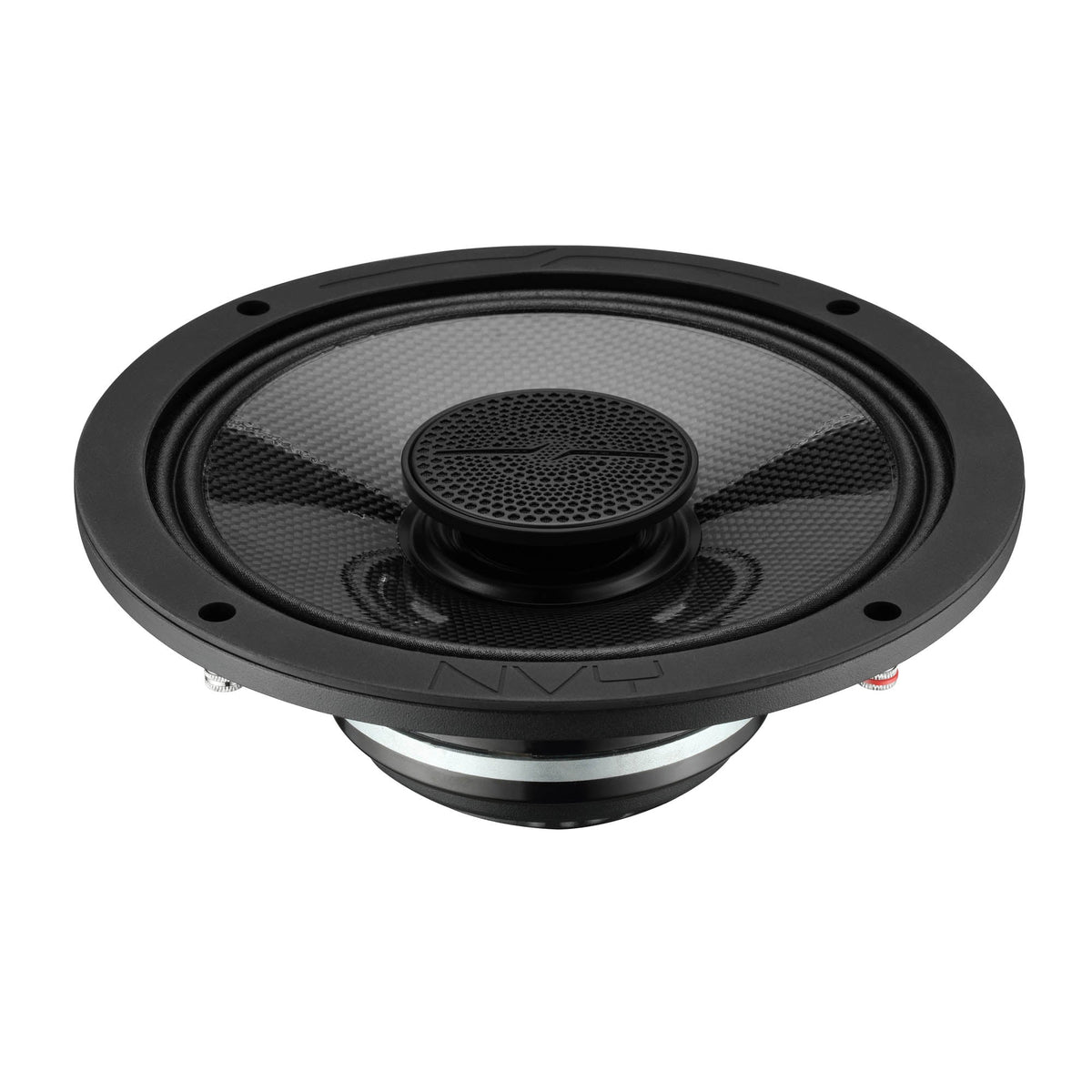

DS18 NVY-8HDCFSL-N2 8” Slim Hybrid Loudspeakers 250W RMS 2-Ohm – Compression Driver, Carbon Fiber Cone, Neodymium Magnet

The DS18 NVY-8HDCFSL-N2 delivers crisp, detailed sound with 250W RMS (400W peak) of power handling.

At a glance

• Power: 250W RMS (400W peak)
• Impedance: 2 ohm

Details

The NVY-8HDCFSL-N2 delivers powerful, high-output sound with crisp highs and strong midrange clarity, perfect for riders and audio enthusiasts who want both loudness and precision. Its slim 2.74” mounting depth fits tight spaces like motorcycle fairings and compact enclosures, while the hybrid design with a carbon fiber woofer and compression driver ensures clean, controlled performance with reduced distortion—even at high volume.

Features:

• Carbon Fiber Cone
• Super Tweeter
• High Sensitivity
• Water-Resistant IP65
• Neodymium Magnet
• Perfect for Motorcycles and Powersports

Specifications:

Nominal Diameter: 8" (210mm)

RMS Power Handling (Combined): 250W

MAX Power Handling (Combined): 500W

Sensitivity (1W/1m) (Combined): 98dB

Frequency Response (Combined): 80Hz–20kHz

Number of Ways: 2-Way

Recommended High-Pass Crossover: 100Hz

Water-Resistant Rating: IP65

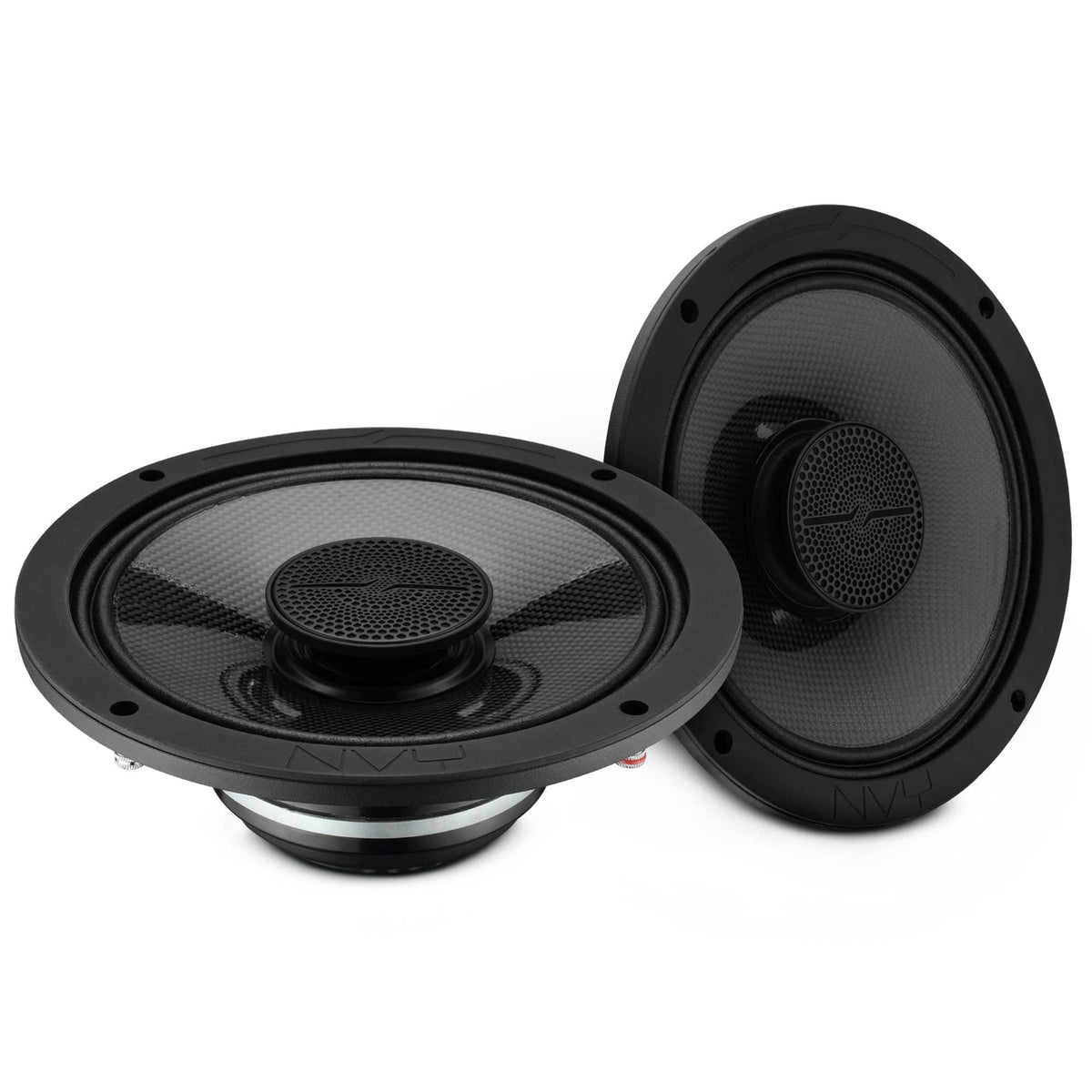

Configuration: Pair

Woofer Specifications

Nominal Impedance: 2 Ohms

RMS Power Handling: 200W

MAX Power Handling: 400W

Frequency Response: 85Hz–2kHz

Recommended Band-Pass Crossover: 140Hz–2kHz

Voice Coil Diameter: 2" (52.4mm)

Voice Coil Former Material: Glass Fiber

Winding Material: CCAW

Cone Material: Carbon Fiber

Surround Material: Cloth

Basket Material: Aluminum

Basket Color: Black

Magnet Material: Neodymium

Magnet Weight: 9.26 oz

Thiele & Small Parameters

Vas (Equivalent Volume): 6.89L (0.243ft³)

Xmax (One-Way Excursion): 1.2mm

Fs (Free Air Resonance): 110Hz

Qms (Mechanical Q): 11.700

Qes (Electrical Q): 0.393

Qts (Total Q): 0.380

Mms (Moving Mass): 19.377g

Cms (Mechanical Compliance): 0.107mm/N

BL (BL Factor): 8.140

Le (Voice Coil Inductance): 0.089mH

Sd (Diaphragm Area): 213.82cm²

Re (DC Resistance): 1.8 Ohms

Mmd (Mechanical Mass without Air): 281.93g

Driver Specifications

Nominal Impedance: 4 Ohms

AES Power Handling: 50W

Program Power Handling: 100W

Peak Power Handling: 200W

Frequency Response: 2kHz–20kHz

Recommended High-Pass Crossover: 2kHz

Voice Coil Diameter: 1.5" (37.6mm)

Voice Coil Former Material: Kapton

Winding Material: CCAW

Diaphragm Material: Aluminum Alloy

Magnet Material: Neodymium (N38H)

Magnet Weight: 1.3 oz

Horn Diameter: 2.5" (65mm)

Measurements

Overall Diameter: 8.27" (210mm)

Overall Depth: 3.11" (79mm)

Front Mount Baffle Cutout: 7" (179mm)

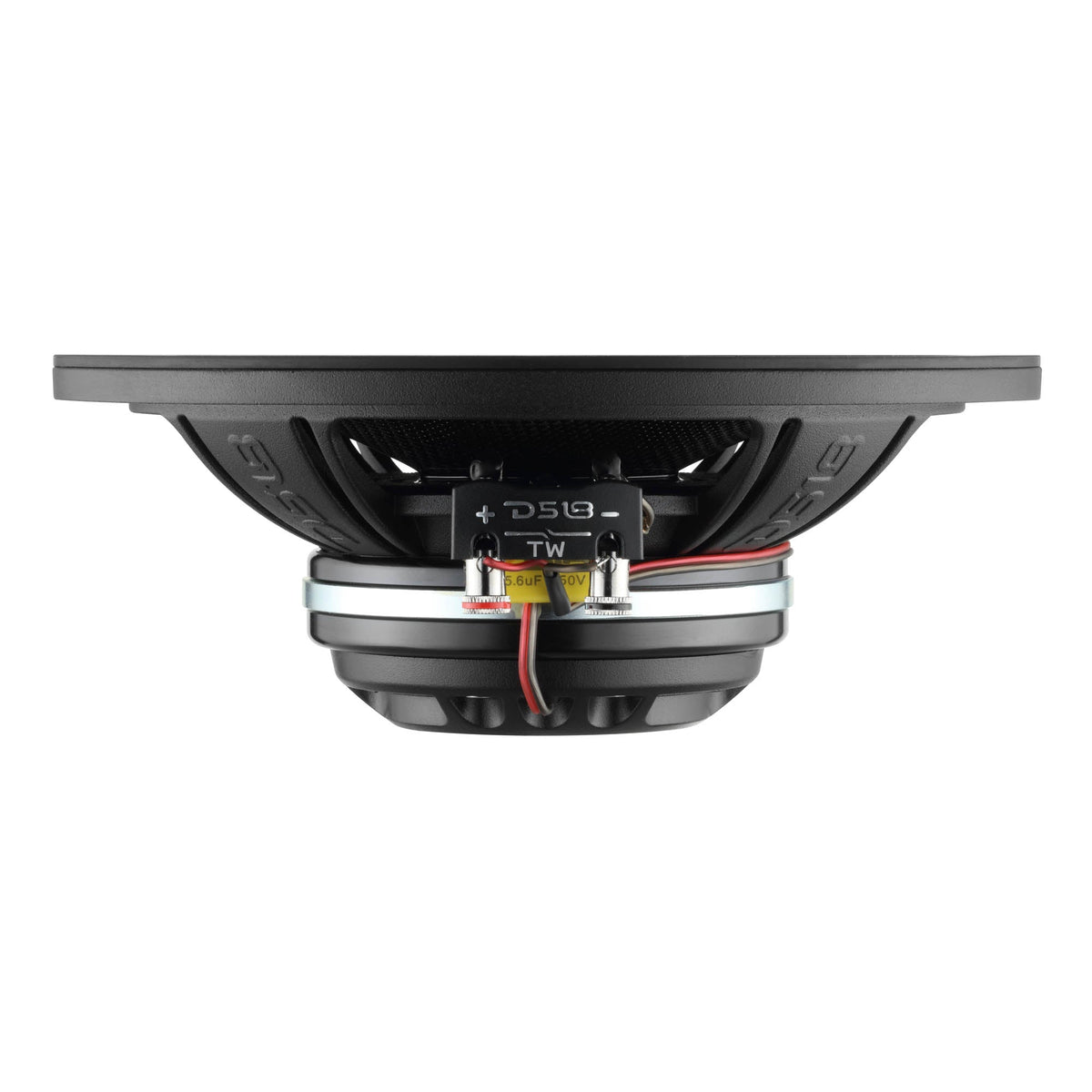

Mounting Depth: 2.74" (69.5mm)

Motor Diameter: 4.13" (105mm)

UPC: 810199441566
