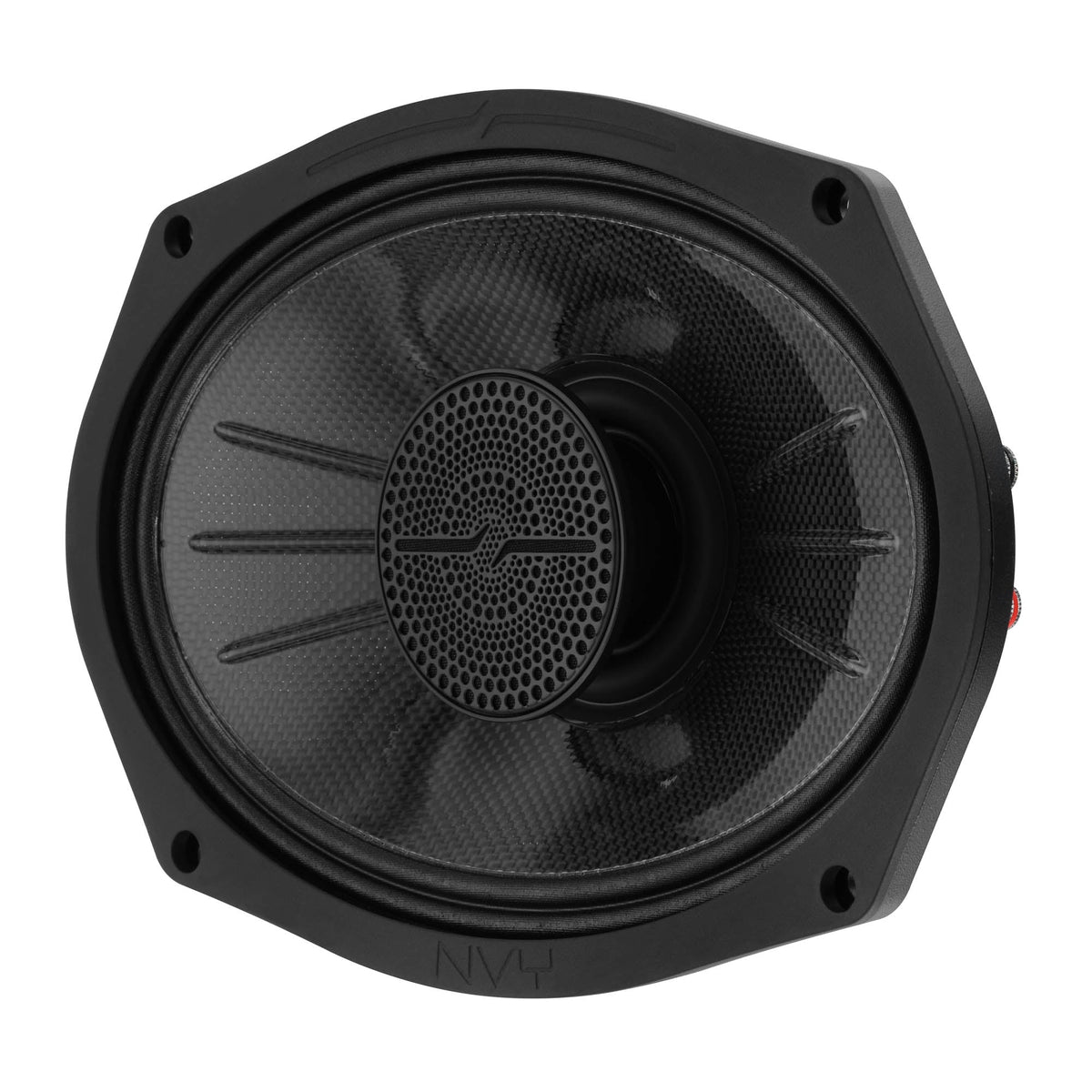

DS18 NVY-69HDCFSL-N4 6x9” Slim Hybrid Loudspeakers with Compression Driver & Carbon Fiber Cone – 250W RMS 4-Ohm High Output Speakers

Get clearer, louder sound with the DS18 NVY-69HDCFSL-N4, a 9-inch speaker rated 250W RMS (400W peak).

At a glance

• Power: 250W RMS (400W peak)
• Impedance: 4 ohm

Details

The NVY-69HDCFSL-N4 delivers high-end, loud, and accurate sound with strong projection and refined tonal balance. Built with premium materials and precision tuning, it produces clean mids, crisp highs, and excellent clarity even at high volume. Its slim 3” shallow mount design fits tight spaces like motorcycles and compact panels, while the hybrid system combines a carbon fiber cone woofer with a compression driver for powerful, controlled output and low distortion.

Features:

• Carbon Fiber Cone
• Super Tweeter
• High Sensitivity
• Water-Resistant IP65
• Neodymium Magnet
• Perfect for Motorcycles and Powersports

Specifications:

Nominal Diameter: 6x9" (164 x 234mm)

RMS Power Handling (Combined): 250W

MAX Power Handling (Combined): 500W

Sensitivity (1W/1m) (Combined): 98dB

Frequency Response (Combined): 80Hz–20kHz

Number of Ways: 2-Way

Recommended High-Pass Crossover: 100Hz

Water-Resistant Rating: IP65

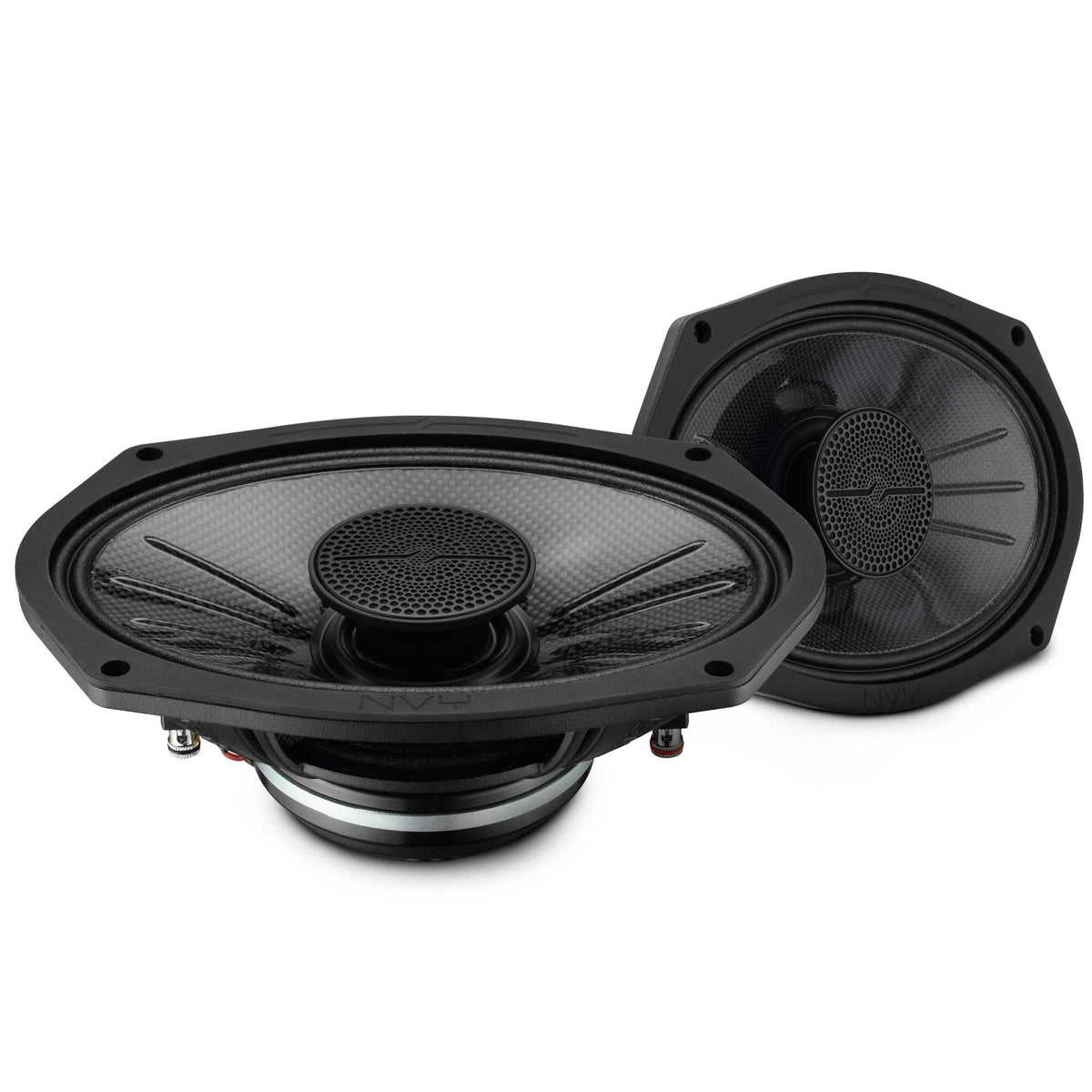

Configuration: Pair

Woofer Specifications

Nominal Impedance: 4 Ohms

RMS Power Handling: 200W

MAX Power Handling: 400W

Frequency Response: 85Hz–2kHz

Recommended Band-Pass Crossover: 160Hz–2kHz

Voice Coil Diameter: 2" (52.4mm)

Voice Coil Former Material: Glass Fiber

Winding Material: CCAW

Cone Material: Carbon Fiber

Surround Material: Cloth

Basket Material: Aluminum

Basket Color: Black

Magnet Material: Neodymium

Magnet Weight: 9.26 oz

Thiele & Small Parameters

Vas (Equivalent Volume): 8.44L (0.298ft³)

Xmax (One-Way Excursion): 1.2mm

Fs (Free Air Resonance): 114Hz

Qms (Mechanical Q): 8.613

Qes (Electrical Q): 0.473

Qts (Total Q): 0.448

Mms (Moving Mass): 19.302g

Cms (Mechanical Compliance): 0.099mm/N

BL (BL Factor): 10.140

Le (Voice Coil Inductance): 0.133mH

Sd (Diaphragm Area): 245.04cm²

Re (DC Resistance): 3.2 Ohms

Mmd (Mechanical Mass without Air): 242.92g

Driver Specifications

Nominal Impedance: 4 Ohms

AES Power Handling: 50W

Program Power Handling: 100W

Peak Power Handling: 200W

Frequency Response: 2kHz–20kHz

Recommended High-Pass Crossover: 2kHz

Voice Coil Diameter: 1.5" (37.6mm)

Voice Coil Former Material: Kapton

Winding Material: CCAW

Diaphragm Material: Aluminum Alloy

Magnet Material: Neodymium (N38H)

Magnet Weight: 1.3 oz

Horn Diameter: 2.5" (65mm)

Measurements

Overall Diameter: 6.46" x 9.21" (164 x 234mm)

Overall Depth: 3.38" (86mm)

Front Mount Baffle Cutout: 5.71" x 8.58" (145 x 218mm)

Mounting Depth: 3" (76.5mm)

Motor Diameter: 4.13" (105mm)

UPC: 810199441597
