DS18 FRP-4K4/RD Compact 4-Channel Full-Range Class-D Amp – 4000W RMS - Red

Looking for more volume without distortion? The DS18 FRP-4K4/RD 4-channel amplifier puts out 4,000W RMS.

At a glance

• Power: 4,000W RMS
• Channels: 4
• Class D

Details

Experience massive, crystal-clear power with the DS18 FRP-4K4 Compact 4-Channel Amplifier – 4000W RMS, adjustable crossovers, bass boost, and smart protection for pro-level car audio performance.

Features:

• RMS Power: 4 x 400W @ 4Ω, 4 x 700W @ 2Ω, 4 x 1000W @ 1Ω
• Bridged Power: 2 x 1200W @ 4Ω | 2 x 1800W @ 2Ω
• Selectable HPF / LPF / Full crossover
• Bass Boost: 0–12dB at 50Hz

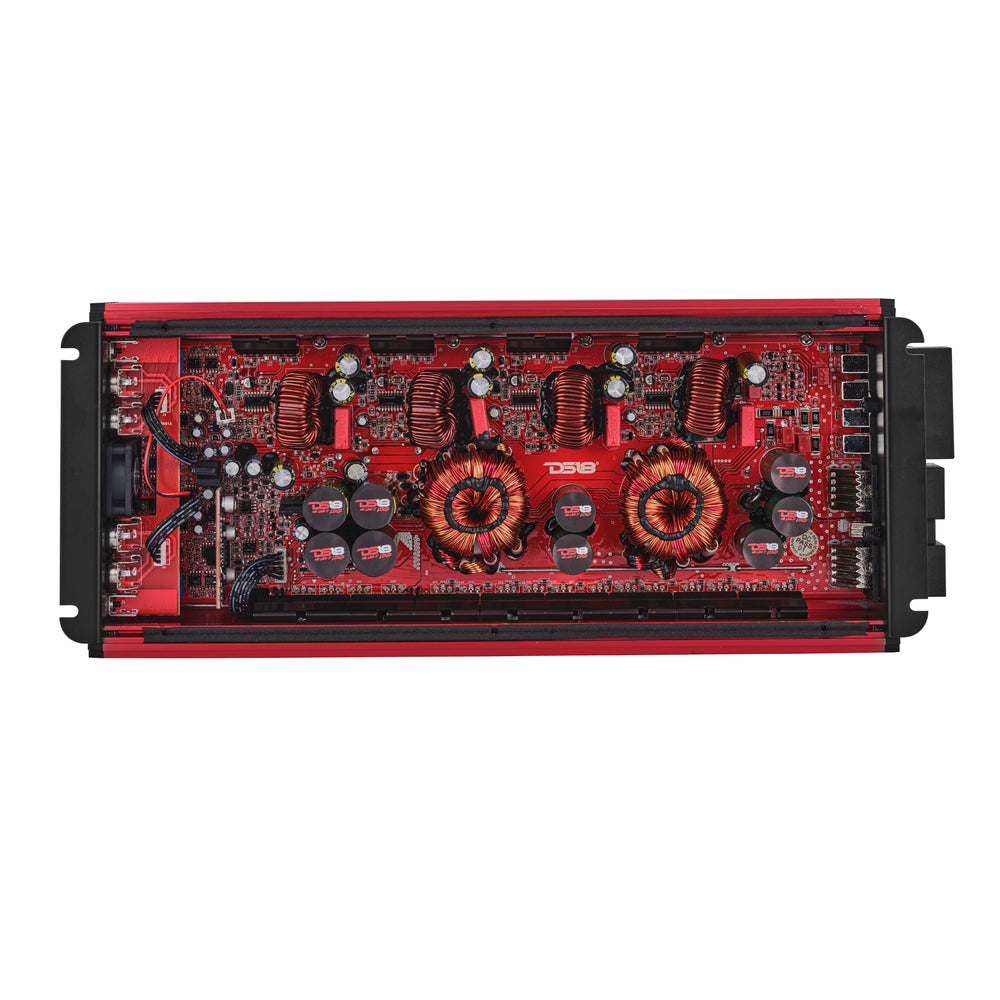

• Smart cooling fan + 4-layer PCB
• Power, Protect, Clip LED indicators

Specifications:

Power

RMS Power @ 4 ohms
4 x 400W
RMS Power @ 2 ohms
4 x 700W
RMS Power @ 1 ohm
4 x 1000W
RMS Power @ 4 ohm Bridge
2 x 1200W
RMS Power @ 2 ohm Bridge
2 x 1800W

Audio

Frequency Response
10Hz-20KHz
Signal to Noise Ratio
90dB
Efficiency @ 4ohm
97%
Damping Factor
90
Input Impedance
10KΩ
Channel Separation
50dB
Total Harmonic Distortion (THD)
0.5%
Low Level Input Range
400mv-6V
High Level Input
No
Selectable X-Over
Yes, HPF/FULL/LPF
X-Over Filter Range
10Hz-2KHz
Bass Boost Range
0-12dB
Bass Boost Frequency
50Hz

Features

Amplifier Class
Digital
Amplifier Type
Full-Range Multi-Channel
Number of Channels
4CH
Minimum Impedance
1ohm St / 2ohm Bridge
Led Indicator
Power / Protect / Clipping
Power Input Terminal Size
0GA
Fuse Size (Recommended)
500A
Cooling Fan
Yes (Smart Cooling x 1)
Voltmeter
No
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Clipping Protection
Yes
Body Color / Finish
Blue / Red / Titanium
Compact Size to Easy Installation for Any Applications
Yes
Stable/Reliable Four Layers Traces PCB Design
Yes
Surface Mount Component Technology
Yes
Quality Control Verification using Audio Precision Instruments
Yes
Tiffany RCA Terminal
Yes
LED Clip Indicator
Yes
Metal Knobs with Click Steps
Yes
Input Selector
Yes (2ch/4ch)
Remote Level Control with Clip Indicator
No
Remote Level Control with Clip Indicator and Voltmeter
No

Measurement

Overall Length
13.4" / 340mm
Overall Width
5.5" / 140mm
Overall Height
2.4" / 63.5mm
Heatsink Length
12" / 307mm
Gross Single Unit Weight
3.2kg

UPC: 810097269804
