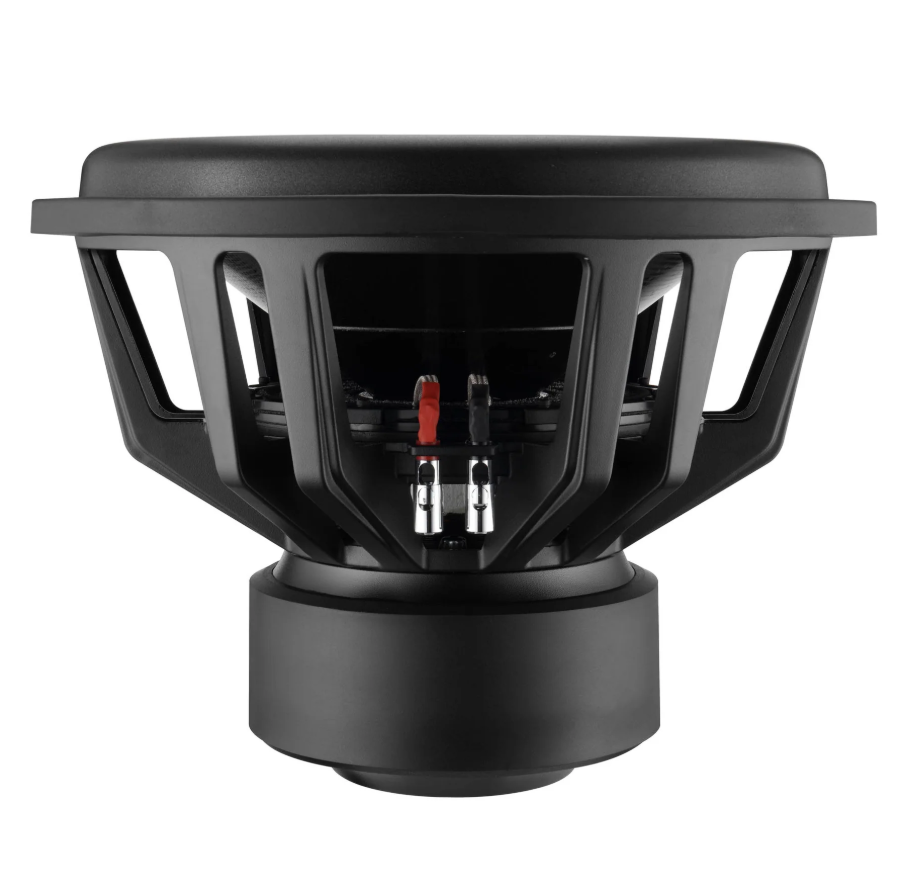

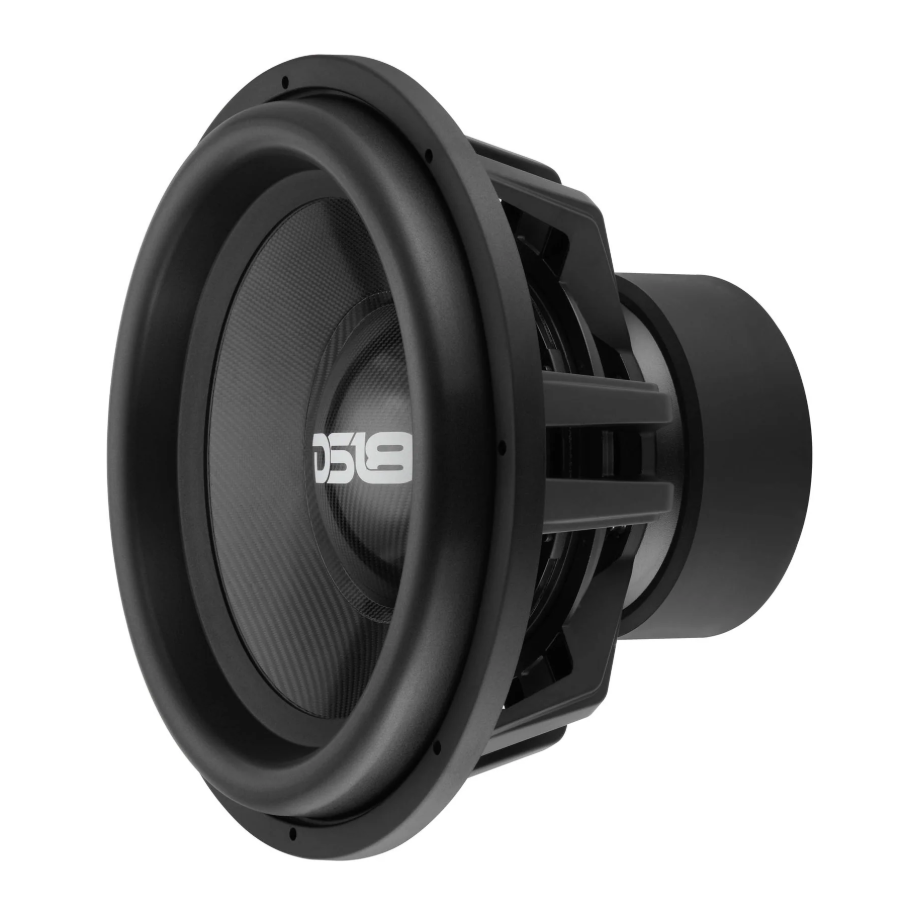

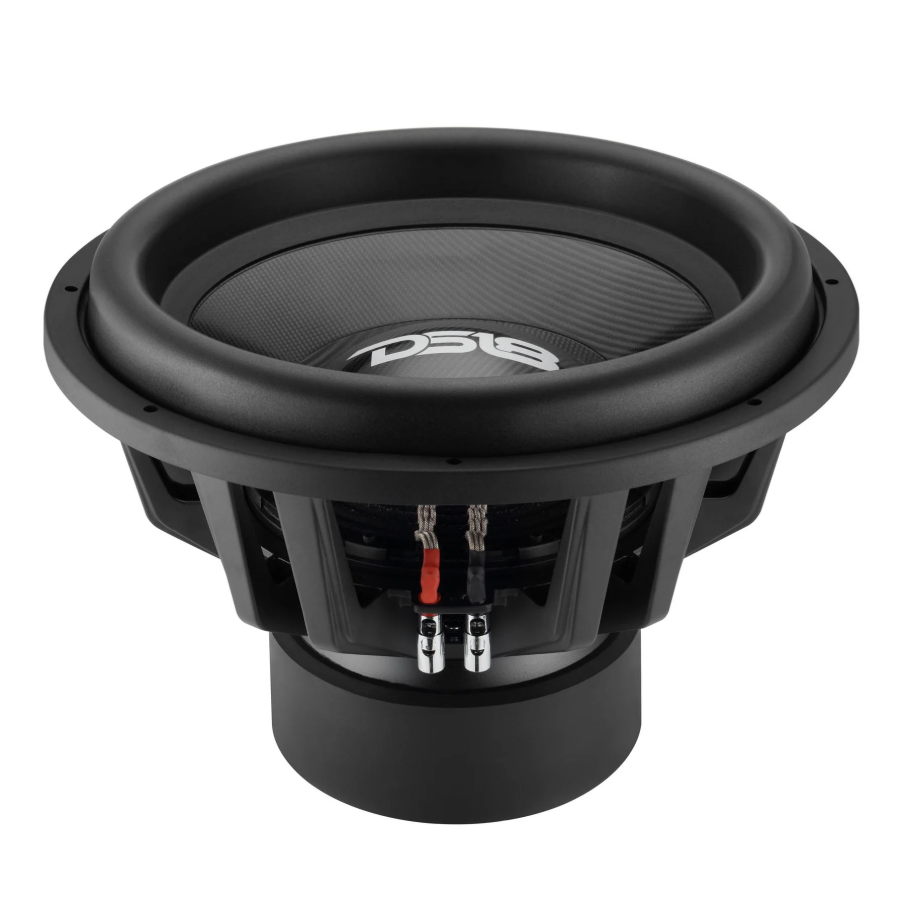

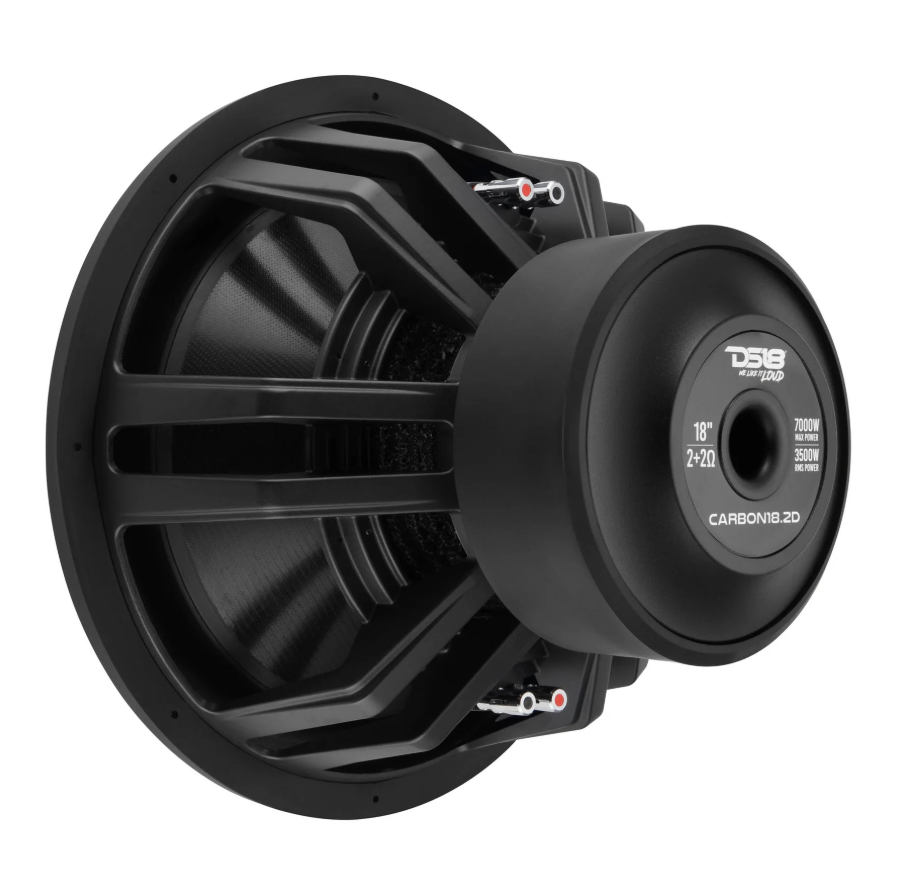

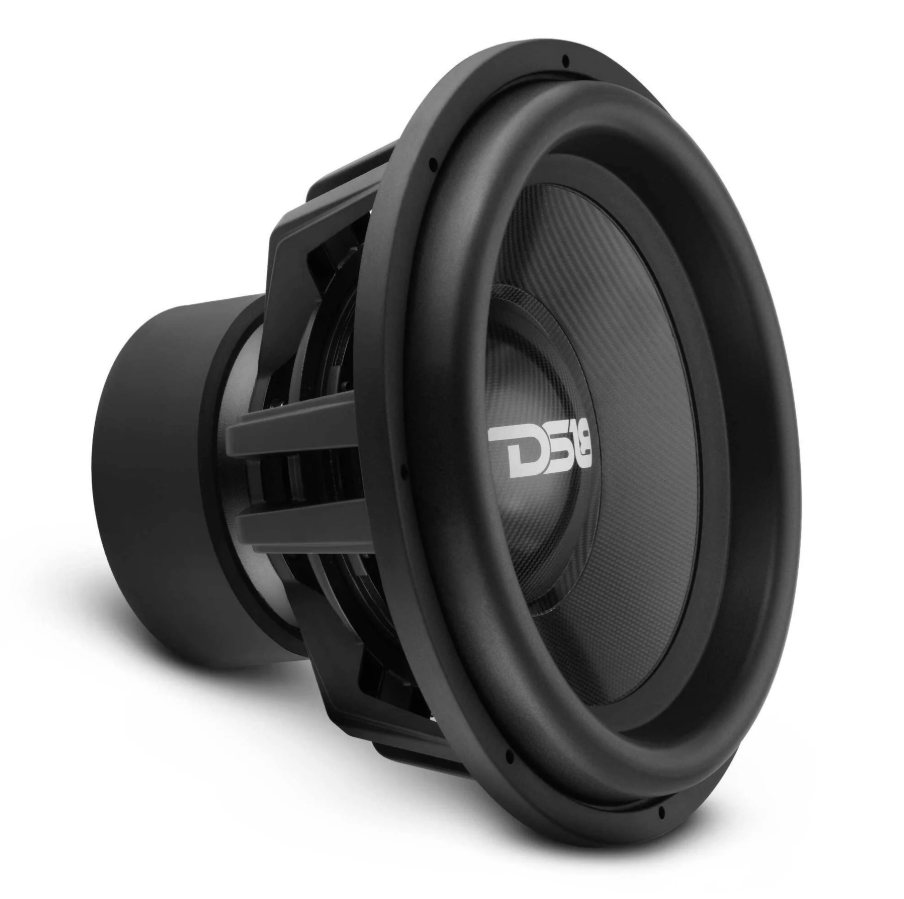

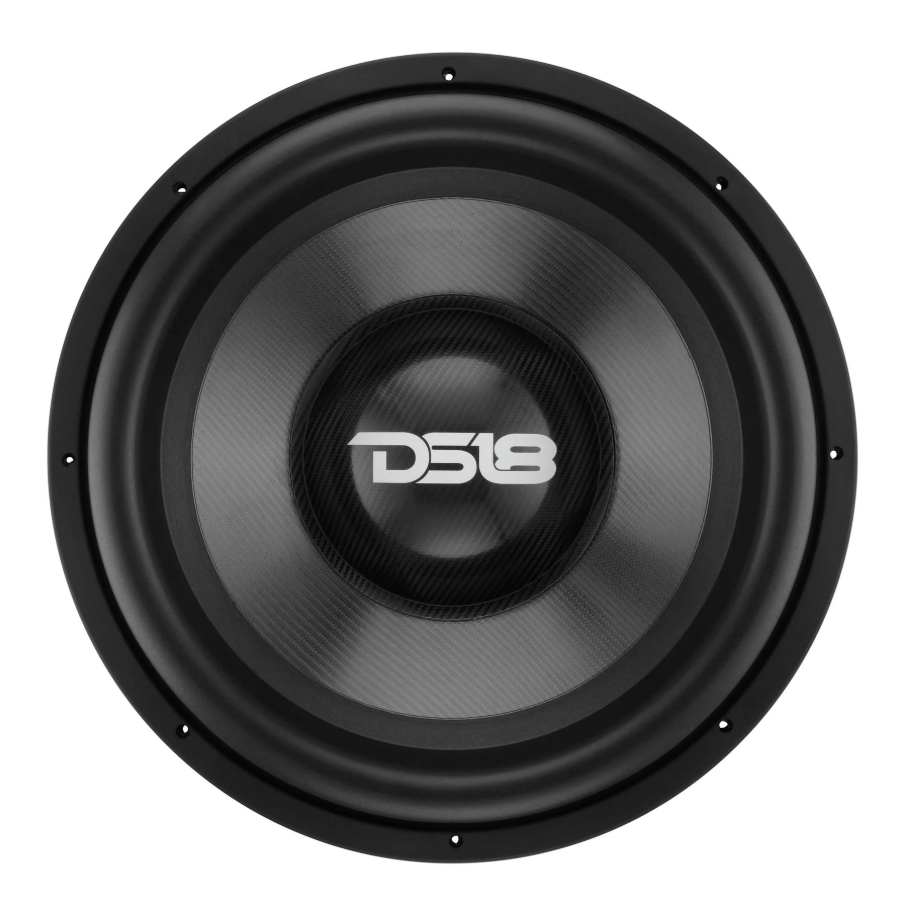

DS18 Carbon18.2D- 18" High Excursion Subwoofer with Carbon Fiber Cone – 3500W RMS / 7000W Peak – Dual 2-Ohm Voice Coil

Hit harder with the DS18 Carbon18.2D, an 18-inch dual 2-ohm subwoofer handling 3,500W RMS (7,000W peak).

At a glance

• Power: 3,500W RMS (7,000W peak)
• Size: 18"
• Impedance: Dual 2 ohm

Details

Built for extreme low-frequency performance, the DS18 CARBON18.2D 18" High Excursion Subwoofer is engineered to deliver massive bass output for high-powered car audio and SPL competition systems. Rated at 3,500 watts RMS and 7,000 watts maximum power, the CARBON18.2D combines exceptional power handling with a high-excursion design to move massive amounts of air and produce deep, powerful bass. Its dual 2-ohm voice coil configuration provides flexible wiring options, allowing installers to configure the subwoofer for different amplifier loads, including 1-ohm parallel or 4-ohm series configurations.

The CARBON18.2D combines premium materials with a powerful motor structure designed to handle extreme power while maintaining reliable performance. Its carbon-fiber cone and carbon-fiber dust cap provide a lightweight and rigid diaphragm designed for controlled movement and responsive bass reproduction. A 3.5" aluminum voice coil with CCAR winding supports high power handling and improved heat dissipation during extended high-power operation, while the massive 425 oz ferrite magnet provides the motor force needed for high-excursion performance. The foam surround and aluminum basket support the moving assembly during demanding use, while 22.5 mm of one-way Xmax allows the 18-inch driver to achieve substantial cone travel and air displacement. With a 10–200 Hz frequency response, the CARBON18.2D is built for serious high-output systems where deep, powerful bass is the priority.

Key Features

• High-Power 18" Subwoofer – Delivers 3,500W RMS and 7,000W maximum power handling for extreme bass performance
• Dual 2-Ohm Voice Coils – Provides flexible wiring configurations, including 1-ohm parallel or 4-ohm series wiring
• Carbon-Fiber Cone – Provides a lightweight and rigid diaphragm for powerful, controlled bass reproduction
• Carbon-Fiber Dust Cap – Reinforces the cone assembly while supporting the subwoofer's high-performance construction
• High-Excursion Design – Features 22.5 mm of one-way Xmax for increased cone movement and substantial air displacement
• 3.5" Aluminum Voice Coil – Designed for high power handling and improved heat dissipation
• CCAR Voice Coil Winding – Supports reliable performance under demanding high-power conditions
• 425 oz Ferrite Magnet – Delivers substantial motor force for high-output bass applications
• Foam Surround – Supports controlled high-excursion cone movement while providing durability
• 9" Spider – Supports the moving assembly during high-excursion operation
• Aluminum Basket – Provides a strong and rigid foundation for the motor and moving components
• 4-Gauge Push Terminals – Accommodates heavy-gauge speaker wire for high-powered installations
• Improved Heat Management – Designed to help manage heat during extended high-power operation
• SPL-Oriented Design – Engineered for high-output systems and serious competition-oriented bass applications
• Sealed and Ported Enclosure Compatible – Designed for properly sized sealed or ported enclosure applications
• CARBON Series Performance – Built for high-powered car audio systems where deep, powerful bass is the priority

Specifications

• Model: CARBON18.2D
• Series: CARBON
• Subwoofer Size: 18"
• Voice Coil Configuration: Dual 2-Ohm
• Nominal Impedance: 2 + 2 Ohms
• Power Handling RMS: 3,500 Watts
• Power Handling MAX: 7,000 Watts
• Sensitivity: 85 dB
• Frequency Response: 10–200 Hz
• Recommended Low-Pass Crossover: 60 Hz
• Cone Shape: Conic
• Cone Material: Carbon Fiber
• Dustcap Material: Carbon Fiber
• Dustcap Size: 8" (200 mm)
• Surround Material: Foam
• Voice Coil Diameter: 3.5" (89 mm)
• Voice Coil Former Material: Aluminum
• Voice Coil Winding: CCAR
• Spider Diameter: 9" (228 mm)
• Leads Connection Type: Spider Crossed
• Basket Material: Aluminum
• Basket Finish: Aluminum / Black
• Magnet Material: Ferrite
• Magnet Weight: 425 oz
• Speaker Terminals: 4-Gauge Push Terminals
• Xmax: 22.5 mm One-Way
• Overall Diameter: 18.5" (470 mm)
• Overall Depth: 14" (355 mm)
• Mounting Depth: 12.15" (309 mm)
• Front Mount Baffle Cutout: 16.75" (426 mm)
• Motor Diameter: 9" (230 mm)

Package Includes

• 1 × DS18 CARBON18.2D 18" Dual 2-Ohm High Excursion Subwoofer
• 1 × Owner's Manual
• Mounting Hardware

SKU: DS-CARBON18.2D
UPC: 810199442419
