DS18 8XL800N-8 XL 8" Mid-Range Loudspeaker 8-Ohm with Neodymium Magnet 400 Watts RMS

The DS18 8XL800N-8 delivers crisp, detailed sound with 400W RMS (800W peak) of power handling.

At a glance

• Power: 400W RMS (800W peak)
• Impedance: 8 ohm

Details

Take your audio to the next level with DS18’s 8XL800N-8 midrange loudspeaker. Built for high-performance car audio systems, this 8-inch speaker delivers 400W RMS / 800W MAX power, a 2” Kapton voice coil, and a lightweight neodymium magnet for superior clarity and punch. With 100.7dB sensitivity and a wide 100Hz–10kHz frequency response, it produces powerful mids with minimal distortion. Designed for durability with a non-pressed paper cone, cloth surround, and push terminals for easy installation—perfect for custom builds and SPL setups.

Features:

• 8" Mid-Range
• MAX Power: 800 Watts
• RMS Power: 400 Watts
• Impedance: 8-Ohm
• Neodymium Magnet
• 100.7dB

Specifications:

SKU
8XL800N-8
Nominal Diameter
8" / 203mm
Nominal Impedance
8 ohms
RMS Power Handling
400 watts
MAX Power Handling
800 watts
Sensitivity (1w/1m)
100.7dB
Frequency Response
100Hz-10KHz
Recommended High-Pass Crossover
160Hz
Sold in Pair or Single
Single
Grill Included
No

Features

Interleaved Sandwich Voice coil (ISV)
No
Demodulating Rings
Yes
Improved Heat Dissipation
Yes
Cone Shape
Curvilinear
Speaker Terminals
Push 12ga

Motor

Voice Coil Diameter
2" / 50.8mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Non-pressed Paper
Dust Cap Material
Paper
Bullet Material
N/A
Bullet Color/Finish
N/A
Surround Material
Cloth
Spider Diameter
5" / 127mm
Leads Type
Direct to Cone
Basket Material
Aluminum
Basket Color/Finish
Satin Black
Magnet Material
Neodymium
Magnet Weight
7.5 Oz
Displacement Volume
0.03L / 0.00105ft3

Thiele & Small Parameters

Equivalent Volume Vas
17.09L / 0.603ft3
Excursion (one way) Xmax
2.3mm
Free Air Resonance Fs
87Hz
Mechanical Factor Qms
5.68
Electrical Factor Qes
0.27
Total Factor Qts
0.26
Mechanical Mass Mms
12.66g
Mechanical Compliance Cms
0.26mm/N
BL Factor BL
12
Voice Coil Inductance Le
0.06mH
Cone Area Sd
213.82cm2
DC Resistance Re
5.6 ohm
Mechanical Mass w/o air Mmd
11g

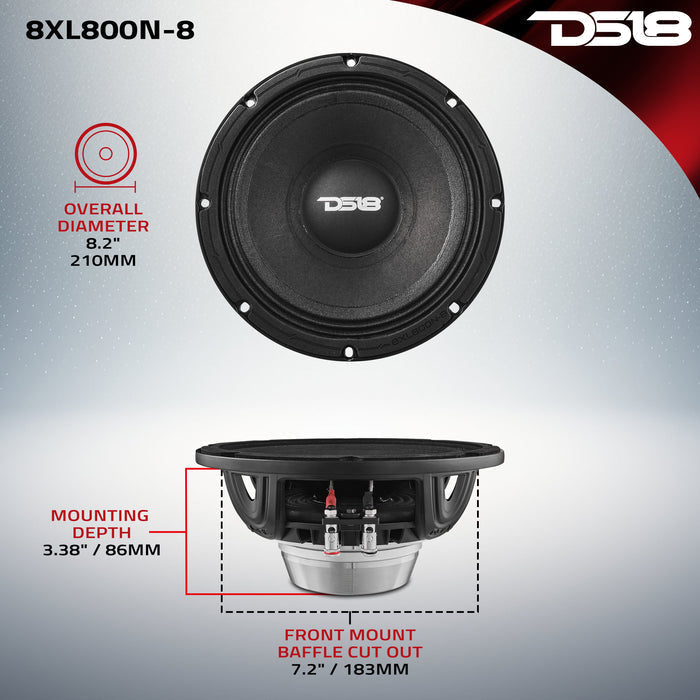

Measurement

Overall Diameter
8.2" / 210mm
Overall Depth
3.85" / 98mm
Front Mount Baffle Cutout
7.2" / 183mm
Mounting Depth
3.38" / 86mm
Motor Diameter
4" / 102mm

UPC: 810097266025
