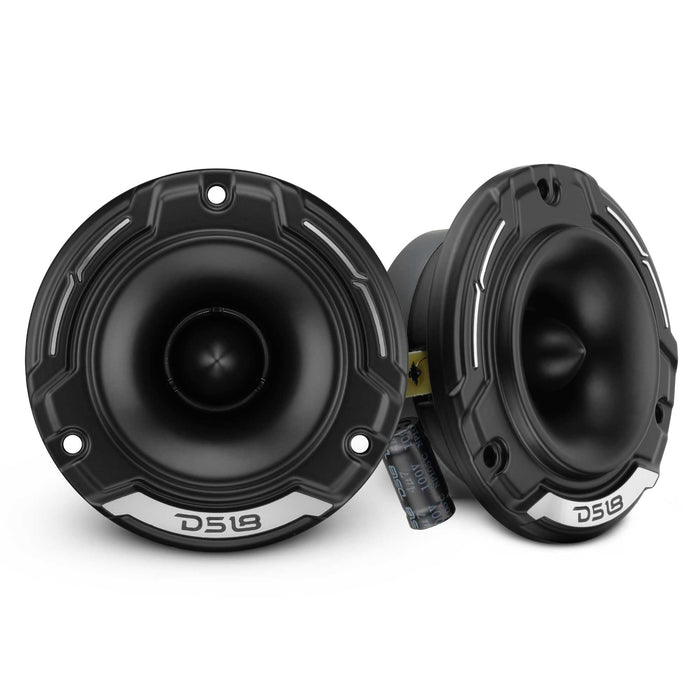

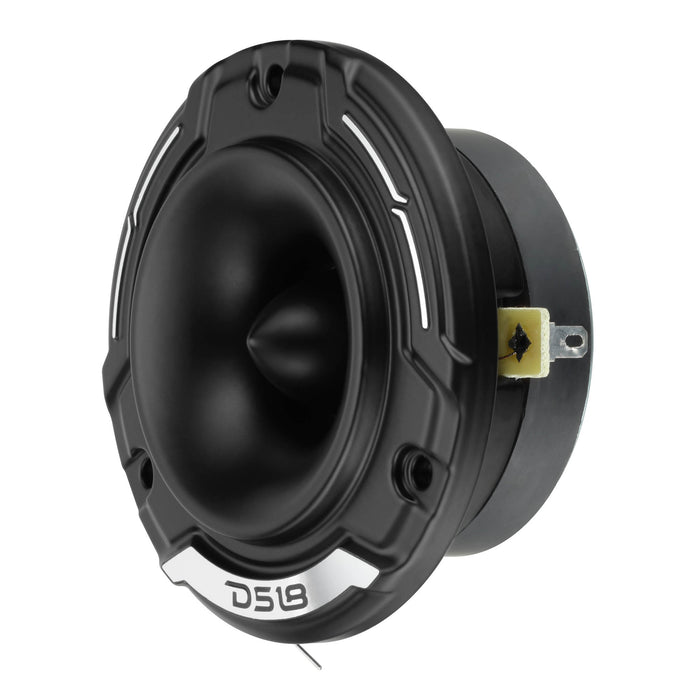

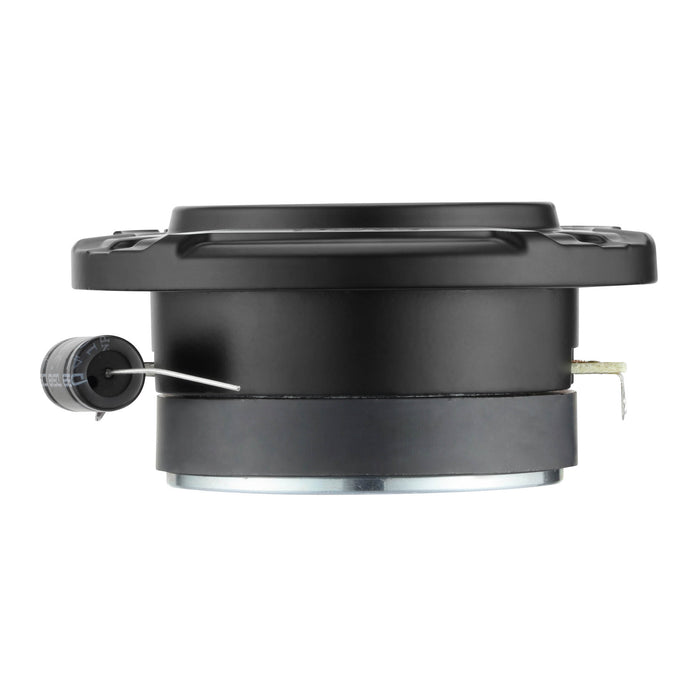

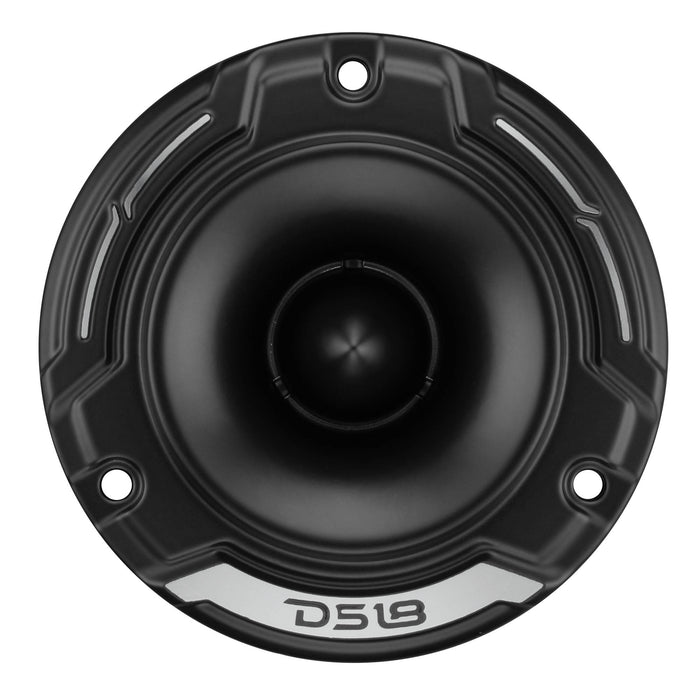

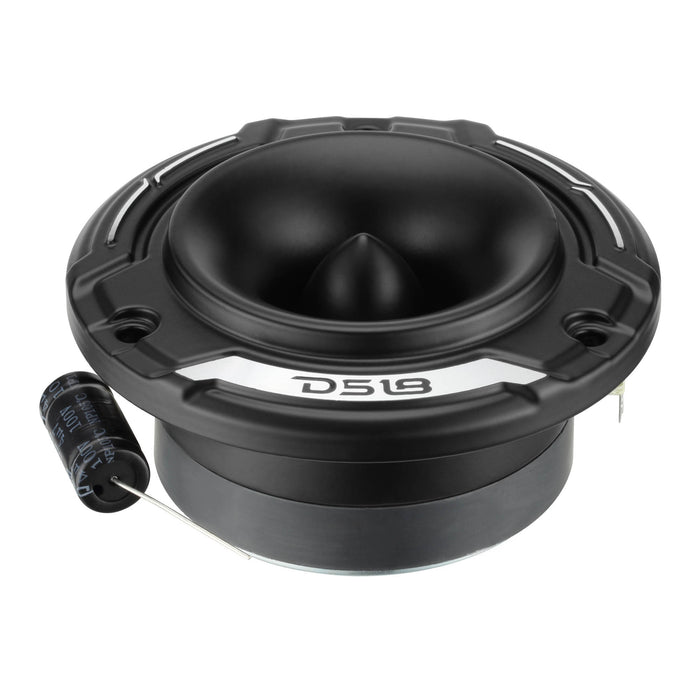

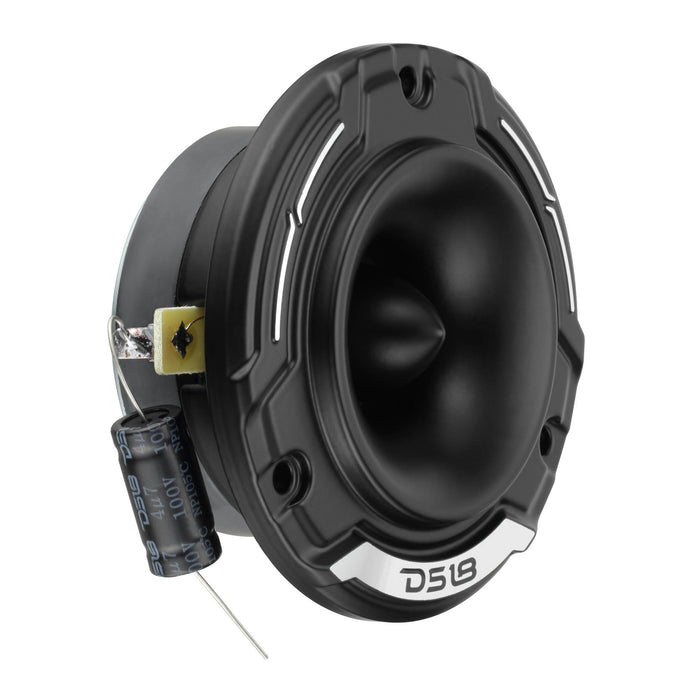

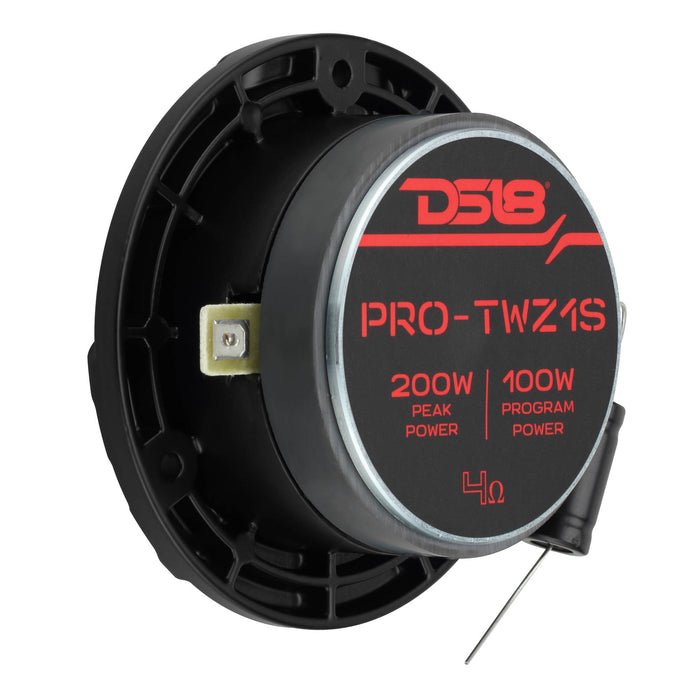

DS18 PRO-TWZ1S 3.8” Shallow-Mount Super Bullet Compression Tweeter with 1” Aluminum Voice Coil – 100W RMS 4-Ohm

The DS18 PRO-TWZ1S delivers crisp, detailed sound with 100W RMS of power handling.

At a glance

• Power: 100W RMS
• Impedance: 4 ohm

Details

The PRO-TWZ1S 3.8” shallow-mount bullet compression tweeter delivers loud, ultra-clear high frequencies from 3.15kHz to 20kHz, perfect for competition or high-output systems. Designed with a slim 1.3” mounting depth, it fits tight spaces without sacrificing performance. It features a 1” aluminum voice coil on a Kapton former and aluminum diaphragm for fast response and durability, plus a built-in 4.7uF bass blocker for clean, protected highs. Built to hit hard, stay clean, and cut through any mix.

Features:

• Ultra-Shallow 1.3" Mounting Depth
• Razor-Sharp Highs (3.15kHz–20kHz)
• 1" Aluminum Voice Coil + Diaphragm
• Built-In 4.7µF Bass Blocker
• Competition-Ready SPL Output

Specifications:

Nominal Diameter
3.8" / 96mm
Nominal Impedance
4 Ohms
AES Power Handling
50W
Program Power Handling
100W
Peak Power Handling
200W
Sensitivity (1w/1m)
105 dB
Frequency Response
3.15KHz-20kHz
Recommended High-Pass Crossover
4kHz
Sold In Pair or Single
Pair

Body / Features

Filter (Bass Blocker)
4.7uf
Body Material
Aluminum
Body Color / Finish
Black
Faceplate Color / Finish
Black / Machined
Bullet Material
Aluminum

Motor

Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Aluminum
Magnet Material
Ferrite
Magnet Weight
6.5 Oz

Measurement

Overall Diameter
3.78" / 96mm
Overall Depth
1.8" / 45.5mm
Front Mount Baffle Cutout
2.83" / 72mm
Mounting Depth
1.3" / 35mm
Motor Diameter
2.76" / 70mm

UPC: 810199440989
