DS18 PRO-DN22PH.8 2” Throat Bolt-On Compression Driver (2” Phenolic Voice Coil / 8-Ohm)

The DS18 PRO-DN22PH.8 delivers crisp, detailed sound with 400W RMS of power handling.

At a glance

• Power: 400W RMS
• Impedance: 8 ohm

Details

Enhance your audio system with DS18’s 2-inch compression driver featuring a phenolic voice coil, 8-ohm impedance, and 200W AES / 400W program / 800W peak power. Delivers warm, natural mids and highs across a 630Hz–8kHz frequency range with 111dB sensitivity. Built for durability and easy bolt-on installation in high-performance setups.

Features:

• 2" Compression Driver
• RMS Power: 400 Watts(800 Watts Peak)
• Impedance: 8 Ohm ~ 111dB
• Neodymium Magnet - Phenolic Diaphragm

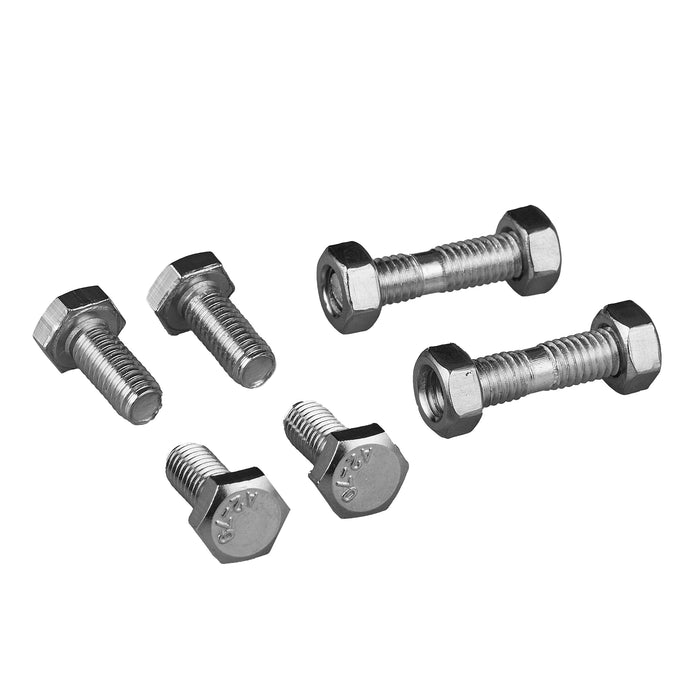

• Bolt On
• Easily Repaired With The PRO-D22PH.8VC

Specifications:

SKU
PRO-DN22PH.8
Throat Diameter
2" / 50.8mm
Installation Type
Bolt-On
Nominal Impedance
8 Ohms
AES Power Handling
200W
Program Power Handling
400W
Peak Power Handling
800W
Sensitivity (1w/1m)
111dB
Frequency Response
630Hz-8KHz
Recommended Hi Pass Crossover
800Hz
Sold in Pair or Single
Single

Body / Features

Filter (Bass Blocker)
10Uf/100V
Body Material
Aluminum
Body Color / Finish
Black / Machined

Motor

Voice Coil Diameter
2" / 50.8mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Phenolic
Magnet Material
Neodymium
Magnet Weight
9.9 Oz

Measurement

Overall Diameter
4.4" / 112mm
Overall Depth
2.2" / 56mm
Bolt Pattern/Type
4xM6 - 4" /102mm

Shipping Info

Gross Single Unit Weight
1.9kgs
Single Unit Box Dimensions W x L x H
140x140x72mm
Quantity of Units in Master Carton
8
Gross Master Carton Weight
16.2kgs
Master Carton Dimensions W x L x H
292x292x160mm

UPC: 810097266346
