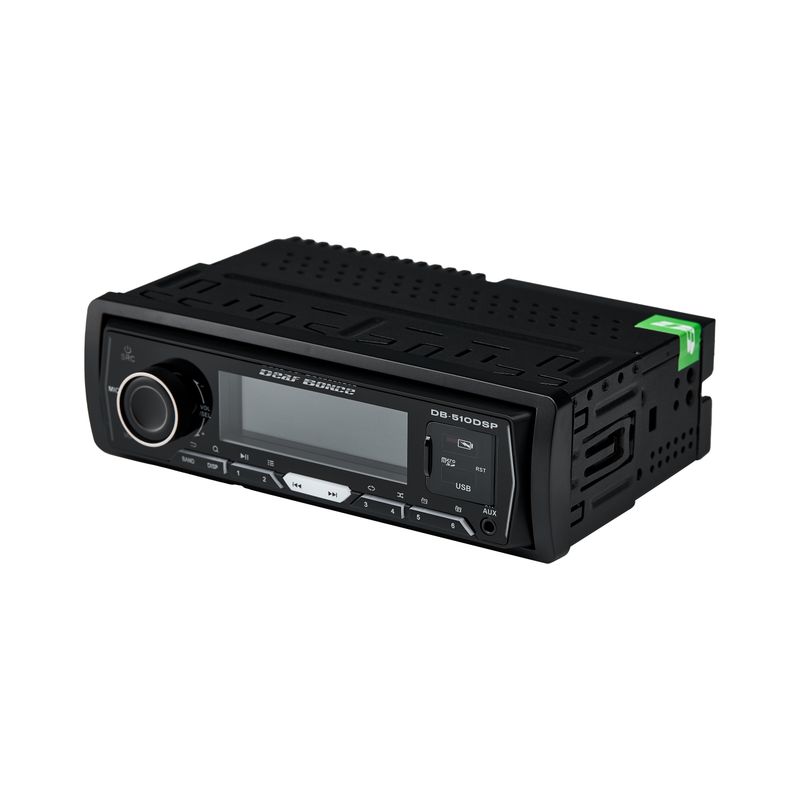

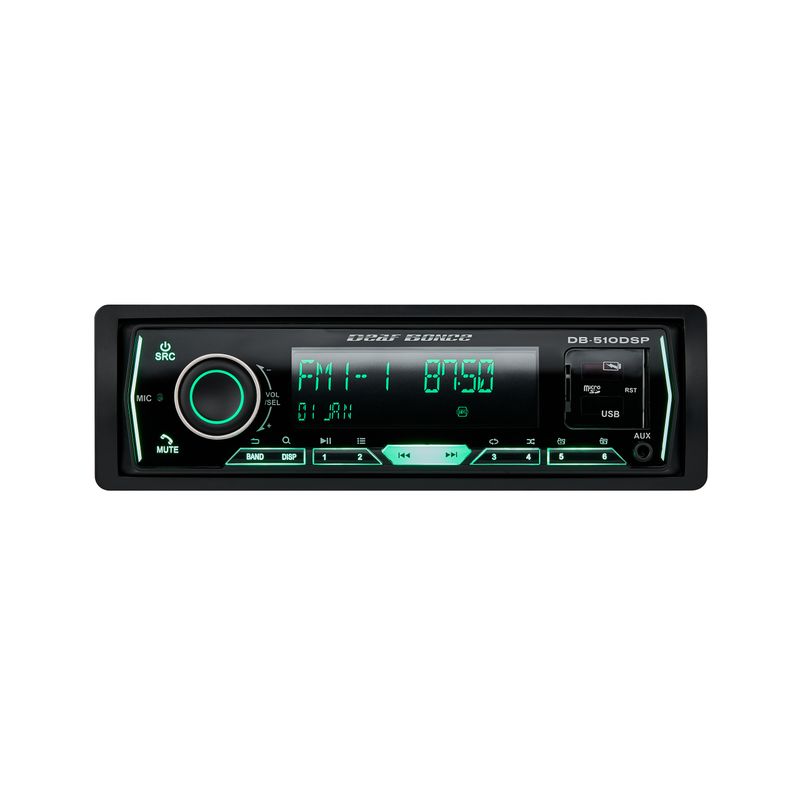

Deaf Bonce DB-510DSP 1-DIN Car Stereo with DSP & USB
Deaf Bonce DB-510DSP 1-DIN Car Stereo with DSP & USB
Couldn't load pickup availability
Upgrade your dash with the Deaf Bonce DB-510DSP.
Details
The Deaf Bonce DB-510DSP is a compact DSP car stereo head unit built for cleaner sound, better tuning control, and easier system expansion. It combines a built-in 4 × 25W RMS Class AB amplifier, 8 RCA outputs, Bluetooth audio, AM/FM radio, USB, AUX input, hands-free calling, and advanced DSP tools in one clean dashboard upgrade.
For users searching for a deaf bonce stereo, deaf bonce head unit, or deaf bonce radio with real tuning flexibility, the DB-510DSP offers a strong balance of power, control, and connectivity. With crossover filters, time alignment, subwoofer outputs, steering-wheel control learning, and ARGB lighting, this unit is ready for daily audio upgrades and more advanced car audio builds.
What the DB-510DSP Adds to Your System
| Feature | Benefit |
|---|---|
| Built-In 4 × 25W RMS Amplifier | Powers speakers directly without needing an external amp for basic setups |
| DSP Audio Control | Helps fine-tune staging, timing, crossover points, and frequency balance |
| 8 RCA Outputs | Supports external amplifiers, full-range channels, and subwoofer expansion |
| Subwoofer RCA Outputs | Makes it easier to add bass control to your system |
| HPF/LPF Crossover Filters | Lets you separate frequencies for cleaner speaker and subwoofer performance |
| Time Alignment | Helps correct speaker distance for a more accurate in-car soundstage |
| Bluetooth A2DP | Allows wireless music streaming from compatible devices |
| USB Type-A Input | Supports playback and 5V/1A charging |
| 3.5mm AUX Input | Adds a simple wired input option |
| AM/FM Radio with RDS | Includes 18 FM presets and 12 AM presets |
| Steering-Wheel Control Learning | Helps retain convenient factory-style control functions |
| Hands-Free Calling | Supports safer phone use while driving |
| ARGB Backlight | Offers 7-color lighting with 2-zone illumination control |
| 10–17V Operating Range | Designed to stay reliable in demanding vehicle electrical systems |
Audio and Tuning Performance
The db-510dsp gives your system more control than a basic radio. Its DSP section allows crossover adjustment from 6 to 24 dB/oct, along with time alignment up to 18 ms or 642 cm. This helps improve speaker timing, bass blending, and overall clarity inside the vehicle.

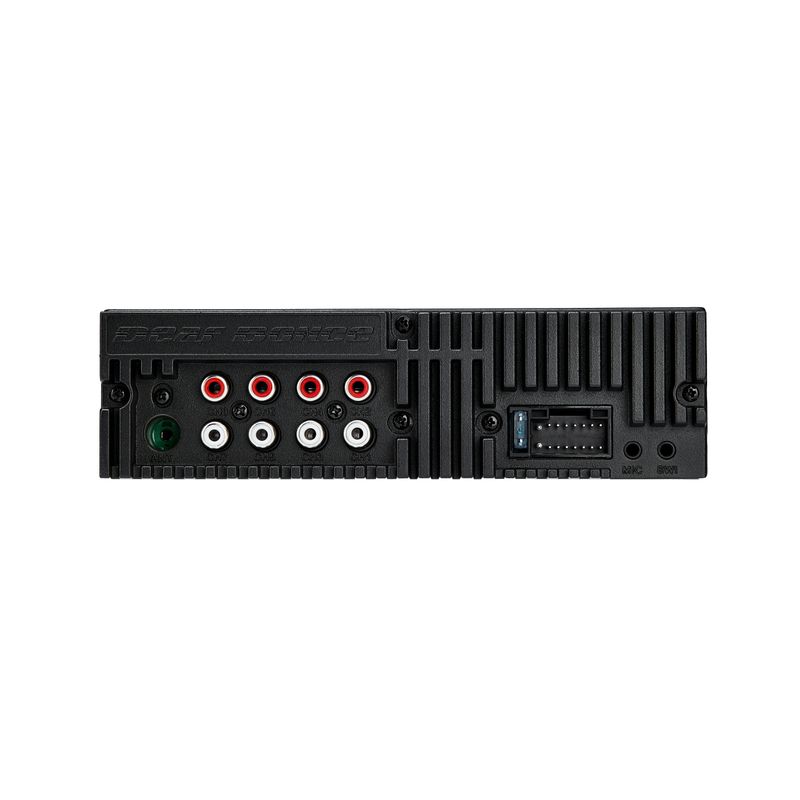

With 6 full-range RCA outputs and 2 dedicated subwoofer RCA outputs, the deaf bonce DB-510DSP is also ready for upgraded amplifier systems. Whether you are keeping the built-in amp or building a larger setup with external amps, this head unit gives you a cleaner signal path and more flexible tuning options.
Specifications
| Specification | Details |
| Product Name | Deaf Bonce DB-510DSP |
| Model | DB-510DSP |
| Product Type | DSP Car Stereo Head Unit |
| UPC | 4650185710216 |
| Built-In Amplifier Power | 4 × 25W RMS at 4 Ohms |
| Amplifier Class | Class AB |
| Total RCA Outputs | 8 |
| Full-Range RCA Outputs | 6 |
| Subwoofer RCA Outputs | 2 |
| Full-Range Frequency Response | 20Hz to 20kHz |
| Subwoofer Frequency Response | 20Hz to 800Hz |
| Signal-to-Noise Ratio | ≥ 80dB |
| Bluetooth Profile | A2DP |
| Crossover Filters | HPF / LPF, 6–24 dB/oct |
| Time Alignment | 0–642 cm / up to 18 ms |
| Time Alignment Step | 0.1 ms |
| USB Input | USB Type-A with 5V/1A Charging |
| AUX Input | 3.5mm AUX |
| Radio Tuner | AM/FM with RDS |
| Radio Presets | 18 FM / 12 AM |
| Steering-Wheel Control Learning | Yes |
| Hands-Free Calling | Yes |
| Display | VA LCD |
| Lighting | ARGB Backlight, 7 Colors, 2 Zones |
| Operating Voltage | 10–17V |
| Input Terminal Wiring | 16 AWG |
| Output Terminal Wiring | 20 AWG |
| Auto Turn-On | ACC Trigger |
| Integrated Fuse | 15A |
| Dimensions | 188 × 58 × 138 mm |
| Dimensions Inches | 7.4″ × 2.28″ × 5.43″ |
Best For
The Deaf Bonce DB-510DSP works well for drivers who want a modern deaf bonce radio with more than simple playback. It is a strong fit for systems that need built-in power, RCA expansion, Bluetooth streaming, hands-free calling, subwoofer control, and DSP tuning in one unit.
Use it for factory speaker upgrades, amplified systems, daily sound quality builds, or custom installs where clean control and flexible outputs matter.
