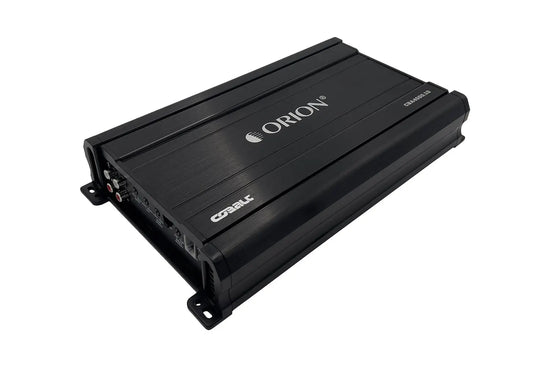

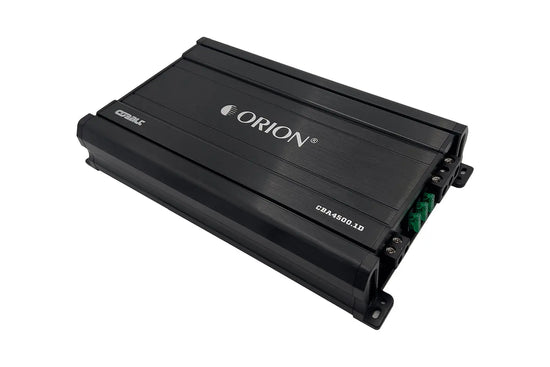

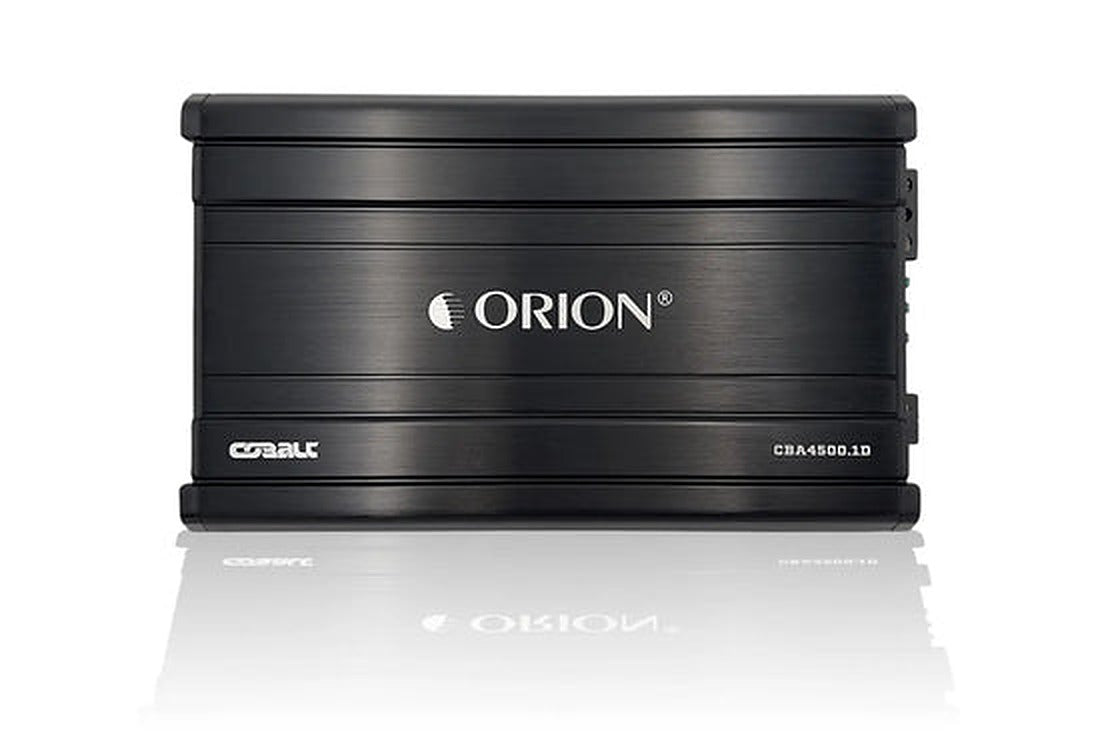

Orion CBA4500.1D COBALT Series 4500 Watts MAX 1-Channel Class D Amplifier

Looking for more volume without distortion? The Orion CBA4500.1D 1-channel amplifier puts out 4,500W peak.

At a glance

• Power: 4,500W peak
• Channels: 1
• Class D

Details

ORION CBA4500.1D COBALT Series 4500 Watts MAX 1-Channel Class D Amplifier

Harness the efficiency and precision of Class D amplification for commanding and accurate sound reproduction.Immerse yourself in a symphony of sound with a maximum power output of 4500 Watts, delivering unparalleled auditory magnificence.The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.Equipped with protection circuitry, the amplifier ensures longevity by safeguarding against overheating and short circuits.The amplifier's compact design offers versatile installation options without compromising performance.Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.

Features:

• All MOSFET Power Supply & Output Stage
• Heavy Gauge / High Current Custom Power and Speaker Terminals
• 1-Ohm Stable

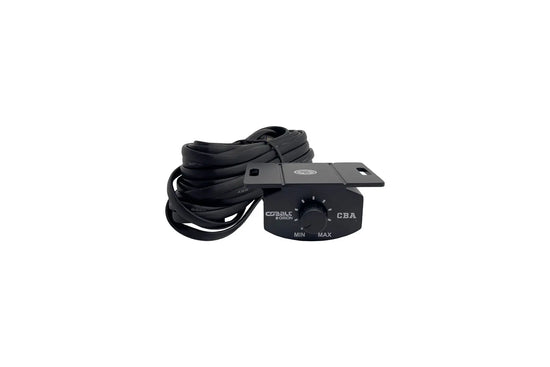

• Remote Gain Controller Included
• RCA Out Throughput
• 12dB Octave Low-Pass Filter
• Electronic Crossover Network
• Bass Boost Circuit
• Intelligent Power and Protection LED Indicator
• Soft Turn-on/Turn-off Turn-On Delay
• Fault and Protection Monitoring
• 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage

Power Ratings:

Max Music Power 4500W

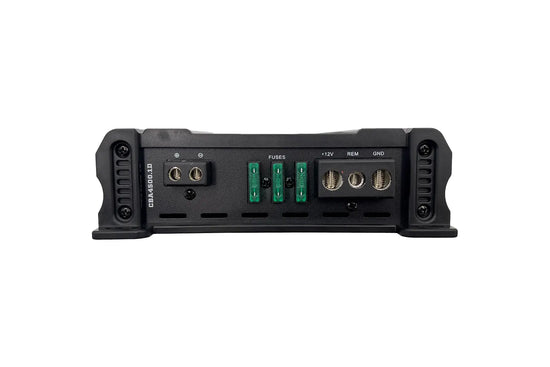

Power Terminal Management:
Positive Terminals: 1 x 4 AWG.
Negative Terminals: 1 x 4 AWG.
Remote Turn-ON Signal: 10 AWG.
Speaker Output Terminals: 10 AWG.

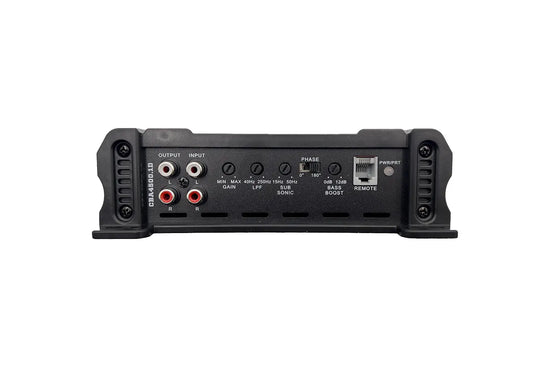

Specifications:
Frequency Response: 10Hz - 250Hz
Subsonic (15 - 50Hz)
Low Pass Crossover Continuously variable (40-250Hz)
Supply Voltage: 10 - 16V
Input Impedance: 22kOhm - Signal to Noise Ratio: >90dB
Phase Shift: 0/180 Degrees
Bass Boost: 0 - 12dB Variable
Variable Input Level Control: 0.2V - 6.0V
Fuses: 105A recommended (3 x 35A ATC)
Dimensions (L x W x H): 12.28" x 7.09" x 2.13" (312x180x54mm)

UPC: 818550017085
