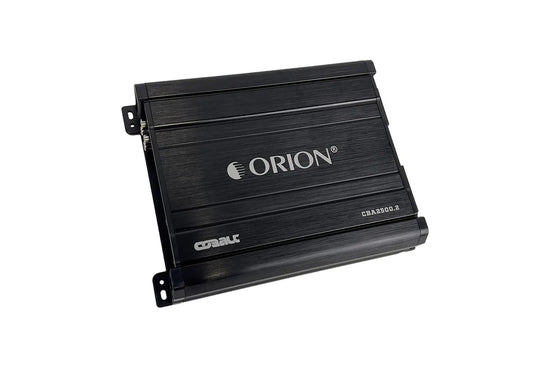

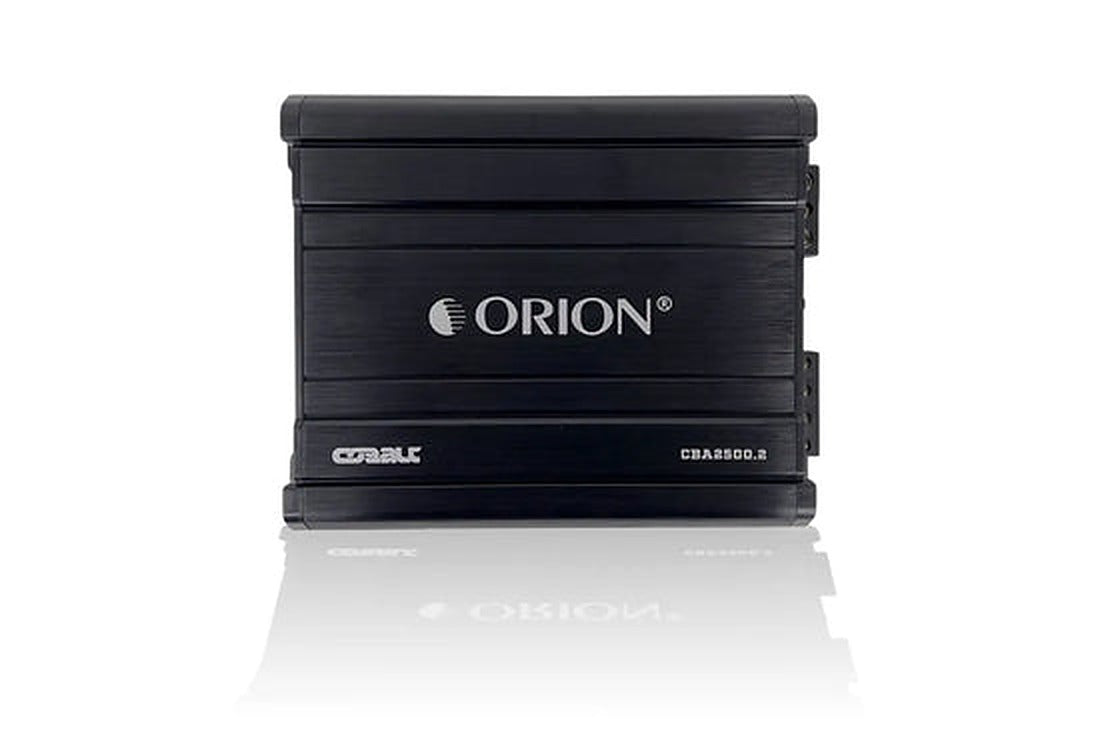

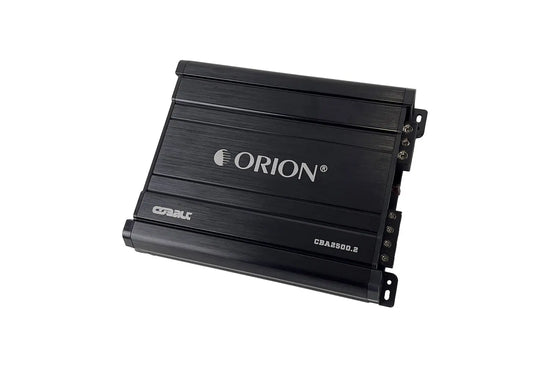

Orion CBA2500.2 COBALT Series 2500 Watts MAX 2-Channel Class A/B Amplifier

Power your system with the Orion CBA2500.2. This 2-channel Class AB car amplifier delivers 2,500W peak.

At a glance

• Power: 2,500W peak
• Channels: 2
• Class AB

Details

ORION CBA2500.2 COBALT Series 2500 Watts MAX 2-Channel Class A/B Amplifier

The amplifier's Class A/B design merges efficiency and audio excellence for an exceptional listening experience.Command your audio with a maximum power output of 2500 Watts, delivering powerful and dynamic sound.The adjustable built-in crossover allows fine-tuning of audio frequencies, optimizing speaker performance.Customize your bass response with the adjustable bass boost feature, delivering impactful low frequencies.Equipped with protection circuitry, the amplifier guards against overheating and short circuits, ensuring longevity.Crafted with high-quality components, this amplifier guarantees reliable performance and lasting quality.Meticulously designed for superior audio precision, power efficiency, and dependable operation.

Features:

• All MOSFET Power Supply & Output Stage
• Heavy Gauge / High Current Custom Power and Speaker Terminals
• 2-Ohm Stable
• RCA Out Throughput
• 12dB Octave Low-Pass Filter
• Electronic Crossover Network
• Bass Boost Circuit
• Intelligent Power and Protection LED Indicator
• Soft Turn-on/Turn-off
• Turn-On Delay
• Fault and Protection Monitoring
• 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage

Power Ratings:

Max Music Power 2500W

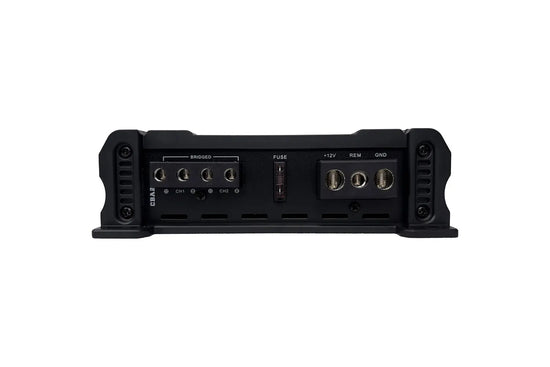

Power Terminal Managements:

Positive Terminals: 1 x 4 AWG.
Negative Terminals: 1 x 4 AWG.
Remote Turn-ON Signal: 10 AWG.
Speaker Output Terminals: 10 AWG.

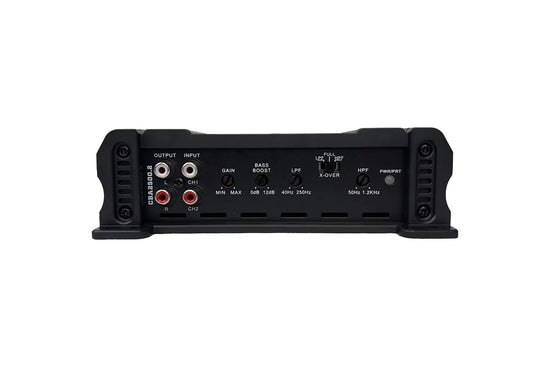

Specifications:

Frequency Response: 10Hz - 30kHz
- High Pass Crossover Continuously variable (50-1.2kHz)
- Low Pass Crossover Continuously variable (40-250Hz)
- Supply Voltage: 9 - 16V
- Input Impedance: 22kOhm - Signal to Noise Ratio: >90dB
- Bass Boost: 0 - 12dB Variable
- Variable Input Level Control: 0.2V - 6.0V
- Fuses: 40A recommended (1 x 40A ATC)
- Dimensions (L x W x H): 9.41" x 7.09" x 2.13" (239x180x54mm)

UPC: 818550017009
