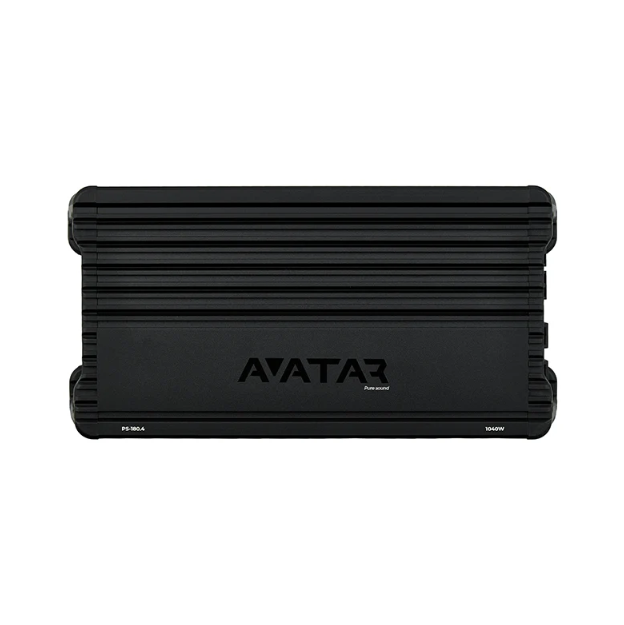

Deaf Bonce Avatar PS-180.4 4-Channel Car Amplifier – 1,040W Max Power, 2-Ohm Stable, Bridgeable
Deaf Bonce Avatar PS-180.4 4-Channel Car Amplifier – 1,040W Max Power, 2-Ohm Stable, Bridgeable
Couldn't load pickup availability
Power your system with the Deaf Bonce Avatar PS-180.4. This 4-channel car amplifier delivers 1,040W peak.
At a glance
- Power: 1,040W peak
- Channels: 4
Details
High-Output Power for Your Whole System, in One Compact Amp
The Avatar PS-180.4 4-channel car amplifier delivers serious, clean power for front stages, rear speakers and bridged setups, all from a single chassis. It puts out 4 × 180W RMS at 4 ohms and 4 × 260W RMS at 2 ohms (1,040W total). Bridged, it delivers 2 × 520W RMS, enough to drive larger speakers or a subwoofer from one amplifier.
At 10.63" × 5.32" × 2.05", it fits under seats, behind panels and in tight trunk spaces where a full-size amplifier won't.
Technical Specifications
| Spec | Details |
|---|---|
| Model | Avatar PS-180.4 |
| Channels | 4-channel amp |
| Power @ 4Ω | 180W RMS × 4 |
| Power @ 2Ω | 260W RMS × 4 |
| Bridged power | 520W RMS × 2 |
| Total power @ 2Ω | 1,040W |
| Crossover frequency | 50 Hz – 12 kHz (variable HPF/LPF) |
| Crossover slope | 12 dB/octave |
| Input sensitivity | 0.4 – 6V |
| Signal-to-noise ratio | ≥ 90 dB |
| Fuse rating | 187A |
| Power terminals | 4 AWG / 21.2 mm² |
| Working voltage | 9 – 16.5V |
| Protection | Yes |
| Dimensions (L × W × H) | 10.63" × 5.32" × 2.05" (270 × 135 × 52 mm) |
| SKU | DEF-PS-180.4 |
| GTIN | 4650185712814 |
Why Choose the Avatar PS-180.4?
- Serious 4-channel power: 180W RMS × 4 at 4Ω, 260W RMS × 4 at 2Ω
- 1,040W total output: plenty of headroom for demanding front and rear stages
- Bridgeable to 2 × 520W: flexible for larger speakers or subwoofers

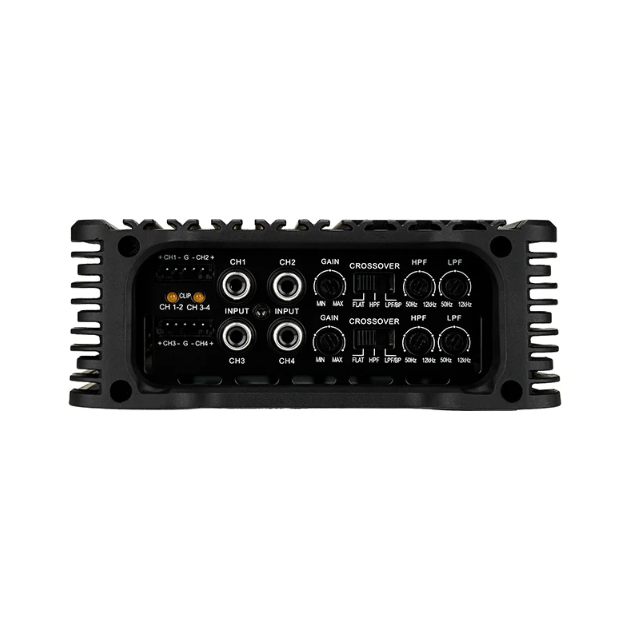

- Independent tuning per channel pair: separate gain and crossover controls for channels 1-2 and 3-4, so you can set front and rear stages separately
- Variable HPF/LPF crossover (50 Hz – 12 kHz): with switchable modes for each pair, to suit mids, tweeters, coaxials or subs
- Per-pair clip indicator LEDs: show when the signal starts to distort, so you can set gain properly and protect your speakers
- Full protection system: built for reliability when the amp is pushed hard

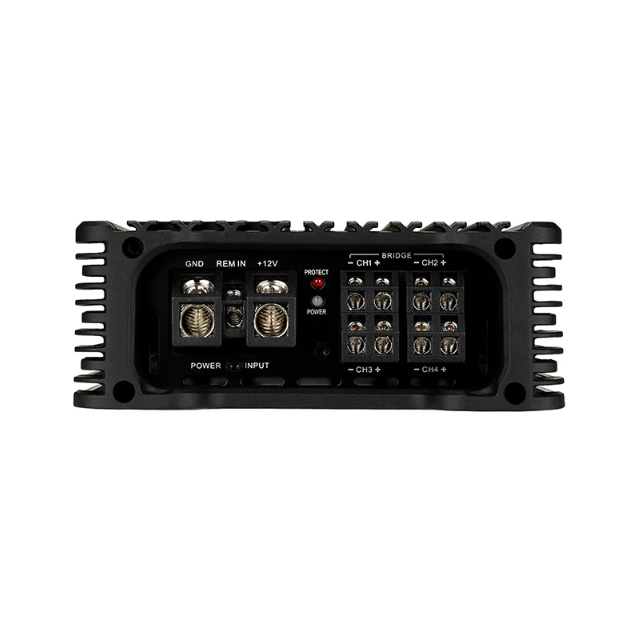

- 187A fuse rating and 4 AWG power terminals: accept up to 21.2 mm² wire for high-current installs
- Compact, install-friendly chassis: high output without a big footprint
Perfect For
- Upgrading factory or aftermarket front and rear speakers
- Powering high-power component sets and coaxials
- Bridged setups for larger speakers or a compact subwoofer
- Builds where space is limited but output matters
Compatibility
Works with 12V vehicle electrical systems (9–16.5V working range). Suitable for cars, trucks and SUVs. For best results, use quality 4 AWG wiring, a solid ground and a suitable fuse. Because this amp draws more current than the PS-150.4, make sure your charging system and wiring are up to the job.
FAQ
How much power does the Avatar PS-180.4 make?
180W RMS × 4 at 4Ω, 260W RMS × 4 at 2Ω (1,040W total), or 520W RMS × 2 bridged.
Can I bridge the PS-180.4?
Yes. Bridging channel pairs gives 2 × 520W RMS.
Is it 2-ohm stable?
Yes. It's rated at 260W RMS per channel at 2 ohms.
Can it run a subwoofer?
Yes. Bridged, it delivers 520W RMS per bridged pair, and the low-pass filter lets you set the crossover for a sub. Match your sub's impedance and power handling to the bridged output.
Will it fit in a small space?
Yes. It measures 10.63" × 5.32" × 2.05", so it fits under most seats and in tight trunk areas.
What wire size do I need?
The power terminals accept 4 AWG (21.2 mm²) wire.
