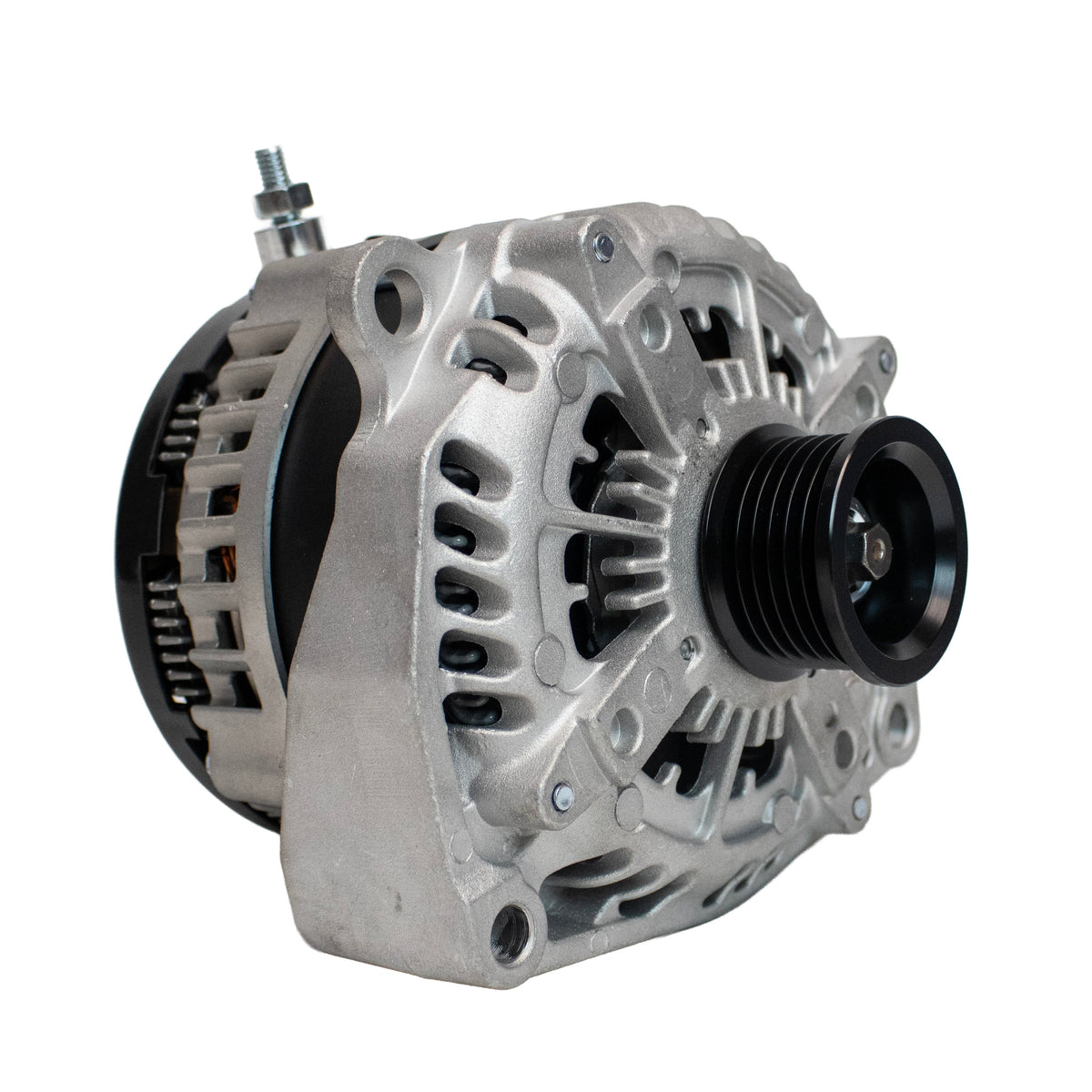

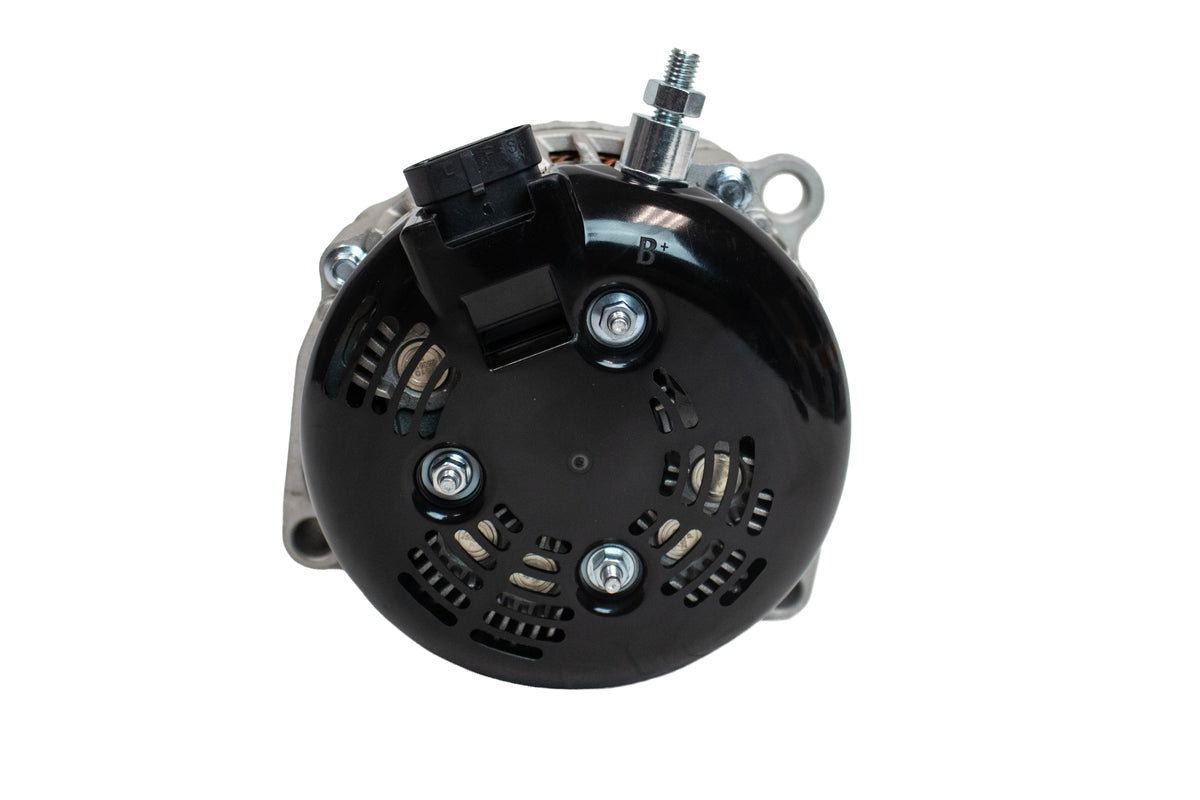

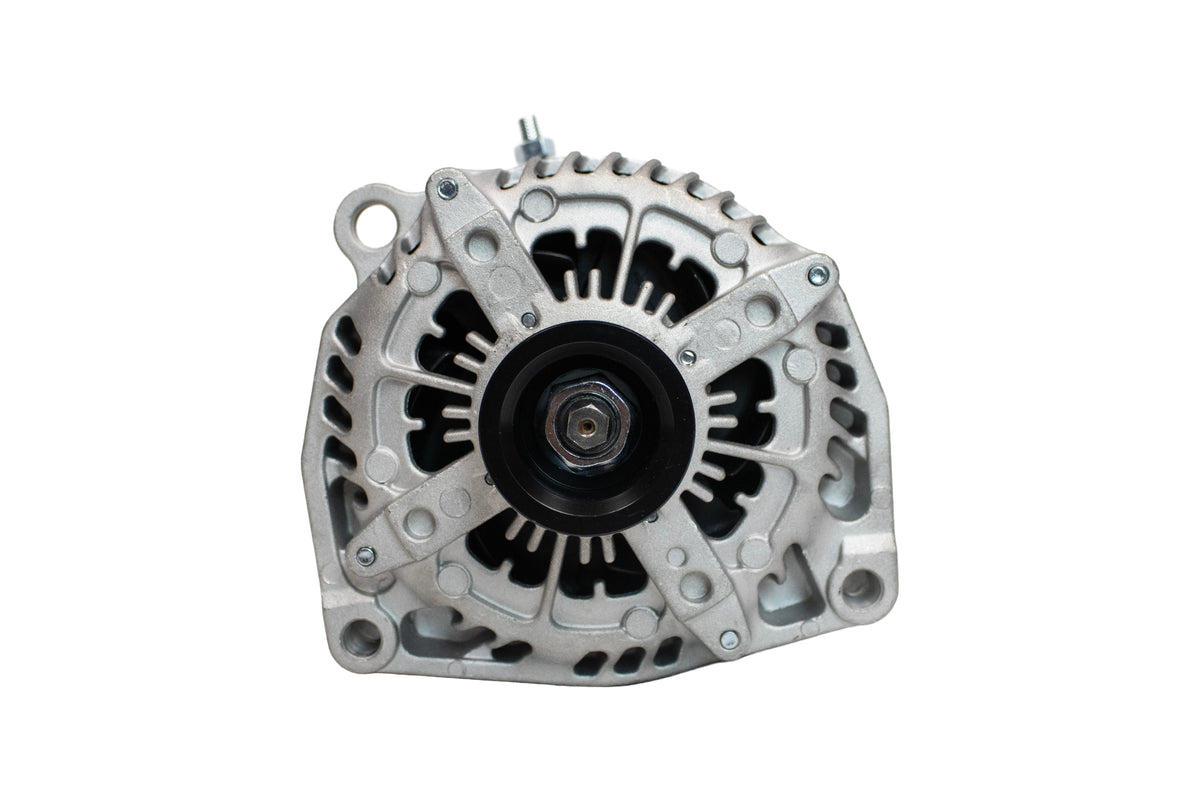

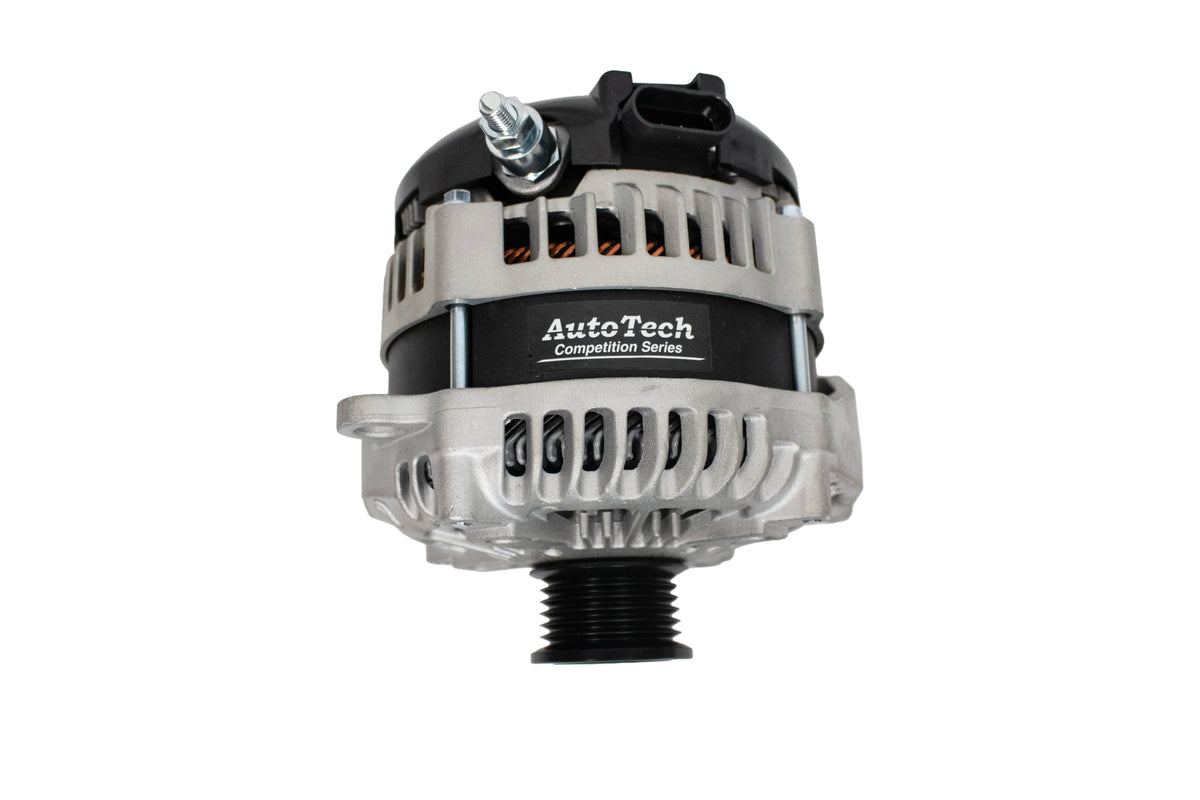

Auto Tech AT-HP-8301-400A 400 Amp High Output Alternator, GM 4.3L-8.1L 2005-2024, Natural Aluminum

Keep your system fed with the Auto Tech AT-HP-8301-400A.

Details

Engineered for Serious Power

The Autotech AT-HP-8301-400A Color: OEM Natural Aluminum alternator delivers a massive 400 amps of charging power, purpose-built for high-performance car audio systems, lighting upgrades, and heavy-duty electrical setups. Designed to fit GM engines from 2005–2024, this unit ensures stable voltage and maximum efficiency even under demanding load.

Each alternator is precision-built from OEM-grade components, tested before shipping, and tuned for high idle output — ideal for vehicles with upgraded amplifiers, battery banks, and digital voltage controllers.

Boost your car audio performance with the Autotech AT-HP-8301-400A 400A High Output Alternator. Designed for GM 4.3–8.1L engines (2005–2024). Delivers superior voltage, reliability, and charging power for high-demand systems.

PRODUCT HIGHLIGHTS

• Model: AT-HP-8301-400A

• Output: 400 Amps High Output

• Finish: OEM Natural Aluminum

• Fitment: GM Trucks & SUVs (2005–2024)

• Engine Compatibility: 4.3L / 4.8L / 5.3L / 6.0L / 6.6L / 8.1L

• Application: Car Audio | High Performance | Off-Road | Heavy Electrical Loads

• Mounting: Direct OEM Fit (Rear foot delete options may apply)

• Warranty: Manufacturer Warranty Included

Key Features

• True 400A Output: Ensures your amplifiers, accessories, and electrical system stay fully powered.

• High Idle Charge Rate: Smaller pulley design delivers maximum voltage at low RPMs.

• OEM Fitment: Installs directly in place of factory alternator for compatible engines.

• Durable Finish: Natural aluminum casing resists corrosion and maintains OEM appearance.

• Optional PCM/ECU Bypass: Custom voltage tuning available for vehicles using computer-controlled charging.

• Hand-Tested Performance: Every unit is bench-tested for voltage and amperage accuracy prior to shipment.

Installation Notes

PLEASE READ BEFORE INSTALLATION – SAVES HOURS OF TROUBLESHOOTING

1. Belt Size & Tension
A smaller diameter pulley is provided to increase idle output. You may need a belt approximately ½ inch shorter than stock. We recommend purchasing 3 shorter belts to find the perfect fit.
Tight belt tension is critical — a loose belt can cause slippage, low voltage, and premature alternator failure.

2. The “Big 4” Upgrade
For maximum voltage and reliability, upgrade your vehicle’s main wiring:

• Alternator positive → Battery positive

• Battery negative → Chassis ground

• Engine block → Chassis ground

• (Recommended) Add a 4th ground: Alternator rear casing → Chassis

3. Powder-Coated Units (if applicable)
Powder coating can affect grounding. Ensure proper grounding to the alternator casing for full voltage performance. Units are tested and verified before shipping.

4. Idle RPM & Voltage
Ensure idle speed is at least 650 RPM for consistent voltage. Low RPM or loose belts are common causes of charging issues.

5. Testing & Safety
Use a clamp meter to check voltage and amperage safely.
Never disconnect your battery while the car is running — this can instantly damage the alternator and void the warranty.

Optional Configuration Notes

• 1-Wire Alternators: Only connect the main positive battery cable; harness plug can be tucked away.

• Harness with Blue/Sense Wire: Attach blue wire to the alternator’s positive post.

• PCM/ECU-Controlled Vehicles: Default units are plug-and-play. Contact Autotech or Stereo-Needs for custom voltage bypass options.

• Rear Foot Delete Models: Some units may omit a rear mounting foot to accommodate internal high-output construction. Use spacer and lock nut if needed.

Technical Support

Autotech’s technical team is available for direct support — don’t rely on social media advice. Contact us for fast, expert help via phone, email, or chat.

FAQ

Q: Do I need to upgrade my “Big 3” or “Big 4” wiring?
A: Yes, upgrading your wiring ensures maximum voltage and prevents resistance or heat buildup under load.

Q: My alternator isn’t charging—what should I check?
A: 90% of the time, loose belt tension or poor grounding is the issue. Double-check both first.

Q: Can I bypass my PCM/ECU voltage control?
A: Yes, we offer voltage bypass harnesses or custom regulator settings. Contact us before purchase.

Q: Is this alternator safe for lithium or AGM batteries?
A: Absolutely. The 400A alternator is compatible with both battery types, as long as voltage range matches manufacturer specs.
