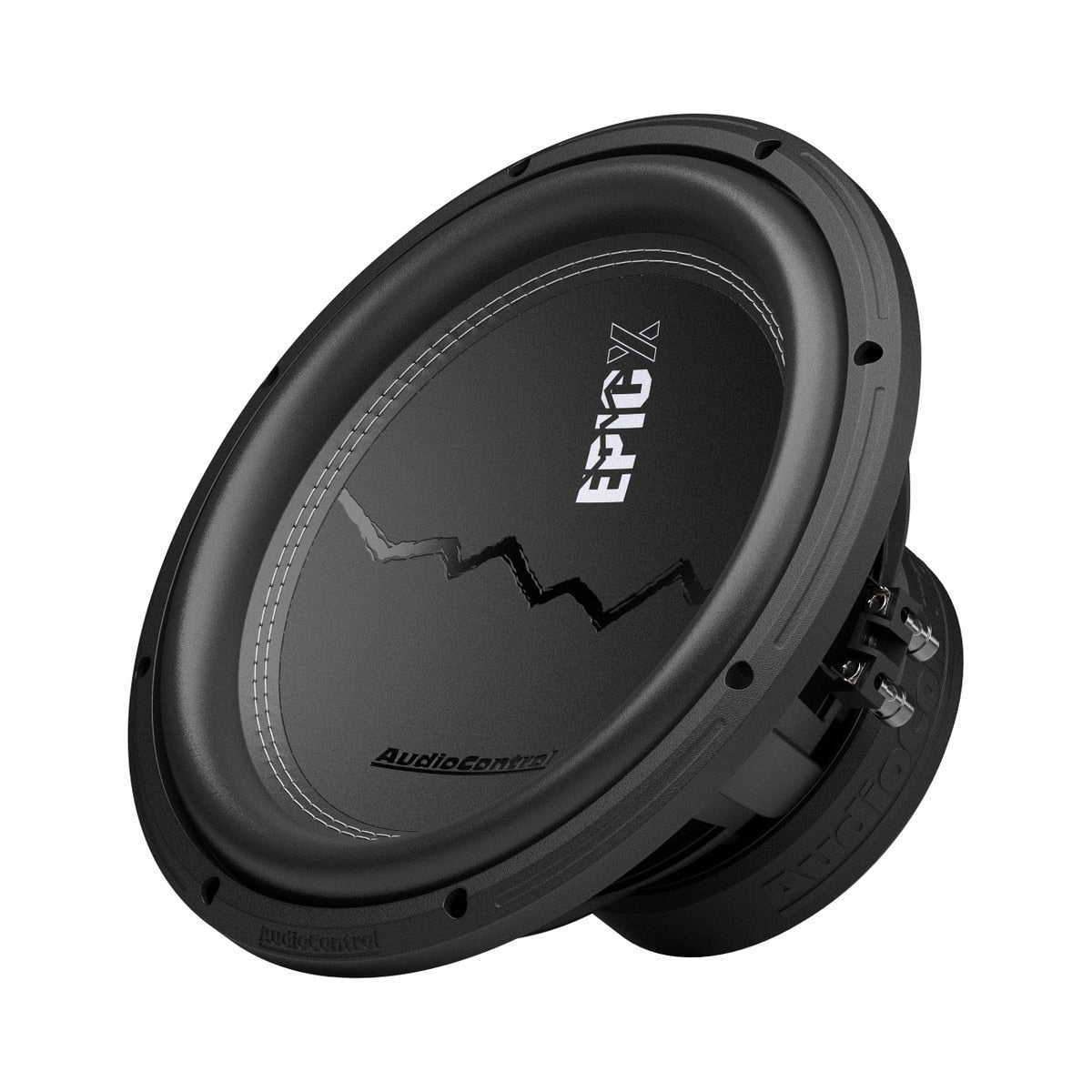

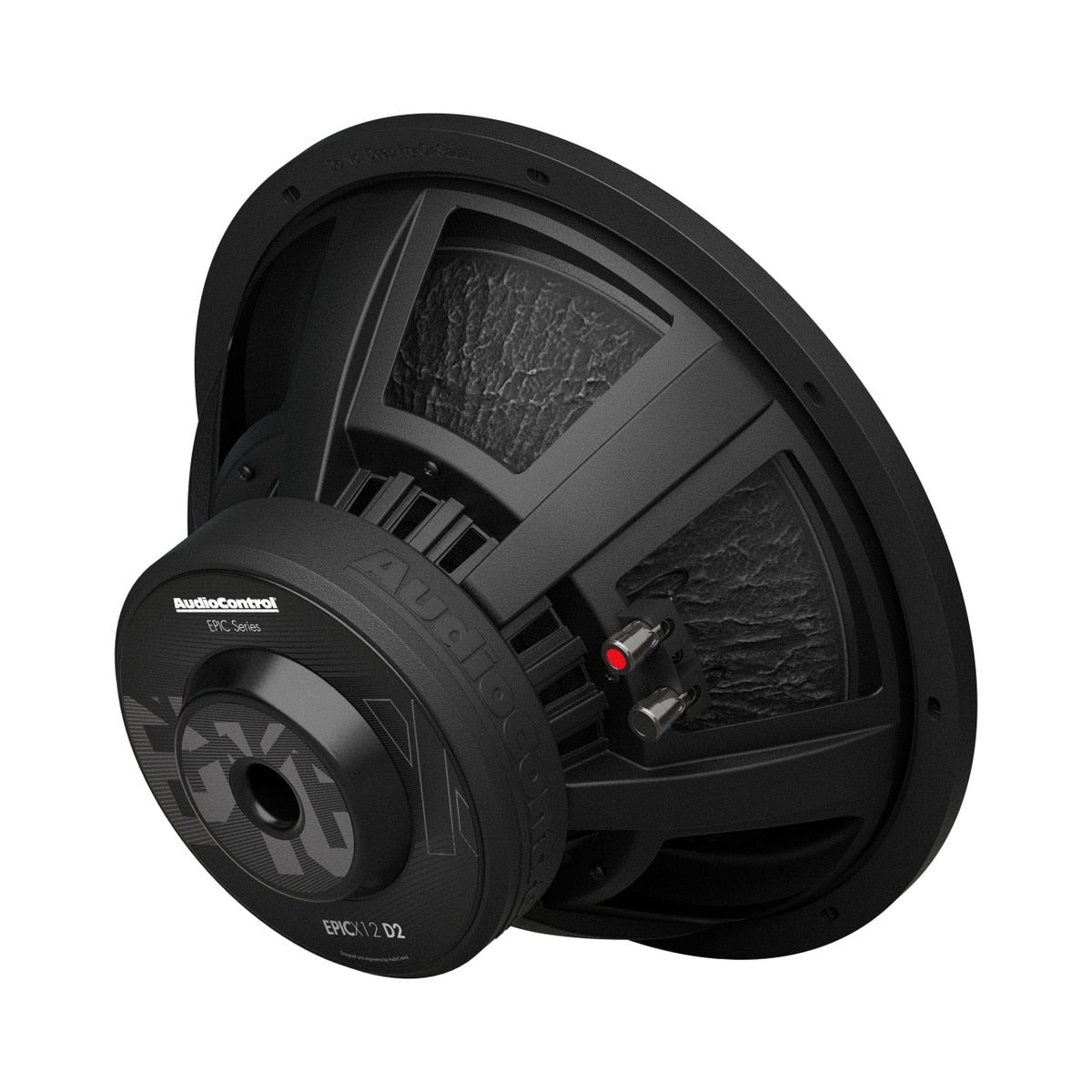

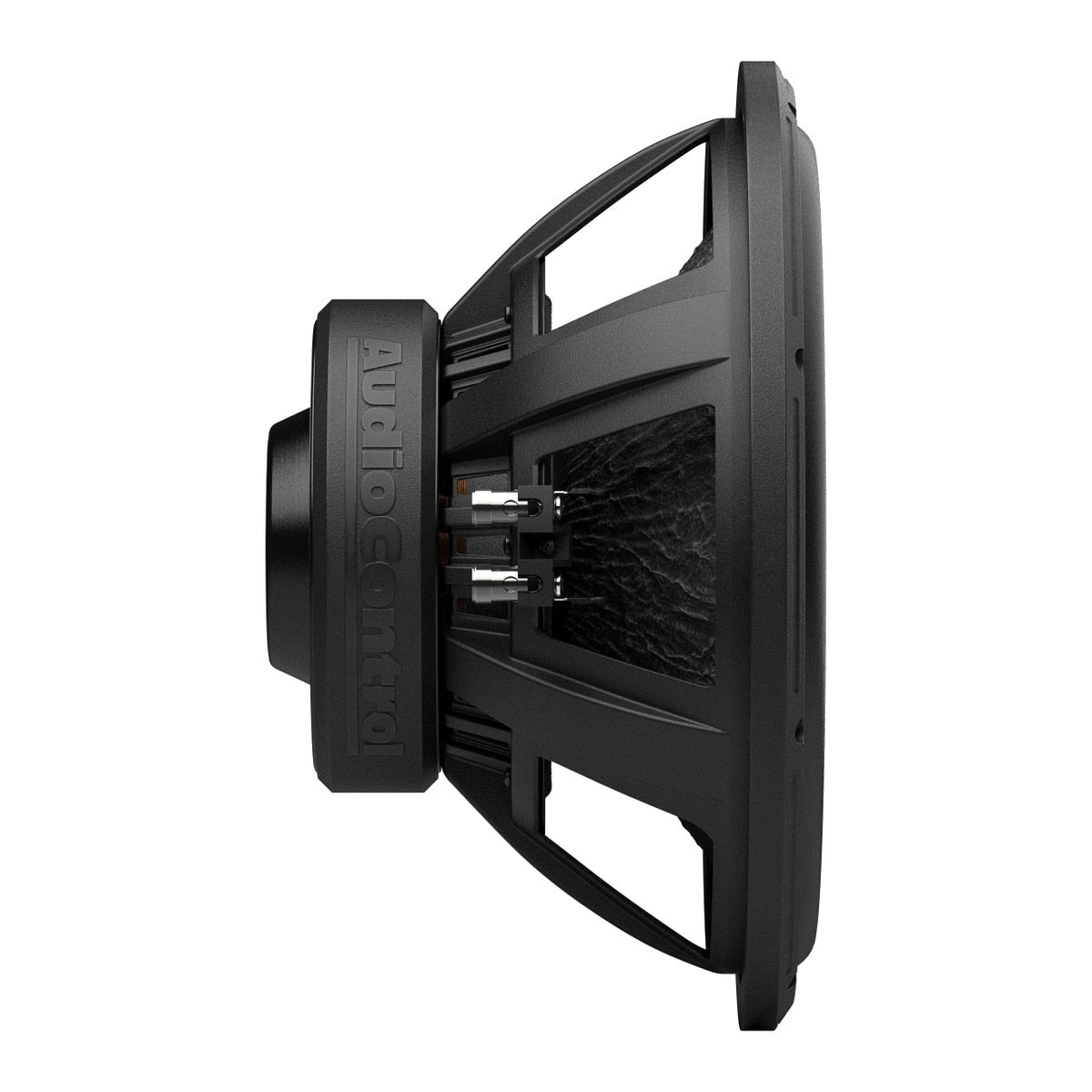

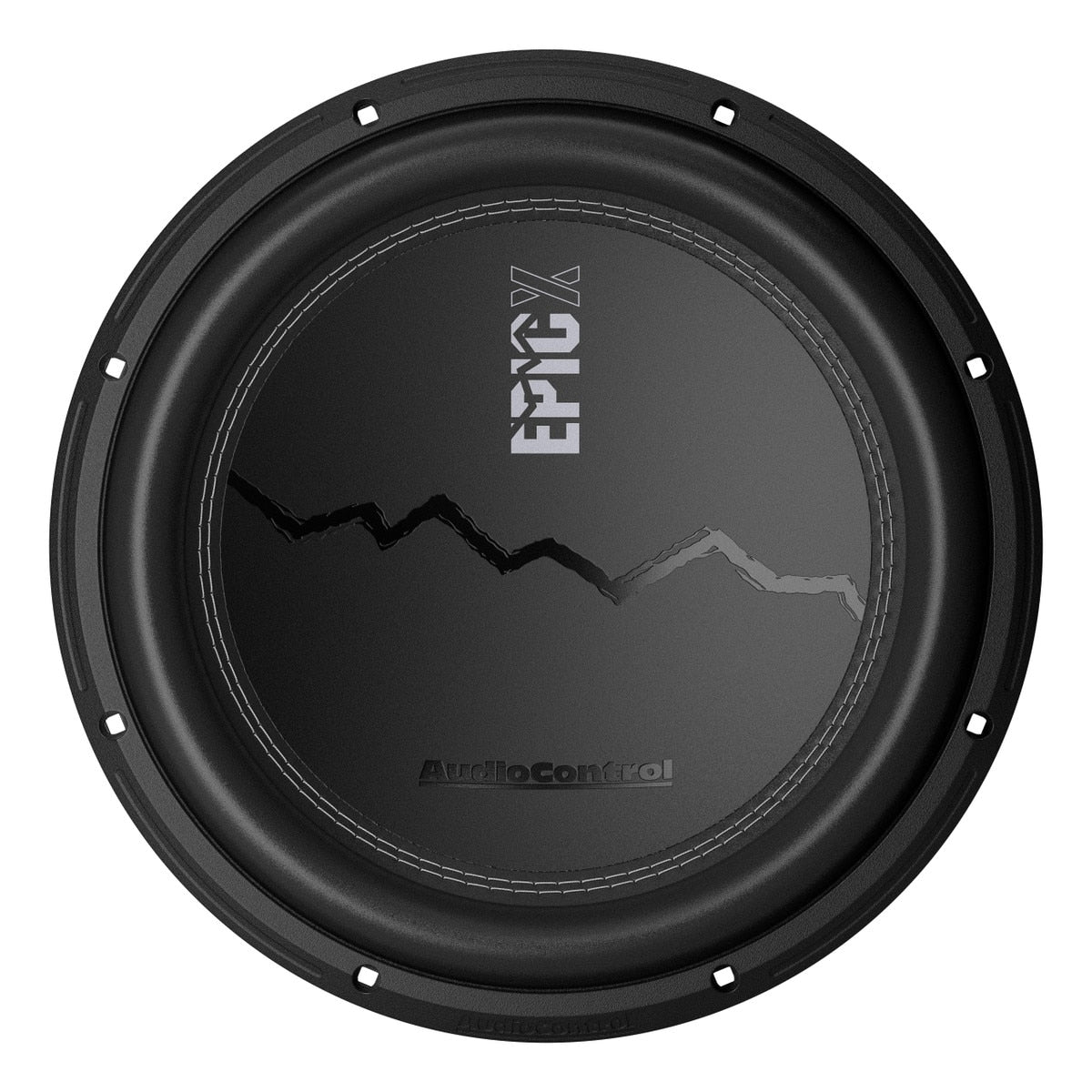

AudioControl EPICX12D2 EPICX Series Car Audio 12" Subwoofer, 500 Watt RMS/750 Watt Max, 2-Ohm, Dual Voice Coil (DVC)
AudioControl EPICX12D2 EPICX Series Car Audio 12" Subwoofer, 500 Watt RMS/750 Watt Max, 2-Ohm, Dual Voice Coil (DVC)
Couldn't load pickup availability
Hit harder with the AudioControl EPICX12D2, a 12-inch dual 2-ohm subwoofer handling 500W RMS (750W peak).
At a glance
- Power: 500W RMS (750W peak)
- Size: 12"
- Impedance: Dual 2 ohm
Details
The AudioControl EPICX12D2 isn’t just a subwoofer, it’s a statement piece for your car audio system. Engineered for deep, clean bass and built with precision, it delivers the kind of sound that transforms your drive into a concert on wheels. With its dual voice coil design and rugged construction, it offers both flexibility and durability, making it the perfect upgrade for anyone serious about sound. Whether you're cruising or competing, this subwoofer brings the power and clarity your music deserves.
Features:
- Composite Foam Surround for Smooth, Controlled Bass
- High-Precision Motor Assembly Improves Efficiency and
Output - Rigid Steel Basket for Strength and Reduced Resonance
- High-Temperature, Lightweight Voice Coil
- One-Piece Dust Cap Design
- Non-Pressed Paper Cone for Added Warmth and Depth
- Large-Gauge, Quick-Release Black Nickel Terminals
- Pair with The EPICENTER® for Unmatched Bass
Specifications:
Model: EPICX12D2
Size: 12 inches
Voice Coil: Dual Voice Coil (DVC)
Impedance: 2 Ohm
Power Handling: RMS: 500 Watts Peak: 750 Watts
| Specification | Details |
|---|---|
| Product Name | AudioControl EPICX12D2 12″ Subwoofer – EPICX Series |
| UPC | 810194210037 |
| Model | EPICX12D2 (Dual Voice Coil, 2 Ω) |
| Series | EPICX 12″ DVC Subwoofer (also available as D4) |
| Power Handling | 500 W RMS / 750 W Peak |
| Speaker Size | 12 in / 300 mm |
| Impedance | Dual Voice Coil – 2 Ω (or 4 Ω variant) |
| Voice Coil Diameter | 2.38 in |
| Resonance Frequency (Fs) | 30.1 Hz |
| Efficiency (Sensitivity) | 86.6 dB @ 1 W/1 m |
| Magnet Dimensions | 6.14 × 2.95 × 0.98 in (156 × 75 × 25 mm) |
| Construction | - Composite foam surround - Non-pressed paper cone - One-piece dust cap - Rigid steel basket - High-precision motor w/ radial cooling - Quick-release black nickel terminals |
| Dimensions | - Overall Diameter: 12.4 in / 316 mm - Cut-out: 11.06 in / 281 mm - Mounting Depth: 6 in / 153.8 mm - Mounting Height: 1 in / 24 mm - Motor Dia (w/ cover): 6.4 in / 162 mm |
| Enclosure Recommendations | - Sealed (ideal): 1.25 ft³ (19 × 14.5 × 11 in) - Ported: 2 ft³ internal, 2.83 ft³ ext., tuned to 33 Hz (23.75 × 16.5 × 12.5 in, port 1.2 × 15 in, 22.5 in² area) |
| Included in Box | (1) EPICX12D2 Subwoofer and User Guide |
| Country of Manufacture | USA-designed & built |
SKU: AC-EPICX12D2
UPC: 810194210037
