AudioControl

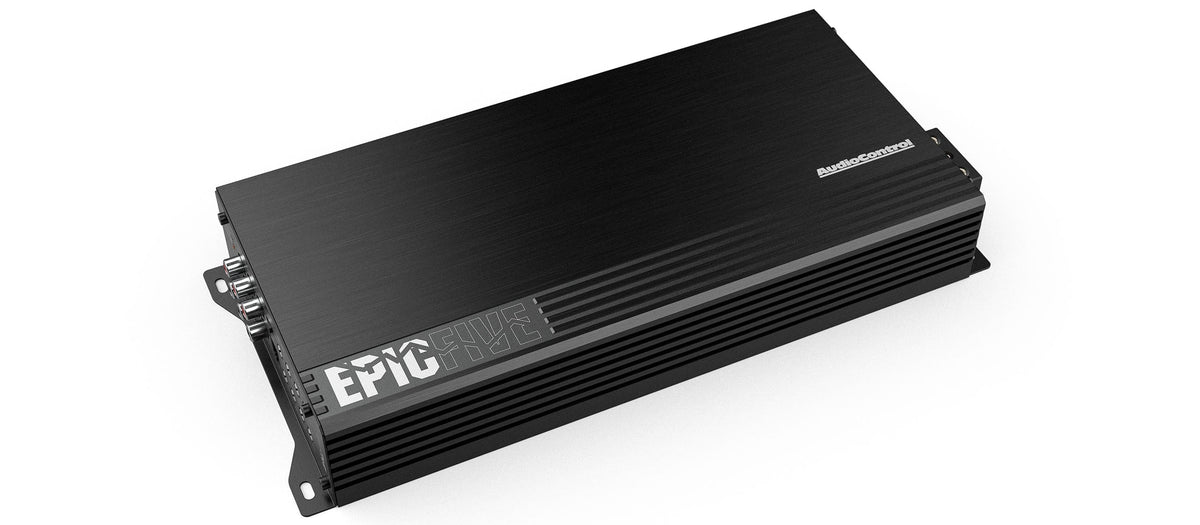

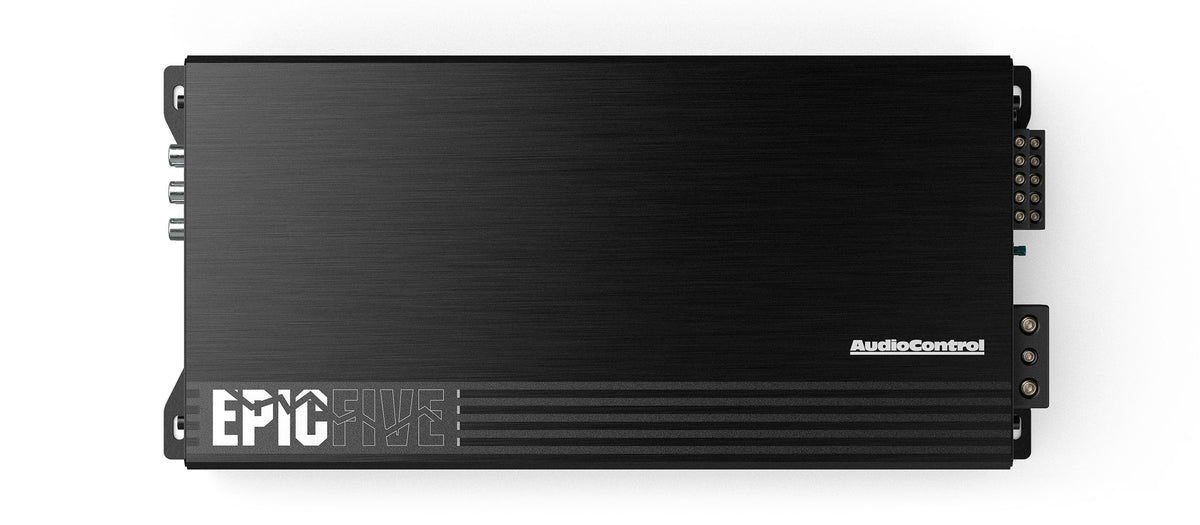

AudioControl EPIC Series 5-Channel 1000 Watt Amplifier EPICFIVE
AudioControl EPIC Series 5-Channel 1000 Watt Amplifier EPICFIVE
Couldn't load pickup availability
The AudioControl Epic Series 5-Channel is a 5-channel Class D amp built to drive your speakers or subs with clean, steady power.
At a glance
- Channels: 5
- Class D
Details
Designed for complete system control, the AudioControl EPIC Series 5-Channel Amplifier brings together clarity, power, and flexibility in a single chassis. The audio control epic 5 is built for users who want to drive their entire setup—front speakers, rear speakers, and subwoofer without compromising space or performance.
With its high-current Class D architecture, the audiocontrol epicfive delivers efficient power distribution while maintaining thermal stability, even during extended listening sessions. Whether you're upgrading a factory system or building a custom install, this epic five amp ensures consistent output across all channels.
The addition of a dedicated bass control knob makes the epic 5 channel amp stand out, giving you real-time command over low-frequency response directly from the driver’s seat.
AudioControl EPICFIVE Features
- All-in-one 5-channel amplifier for complete system integration
- High-current Class D design for efficient, stable performance
- Built-in crossovers for precise tuning of mids, highs, and sub frequencies
- Variable subsonic filter to protect low-frequency drivers
- Smart auto-reset protection against voltage, thermal, and short-circuit issues
- Included ACR-E remote for convenient bass level adjustment
- Engineered to pair seamlessly with The Epicenter processor
- Durable terminals with hex screw connections for secure installation
Performance & Power Output
RMS Power Ratings
| Configuration | Output |
|---|---|
| @ 4 Ohms | 4 × 75W + 1 × 300W |
| @ 2 Ohms | 4 × 150W + 1 × 500W |
| @ 1 Ohm | 1 × 700W (Sub) |
| Bridged @ 4 Ohms | 2 × 300W |

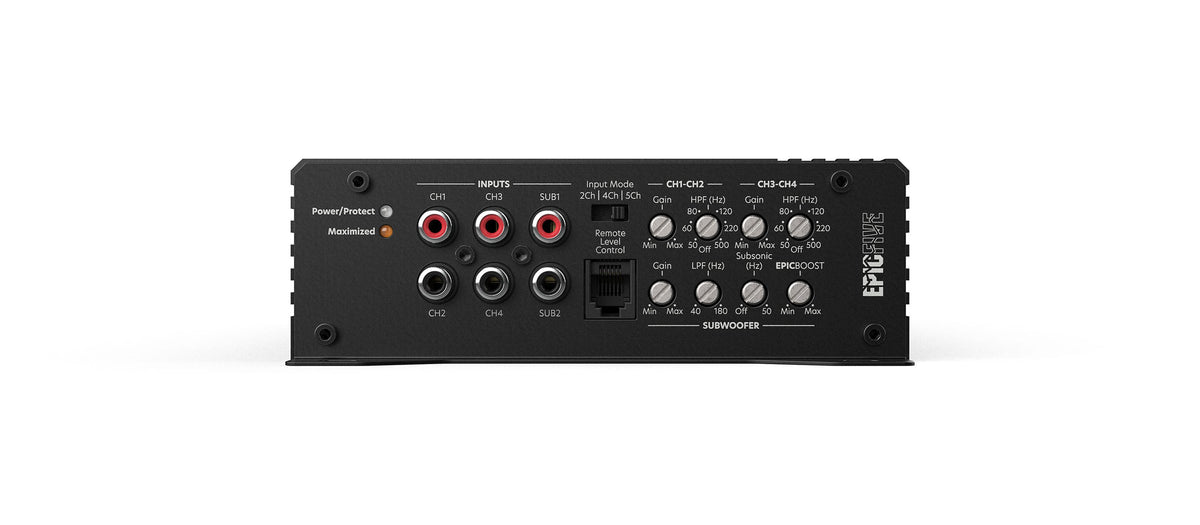

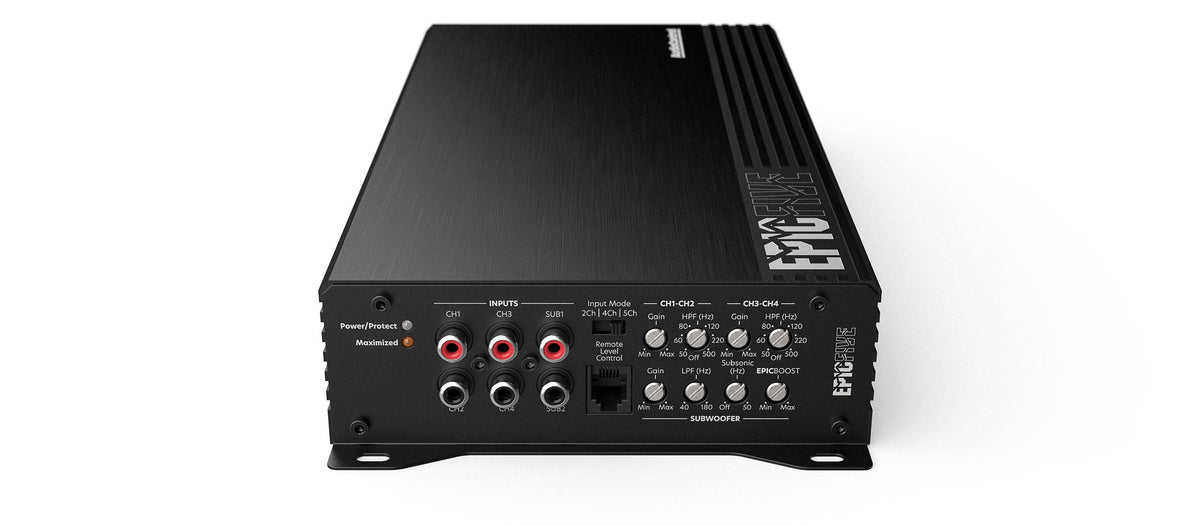

Audio Tuning & Signal Control
| Feature | Details |
|---|---|
| Frequency Response | Ch 1–4: 10Hz–24kHz / Sub: 12Hz–181Hz |
| High-Pass Filter | 50–500Hz (Channels 1–4) |
| Low-Pass Filter | 40–180Hz (Sub channel) |
| Subsonic Filter | Off–50Hz |
| Bass Boost | 0–12dB |

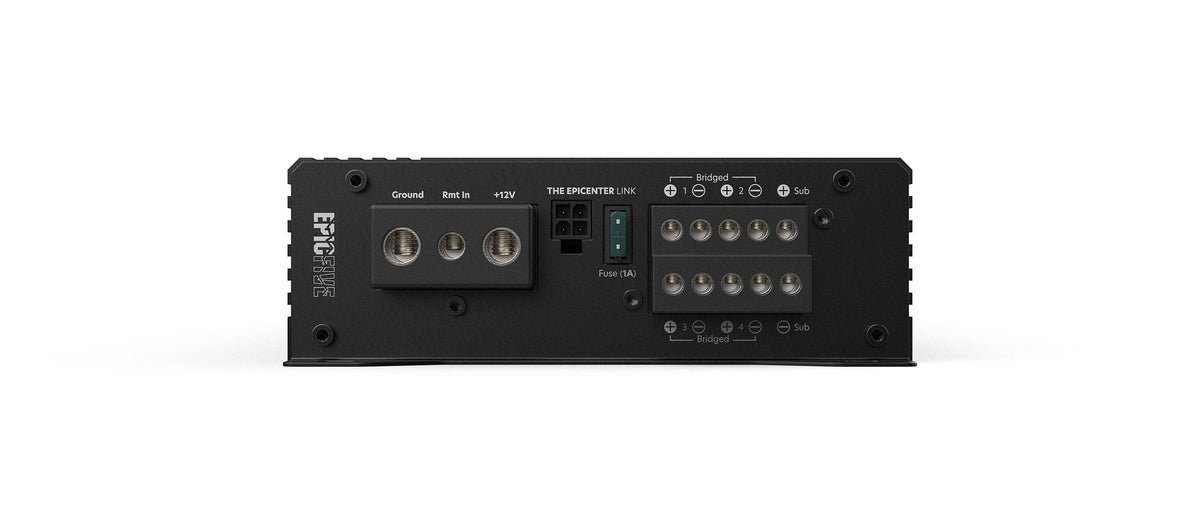

Build & System Integration
| Specification | Details |
|---|---|
| Signal-to-Noise Ratio | ~92 dBA |
| Power Input | 4 AWG |
| Speaker Output | 8 AWG |
| Fuse Requirement | 150A |
| Dimensions | 6.1″ × 13.35″ × 2.01″ |
| Weight | ~6.1 lbs |
| Model | AC-EPICFIVE |
What’s Included
- EPICFIVE amplifier unit
- ACR-E remote level control with cable
- Installation hardware (screws & wrench)
- Epicenter link harness (1 meter)
- User manual
Why Choose AudioControl EPIC 5 Channel Amp?
The audiocontrol 5 channel amp simplifies system design by eliminating the need for multiple amplifiers while still delivering dedicated power to each speaker group. Its tuning flexibility, combined with reliable protection circuitry, makes it ideal for both daily drivers and performance-focused builds.
If you're aiming for a clean install with strong output and precise control, the audio control epic five provides a balanced solution that supports both sound quality and bass performance in one streamlined package.
SKU: AC-EPICFIVE
UPC: 850038647803
