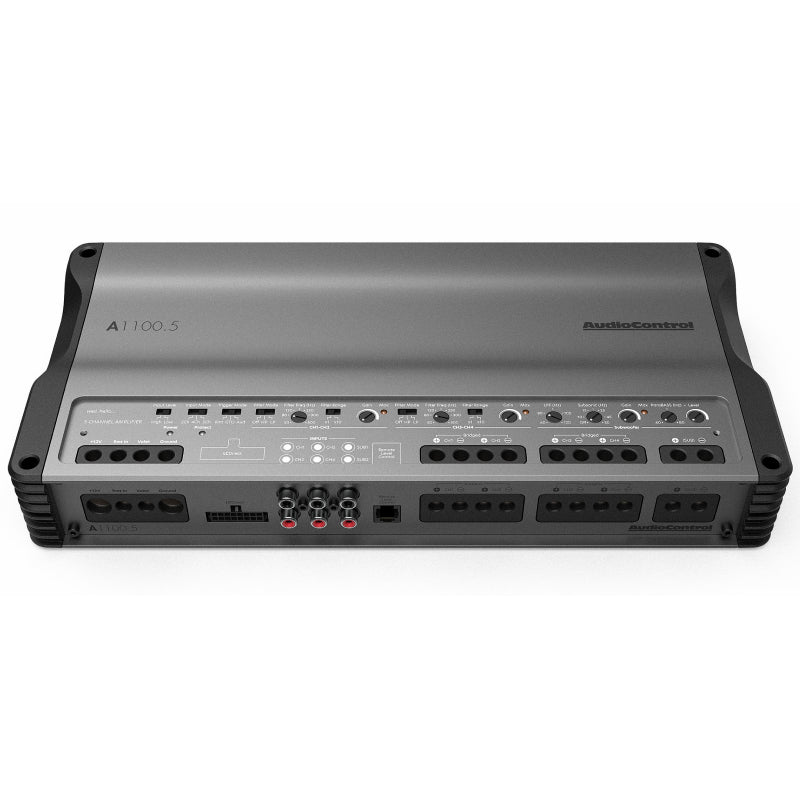

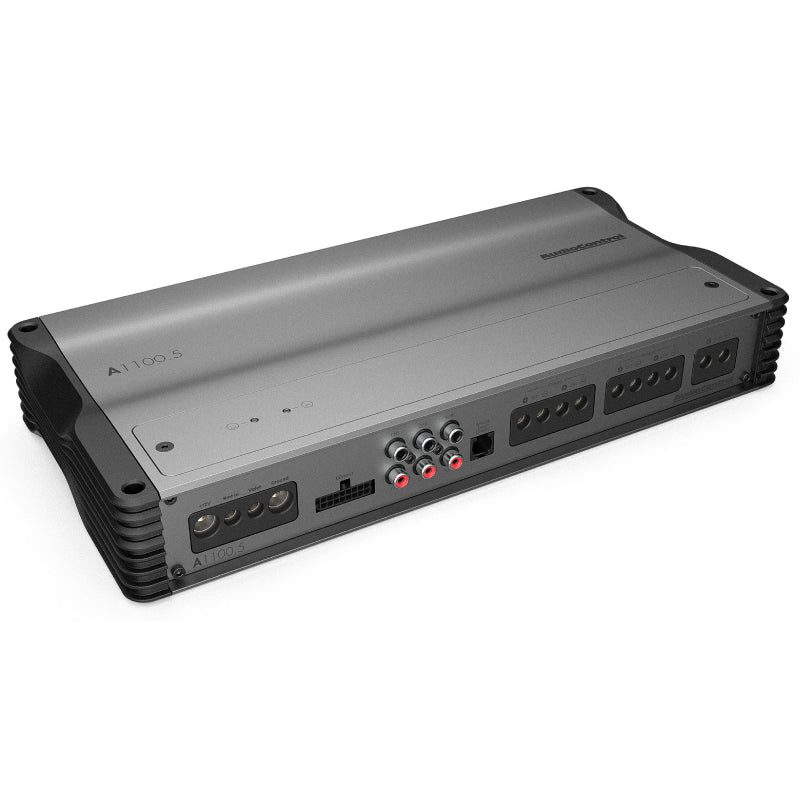

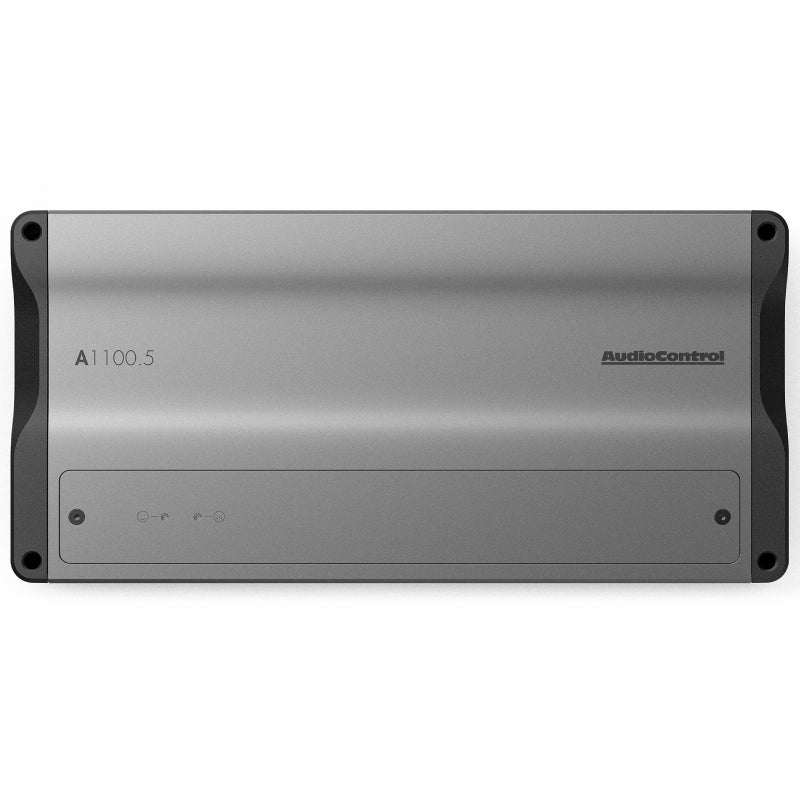

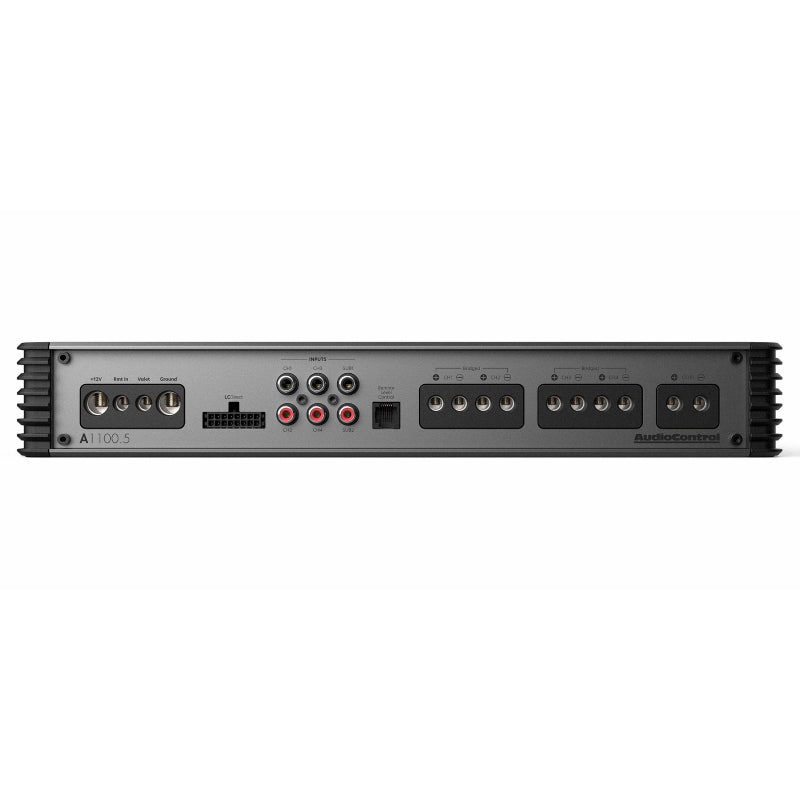

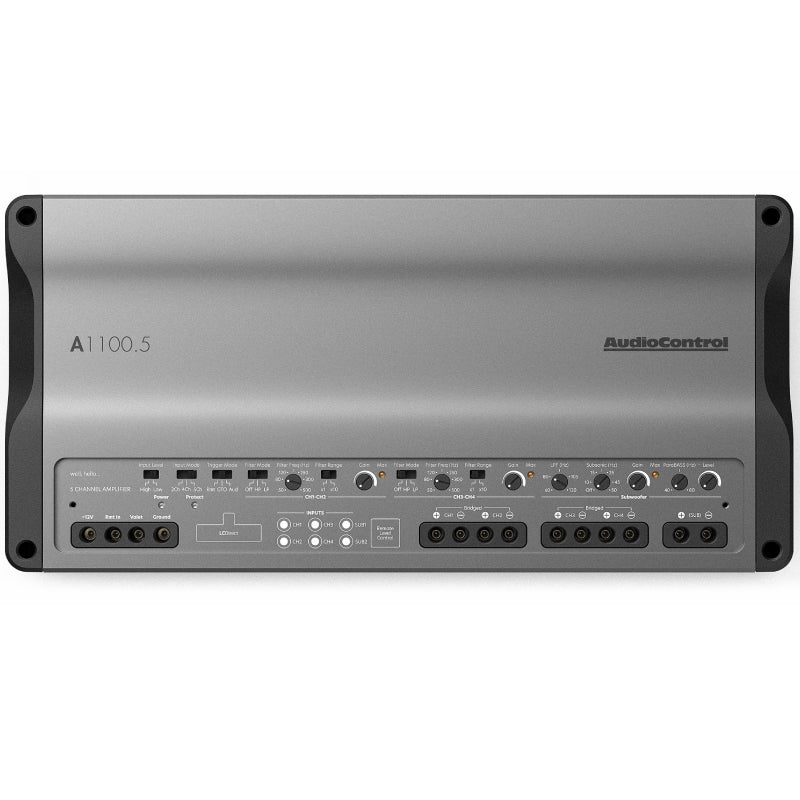

AudioControl A1100.5 - Altitude Series 600W Max Power, 5-Channel Amplifier, Class-D
AudioControl A1100.5 - Altitude Series 600W Max Power, 5-Channel Amplifier, Class-D
Couldn't load pickup availability
Looking for more volume without distortion? The AudioControl A1100.5 5-channel amplifier puts out 600W peak.
At a glance
- Power: 600W peak
- Channels: 5
- Class D
Details
Enhance your audio experience with AudioControl’s Altitude Amplifier Series, meticulously crafted with a sleek, modern design and minimalist style. The anodized matte grey aluminum chassis ensures excellent thermal dissipation while delivering robust power and outstanding sound quality. These amplifiers include Valet Mode, which protects your system by capping the volume at 25% when activated, and they are compatible with start-stop systems and electric vehicles, guaranteeing superior performance in any setting. For the ultimate sound experience, pair the Altitude amplifiers with AudioControl’s PNW speakers and Space or Spike subwoofers, creating a dynamic audio environment. The power supply utilizes advanced pulse width modulator integrated circuits for enhanced performance and efficiency, along with HEXFET® Power MOSFETs from International Rectifier for low on-resistance and quick switching. The design incorporates a premium toroidal transformer for optimal electrical efficiency, low ESR capacitors to minimize power loss, and precision metal potentiometers for accurate tuning. Additionally, 500V Class X2 capacitors provide high-frequency, high-current protection, while high-efficiency Ferrite Core Inductor filters reduce eddy current losses, all driven by a high-performance Class D intelligent driver IC for abundant power and efficiency.
Features:
- Maximum Power : 600 Watts
- Number of Channels : 5
- Frequency Response : 50-5000 Hz
- Built In Crossovers : Yes
- Channel Separation : Yes
- Amplifier Class : D
- Fuse Rating : 120 A
- High/Low Input Modes
- GTO™ Signal Sense
- Linkwitz-Riley Crossovers
- Start-Stop Compliant
- High Power Output in a Sleek Chassis
- ParaBASS® Low Frequency Contouring
- Valet Mode Option
- Optional Remote Level Control (ACR-1)
- EV Compliant up to 17V
What's in the Box: A1100.5 5-Channel Amplifier, Owner's manual
Specifications:
Preamp Inputs: 6
Line-Level Inputs: 6 V max
Speaker-Level Inputs: 20 V max
Outputs Rated Continuous (RMS) Power at 14.4V:
90W x 4 @ 4Ω
400W x1 @ 4Ω
125W x 4 @ 2Ω
600W x 1 @ 2Ω
Remote Level Control ACR-1 (optional, but not included)
Performance:
S/N Ratio (ref: rated power): 95.1 dBA channels 1-4, 103.9 dBA channel 5
THD+N: <0.25% & <0.75%
Power / Ground Wire Gauge: 4 AWG
Recommended Fuse rating: 120A
Valet Mode: Yes
Subsonic Filter: Variable
Linkwitz-Riley X-Over: Off
High Pass
Low Pass
Freq. Range: 50Hz -5K Hz
Bass Processing: ParaBASS®
Weights & Dimensions:
Dimensions: 14” W x 6.7” D x 2.1 H
Weight: 7.95 lbs
| Specification | Details |
|---|---|
| Model | A1100.5 Altitude Series (5‑Channel) |
| Amplifier Class | Class D |
| Channels | 5 |
| Power Output (RMS) | 90 W × 4 @ 4 Ω125 W × 4 @ 2 Ω400 W × 1 (sub) @ 4 Ω600 W × 1 @ 2 Ω |
| Frequency Response | 50 Hz – 5 kHz |
| S/N Ratio | ≥95 dBA (ch 1–4), ≥103.9 dBA (ch 5) |
| THD+N | < 0.25% (ch 1–4), < 0.75% (ch 5) |
| Crossovers | Linkwitz‑Riley HPF/LPF, variable subsonic filter |
| ParaBASS® Processing | Yes – low-frequency contouring |
| Valet Mode | Yes – limits volume to 25% |
| EV/Start‑Stop Compatible | Yes |
| Input Options | 6 × RCA, 6 V max; speaker-level up to 20 V |
| Wire Gauges | Power/ground: 4 AWG |
| Fuse Rating | 120 A |
| Dimensions (W×D×H) | 14″ × 6.7″ × 2.1″ (≈356 × 170 × 53 mm) |
| Weight | 7.95 lb (≈3.6 kg) |
SKU: AC-A1100.5
UPC: 850038647711
