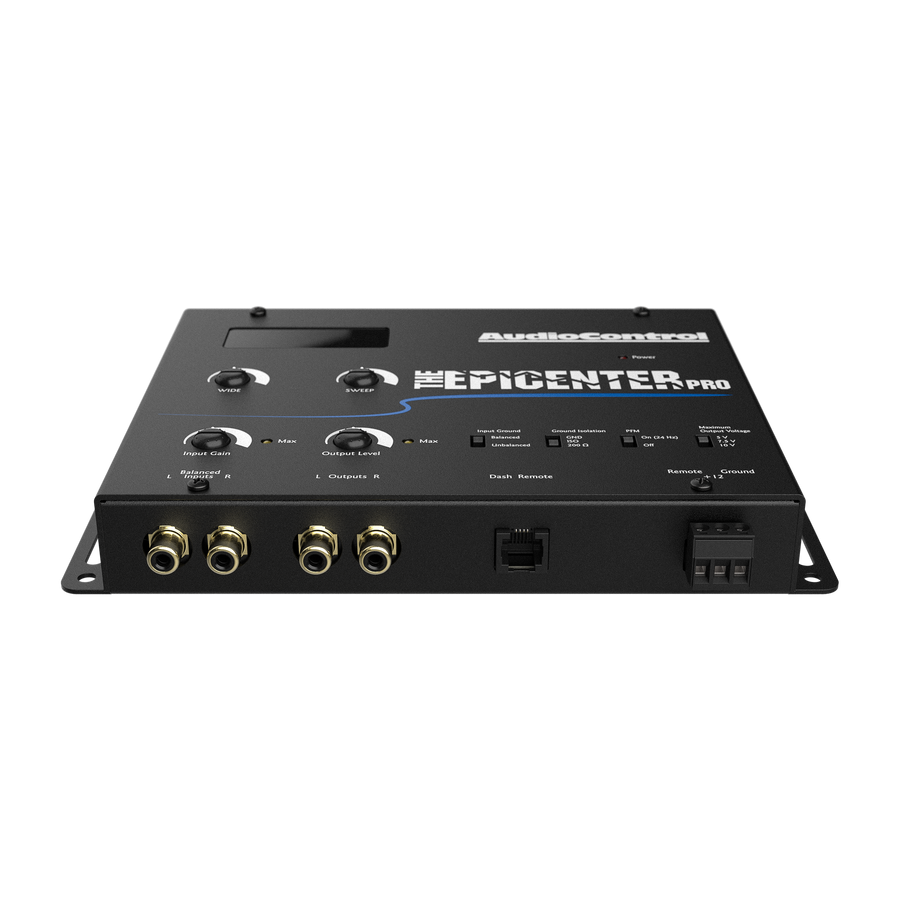

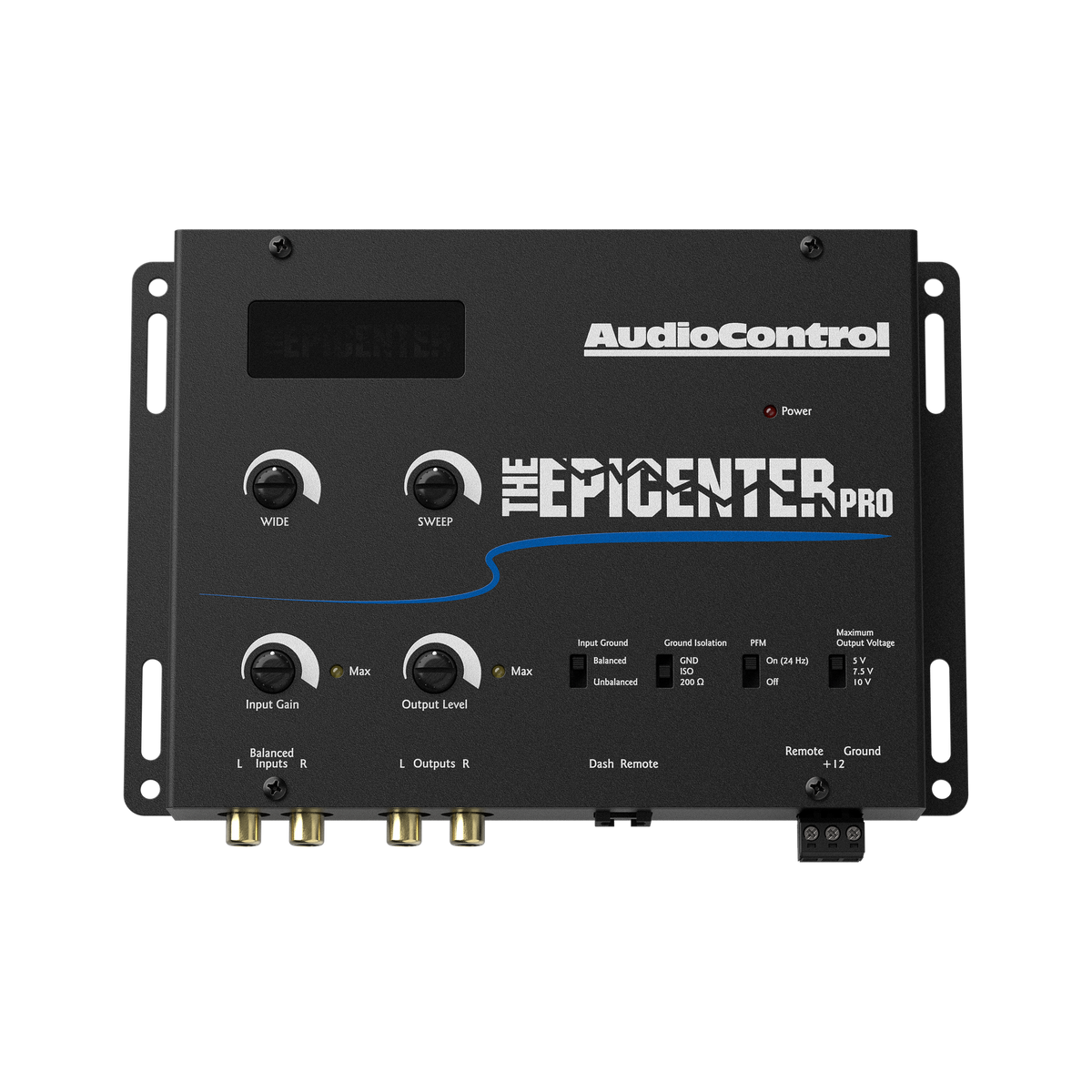

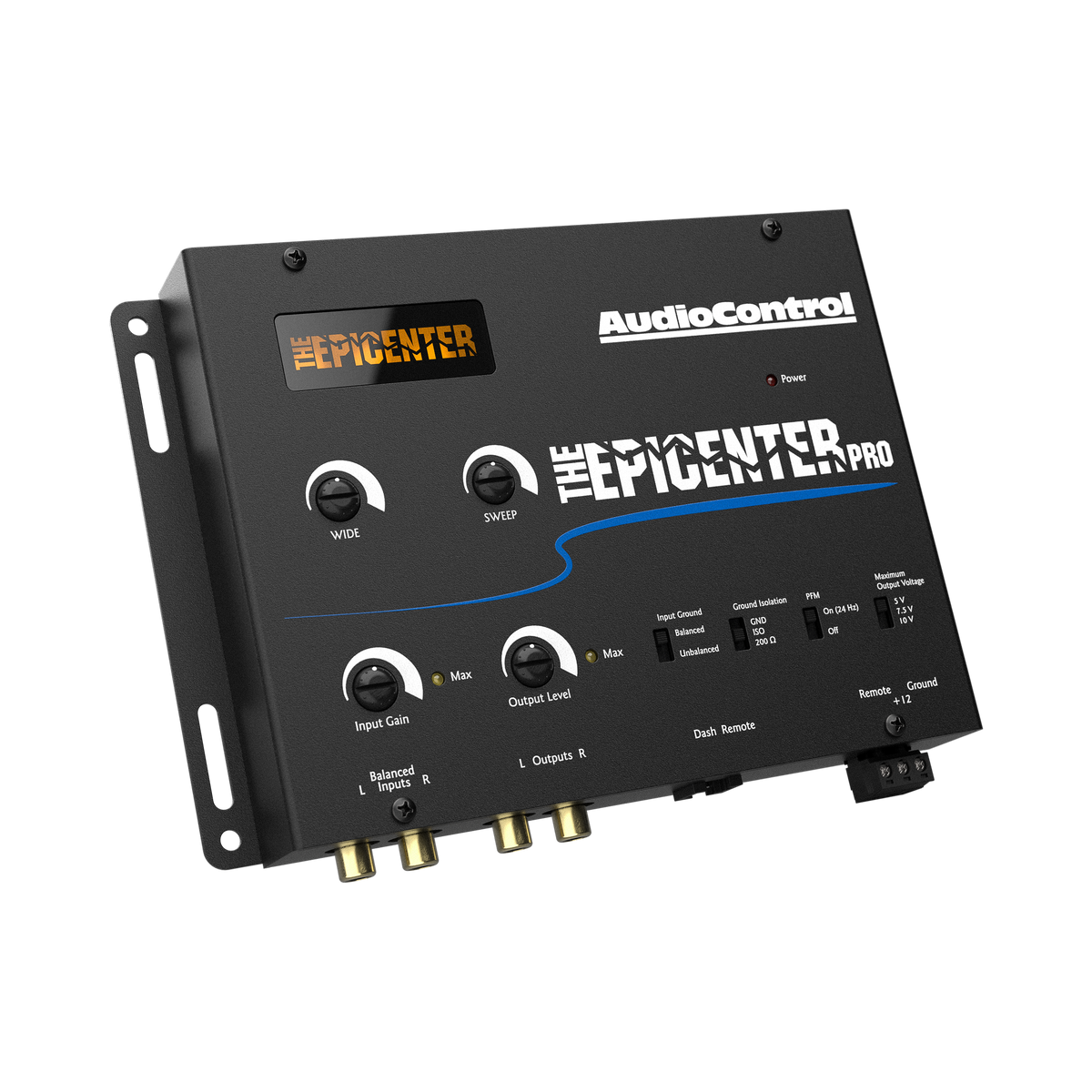

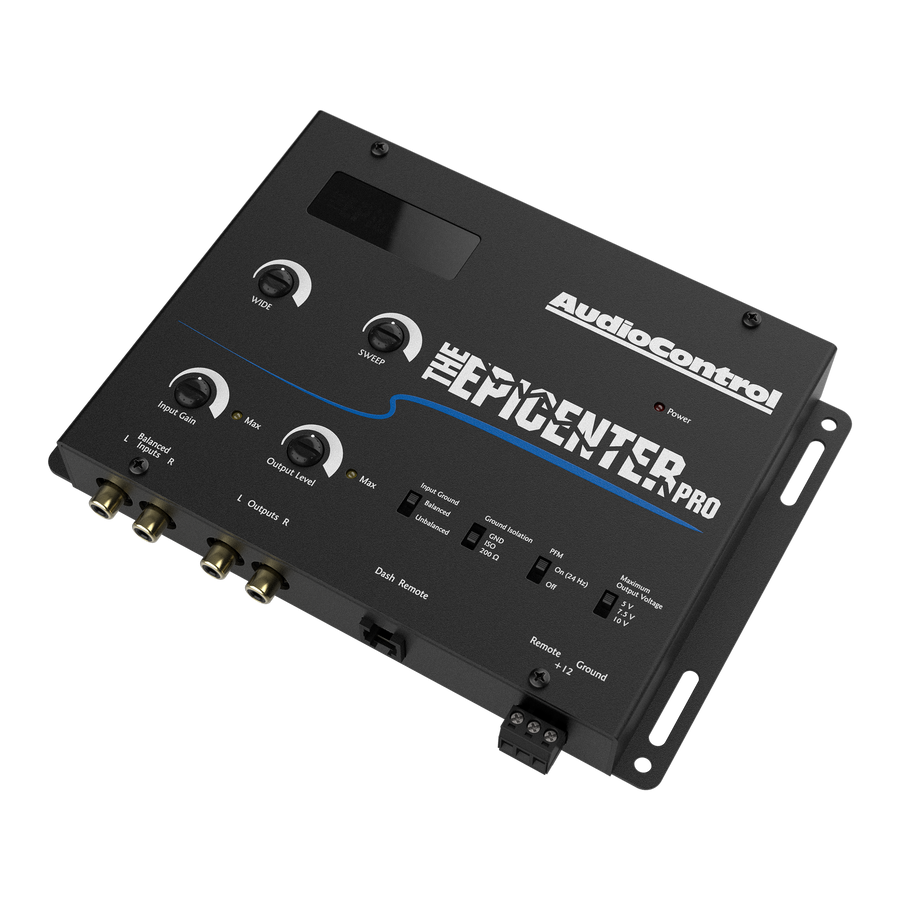

AudioControl The Epicenter Pro – Bass Restoration Processor & High-Voltage Line Driver
AudioControl The Epicenter Pro – Bass Restoration Processor & High-Voltage Line Driver
Couldn't load pickup availability
Get the most out of your system with the AudioControl The Epicenter Pro.
Details
Recover the depth your music is missing with AudioControl The EPICENTER PRO, a powerful signal processor designed to rebuild low frequencies that are often lost in compressed or factory audio systems. Unlike traditional bass boost devices, this epicenter pro intelligently analyzes incoming signals and restores harmonic content, resulting in deeper, more natural bass response.
In addition to bass restoration, the epicenter audio control pro features a high-voltage line driver that strengthens your signal before it reaches the amplifier. This ensures cleaner output, reduced noise, and improved overall system performance especially in high-power setups.
For enthusiasts seeking precision tuning and maximum signal clarity, the audiocontrol epicenter pro offers complete control over your low-end response.
Features of The EPICENTER PRO
- Advanced digital bass restoration technology for recovering lost low frequencies
- Integrated high-voltage line driver for stronger, cleaner signal output
- Adjustable output voltage for proper amplifier matching
- ParaBASS control system for tuning bass frequency, width, and level
- Built-in subsonic filter to protect subwoofers from harmful frequencies
- Balanced inputs for reduced interference and improved signal integrity
- LED status display for real-time bass restoration monitoring

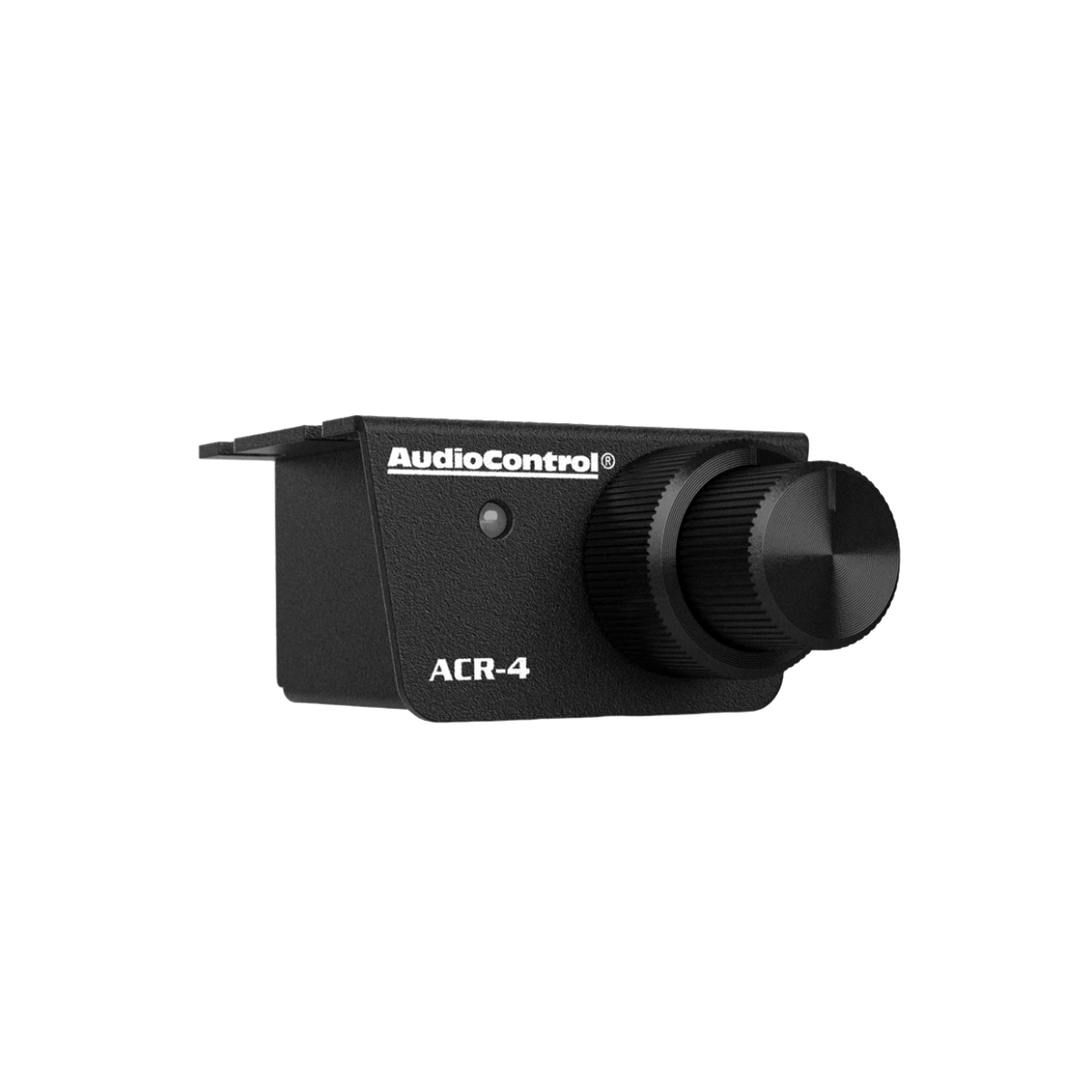

- Includes ACR-4 remote control for convenient bass adjustment from the dashboard
Technical Specifications
Inputs
| Specification | Details |
|---|---|
| Maximum Line Input | 10 Vrms |
| Input Impedance | 7kΩ |
Outputs
| Specification | Details |
|---|---|
| Maximum Output Level | 9 Vrms (13V peak) |
| Output Impedance | 150Ω |
Performance
| Specification | Details |
|---|---|
| Total Harmonic Distortion | 0.03% |
| Signal-to-Noise Ratio | >105 dB |
| Frequency Response | 10 Hz – 22 kHz (±1 dB) |
| PFM High-Pass Filter | 24 Hz or Bypass |
General
| Specification | Details |
|---|---|
| Power Supply | High Headroom PWM Switching |
| Current Draw | 300 mA |
| Recommended Fuse | 1A |
Dimensions & Weight
| Specification | Details |
|---|---|
| Dimensions | 8″ × 5.5″ × 1.2″ |
| Weight | 1.7 lbs |
| UPC | 810194210112 |

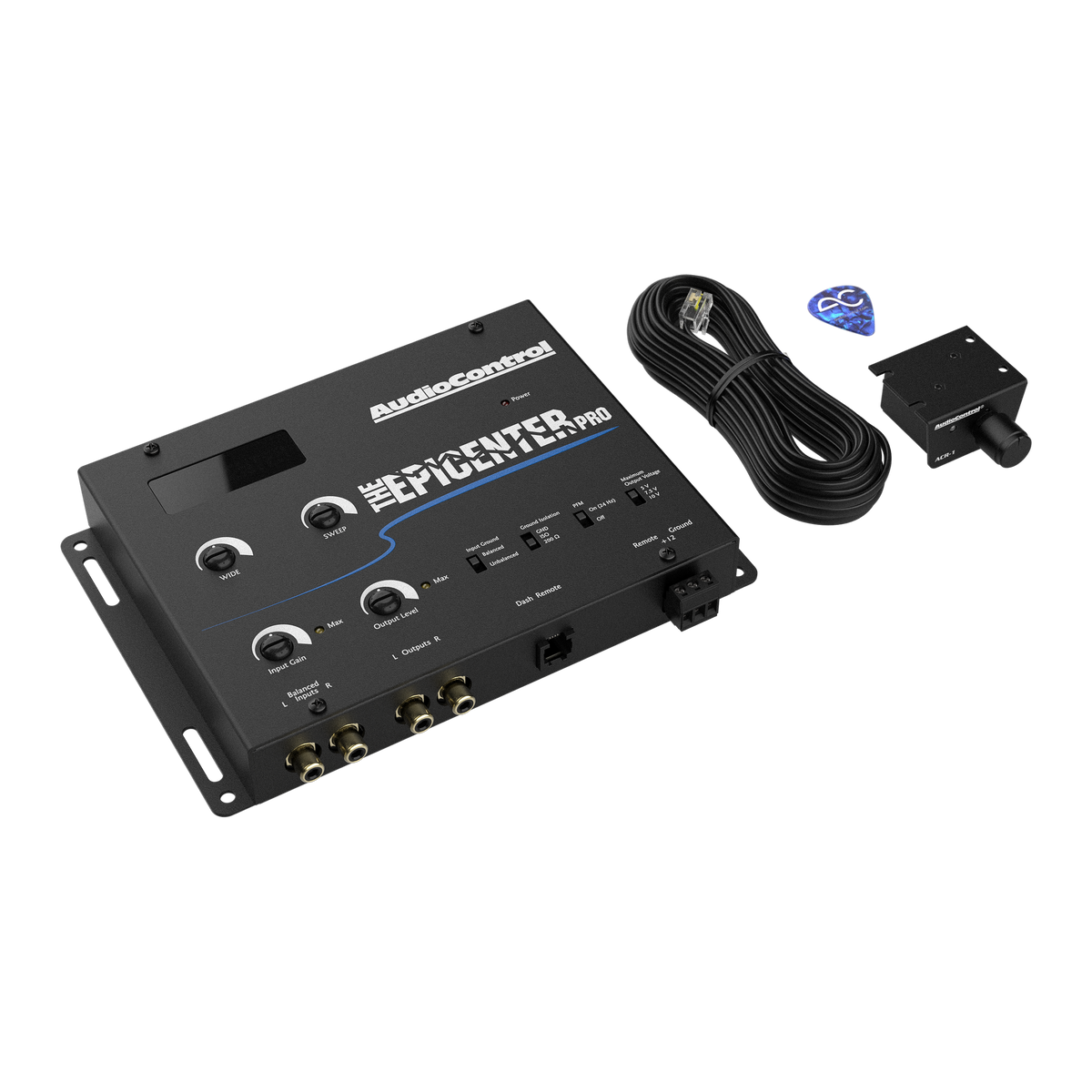

What’s Included in the Box
| Item | Details |
|---|---|
| Processor | The EPICENTER PRO |
| Remote | ACR-4 dash control |
| Cable | Remote connection cable |
| Documentation | User manual |
Why Choose The EPICENTER PRO Audio Control?
The audio epicenter has long been a trusted solution for restoring bass, and this PRO version takes it further with enhanced control and signal strength. Whether you're working with compressed music files or factory audio systems that lack depth, the AC-EPICENTERPRO rebuilds the missing low-end with precision.
For those who want more than just louder bass cleaner, deeper, and more accurate the the epicenter pro delivers a refined solution that elevates your entire audio system.
SKU: AC-EPICENTERPRO
UPC: 810194210112
