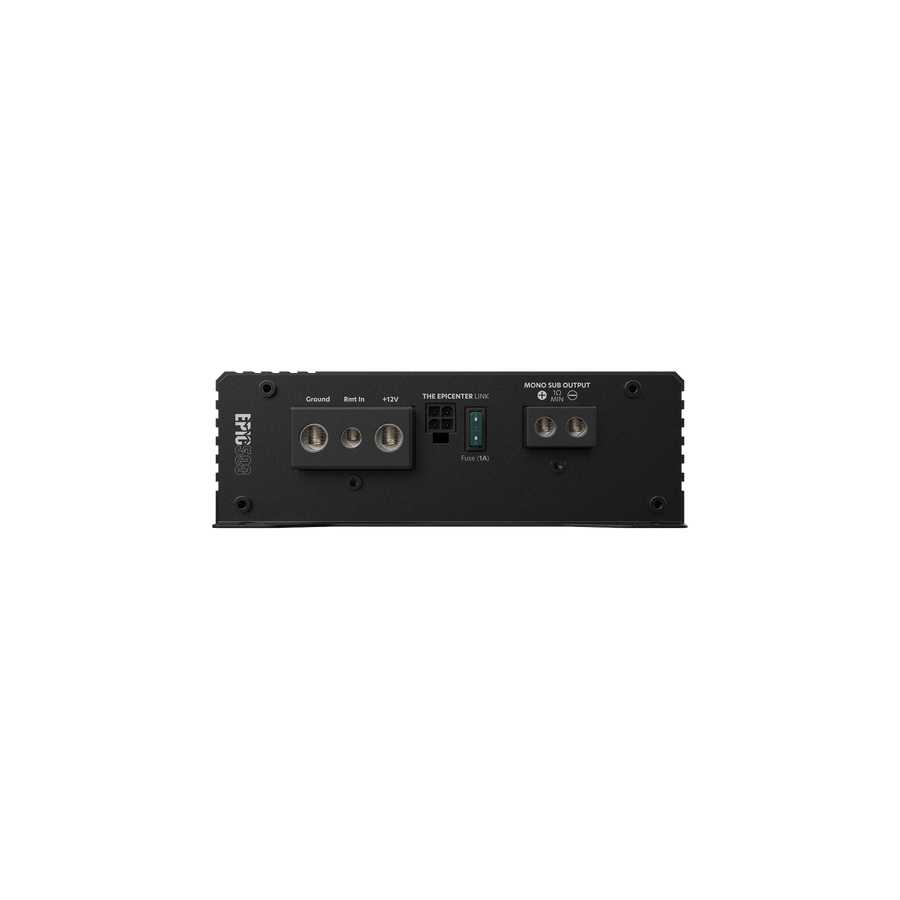

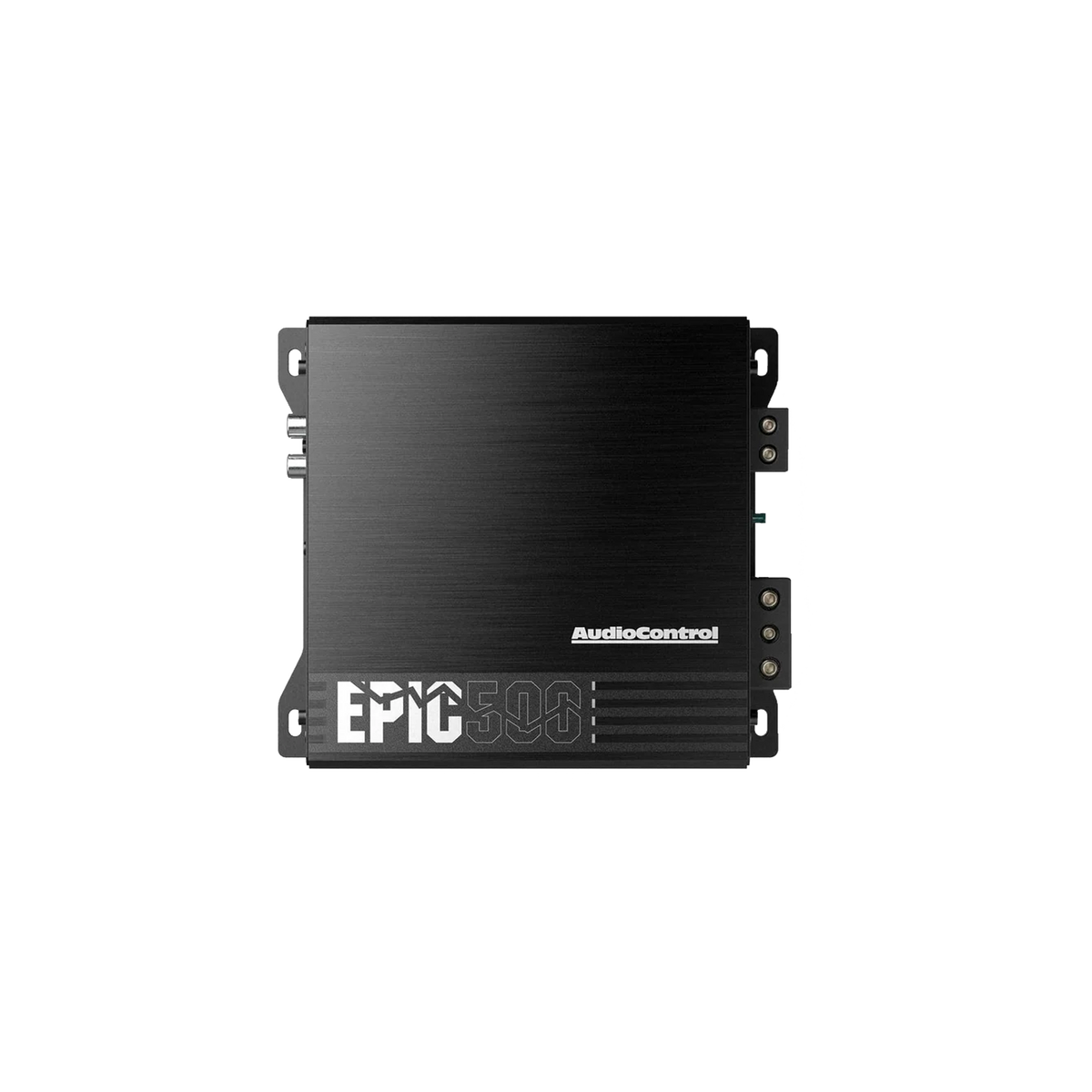

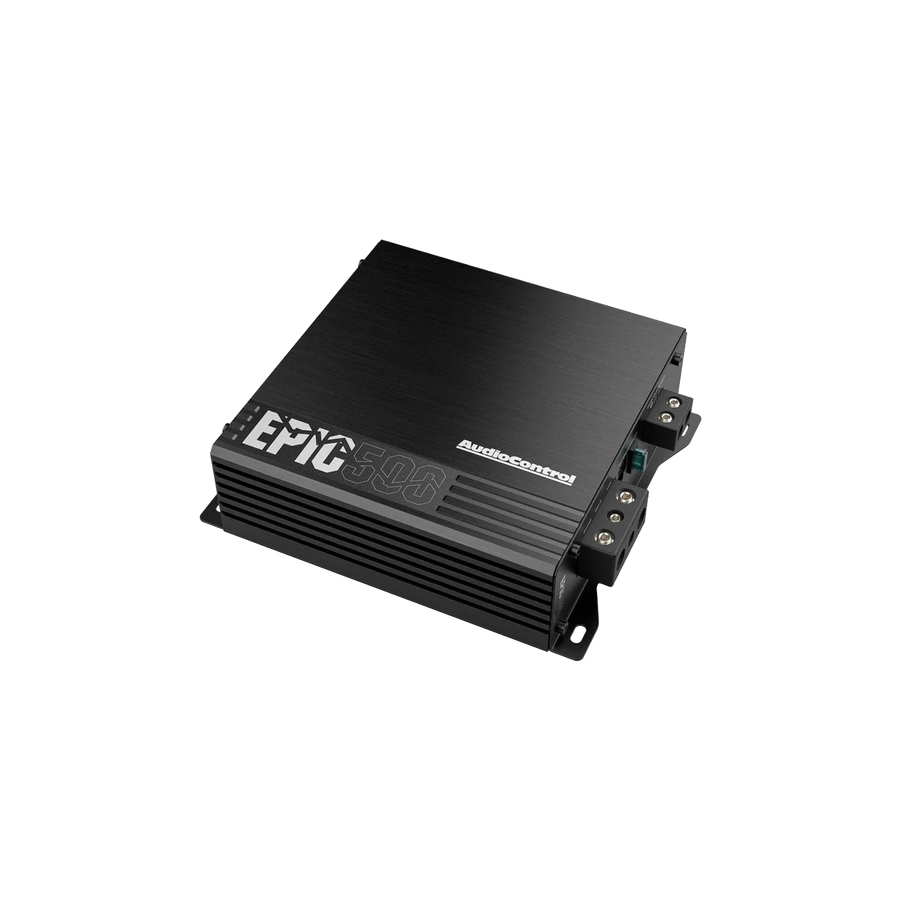

AudioControl EPIC500 EPIC Series Amplifiers Monoblock Amplifier, 500W RMS

Looking for more volume without distortion? The AudioControl EPIC500 mono amplifier puts out 500W RMS.

At a glance

• Power: 500W RMS
• Channels: Mono
• Class D

Details

AudioControl EPIC Series Amplifier delivers powerful bass in a compact Class-D design, stable at 1 Ohm. Includes a variable bass boost, heavy-duty terminals, smart protection circuits, and seamless integration with The Epicenter Bass Restoration Processor.

Features:

• Compact Class D Monoblock Amp – High-power performance in a small footprint.
• 1Ω Stable Design – Handles demanding loads with ease.
• Auto-Reset Protection – Smart circuit for overload safety.
• Variable Filters – 12 dB/octave low-pass & subsonic filters for precise tuning.
• EPICBoost™ Bass – Adjustable frequency boost for deeper lows.
• Remote Level Control – ACR-E knob included for easy bass adjustment.
• Heavy-Duty Terminals – Solid connections with hex screws.
• Optimized for THE EPICENTER® – Perfect pairing for bass restoration.

Specifications:

Inputs
Line-Level Inputs: 500mV – 12V RMS

Outputs (Continuous Power RMS @ 14.4V, <1% THD)
1 x 250 Watts @ 4 ohms
1 x 350 Watts @ 2 ohms
1 x 500 Watts @ 1 ohm
1 x 1000 Watts @ 2 ohms Bridged (Strapped)

Remote Level Control
Included

Performance
Frequency Response (+/- 1 dB): 10 Hz – 190 Hz
Signal-to-Noise Ratio: 94 dBa, Ref 400 Watts @ 4 ohms
Power / Ground Wire Gauge: 4 AWG
Recommended Fuse Rating: 80 Amps
Low Pass Filter: 12 dB/octave Linkwitz-Riley, 40 Hz to 180 Hz
Subsonic Filter: 12 dB/octave Linkwitz-Riley, Off to 50 Hz
EPIC Boost Frequency Center: 30 Hz to 80 Hz
EPIC Boost Gain: 0 to 12 dB
Speaker Terminal Wire Gauge: 8 AWG

Strapable: Yes
Epicenter Link: Yes

In the Box
EPIC500
Wrench
Screws
ACR-E Remote Level Control and Cable
The Epicenter Link (1m Harness)
Manual

UPC: 810194210099

Dimensions
6.1″ W x 5.9″ L x 2.01″ H

SKU: AC-EPIC500
UPC: 810194210099
